Precision farming on Dutch arable farms: status, challenges and outlook Corn Kempenaar Farminar on Smart Soil Improvement; July 8, 2020 Development of agriculture 12.000 years of agriculture First revolution (10.000 BC) start of

slide-1
SLIDE 1

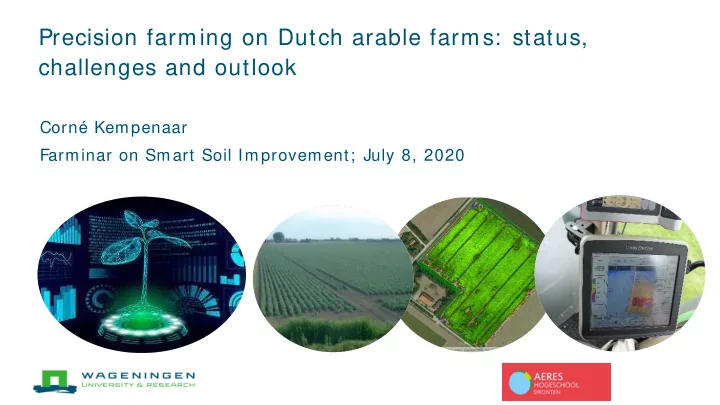

Precision farming on Dutch arable farms: status, challenges and outlook

Corné Kempenaar Farminar on Smart Soil Improvement; July 8, 2020

slide-2
SLIDE 2

Development of agriculture

  • 12.000 years of agriculture
  • First revolution (10.000 BC) start of cultivation of crop plants on land
  • Arab (800-1300) and British (1750-1900) agricultural revolutions
  • Third or Green revolution (1930-1960)
  • Fourth revolution
  • Precision agriculture/ farming (first mentioned around 1990)
  • Continuum to smart farming/ digital farming/ pixel farming/

data driven farming/ .......

3

slide-3
SLIDE 3

Dutch AgriFood Statistics and agricultural sectors

4

Trade AgriFood Tech

Market share Businesses Tech export AgriFood Turn over Turn over

slide-4
SLIDE 4

Precision Agriculture / Smart Farming / Digital farming / Pixal Farming .....

  • A farm management concept based on measuring and responding to

temporal and spatial variability in crops, livestock and the environment

  • Sensing -> decision making -> implementation
  • Operational, tactical, strategical operations
  • Focus on Variable Rate ( operational)
  • Many enabling technologies (IoT) are available:
  • Sensors, computers, DSS, FMIS, GIS, GNSS, satellite data, robotics,

.....

  • Expected benefits (in short): More with Less & Better
slide-5
SLIDE 5

Requirements for precision farming

  • Farm management information system
  • GNSS on the farm
  • Data: soil, crop and yield variability maps
  • Access to other data at farm level: soil, climate, pests, ...
  • Decision support
  • Machines prepared for VRA

6

slide-6
SLIDE 6

Technology adoption by Dutch farmers with interest in PA

7 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 1980 1983 1988 1993 1998 2001 2003 2005 2008 2009 2012 2013 2014 2016 2018 2019 2020

ICT and DSS on Dutch farms

Computer

  • Dig. crop recording

DSS Smartphone/Tablet 0% 10% 20% 30% 40% 50% 60% 1995 2000 2005 2010 2015 2020

Sensing on Dutch farms

Soil sensors Climate sensors Biomass (proximal) Biomass (satelite) Biomass (drone) Soil scan Weed detection Yield sensors Quality sensors (NIR)

slide-7
SLIDE 7

Soil sensors systems for mapping of soil properties

slide-8
SLIDE 8

Crop biomass data from light reflection sensor systems, delivering crop biomass maps

slide-9
SLIDE 9

Satellite image of potato crop (NDVI biomass map)

slide-10
SLIDE 10

11

slide-11
SLIDE 11

Akkerweb data platform (www.akkerweb.eu)

  • Apps for
  • VRA Potato haulm killing
  • VRA soil herbicides
  • Topdress N
  • Blight
  • GAOS
  • Grip on Grass
  • Nematode management
  • VRA planting density
  • And more .......
slide-12
SLIDE 12

Potato production cycle:

slide-13
SLIDE 13

Where is the PA / DF business case in potato?

  • 2. More

precise crop Management Total: 1900 €/ ha

  • 3. Less labour and

advisory costs

Quantitative I nform ation French Fries Potato Production in Flevoland, NL, clay soil ( Source: KW I N of W UR, 2 0 1 5 )

1.Closing the yield gap, still ca. 40%

  • 4. Others

Benefit ( q* p) ( a) Variable costs ( b) Gross Margin ( c= a-b)

slide-14
SLIDE 14

Variable rate application soil herbicide

slide-15
SLIDE 15

Where is the PA / DF business case in potato for VRA Herbicide use

Quantitative I nform ation French Fries Potato Production in Flevoland, NL, clay soil ( Source: KW I N of W UR, 2 0 1 5 )

Benefit ( q* p) ( a) Variable costs ( b) Gross Margin ( c= a-b)

slide-16
SLIDE 16

Variable rate Topdress N-application on Potato field

slide-17
SLIDE 17

Timing and variable rate application of fungicides against Blight in potato

slide-18
SLIDE 18

Summary precision ag. applications in potato

  • In potato most crop management activities can be done variable rate at a

scale of 30-50 m 2

  • Savings on input are in order of 25 % compared to common practice
  • Yield increase up to 5%
  • Cost benefit ration becomes interesting when farm size is over 100 ha of

potatoes

slide-19
SLIDE 19

National Fieldlab Precision Agriculture (NPPL)

The project will run 4 years (20218 – 2021) The project is initiated by Misset and WUR. Financial resources are mainly from Ministry of Agriculture (LNV). NPPL aims to achieve “more sustainable agriculture” by stimulation of adoption

  • f Precision Agriculture applications.
slide-20
SLIDE 20

NPPL applications 2018

VRA lime application Nematode management VRA soil herbicide VRA leaf dessicant VRA planting density VRA Topdress N

slide-21
SLIDE 21

22

NPPL applications 2018

Weed detection and selective control VRA fungicides in potatoes and flowerbulbs Route planning Precision irrigation Detection and protection birds in grassland Precision fertilizer use grassland

slide-22
SLIDE 22

NPPL applications 2020

Precision seeding in healthy soil Precision crop protection orchard Yield monitoring Precision irrigation (2) Robot applications Strip farming

slide-23
SLIDE 23

Dashboards like Farmmaps (Akkerweb 3.0) met widgets

slide-24
SLIDE 24

Dynamics growth, N and H2O in Akkerweb/ Farmmaps

slide-25
SLIDE 25

Thank you for your attention

www.precisielandbouw.eu http: / / precisielandbouw-openteelten.nl/ www.proeftuinprecisielandbouw.nl www.farmofthefuture.nl www.iof2020.eu, www.smartagrihubs.eu Email1: corne.kempenaar@wur.nl Email2: c.kempenaar@aeres.nl Tel.: + 31654954413 Skype: corne.kempenaar
