Power Grid Impacts Resulting From Unintentional Demand Response J EFF D AGLE , PE Chief Electrical Engineer, Advanced Power Systems Pacific Northwest National Laboratory TCIPG Seminar Series on Technologies for a Resilient Power Grid February


slide-1

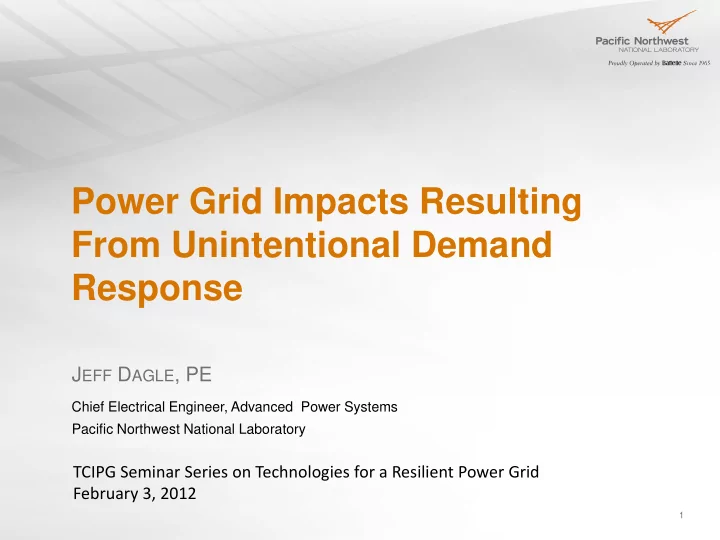

SLIDE 1

1

Power Grid Impacts Resulting From Unintentional Demand Response

JEFF DAGLE, PE

Chief Electrical Engineer, Advanced Power Systems Pacific Northwest National Laboratory

TCIPG Seminar Series on Technologies for a Resilient Power Grid February 3, 2012

slide-2
SLIDE 2

2

We deliver solutions to America's most intractable problems in energy, national security and the environment. Through the power of

  • ur interdisciplinary

teams, we advance science and technology to make the world a better place. Operated by Battelle since 1965 More than 4,000 staff Unique capabilities and facilities Mission-driven collaborations with government, industry and universities

Pacific Northwest National Laboratory

A Department of Energy interdisciplinary national lab

Washington, D.C.

slide-3
SLIDE 3

Energy Mission Business Area: Electricity Infrastructure

Electric power systems expertise Research and development of tools for enhancing electric power system reliability, security, and

  • perational effectiveness

Electricity Infrastructure Operations Center (EIOC), a national research test bed Real-time wide-area situational awareness of the electric grid through an integrated measurement system Analysis of large-scale renewable integration to the existing grid Advanced information, networking, and cyber security for reliability management services

February 3, 2012 3

slide-4
SLIDE 4

Outline

Setting the context: power grid operational issues Setting the context: cyber security and the smart(er) grid Analyzing the power grid impacts resulting from unintentional demand response Recommendations and conclusions

4 February 3, 2012

slide-5
SLIDE 5

Acknowledgements

PNNL Colleagues (who did the work)

Harold Kirkham Marcelo Elizondo Shuai Lu

DOE Sponsors (who made it possibe)

Hank Kenchington Carol Hawk

5 February 3, 2012

slide-6
SLIDE 6

Top 20 Engineering Achievements of the 20th Century

According to the National Academy of Engineering, in their book “A Century of Innovation”

  • 11. Highways
  • 12. Spacecraft
  • 13. Internet
  • 14. Imaging
  • 15. Household Appliances
  • 16. Health Technologies
  • 17. Petroleum and Petrochemical

Technologies

  • 18. Laser and Fiber Optics
  • 19. Nuclear Technologies
  • 20. High-performance Materials

1. Electrification 2. Automobile 3. Airplane 4. Water Supply and Distribution 5. Electronics 6. Radio and Television 7. Agricultural Mechanization 8. Computers 9. Telephone

  • 10. Air Conditioning and

Refrigeration

6 February 3, 2012

slide-7
SLIDE 7

The North American Electric Power Grid

The biggest machine!

7 February 3, 2012

slide-8
SLIDE 8

Elements of Basic Control Strategy

Centralized Control Center

Energy Management System (EMS) Telemetry through supervisory control and data acquisition (SCADA) Monitor flows and observe system limits Balance generation and demand (dispatching) Coordinate maintenance activities, emergency response functions

Localized Controls (Power Plants, Substations)

Feedback controls (e.g., governors, voltage regulators) Protection (e.g., protective relays, circuit breakers)

Key Priorities:

  • 1. Safety
  • 2. Protect equipment from damage
  • 3. Reliability
  • 4. Economics

8 February 3, 2012

slide-9
SLIDE 9

Frequency Regulation – An Excellent Example

  • f Hybrid Centralized and Distributed Control

56 57 58 59 60 61 62 63 64 Frequency 59.95 59.96 59.97 59.98 59.99 60.00 60.01 60.02 60.03 60.04 60.05 Frequency Equipment Damage Equipment Damage Underfrequency Generator Trip Overfrequency Generator Trip Underfrequency Load Shedding Governor Response Governor Response Contingency Response Normal Conditions Normal Frequency Deviation Regulated by Automatic Generation Control (AGC) Time Error Correction Time Error Correction

9 February 3, 2012

slide-10
SLIDE 10

Basic Reliability Approach

“The interconnected power system shall be operated at all times so that general system instability, uncontrolled separation, cascading outages, or voltage collapse will not

  • ccur as a result of any single contingency or multiple

contingencies of sufficiently high likelihood.”

WECC Minimum Operating Reliability Criteria

Otherwise known as “N-1” Achieved by:

Generation having sufficient operating reserve, spinning reserve Strict adherence to transfer capacity limits on the transmission grid

Determined through comprehensive planning studies

Operations discipline, detailed procedures, coordination When all else fails, rely on emergency controls to limit cascading failure (e.g., under frequency load shedding) If blackout occurs, implement restoration plans (e.g., “Black Start”)

10 February 3, 2012

slide-11
SLIDE 11

Historical Perspectives on Stability

Early stability problems associated with large power plants separated from metropolitan load centers

Papers on this topic published as early as 1920

Complexity of stability problems increased as systems became interconnected, particularly through 1960s As some stability problems were solved with advanced technology,

  • thers were introduced

Example: fast-acting excitation to solve transient stability issues resulted in greater oscillatory instability

Computational capability through 1970s-1980s greatly aided ability to study and analyze complex stability problems

Control theory, analytical tools, transient stability software

Large-scale remedial action and special protection schemes introduced to increase interregional power transfer capabilities Introduction of wide area time synchronized measurements beginning in 1980s leading to better situational awareness capabilities

11 February 3, 2012

slide-12
SLIDE 12

North American SynchroPhasor Initiative

DOE and NERC are working together closely with industry to enable wide area time-synchronized measurements that will enhance the reliability of the electric power grid through improved situational awareness and other applications “Better information supports better - and faster - decisions.”

12 February 3, 2012

slide-13
SLIDE 13

Smart Grid Defined

A smart grid uses digital technology to improve reliability, security, and efficiency of the electric system: from large generation, through the delivery systems to electricity consumers and a growing number of distributed-generation and storage resources. The information networks that are transforming

  • ur economy in other areas are also being

applied to applications for dynamic optimization of electric system operations, maintenance, and planning.

13 February 3, 2012

slide-14
SLIDE 14

Smart Grid Vision

Demand-side resources participate with distribution equipment in system operation

Consumers engage to mitigate peak demand and price spikes More throughput with existing assets reduces need for new assets Enhances reliability by reducing disturbance impacts, local resources self-organize in response to contingencies Provide demand-side ancillary services – supports wind integration

The transmission and bulk generation resources get smarter too

Improve the timeliness, quality, and geographic scope of the operators’ situational awareness and control Better coordinate generation, balancing, reliability, and emergencies Utilize high-performance computing, sophisticated sensors, and advanced coordination strategies

Bring digital intelligence & real-time communications to transform grid operations

14 February 3, 2012

slide-15
SLIDE 15

Smart Grid Cyber Security

The same information and communication technologies that enhance the resilience of the power system may also present a new set of vulnerabilities relating to communications and information technologies associated with the control layer of the physical infrastructure If there are common modes of failure present in these control layers, there will necessarily be challenges to achieving full degrees of resilience in future smart grid deployments Because smart grid technologies transcend the scope of the FERC/NERC jurisdiction associated with the bulk electricity system, cannot rely on existing mandatory cyber security standards and requirements

15 February 3, 2012

slide-16
SLIDE 16

Cyber Security of ARRA Activities are Critical to Smart Grid Success

Organized interagency group (DOE, NIST, FERC, DHS, others) for development of cyber security requirements in the funding

  • pportunity announcement (FOA)

Cyber security was a factor in evaluating the grant proposals Cyber security plans were required, and evaluated by a team of subject matter experts Site visits underway with all smart grid investment grant recipients to review cyber security plan implementation

“DOE may not make an award to an

  • therwise meritorious

application if that application cannot provide reasonable assurance that their approach to cyber security will prevent broad based systemic failures in the electric grid in the event of a cyber security breach.”

Smart Grid FOA

16 February 3, 2012

slide-17
SLIDE 17

17

www.ARRASmartGridCyber.net

Provide a resource enabling Smart Grid Investment Grant and Demonstration Projects to understand the baseline principles and practices necessary to implement cyber security in the deployment of smart grid technologies

Final Interim Smart Grid Roadmap, prepared by the Electric Power Research Institute (EPRI) for the National Institute of Standards and Technology (NIST)

February 3, 2012

slide-18
SLIDE 18

18

Analyzing the Power Grid Impacts Resulting From Unintentional Demand Response

February 3, 2012

slide-19
SLIDE 19

Model of the Western Interconnection

WECC Summer Case

Buses 16,791 Branch Sections 14,524 Transformers 6,665 Generators 3,346 Loads 8,284 Shunts 1,279 Static VAR devices 973 DC buses 12 DC lines 9 DC converters 8 Areas 21 Zones 421 Owners 446 Generators 174,316 MW 23,517 MVAr Loads 168,255 MW 31,591 MVAr Losses 6,060 MW

19

Configuration of BPA's PPSM Network for the Chief Joseph brake test of Sept. 4, 1997

j f h

HVDC Terminal

S U N D A N C E F T . P E C K K E M A N O P E A C E C A N Y O N M I C A V A N C O U V E R S E A T T L E P R I N C E R U P E R T A R E A A R E A C O L S T R I P B O I S E P O R T L A N D A R E A M A L I N T A B L E M T N R O U N D M T N S A L T L A K E C I T Y A R E A M E X I C O E L P A S O A R E A P A L O D E V E R S L U G O S A N F R A N C I S C O A R E A M I D P O I N T L O S A N G E L E S A R E A A L B U Q U E R Q U E A R E A V E R D E N A V A J O D E N V E R A R E A M O J A V E H O O V E R P H O E N I X A R E A H O T S P R I N G S H E L L S C A N Y O N J O S E P H G R A N D B U R N S P I N T O C O U L E E S H A S T A W I L L I S T O N L A N G D O N C O R O N A D O D E L T A C H I E F M O N T R O S E L A N D I N G M O S S M I D W A Y

jfh

F O U R C O R N E R S

X

February 3, 2012

slide-20
SLIDE 20

Reality Check

Loss of major generator in WECC, actual and modeled

Signals offset for clarity

20 February 3, 2012

slide-21
SLIDE 21

Study Methodology

Analyze locational sensitivity of dropping load Find threshold at which power system stability is compromised Explore other means of creating stability impacts

Cyclic load manipulation to excite interarea modes of oscillation Trying to trick voltage controls

Repeat for a different WECC basecase (winter vs. summer)

21 February 3, 2012

slide-22
SLIDE 22

A n g l e 5 10 15 20 25 30 time (s)

Locational Sensitivity

Looking at the impact of the same amount of load shedding at various locations in the grid

Note that different electromechanical modes

  • f oscillation are excited in different regions

22 February 3, 2012

slide-23
SLIDE 23

5 10 15 20 25 30 35 40 A n g l e ( d e g ) time (s)

Threshold of Stability

Increasingly large amount of load shedding until system instability is

  • bserved

The total load shed (focused in one region) is > 1500 MW The difference between these two plots is 100 MW

23 February 3, 2012

slide-24
SLIDE 24

Cyclic Load Manipulation

Damping acceptable, no long-term effect observed

24

Effect of 300MW cyclic stimulus on inter-regional power transfer, tuned for maximum effect

Note: 300 MW is the threshold for NERC CIP requirements

February 3, 2012

slide-25
SLIDE 25

Voltage Collapse Analysis

WECC Disturbance Performance Standard on Bus Voltages

25

b u s v

  • l

t a g e m a g n i t u d e time 10 s maximum transient voltage dip 20% voltage dip time of voltage dip exceeding 20% (presumed to be 1 p.u.) fault occurs fault cleared initial voltage

February 3, 2012

slide-26
SLIDE 26

Voltage Scenario Results

26

Voltage profile following simulated drop/restore sequence Under-voltage relay timers start, but do not cause trip Shed load, allow voltage controls to re-stabilize at a new equilibrium, then restore the load Focused in an area known to have voltage stability concerns

February 3, 2012

slide-27
SLIDE 27

Analysis Repeated for Winter Case

General observation: significant differences from the summer case because of the different loading profiles, generally found to be more sensitive to uncommanded load shedding in different regions

The total load shed (focused in one region) is > 1000 MW The difference between these two plots is 100 MW

27

A n g l e ( d e g r e e s )

5 10 15

time (s)

February 3, 2012

slide-28
SLIDE 28

Recommendations

Now that it is becoming possible for large amounts of load to be simultaneously manipulated, it is important for utilities to consider this as a “credible contingency” in the context of planning and operational contingency analysis Measures should be taken to limit the amount of load that can be controlled from a single point of access (need segmentation, isolation)

This threshold needs to be designed through comprehensive contingency analysis studies Envisioned to be uniquely specific for various regions and/or system conditions

Cyber security measures to prevent malicious (or accidental) triggering of unintended load changes remains of paramount importance

Although our study indicated that the grid is relatively resilient to this method of attack

28 February 3, 2012

slide-29
SLIDE 29

Concluding Remarks

The power grid is exceptionally complex, and extraordinarily reliable

Most customer outages are due to issues with radial distribution feeders

  • vs. the networked transmission grid

Hierarchal control strategy provides good tradeoff between reliability and efficiency Blackouts provide good opportunity to study and apply lessons learned to further enhance reliability As advanced technology is being considered for deployment, need to consider unintended consequences (e.g., cyber security) Robustness and resiliency are enhanced by considering all threats to the power system

An “all-hazards” approach

Historically little attention has been given to addressing multiple contingency scenarios

Need to consider cost-effective risk mitigation solutions

29 February 3, 2012

slide-30
SLIDE 30

A Final Word on Resilient Infrastructure

Resilience is the ability to reduce the magnitude and/or duration of disruptive events A resilient infrastructure can anticipate, absorb, adapt to, and/or rapidly recover from a disruptive event It is best when all-hazard “disruptive events” include the unenvisioned It is also important to be imaginative when considering possibilities

30 February 3, 2012

While our study concluded that the impact of unintended demand response was easier to cope with (from a grid stability standpoint) than unanticipated loss of generation, there nevertheless remains a need to be vigilant to prevent this technology from becoming an exploitable vulnerability in the future.
