Potential Flow Lecture 5 ME EN 412 Andrew Ning aning@byu.edu - - PDF document
Potential Flow Lecture 5 ME EN 412 Andrew Ning aning@byu.edu - - PDF document

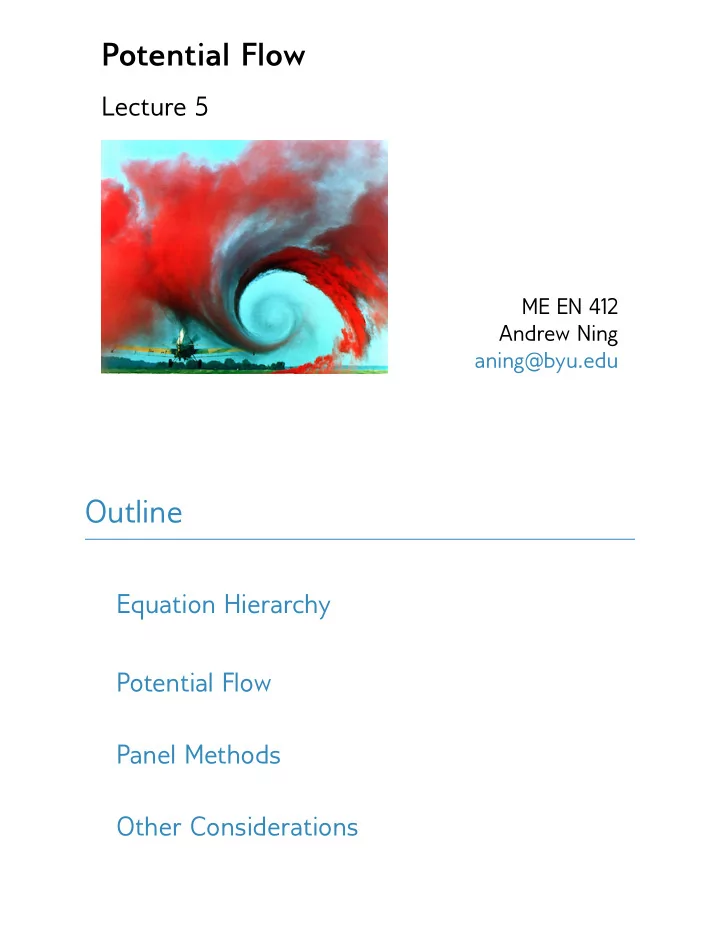

Potential Flow Lecture 5 ME EN 412 Andrew Ning aning@byu.edu Outline Equation Hierarchy Potential Flow Panel Methods Other Considerations Equation Hierarchy Equation Hierarchy When is an inviscid flow assumption valid? Video: flow over
SLIDE 2
SLIDE 3
When is an inviscid flow assumption valid? Video: flow over a car
Potential Flow
SLIDE 4
Incompressible: ∇ · V = 0 Irrotational: ∇ × V = 0
SLIDE 5
∇2φ = 0
Velocity Field
- V = ∇φ
⇒ Vx = ∂φ ∂x, Vy = ∂φ ∂y , Vz = ∂φ ∂z
SLIDE 6
Uniform Flow
φ = U cos αx + U sin αy ψ = −U sin αx+U cos αy Vx = U cos α Vy = U sin α
Source/Sink
φ = Λ 2π ln r ψ = Λ 2πθ Vr = Λ 2πr Vθ = 0
SLIDE 7
