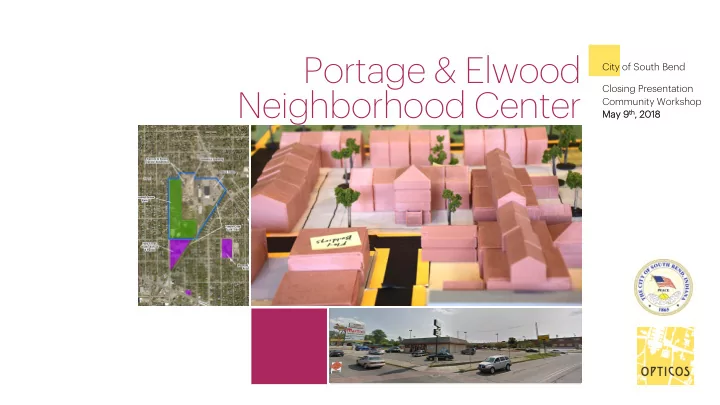

Portage & Elwood Neighborhood Center

City of South Bend Closing Presentation Community Workshop Ma May 9th

th,

, 20 2018

Portage and Elwood Neighborhood Center Vision I Closing Presentation 2 of XX 55

Illustrate and Test Design Alternatives

Portage and Elwood Neighborhood Center Vision I Closing Presentation 3 of XX 55

What’s Inside

01

Summary of Big Ideas

02

Next Steps Q&A 03

Portage and Elwood Neighborhood Center Vision I Closing Presentation 4 of XX 55

Big Ideas

Summary of Our Thoughts from the Week

Portage and Elwood Neighborhood Center Vision I Closing Presentation 5 of XX 55

Guiding Framework

Elwood Vassar

Portage and Elwood Neighborhood Center Vision I Closing Presentation 6 of XX 55

Stre Strengthe ngthen the types and quality

• f servi

services and am ces and ameni eniti ties es within

the neighborhood center for existing residents and broader customer base

Portage and Elwood Neighborhood Center Vision I Closing Presentation 7 of XX 55

Maintain and improve grocery store and hardware store

A larger hardware store is viable: 5-10,000sf Smaller but better grocer is viable: 12-20,000sf

Grocery Hardware CVS

Portage and Elwood Neighborhood Center Vision I Closing Presentation 8 of XX 55

Convert additional space into business incubator space/market hall

Small food business incubators along outer edges Inexpensive 400-800 square foot artist/maker spaces

• Est. $300/month rent

Business Incubators Business Incubators

Portage and Elwood Neighborhood Center Vision I Closing Presentation 9 of XX 55

Introduce a promenade from Portage

Drawing people in from Portage Food trucks Simple lighting Lots of seating

Market

Portage and Elwood Neighborhood Center Vision I Closing Presentation 10 of XX 55

Introduce a promenade from Portage

Market

Portage and Elwood Neighborhood Center Vision I Closing Presentation 11 of XX 55

Introduce a promenade from street

Portage and Elwood Neighborhood Center Vision I Closing Presentation 12 of XX 55

Introduce a promenade from street

Portage and Elwood Neighborhood Center Vision I Closing Presentation 13 of XX 55

Target other spaces in the parking lot to activate with Tactical Program

Small, inexpensive business incubators Strategy: “Fill the gaps”

Portage and Elwood Neighborhood Center Vision I Closing Presentation 14 of XX 55

Integrate services provided by local institutions

Holy Cross College Holy Cross Parish Notre Dame

Portage and Elwood Neighborhood Center Vision I Closing Presentation 15 of XX 55

Integrate better/safer

pedest pedestri rian co an connect nnections ns to the

site

Portage and Elwood Neighborhood Center Vision I Closing Presentation 16 of XX 55

Integrate sidewalks leading into the site

Easy first step

Portage and Elwood Neighborhood Center Vision I Closing Presentation 17 of XX 55

Introduce a new network of pedestrian- friendly streets through site

Formalizing and improving current routes

Portage and Elwood Neighborhood Center Vision I Closing Presentation 18 of XX 55

Reinforce the Coal Line Trail connection

Create connection from trail to retail plaza Orient some buildings along coal line trail

Portage and Elwood Neighborhood Center Vision I Closing Presentation 19 of XX 55

Create stro

strong co ng connecti nnections ns

between the Drewrys site and retail plaza site

Portage and Elwood Neighborhood Center Vision I Closing Presentation 20 of XX 55

Introduce a new street

Providing a strong physical connection between the two site

CVS Drewrys Market

Portage and Elwood Neighborhood Center Vision I Closing Presentation 21 of XX 55

Introduce a new street connecting the two areas

New micro maker spaces Connecting two sites Breaking Through existing mall to introduce new, shared street Opening existing space onto new street New building at brewery site terminating view

Portage and Elwood Neighborhood Center Vision I Closing Presentation 22 of XX 55

Psychological: Shared branding

?

Portage and Elw

Portage and Elwood Neighborhood Center Vision I Closing Presentation 23 of XX 55

Stre Strengthe ngthen id identity tity/shift the

perception of the area

Portage and Elwood Neighborhood Center Vision I Closing Presentation 24 of XX 55

Start with street design improvements along Portage: Extend lighting

Extend lighting Improve frontages

Portage and Elwood Neighborhood Center Vision I Closing Presentation 25 of XX 55

Start with street design improvements along Portage: Extend lighting

Portage and Elwood Neighborhood Center Vision I Closing Presentation 26 of XX 55

Start with street design improvements along Portage: Extend lighting

After perspective Transition slide

Portage and Elwood Neighborhood Center Vision I Closing Presentation 27 of XX 55

Integrate murals throughout the area

Utilize large blank walls as a canvas Murals create by local artists or organizations

Portage and Elwood Neighborhood Center Vision I Closing Presentation 28 of XX 55

Integrate murals throughout the area

Blank walls as a canvas Create by local artists

Portage and Elwood Neighborhood Center Vision I Closing Presentation 29 of XX 55

Rebrand the area

Give it a name Palette of materials Colors Etc.

Portage and Elwood Neighborhood Center Vision I Closing Presentation 30 of XX 55

Reinforce a unique, funky, warehouse district feeling

Portage and Elwood Neighborhood Center Vision I Closing Presentation 31 of XX 55

Provide

af affordable rdable spaces to spaces to i incu ncubate bate

local businesses and artists

Portage and Elwood Neighborhood Center Vision I Closing Presentation 32 of XX 55

Spaces from reuse of existing buildings

Rents likely starting at about $300/month 400sf-800sf Creative build out

Artists at Work

Images Courtesy of Monte Anderson

DeSoto Market Place

Portage and Elwood Neighborhood Center Vision I Closing Presentation 33 of XX 55

Newly constructed flex/maker spaces

Rents likely starting at about $300/month 500-1,500sf simple one story structures. $75sf construction. CMU walls, Glue lam roof structure, metal roof Ductless split HVAC system Bathroom in the corner Roll up garage door

Design by Principle Maker Loft: 750 sf Micro Maker: 500sf

Portage and Elwood Neighborhood Center Vision I Closing Presentation 34 of XX 55

Economically Viable: Proforma Tested

Summary

Micro Maker Maker Box Maker Loft Maker Apartment DIY Living Quonset Hut Made-It Maker Loading Bar Unit Size (SF) 500 750 750 750 1,250 750 11,250 7,000 Land Cost $3,000 $3,750 $3,750 $3,750 $7,500 $3,750 $45,000 $45,000 Construction Cost $32,500 $48,750 $73,125 $97,500 $187,500 $48,750 $787,500 $490,000 Sale Price $60,900 $83,300 $116,375 $149,250 $295,000 $83,500 $1,212,500 $928,000 Mortgage $310 $420 $590 $760 $1,490 $420 $6,140 $4,700 Rent $480 $660 $930 $1,200 $2,320 $660 $9,610 $7,250

Portage and Elwood Neighborhood Center Vision I Closing Presentation 35 of XX 55

Act Activat vate t e the park he park

and make it safer

Portage and Elwood Neighborhood Center Vision I Closing Presentation 36 of XX 55

Bring Park Space Into Site

Due to existing conditions: Location of historic pond Exchange park area on south end with central park space Equal amount of space Plan does not hinge upon this idea

Portage and Elwood Neighborhood Center Vision I Closing Presentation 37 of XX 55

Integrate a tree-lined, pedestrian-

• riented street along the edge

Provides passive

• bservation/security

Portage and Elwood Neighborhood Center Vision I Closing Presentation 38 of XX 55

Portage and Elwood Neighborhood Center Vision I Closing Presentation 39 of XX 55

Program the Park

Playing fields: South Bend Cubs Dog park Splash park, bigger play area, etc. Natural habitat: educational component Bees and butterflies

Portage and Elwood Neighborhood Center Vision I Closing Presentation 40 of XX 55

Enable the Drewrys site to evolve into a

un unique ue creative district that

reinforces its industrial history

Portage and Elwood Neighborhood Center Vision I Closing Presentation 41 of XX 55

Creative Adaptive Reuse and New Buildings

Next generations industrial uses Low impact Few large trucks

Portage and Elwood Neighborhood Center Vision I Closing Presentation 42 of XX 55

Seemlessly Integrated into Community

Engaging Elwood Streets connecting through site into neighborhoods Orientation of buildings are outward at edges

Portage and Elwood Neighborhood Center Vision I Closing Presentation 43 of XX 55

Seemlessly Integrated into Community

Engaging Elwood Streets connecting through site into neighborhoods Orientation of buildings are outward at edges

Portage and Elwood Neighborhood Center Vision I Closing Presentation 44 of XX 55

Introduce a variety of high-quality hou

housi sing ng choices

at southern end of project area

Portage and Elwood Neighborhood Center Vision I Closing Presentation 45 of XX 55

Missing Middle Housing

Consider a new range of housing. Missing Middle is a range of multi-unit or clustered housing types compatible in scale with single-family homes that help meet the growing demand for walkable urban living.

Portage and Elwood Neighborhood Center Vision I Closing Presentation 46 of XX 55

Variety of Choices and Types

Portage and Elwood Neighborhood Center Vision I Closing Presentation 47 of XX 55

Variety of Scales

Portage and Elwood Neighborhood Center Vision I Closing Presentation 48 of XX 55

Next Steps

Keeping the momentum moving forward

Portage and Elwood Neighborhood Center Vision I Closing Presentation 49 of XX 55

Next Steps

City and Opticos Team:

• Refine framework plan and document the ideas

generated at this workshop. Retail Plaza:

• Continue to engage and develop a relationship

with new property owner.

• Discuss ideas for activation and place making

within the parking lot to promote the center.

Portage and Elwood Neighborhood Center Vision I Closing Presentation 50 of XX 55

Next Steps

Drewrys:

• Continue to work with the property
• wner to follow through with their

responsibility to clean up the site.

• Continue the conversation with

recently hired Drewrys development team to ensure principles developed in the workshop are considered within their business plan

Portage and Elwood Neighborhood Center Vision I Closing Presentation 51 of XX 55

Next Steps

AEP:

• Work with AEP to develop a

neighborhood appropriate edge to Elwood that screens substation infrastructure.

• Coordinate with AEP to improve the

sidewalk infrastructure along Elwood as part of the installation of new transmission lines.

Portage and Elwood Neighborhood Center Vision I Closing Presentation 52 of XX 55

Next Steps

Infrastructure:

• Portage Avenue and Elwood Streetscape

Improvements including new side walks, lighting and intersection upgrades.

• Continue to work with landowners adjacent to

the Coal Line Trail to promote connectivity to the trail network.

• Finalize design and engineering of Coal Line

Trail which is expected to be bid in late 2019

Portage and Elwood Neighborhood Center Vision I Closing Presentation 53 of XX 55

Q&A

For more information, visit: www.southbendin.gov/PortageElwood
