SLIDE 1

Lucent Technologies – Proprietary Use pursuant to company instruction 1

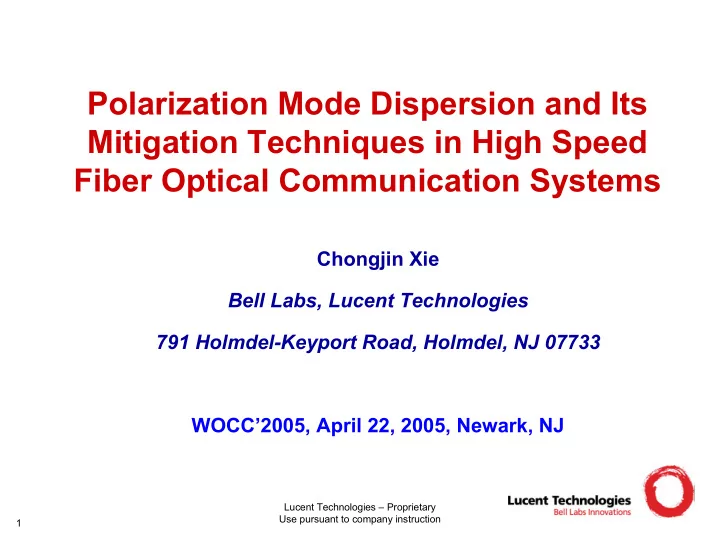

Polarization Mode Dispersion and Its Mitigation Techniques in High Speed Fiber Optical Communication Systems

Chongjin Xie Bell Labs, Lucent Technologies 791 Holmdel-Keyport Road, Holmdel, NJ 07733 WOCC’2005, April 22, 2005, Newark, NJ

SLIDE 2

Lucent Technologies Proprietary, Use pursuant to company instruction 2

C. Xie, WOCC’2005

Outline

PMD basics PMD impairments Passive PMD mitigation techniques Electrical equalization for PMD mitigation Optical PMD compensation Multi-channel PMDC for WDM systems

SLIDE 3

Lucent Technologies Proprietary, Use pursuant to company instruction 3

C. Xie, WOCC’2005

State of Polarization

The polarization state of a wave describes how the electrical field oscillates.

Circular or elliptical SOP for arbitray phase between field components

[ ]

T j y j x

e A e A E

2 2 φ φ −

= r

Jones vector

              − + =             ≡ φ φ sin 2 cos 2

2 2 2 2 3 2 1 y x y x y x y x

A A A A A A A A S S S S S r

Stokes vector

Poincaré sphere

Linear SOP for in-phase field components

SLIDE 4

Lucent Technologies Proprietary, Use pursuant to company instruction 4

C. Xie, WOCC’2005

Birefringence —1st-order PMD

Time domain manifestation

DGD ~ L

S1 S2 S3

τ r

ut

S r

Frequency domain manifestation

SLIDE 5

Lucent Technologies Proprietary, Use pursuant to company instruction 5

C. Xie, WOCC’2005

Random Birefringence in Fibers—All-Order PMD

Concatenation of random birefringent sections

Output SOP

DGD ~ L1/2

SLIDE 6

Lucent Technologies Proprietary, Use pursuant to company instruction 6

C. Xie, WOCC’2005

Principal States of Polarization (PSP)

Two special polarization states at the fiber input: Output pulse is not distorted to 1st-order Differential group delay (DGD): DGD = ∆τ PMD vector:

p ˆ τ ∆ = τ r

1 : | 1 : | ; 2 ; 2 Fast PSP p de Slo lay w PSP p delay

−〉

〉 = = τ − ∆  τ + ∆ − τ τ  −    

In

∆τ

Out

SLIDE 7

Lucent Technologies Proprietary, Use pursuant to company instruction 7

C. Xie, WOCC’2005

PMD Drift and Variation

DGD has Maxwellian distribution

0.06 20 40

M easurem ent S im ulation Theory

m

egaE coc2.ep

∆τ (ps)

Probability Density (ps-1)

M. Karlsson et. al., JLT, vol 18, p. 941, 2000
H. Kogelnik et. al., OFC’02, WD
PMD varies with wavelength and drifts with time
Drift speed was observed to have a large range
Hours and days for buried fibers and undersea cables
millisecond or faster for aerial fibers and fibers under bridges

SLIDE 8

Lucent Technologies Proprietary, Use pursuant to company instruction 8

C. Xie, WOCC’2005

PMD basics PMD impairments Passive PMD mitigation techniques Electrical equalization for PMD mitigation Optical PMD compensation Multi-channel PMDC for WDM systems

SLIDE 9

Lucent Technologies Proprietary, Use pursuant to company instruction 9

C. Xie, WOCC’2005

PMD Induced Eye-Diagram Degradation

0 ps 40 ps 60 ps RZ NRZ

PMD induced pulse splitting and broadening causes ISI, which will degrade system performance.

Eye-diagram degradation of 10 Gb/s RZ and NRZ signals caused by 1st –order PMD in worst case

SLIDE 10

Lucent Technologies Proprietary, Use pursuant to company instruction 10

C. Xie, WOCC’2005

System Penalty due to 1st-order PMD

For penalty less than 2 dB, 1st-order PMD can be approximated as ε (dB) ≈ Α (∆τ / 2T ) 2 sin2 Θ (C. D. Poole et al., IEEE PTL., vol. 3, p. 68,1991.)

1 2 3 4 5 0.5 1.0

NRZ DGD 30 ps NRZ DGD 40 ps NRZ DGD 50 ps RZ DGD 40 ps RZ DGD 50 ps RZ DGD 60 ps 10 Gb/s Optically Preamplified Rx

Fraction of Power in Leading Pulse (γ) 1x10-9 Receiver Penalty (dB)

C.H.Kim et al, OFC 2002, TuI4

SLIDE 11

Lucent Technologies Proprietary, Use pursuant to company instruction 11

C. Xie, WOCC’2005

Outage Probabilities Induced by PMD

For any given system margin , there is a certain probability

that the PMD induced penalty exceeds the margin, the probability is called outage probability

Acceptable outage probabilities range between 10-4 to 10-8

SLIDE 12

Lucent Technologies Proprietary, Use pursuant to company instruction 12

C. Xie, WOCC’2005

PMD basics PMD impairments Passive PMD mitigation techniques

– Refer to the techniques that do not require dynamic adjustment

Electrical equalization for PMD mitigation Optical PMD compensation Multi-channel PMDC for WDM systems

SLIDE 13

Lucent Technologies Proprietary, Use pursuant to company instruction 13

C. Xie, WOCC’2005

Using PMD Robust Modulation Formats

R. M. Jopson et al,OFC’1999, paper WE3.

1 dB margin, BER = 10-12

C. Xie et al, OFC’2003, paper TuO1

SLIDE 14

Lucent Technologies Proprietary, Use pursuant to company instruction 14

C. Xie, WOCC’2005

Allocating More Margin to PMD

H. Sunnerud et al, IEEE PTL, vol. 13, p. 448, 2001
C. Xie et al, IEEE PTL, vol. 15, pp. 614, 2003.

SLIDE 15

Lucent Technologies Proprietary, Use pursuant to company instruction 15

C. Xie, WOCC’2005

Using FEC and Polarization Scrambling

X. Liu, et al, ECOC’04, PD paper

FEC alone or FEC with PS at Tx cannot efficiently mitigate PMD FEC together with fast distributed PS can effectively reduce PMD effects

SLIDE 16

Lucent Technologies Proprietary, Use pursuant to company instruction 16

C. Xie, WOCC’2005

PMD basics PMD impairments Passive PMD mitigation techniques Electrical equalization for PMD mitigation Optical PMD compensation Multi-channel PMDC for WDM systems

SLIDE 17

Lucent Technologies Proprietary, Use pursuant to company instruction 17

C. Xie, WOCC’2005

Electrical Equalizers for PMD Compensation

Electrical equalization advantages Low cost Small size Simultaneous mitigation of various ISI independent of its origin but not so effective due to… Lack of polarization information after detection Non-linear channel model Signal dependent noise High-speed signal processing Well-known concepts:

Transversal filter (FFE) Decision feed-back loop (DFE) Maximum Likelihood Sequence Estimation (MLSE)

SLIDE 18

Lucent Technologies Proprietary, Use pursuant to company instruction 18

C. Xie, WOCC’2005

Structure of Electrical Equalizer

Architecture of 10 Gb/s ISI mitigator with FFE and DFE

A. Dittrich et al, OFC’03, paper ThG5

SLIDE 19

Lucent Technologies Proprietary, Use pursuant to company instruction 19

C. Xie, WOCC’2005

Effectiveness of FFE and DFE

PMD penalty for an optically pre-amplified 10 Gb/s receiver with 1-tap DFE and 8-tap FFE (transversal filter) More effective in high penalty range

H. Bülow et al., Electron. Lett., vol. 36, p. 163, 2000.

SLIDE 20

Lucent Technologies Proprietary, Use pursuant to company instruction 20

C. Xie, WOCC’2005

Electrical Equalizer @ 40Gb/s

4(8) tap feed forward / T/2-spaced analog equalizer
No absolute Q value given
Increases DGD tolerance from 8ps to 12ps

(likely for optical duobinary)

H. Jiang et al, OFC’05, paper OWO2.

SLIDE 21

Lucent Technologies Proprietary, Use pursuant to company instruction 21

C. Xie, WOCC’2005

PMD basics PMD impairments Passive PMD mitigation techniques Electrical equalization for PMD mitigation Optical PMD compensation Multi-channel PMDC for WDM systems

SLIDE 22

Lucent Technologies Proprietary, Use pursuant to company instruction 22

C. Xie, WOCC’2005

Concept of Optical PMDC

The aim of optical PMDC is to construct a PMD vector that is

pposite to the PMD vector of the link

Due to existence of higher order PMD, this cannot be achieved

ver a wide bandwidth

In principle, more stage PMDC can achieve better performance

Transmissio n Link PMDC Tx Rx

f

Ω r

c

Ω r

PMD profile of transmission span (solid) and perfect optical PMDC (dashed, dotted)

R. Noé et al., JLT, vol. 17, p. 1602, 1999.

SLIDE 23

Lucent Technologies Proprietary, Use pursuant to company instruction 23

C. Xie, WOCC’2005

Structure of Optical PMDC

delay line PC delay line PC delay line PC DSP and Control algorithm Feedback signal generator

Compensation elements

– one or many stages, fixed or variable delay lines

Feedback signals

– DOP, RF spectrum, eye-monitoring, Q factor Summary see: J. Poirrier et al, OFC’02, WI3, C. Xie et al, IEEE PTL, vol. 17, p. 570, 2005.

Control algorithms

–Dithering method, or more efficient searching methods

SLIDE 24

Lucent Technologies Proprietary, Use pursuant to company instruction 24

C. Xie, WOCC’2005

Performance of One-Stage Optical PMDC

One-stage PMDC with fixed delay line One-stage PMDC with variable delay line

1 dB margin, BER = 10-12, RF spectrum signal as feedback control

C. Xie et al, IEEE PTL, vol. 15, p.1228, 2003.
C. Xie et al, IEEE PTL, vol. 15, p.1168, 2003

SLIDE 25

Lucent Technologies Proprietary, Use pursuant to company instruction 25

C. Xie, WOCC’2005

Effects of Feedback Signals on PMDC

NRZ RZ

1 dB margin, BER = 10-12 DOP1: without filter DOP2: with 0.8R optical filter RF1: weighted RF power RF2: 0.5R RF tone

C. Xie et al., OFC’04, paper WE4

SLIDE 26

Lucent Technologies Proprietary, Use pursuant to company instruction 26

C. Xie, WOCC’2005

PMD basics PMD impairments Passive PMD mitigation techniques Electrical equalization for PMD mitigation Optical PMD compensation Multi-channel PMDC for WDM systems

– To reduce system cost

SLIDE 27

Lucent Technologies Proprietary, Use pursuant to company instruction 27

C. Xie, WOCC’2005

Channel Switching to Mitigate PMD Effects

S. Särkimukka et al., JLT, vol. 20, p.368, 2002

SLIDE 28

Lucent Technologies Proprietary, Use pursuant to company instruction 28

C. Xie, WOCC’2005

Multi-Channel PMDC

R. Khosravani et al., IEEE PTL, vol. 13, pp. 1370, 2001

SLIDE 29

Lucent Technologies Proprietary, Use pursuant to company instruction 29

C. Xie, WOCC’2005

Multi-channel Shared PMDC for WDM Systems

DEMUX Switching Switching Receiver ends

PMDC PMDC

λ1,λ2,λ3, ..., λn Scheme of multi-channel shared PMDC Performance of the shared PMDC

C. Xie et al., OFC’03, paper TuO6

SLIDE 30

Lucent Technologies Proprietary, Use pursuant to company instruction 30

C. Xie, WOCC’2005

Terapulse Multi-Channel PMDC

SLIDE 31

Lucent Technologies Proprietary, Use pursuant to company instruction 31

C. Xie, WOCC’2005

PMD Limited Distances for 40 Gb/s Systems

PMD limited transmission distances for systems with different PMD tolerances. Assume component PMD of 0.5 ps per 100 km span. The values in the figure are average tolerable PMD

SLIDE 32

Lucent Technologies Proprietary, Use pursuant to company instruction 32

C. Xie, WOCC’2005

Summary

Due to its stochastic nature, PMD is considered to be one
f the main obstacles to the deployment of optical

communication systems with bit rates of 40 Gb/s and higher.

Many PMD mitigation techniques have been developed

and demonstrated in the past decade, some of them can significantly increase the system tolerance to PMD.

Finding cost effective PMDC solutions requires deep

understanding of PMD and customer needs.

Currently no PMD compensation technique can eliminate

PMD effects. In systems with large PMD, signal regeneration has to be used or the high PMD fibers have to be replaced with low PMD fibers (such as spun fibers).
