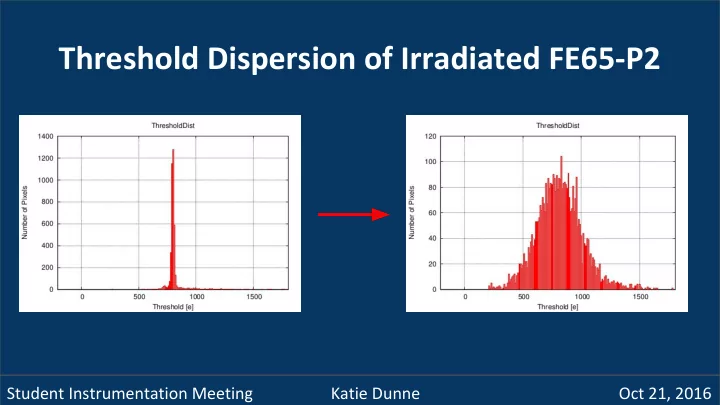

Threshold Dispersion of Irradiated FE65-P2 Student Instrumentation Meeting Katie Dunne Oct 21, 2016 88 Cyclotron Irradiation Dispersion [e] Student Instrumentation Meeting Katie Dunne 2 Dispersion vs. Temperature: Previous Data failed

Threshold Dispersion of Irradiated FE65-P2 Student Instrumentation Meeting Katie Dunne Oct 21, 2016
88” Cyclotron Irradiation Dispersion [e] Student Instrumentation Meeting Katie Dunne 2
Dispersion vs. Temperature: Previous Data failed s-curves leading to 0 value threshold for many pixels Student Instrumentation Meeting Katie Dunne 3
High Vcal Vcal range 55--450 Vcal range 55--850 Student Instrumentation Meeting Katie Dunne 4
Dispersion vs. Temperature: Room Temperature Tuning Student Instrumentation Meeting Katie Dunne 5
Dispersion vs. Temperature: 0°C Tuning Student Instrumentation Meeting Katie Dunne 6
Dispersion vs. Temperature Column Flavor 1 Student Instrumentation Meeting Katie Dunne 7
Rate of Dispersion: Column Flavor 1 Student Instrumentation Meeting Katie Dunne 8
Corrected Dispersion: Column Flavor 1 (No LCC) Disp cor [e] Dose [krad] Student Instrumentation Meeting Katie Dunne 9
Corrected Dispersion: Column Flavor 4 (RH + LCC) Disp cor [e] Dose [krad] Student Instrumentation Meeting Katie Dunne 11
150 Mrad Chip Irradiation: 0 krad (Tuning) Student Instrumentation Meeting Katie Dunne 12
150 Mrad Chip Irradiation: 1600 krad Student Instrumentation Meeting Katie Dunne 13
Next Steps ● Get rate of dispersion for the corrected data + error ● Apply method to Threshold Mean Shift and 350 Mrad data ● Compile results for ICHEP 2016 proceedings due Nov 11th Student Instrumentation Meeting Katie Dunne 14
