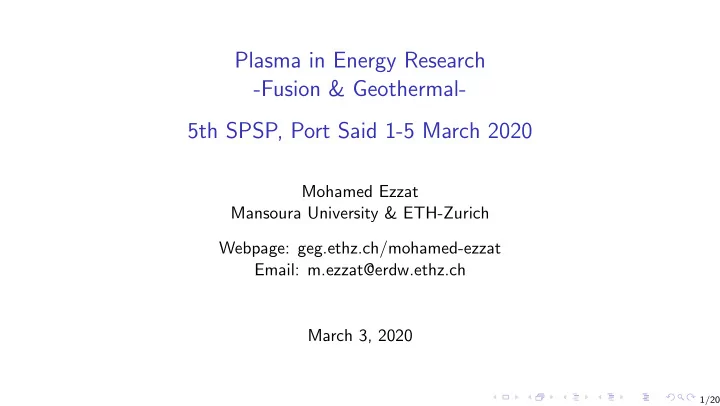

Plasma in Energy Research -Fusion & Geothermal- 5th SPSP, Port Said 1-5 March 2020 Mohamed Ezzat Mansoura University & ETH-Zurich Webpage: geg.ethz.ch/mohamed-ezzat Email: m.ezzat@erdw.ethz.ch March 3, 2020 1/20 Outline

slide-1
SLIDE 1

Plasma in Energy Research

  • Fusion & Geothermal-

5th SPSP, Port Said 1-5 March 2020

Mohamed Ezzat Mansoura University & ETH-Zurich Webpage: geg.ethz.ch/mohamed-ezzat Email: m.ezzat@erdw.ethz.ch March 3, 2020

1/20

slide-2
SLIDE 2

Outline

Introduction Fusion Energy Geothermal Energy Keep in mind

2/20

slide-3
SLIDE 3

Introduction - Speaker’s background

3/20

slide-4
SLIDE 4

Introduction - Energy policy

In the 19th century: ◮ Fossil fuels reservoirs capacity. ◮ Consumption rate.

4/20

slide-5
SLIDE 5

Introduction - Energy policy

In the 19th century: ◮ Fossil fuels reservoirs capacity. ◮ Consumption rate. In the 20th century: ◮ Nuclear accidents (e.g, Fukushima disaster,..). ◮ CO2 emission ⇒ climate change.

4/20

slide-6
SLIDE 6

Introduction - Energy policy

In the 19th century: ◮ Fossil fuels reservoirs capacity. ◮ Consumption rate. In the 20th century: ◮ Nuclear accidents (e.g, Fukushima disaster,..). ◮ CO2 emission ⇒ climate change. Therefore, the required energy resources need to be available -fuel and the technology, environmental -low CO2 emission, safe, and sustainable.

4/20

slide-7
SLIDE 7

Outline

Introduction Fusion Energy Geothermal Energy Keep in mind

5/20

slide-8
SLIDE 8

Fusion Energy

6/20

slide-9
SLIDE 9

Fusion Energy - Why?

7/20

slide-10
SLIDE 10

Fusion Energy - Magnetic confinement

8/20

slide-11
SLIDE 11

Fusion Energy - Tokamak vs stellerator

9/20

slide-12
SLIDE 12

Fusion Energy - Triple product

10/20

slide-13
SLIDE 13

Outline

Introduction Fusion Energy Geothermal Energy Keep in mind

11/20

slide-14
SLIDE 14

Geothermal Energy

12/20

slide-15
SLIDE 15

Geothermal Energy (Drilling)

◮ Expensive drilling cost that increases exponentially with depth because of the:

(e.g: 38 Me for two 3km wells St. Gallen project) [Overcoming Research Challenges for Geothermal Energy - EU Com.,

2014]

  • 1. Low penetration rate 3-5 m/h in hard rocks.
  • 2. Low wear resistance in hard rocks ⇒ short life-time ⇒ increase the tripping cycles.
  • 3. Long tripping time.

◮ Small diameter of the production well because of several casing stages.

13/20

slide-16
SLIDE 16

Plasma Pulse for Geo-Drilling (Advantages)

Mechanical Rotary PPGD Reference Tripping time [hour] 268 40 [Anders, et al. 2017] Bit life time [hour] 50 350 (contactless) [Anders, et al. 2017]

  • Frag. specific energy [J/cm3]

400 200 (Tensile) [Ushakov, et al. 2019] Simultaneous casing Not possible Possible [Hirschberg, et al. 2015]

Drilling cost formula: CD = NT × CBit + CRig [H/ROP + NT × tT] H

14/20

slide-17
SLIDE 17

Plasma Pulse Geo-Drilling (Concept)

No drilling fluid.

Pulse generator - High voltage electrode - Grounded electrode - Plasma channel

15/20

slide-18
SLIDE 18

Plasma Pulse Geo-Drilling (Concept)

No drilling fluid. With drilling fluid (normal pulse).

Pulse generator - High voltage electrode - Grounded electrode - Plasma channel - Drilling fluid (water)

15/20

slide-19
SLIDE 19

Plasma Pulse Geo-Drilling (Concept)

No drilling fluid. With drilling fluid (normal pulse). With drilling fluid (short pulse).

Pulse generator - High voltage electrode - Grounded electrode - Plasma channel - Drilling fluid (water)

If the pulse rising time is less than 0.5 µs, the dielectric strength of the rock will become less than the dielectric strength of the drilling fluid (water). [Vorobev, et al. 1961 (in Russian) as cited in Boev, et al., 1997, Ushakov, et al. 2019].

15/20

slide-20
SLIDE 20

Plasma-Pulse Geo-Drilling (High voltage short pulse)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 t [μs] 0.0 0.2 0.4 0.6 0.8 1.0 fpulse Rising time= 0.7 μs Rising time= 0.3 μs

16/20

slide-21
SLIDE 21

Plasma-Pulse Geo-Drilling (Damage phases)

17/20

slide-22
SLIDE 22

Plasma-Pulse Geo-Drilling (Plasma formation in pores)

Continuity equation: ∂ns ∂t + ∂Γs ∂x = Si (1) Flux & source term: Γs = qµsEns − Ds ∂ns ∂x & Si = αi (E, ǫ) Γe (2) Momentum equation: ∂ (neǫ) ∂t + ∂Γǫ ∂x = −eΓeE − Γe

  • αiǫi + αexǫex + 3me

mi αe1Te

  • (3)

Poission equation: E = −∂Φ ∂x (4)

18/20

slide-23
SLIDE 23

Outline

Introduction Fusion Energy Geothermal Energy Keep in mind

19/20

slide-24
SLIDE 24

Keep in mind

◮ Plasma can be found in huge number of phenomena (in lab & nature). Therefore, it is essential to define the physics of the phenomenon and then select the appropriate plasma model for that phenomenon.

20/20

slide-25
SLIDE 25

Keep in mind

◮ Plasma can be found in huge number of phenomena (in lab & nature). Therefore, it is essential to define the physics of the phenomenon and then select the appropriate plasma model for that phenomenon. ◮ One energy resource can not solve the energy crisis, but a combination of the different clean resources (e.g., fusion, geothermal, wind, solar, hydropower, biomass, and etc.,).

20/20

slide-26
SLIDE 26

Keep in mind

◮ Plasma can be found in huge number of phenomena (in lab & nature). Therefore, it is essential to define the physics of the phenomenon and then select the appropriate plasma model for that phenomenon. ◮ One energy resource can not solve the energy crisis, but a combination of the different clean resources (e.g., fusion, geothermal, wind, solar, hydropower, biomass, and etc.,).

Thank you for your attention!

Should you have any question or need reference, please write to me: m.ezzat@erdw.ethz.ch

20/20
