Plant Control & Quality Innovations in Equipment & Technology: NCAUPG Technical Conference 2012 Indianapolis, IN Payne & Dolan Inc. Vertically Integrated Construction Company Operations Aggregates-Asphalt Overview Quality

slide-1
SLIDE 1

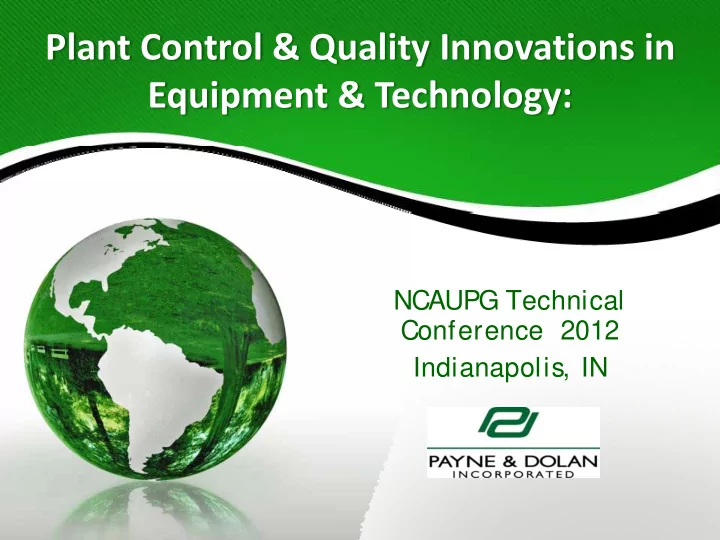

Plant Control & Quality Innovations in Equipment & Technology:

NCAUPG Technical Conference 2012 Indianapolis, IN

slide-2
SLIDE 2

Payne & Dolan Inc.

Vertically Integrated Construction Company

slide-3
SLIDE 3

Operations Aggregates-Asphalt

slide-4
SLIDE 4

Overview

Quality Assurance Forces Driving Quality Innovations in Quality over the years Quality/Production Relationship Future Expectations

slide-5
SLIDE 5

QA/QC

QA testing: Activities designed to ensure that the development process is adequate to ensure you meet given

  • bjectives-(Proactive QC)

QC testing: Activities designed to evaluate a developed product-(after the fact) Contractor Terms QA=Risk Management

slide-6
SLIDE 6

Factors Driving Quality

Economics

Reduction in virgin asphalt Reduction in virgin aggregates

Using high RAP/RAS

mixes saves money Vital to our industry Competitive edge Risk

slide-7
SLIDE 7

Asphalt vs. Concrete

Competition is getting stiffer Maintain economic advantage while providing superior quality Ensure Quality

slide-8
SLIDE 8

Economic forces Driving Quality

slide-9
SLIDE 9

Wisconsin Specifications

Allowable Combination Maximums Recycled Asphaltic Percent Binder Replacement Material Lower Layer Upper Layer RAS only 25 20 RAP & FRAP 40 (30) 25 (20) RAS & RAP & FRAP 35 (30) 25 (20) DPE Ratio 1.2 VMA (19.0-9.5) 13-15

(2010 Specifications)

slide-10
SLIDE 10

Typical Gradations

Mix w/25% RAP and 5% RAS requires all Virgin Aggregates <1% P200

slide-11
SLIDE 11

Washing Aggregates

slide-12
SLIDE 12

Controlling Size

Wisconsin DOT 2011

slide-13
SLIDE 13

Controlling Size

slide-14
SLIDE 14

Controlling RAP:

Agglomeration and Oversize

slide-15
SLIDE 15

Controlling Size

slide-16
SLIDE 16

Controlling Moisture

Measure Consistent and Accurately Moisture Probe vs stockpile sample (lab)

slide-17
SLIDE 17

Plant Capacity

Remove the Moisture

Know your moisture content

Moisture changes Your mix volumetric change Quality Changes Pay factors change Production

slide-18
SLIDE 18

Plant Capacity

500 TPH Plant

Capacity to Remove H2O?

25 ton H2O - Total per Hour 5 ton H2O - Mixing / Rap Entry

RAP Moisture 5.0% RAS Moisture 10.0% Virgin Aggregate 3.5%

slide-19
SLIDE 19

Plant Capacity

Mixing/Drying Capacity 500TPH Plant

Percent Recycle TPH 50% RAP 200 30% RAP 335 25% RAP, 5% RAS 285 20% RAP, 5% RAS 335

  • Controlling factor 5TPH of H20 removal after RAP

entry

  • Savings doesn’t take into account Plant efficiency
slide-20
SLIDE 20

Existing Plant Capacity

Counter Flow Parallel Flow

slide-21
SLIDE 21

Capital Costs:

Bigger Drums

slide-22
SLIDE 22

Capital Costs:

Aggregate Storage

slide-23
SLIDE 23

Infered Camera

25% RAP 5% RAS 15% RAP 3% RAS

slide-24
SLIDE 24

Drying/Flighting

Dramatically increasing Virgin Aggregate Temperatures(super heating) can increase aggregate degradation in your

  • drum. Knowing

temperatures can let help you predict absorption or degradation.

slide-25
SLIDE 25

Plant Inovations

RAP Entry Evaluation?

slide-26
SLIDE 26

Field Checks

slide-27
SLIDE 27

Controlling Variability when Sampling

Sampling… .When, Where & How?

slide-28
SLIDE 28

Controlling Variability Measuring Dust

Control Dust Surges from baghouse to Drum

  • Record by Mix / Plant amount of dust created in

Drum

  • Maintain constant dust flow through baghouse
  • Control Dust Surges within your system
slide-29
SLIDE 29

Plant Control Systems

Control Systems

Record / Graphing Telemetry Systems Multiple Weigh Point System vs Single

Weigh Point System

Capability to separate RAP on Inclines

slide-30
SLIDE 30

Measuring Weight

Incline (Combined Weights) vs Individual Bin

slide-31
SLIDE 31

Controlling Variability using Control Systems

Control System Logging – Real Time

  • Each Keystroke logged
  • All material calibrations stored
  • Mix changes / TPH ongoing
  • Fuel / Power Usage
  • AC / Additive Flow

ASPHALT PLANT ROOT CAUSE ANALYSIS

EVENT DATE PERSON PERFORMING INVESTIGATION CREW'S MANAGER/SUPERVISO INVESTIGATION DATE INDIVIDUALS INVOLVED ESTIMATED TIME SPENT TO COMPLETE REPAIR: HRS PRODUCTION STOPPED AT WHAT TIME: PRODUCTION RESUMED AT WHAT TIME: INVESTIGATION INCLUDED SITE VISIT: Yes No REPAIR DESCRIPTION CATEGORY CONTROL HOUSE CONVEYOR BELTS LOADER/SKIDSTEEER SILOS BAGHOUSE PLANT COMPUTER DRAG AC TANK(S) SCALES/LOADOUT SY DRUM BURNER FUEL TANK(S) SCHEDULING BURNER PUMPS PLANT MANAGEMENT FEDDER BINS METERS/TACHOMETERS AGGREGATE MANAG RECYCLE BINS GENERATOR OTHER: ___________ DESCRIPTION OF SITUATION (A brief explanation of how the event or situation (Breakdown) occurre ROOT CAUSES (why did the event occur?) Check all that apply.

PERSONNEL FACTORS SYSTEM/EQUIPMENT F

slide-32
SLIDE 32

Success Stories

STH 47 Wisconsin –WARRANTY PROJECT E-3 12.5mm

20% RAP 5% RAS

Average IRI 34

slide-33
SLIDE 33

Success Stories

STH 47 Wisconsin

slide-34
SLIDE 34

Wisconsin Outstanding Paving Award Winner

slide-35
SLIDE 35

Future Expectations

Plant efficiencies continue to get better for high recycle materials Plant Automation Systems

Real time QA results continual

Develop real time gradation Testing

Close to being perfected

Lower risk for our customer and contractor

slide-36
SLIDE 36

Questions

Thank You!
