SLIDE 1
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 2 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
Outline
- Definition
- Attacks
- Defenses
- Standards
Physical Security Attacks and Defenses for Computing Systems - - PDF document
Physical Security Attacks and Defenses for Computing Systems - - PDF document

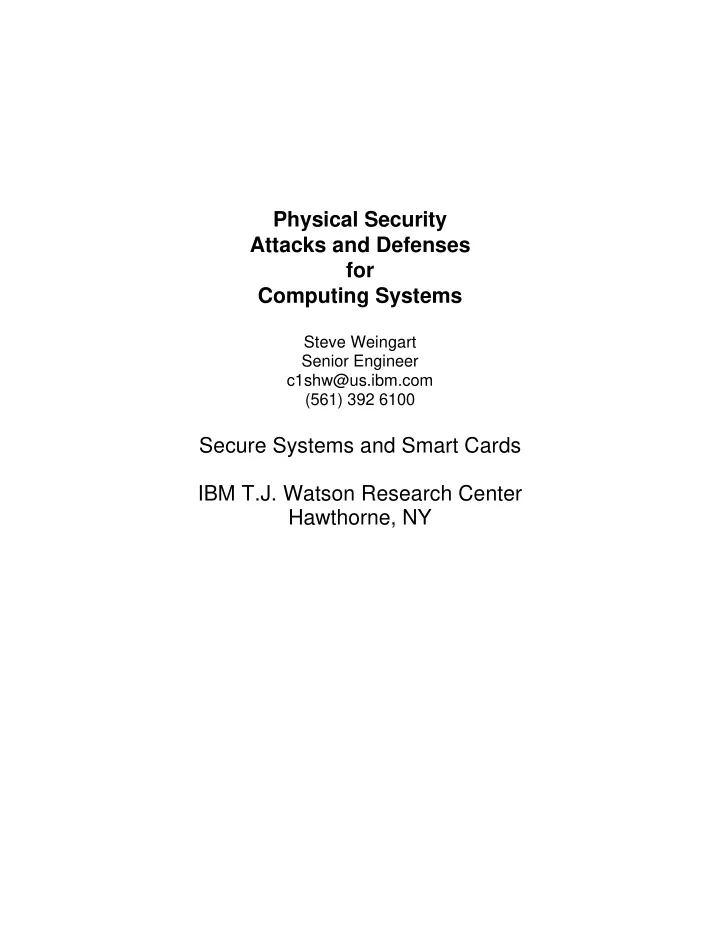

Physical Security Attacks and Defenses for Computing Systems Steve Weingart Senior Engineer c1shw@us.ibm.com (561) 392 6100 Secure Systems and Smart Cards IBM T.J. Watson Research Center Hawthorne, NY Physical Security Attacks &
SLIDE 2
SLIDE 3
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 3 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
Definition: Physical Security, A barrier placed around a computing system to deter unauthorized physical access to that computing
- system. In the event of an attack, there should be a
low probability of success; and a high probability of the attack being detected either during the attack, or subsequent to penetration.
SLIDE 4
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 4 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
Attacks
- Low Tech
- Theft
- Mis-use
- High Tech
- Machining
- Mechanical
- Water
- Laser
- Chemical
- Shaped Charge
- Probes
- Passive/Active
- Mechanical
- Energy
- E-beam/Ion Beam
- X-Ray
- IR Laser
- Energy
- Imprinting
- Temperature
- Voltage
- Radiation
- Disruption
- Tempest
- EM Emanations
- Power/Current Profile
SLIDE 5
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 5 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
Defenses (High & Low Tech)
- Tamper Resistance
- Guards
- Weight, Size, Material
- Complexity
- Inaccessibility
- Chip Coatings
- Substrates
- Tamper Evidence
- Holographic Seals
- ‘Bleeding’ Paint
- Crazed Materials
- Tamper Detection
- Membranes
- Metallic
- Organic
- Other
- Sensors
- Temperature
- Radiation
- Voltage
- Tamper Response
- Zeroization
SLIDE 6
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 6 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
The Operating Envelope The range of all conditions that are required for correct operation of all components. Note: For Tamper Responding systems that use erasure as a means of protecting secret data, correct
- peration includes the ability to guarantee the
removal of memory contents when desired.
- Voltage
- Temperature
- Radiation
SLIDE 7
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 7 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
Standards
- Not Many!
- In commercial sector
- FIPS 140-1
- Seems to be the emerging commercial
standard
- Reasonable, but needs updating now
- ANSI 9.66
- Had been different than FIPS 140-1
- Probably will not be in the future
- TNO (Delft Holland)
- Not really a standard, an Authority
- ITSEC
- Not Really Focused on Hardware
- Common Criteria
- Not Really Focused on Hardware
SLIDE 8
Physical Security Attacks & Defenses
Steve H. Weingart IBM T. J. Watson Research Center, Hawthorne, NY Page 8 (561) 392-6100 Secure Systems and Smart Cards c1shw@us.ibm.com
An Example
- f a
