From vegetable oil to fuel: Biodiesel production An overview Philip Hollins Phil.Hollins@Jamk.fi Presentation overview The topics covered will include: Forecasted increase in biofuel production Biofuel classification Diesel

slide-1
SLIDE 1

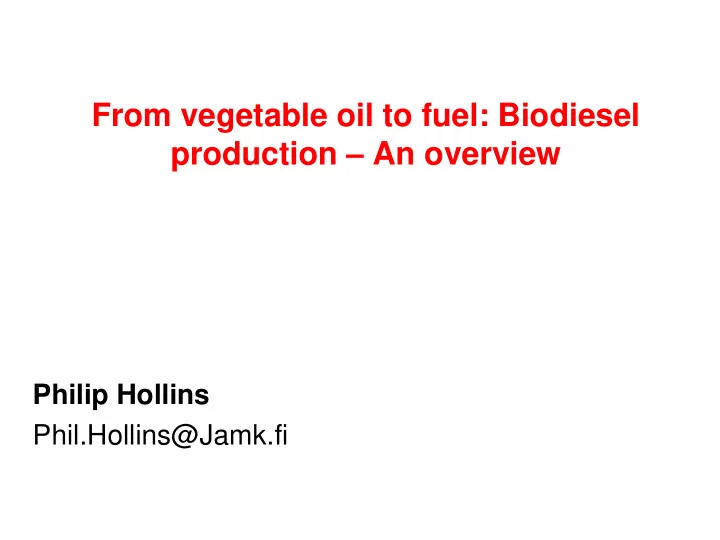

From vegetable oil to fuel: Biodiesel production – An overview

Philip Hollins Phil.Hollins@Jamk.fi

slide-2
SLIDE 2

2

Presentation overview

The topics covered will include:

  • Forecasted increase in biofuel production
  • Biofuel classification
  • Diesel engines and how they operate
  • Demonstrate how to make transesterified biodiesel
  • Case studies of small scale biodiesel production and use
  • Presenting a typical home `biodiesel´ processor
  • Biodiesel production 2nd and 3rd generation production
  • Future biodiesel development
slide-3
SLIDE 3

Philip Hollins @ Jamk 3 Source: http://ourfiniteworld.com/

slide-4
SLIDE 4

Philip Hollins @ Jamk 4

Forecast for increase in biofuel production

slide-5
SLIDE 5

(Source: Serrano/Ruiz and Dumesic, Energy Environ Sci, 2011) 5

Consider liquid biofuels (complex)……

slide-6
SLIDE 6

Consider liquid biofuels (simplified)…..

Philip Hollins @ Jamk 6

Sources of carbohydrates Petrol ‘substitute’

(sugars and starches)

Sources of fats Diesel ‘substitute’

(saturated, mono/polyunsaturated & fatty acids)

slide-7
SLIDE 7

Philip Hollins @ Jamk 7

Neste (and others) define generation ……. 1st Gen 2nd Gen 3rd Gen

Liquid bio-fuel classification

(by conversion)

slide-8
SLIDE 8

8 Phil Hollins@Jamk

* Including tax - assumes free labour and feedstock

How about making it for 0.57cents !*

slide-9
SLIDE 9

Rudolf Diesel

1892: Patent obtained 1897: First prototype developed 1900: Demonstrated World Exhibition in Paris running on peanut oil 1912: Presentation to the British Institute of Mechanical Engineers 1913: Died in ‘mysterious’ circumstances - found drowned in the English Channel

Born 1858 Died 1913 9

slide-10
SLIDE 10

Philip Hollins @ Jamk 10 Deutsches Museum in Munich.

“The fact that fat oils from vegetable sources can be used may seem insignificant today, but such oils may perhaps become in course of time

  • f the same importance as some natural mineral oils and the tar

products are now” (Diesel, 1912)

slide-11
SLIDE 11

How a diesel engine works (CI: Compression ignition)

Hyperlink to video 1…….. Hyperlink to video 2…….. Hyperlink to video 3…….

Philip Hollins @ Jamk 11

slide-12
SLIDE 12

Diesel ‘substitute’ vegetable oil yields

Source: Adapted from www.journeytoforever.org Source: Adapted from www.Green Team Alternative Fuels.com

Philip Hollins @ Jamk 12

slide-13
SLIDE 13

Problems with vegetable oil......

  • Originally diesel engines where designed to
  • perate using raw vegetable oil.
  • Modern diesel engines are too specialised to

reliably run on pure vegetable oil

  • Vegetable oil is too viscous to use directly

Philip Hollins @ Jamk 13

slide-14
SLIDE 14

Modifying the engine………

Kevin Alford is a final year studying for B.Sc. in Agriculture. Dual tank system Diesel/(waste) veg’ oil

Philip Hollins @ Jamk 14

slide-15
SLIDE 15

Home made system taken from : www.reuk.co.uk Example manufacturer: Elsbett

Start on diesel….. Engine heat exchanger  lower viscosity Switch to vegetable oil Cost of system fitted ~ €1600

Philip Hollins @ Jamk 15

slide-16
SLIDE 16

Philip Hollins @ Jamk 16

Modifying the vegetable oil………

Transesterification process  remove glycerine molecule  reduces viscosity (x3)

slide-17
SLIDE 17

Modifying the fuel (FAME)………

Convert vegetable oil to bio-diesel

Vegetable oil  Triglycerine ester Large molecule  viscous Transesterification process  reducing viscosity  remove glycerine molecule

Viscosity decrease x 3 Waste product  with uses methanol and catalyst

17

slide-18
SLIDE 18

Philip Hollins @ Jamk 18

The chemisty ……

slide-19
SLIDE 19

19

Methanol

  • Clear, colorless liquid odour

like alcohol.

  • Four milliliters can cause

blindness and 80 to 150 milliliters can be fatal

  • Inhalation of methanol vapor

is the most common route of

  • ccupational exposure.
  • Poisoning also possible from

absorption through the skin

You will be using 100ml

slide-20
SLIDE 20

20

Potassium Hydroxide (KOH)

Exposure Routes inhalation, ingestion, skin and/or eye contact Symptoms irritation eyes, skin, respiratory system; cough, sneezing; eye, skin burns; vomiting, diarrhoea Target Organs Eyes, skin, respiratory system

You will be using 14g max

pH 13 - drain cleaner

slide-21
SLIDE 21

Convert (waste) vegetable oil to bio-diesel

Waste vegetable oil contains:

Mono and Di–glycerides  no problem Free fatty acids  problem Neutralised by the addition of potassium hydroxide Determined by pH test titration Potassium hydroxide also acts as catalyst Potassium hydroxide & methanol  methoxide

Philip Hollins @ Jamk 21

slide-22
SLIDE 22

Sourcing the waste oil……..

Philip Hollins @ Jamk 22

slide-23
SLIDE 23

The processing unit………

Philip Hollins @ Jamk 23

slide-24
SLIDE 24

Testing the pH  titration……

Philip Hollins @ Jamk 24

slide-25
SLIDE 25

Determining the amount of ‘neutraliser to add………..

Philip Hollins @ Jamk 25

slide-26
SLIDE 26

Preparing and adding the methoxide………

Philip Hollins @ Jamk 26

slide-27
SLIDE 27

Removing the glycerol….. …….and testing batch quality

Hyperlink to video……..

27

slide-28
SLIDE 28

‘Washing’ the bio-diesel…….

Philip Hollins @ Jamk 28

slide-29
SLIDE 29

‘Drying’ and filtering the bio-diesel...

Philip Hollins @ Jamk 29

slide-30
SLIDE 30

Distributing the finished bio-diesel……

Philip Hollins @ Jamk 30

slide-31
SLIDE 31

Philip Hollins @ Jamk 31

Purity Conversion

slide-32
SLIDE 32

Philip Hollins @ Jamk 32

Source: http://www.make-biodiesel.org/ 27: 3 test 50:50 test

slide-33
SLIDE 33

Philip Hollins @ Jamk 33

slide-34
SLIDE 34

Philip Hollins @ Jamk 34

Finland example 1 (Iisalmi, near Kuopio)

slide-35
SLIDE 35

Philip Hollins @ Jamk 35

Finland example 2 (Leppävesi, near Jyväskylä)

slide-36
SLIDE 36

Philip Hollins @ Jamk 36

……uses for the waste glycerol (Leppävesi, near Jyväskylä)

slide-37
SLIDE 37

Types of waste used in anaerobic digester

Philip Hollins @ Jamk 37

slide-38
SLIDE 38

Case study – Graz in Austria

Philip Hollins @ Jamk 38

Hyperlink ´From the pan into the tank` Operational in Graz, Austria (since 1999) Approx’ 56 buses (50% of public transport)

slide-39
SLIDE 39

Phil Hollins@Jamk 39

The Green Fuels FuelMaker up to 8000 litres per day Made in batches of 600 litres Cost £280,000 ~ € 336,600 ``For a fully installed biodiesel factory based on this model,

you need to approximately double the cost ´´ Greenfuel representative

A typical industrial scale processing unit

slide-40
SLIDE 40

However, not all biodiesel is the same…

Philip Hollins @ Jamk 40

slide-41
SLIDE 41

41

Neste and UPM are competitors…..

Neste

slide-42
SLIDE 42

Philip Hollins @ Jamk 42

Hydrotreated vegetable oil: HVO

Hyperlink (Neste) Hyperlink (Neste)

slide-43
SLIDE 43

Philip Hollins @ Jamk 43

Neste NExBTL 100 Green Biodiesel Despite……..

slide-44
SLIDE 44

44

However, negative publicity……..

Hyperlink 1

slide-45
SLIDE 45

Philip Hollins @ Jamk 45

slide-46
SLIDE 46

Philip Hollins @ Jamk 46

Fischer-Tropsch (FT) biodiesel*

  • Also known as BTL,CTL AND GTL

Hyperlink – Neste & Stora Enso Hyperlink –UPM (Fisher Tropsch)

slide-47
SLIDE 47

Philip Hollins @ Jamk 47

Source: www.forestindustries.fi

slide-48
SLIDE 48

48 Ruins of the Nazi synthetic petrol plant (Hydrierwerke Pölitz – Aktiengesellschaft), in Poland

What is new, is the use of a sustainable feedstock

Neither of these processes are new......

slide-49
SLIDE 49

Philip Hollins @ Jamk 49

Sasol Ltd. (Afrikaans: Suid Afrikaanse Steenkool en Olie,

English: South African Coal and Oil)

The largest producer of motor fuels from coal (Bloomberg,2011)

slide-50
SLIDE 50

50

Future biodiesel developments…….?

Hyperlink 2

Source: www.thebioenergysite.com

slide-51
SLIDE 51
  • FAME (Transesterification)

– Production: Oil + alcohol = Fatty acid ester (+ glycerol) – Simple production, low emissions – Quality, food vs fuel, enough feedstocks

  • HVO (Neste)

– Oils/fats +hydrotreatment => parrafin HC – Quality, emissions low, production at refinery level – Food vs fuel, enough feedstocks ?, deforestation, price?

  • Fischer-Tropsch (BTL)

– Biomass =>gasification=>syngas (CO+H2O) => (Fisher–Tropsch synthesis)=>paraffin HC – Quality, emissions low, any biomass – Price,development stage, diffucult process, small production so far

Source: Adapted from, Larmi and Tilli – Aalto University 2011

Philip Hollins @ Jamk 51

Bio-based diesel - summary

slide-52
SLIDE 52

Thank you for listening

Any questions ?

Philip Hollins @ Jamk 52
