SLIDE 1

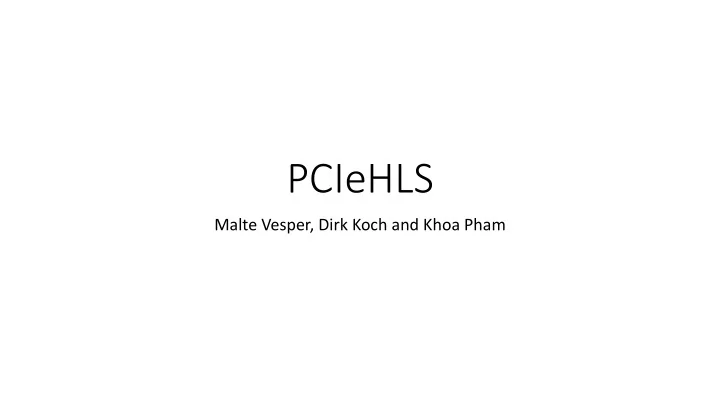

PCIeHLS
Malte Vesper, Dirk Koch and Khoa Pham
High level synthesis – half a solution
- Easy generation of kernels from popular languages
- Good results require tuning with knowledge about FPGA architecture
- No infrastructure for kernel
PCIeHLS Malte Vesper, Dirk Koch and Khoa Pham High level synthesis - - PowerPoint PPT Presentation
PCIeHLS Malte Vesper, Dirk Koch and Khoa Pham High level synthesis - - PowerPoint PPT Presentation
PCIeHLS Malte Vesper, Dirk Koch and Khoa Pham High level synthesis half a solution Easy generation of kernels from popular languages Good results require tuning with knowledge about FPGA architecture No infrastructure for kernel C
SLIDE 2
SLIDE 3
Vendor kernel integration
- For selected boards only:
=> Popular academic board VC709 missing
- Vendor partial flow
Intel SDK for OpenCL
SLIDE 4
Partial flow
Ours
Potentially calls for minor manual adjustments on the static system Relocation of modules Combining partial regions Synthesis largely independent of static system Synthesis of partial and static with different tool versions
Xilinx
Commercial stability
SLIDE 5
Things you don’t want to know
- ICAP
- PCIe
- Memory controller
- Decoupling
- Clock domain crossing
- Timing closure
SLIDE 6
System diagram
Module 0 Module 1 Module n Module … Partial reconfiguration (ICAP) 256 32
SLIDE 7
Static System
Floorplan
- Up to 4 user modules
- Each user module ≈13.5% Slices
- Static system
≈46.0% Slices
- Adjacent user module areas can
be combined
UserModule UserModule UserModule UserModule
SLIDE 8
Flow
SLIDE 9
Steps of our flow
- Bus macro
- Clock constraining
- Block:
- Fabric differences
- Sites used by static system
- Pips used by static system
- Timing constraints
- Cut out bitstream with Bitman
SLIDE 10
Bus Macro
- LUT – wire – LUT
LUT LUT
SLIDE 11
Bus Macro
- LUT – wire – LUT
- Constrained:
- LOC/BEL
LUT LUT LUT LUT LUT LUT
SLIDE 12
Bus Macro
- LUT – wire – LUT
- Constrained:
- LOC/BEL
- LOCK_PINS
LUT LUT LUT LUT
SLIDE 13
Bus Macro
- LUT – wire – LUT
- Constrained:
- LOC/BEL
- LOCK_PINS
- FIXED_ROUTE
LUT LUT LUT LUT
SLIDE 14
Bus Macro
- LUT – wire – LUT
- Constrained:
- LOC/BEL
- LOCK_PINS
- FIXED_ROUTE
SLIDE 15
Clock constraining
- Ensure clock is driven
- Block other h-wires
- Issues: timing differences on
relocation, positive and negative skew
SLIDE 16
Fabric differences
- Special cells disturb regularity of
fabric (i.e. PCIe, ICAP, …)
- Simply block differences
LUT LUT LUT LUT LUT LUT LUT LUT LUT LUT PCIe Pblock 0 Pblock 1
SLIDE 17
Sites used by static system
- Block
- I/O does not actually matter, not
reconfigured
LUT LUT LUT LUT LUT LUT LUT LUT
I/O
Pblock 0 Pblock 1
I/O I/O I/O I/O I/O I/O I/O
SLIDE 18
?
Optimization prevention
- Floating wires tied off to 0
- Optimization might remove logic
&
?
SLIDE 19
Optimization prevention
- Floating wires tied off to 0
- Optimization might remove logic
- Flop marked as DONT_TOUCH
prevents logic optimization
- Works for signals into the partial
region as well
&
? ?
DONT_TOUCH
SLIDE 20
Routing used by static system
SLIDE 21
Routing used by static system
- Route a blocker from outside the
PR through the wires (pips)
LUT LUT LUT LUT LUT LUT LUT Pblock 0 Pblock 1 LUT INT INT INT INT
SLIDE 22
Timing constraints
- Extract timing to Bus macro in static system
- Calculate slowest as WORST
- Constrain path of partial module to bus macro to period-worst
SLIDE 23
Static System
Bitman cutting
- extract partial bitstreams
- Relocate bitstreams for modules
SLIDE 24
Summary
- Build modules:
- Once, use in multiple locations
- Independent of static system
- Infrastructure provided:
- ICAP partial reconfiguration
- PCIe link to host
- MMCM to adjust clock for partial modules
- Memory
SLIDE 25
Thank you for your attention
Questions
