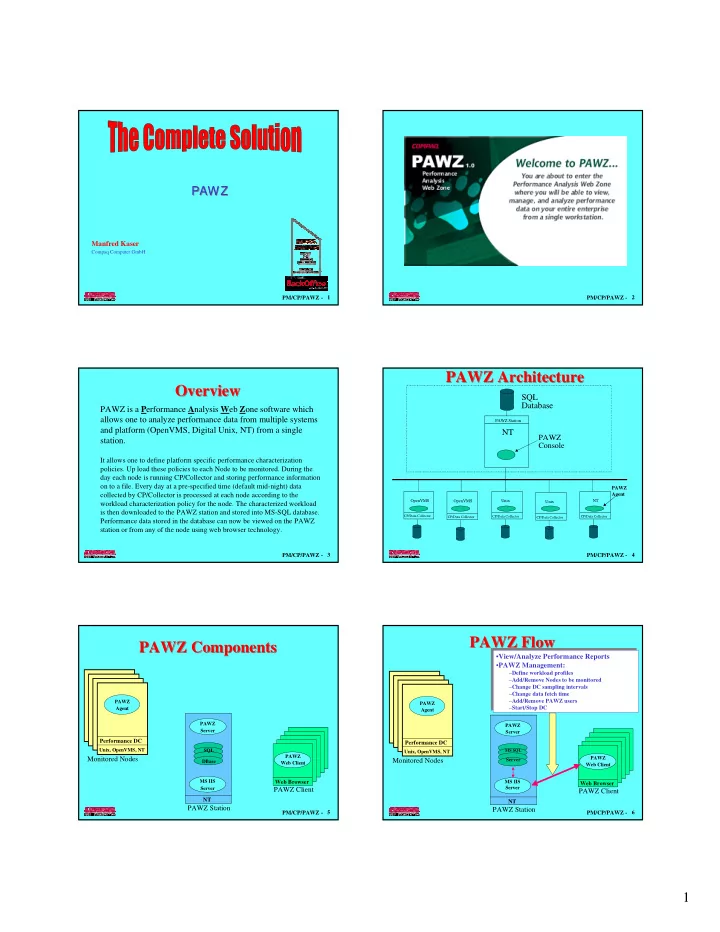

SLIDE 1

1

1 PM/CP/PAWZ -

PAWZ PAWZ

Manfred Kaser

Compaq Computer GmbH

2 PM/CP/PAWZ - 3 PM/CP/PAWZ -

Overview Overview

PAWZ is a Performance Analysis Web Zone software which allows one to analyze performance data from multiple systems and platform (OpenVMS, Digital Unix, NT) from a single station.

It allows one to define platform specific performance characterization

policies. Up load these policies to each Node to be monitored. During the

day each node is running CP/Collector and storing performance information

n to a file. Every day at a pre-specified time (default mid-night) data

collected by CP/Collector is processed at each node according to the workload characterization policy for the node. The characterized workload is then downloaded to the PAWZ station and stored into MS-SQL database. Performance data stored in the database can now be viewed on the PAWZ station or from any of the node using web browser technology.

4 PM/CP/PAWZ -

PAWZ Architecture PAWZ Architecture

CP/Data Collector

OpenVMS

CP/Data Collector

OpenVMS

CP/Data Collector

Unix

CP/Data Collector

NT

CP/Data Collector

Unix

PAWZ Agent

PAWZ Station

PAWZ Console

SQL Database NT

5 PM/CP/PAWZ -

Monitored Nodes PAWZ Station PAWZ Client

PAWZ Components PAWZ Components

Unix, OpenVMS, NT

NT Web Browser

MS IIS Server PAWZ Server PAWZ Web Client PAWZ Agent

Performance DC

SQL DBase

6 PM/CP/PAWZ -

PAWZ Flow PAWZ Flow

Monitored Nodes PAWZ Station PAWZ Client

Unix, OpenVMS, NT

NT Web Browser

MS IIS Server PAWZ Agent PAWZ Server PAWZ Web Client

Performance DC

View/Analyze Performance Reports
PAWZ Management:

–Define workload profiles –Add/Remove Nodes to be monitored –Change DC sampling intervals –Change data fetch time –Add/Remove PAWZ users –Start/Stop DC

View/Analyze Performance Reports
PAWZ Management:

–Define workload profiles –Add/Remove Nodes to be monitored –Change DC sampling intervals –Change data fetch time –Add/Remove PAWZ users –Start/Stop DC

MS SQL

Server

SLIDE 2

2

7 PM/CP/PAWZ -

PAWZ Flow PAWZ Flow

Agent: Characterize/reduce performance data every

mid-night(default)

Console: Copy workload data from Agent to Dbase
Poll Agent for Node status.
Start/Stop DC
Communicate Node Profile
Agent: Characterize/reduce performance data every

mid-night(default)

Console: Copy workload data from Agent to Dbase
Poll Agent for Node status.
Start/Stop DC
Communicate Node Profile

Monitored Nodes PAWZ Station PAWZ Client

Unix, OpenVMS, NT

NT Web Browser

MS IIS Web Server PAWZ Agent PAWZ Server PAWZ Web Client

Performance DC

MS SQL

Server

8 PM/CP/PAWZ -

Supported Browses Supported Browses

MS - Internet Explorer V4.01 SP1 or

higher

Netscape Communicator V4.7 or higher

9 PM/CP/PAWZ -

PAWZ - Analyzer PAWZ - Analyzer

10 PM/CP/PAWZ -

PAWZ Analyzer PAWZ Analyzer

11 PM/CP/PAWZ -

PAWZ - View Policies PAWZ - View Policies

12 PM/CP/PAWZ -

PAWZ - View Nodes: Data Collector PAWZ - View Nodes: Data Collector

SLIDE 3

3

13 PM/CP/PAWZ -

PAWZ - Workload Profiles PAWZ - Workload Profiles

14 PM/CP/PAWZ -

PAWZ - View: Workload Classes PAWZ - View: Workload Classes

15 PM/CP/PAWZ -

PAWZ - View: Workload Filters PAWZ - View: Workload Filters

16 PM/CP/PAWZ -

PAWZ Sizing1 PAWZ Sizing1

CPU requirement - Intel 400Mhz or Higher

– Up to 50 Agents can be supported – 1 Hits / Sec

Memory requirement

– 256 Mb

Disk requirement

– Retention days * 2 Mb per Agent

1Assuming 2 minutes sampling interval

17 PM/CP/PAWZ -

For More Information For More Information

Email:

– Capacity@Compaq.com

Web site:

– www.TestDrive.Compaq.com/PAWZ

18 PM/CP/PAWZ -

PAWZ Analyzer Graphs PAWZ Analyzer Graphs

CPU

– Utilization – By Mode – By Processor – By Top 10 Images – By Top 10 Users – By Top 10 Workloads

Disk I/O

– Overall I/O Rate – Rate by Type – Top 10 Disks by Rate

Memory

– Utilization – Allocation – Paging Rate – Paging by Type – Paging I/O Rate

Process

– Count

SLIDE 4

4

19 PM/CP/PAWZ -

Performance and Capacity Planning Performance and Capacity Planning
