Path Switching in Content Centric and Named Data Networks Ilya Moiseenko Dave Oran Network Systems Cisco Systems Research and Design Outline I. Introduction II. Design Path Discovery & Steering in regular ICN data plane Path

slide-1
SLIDE 1

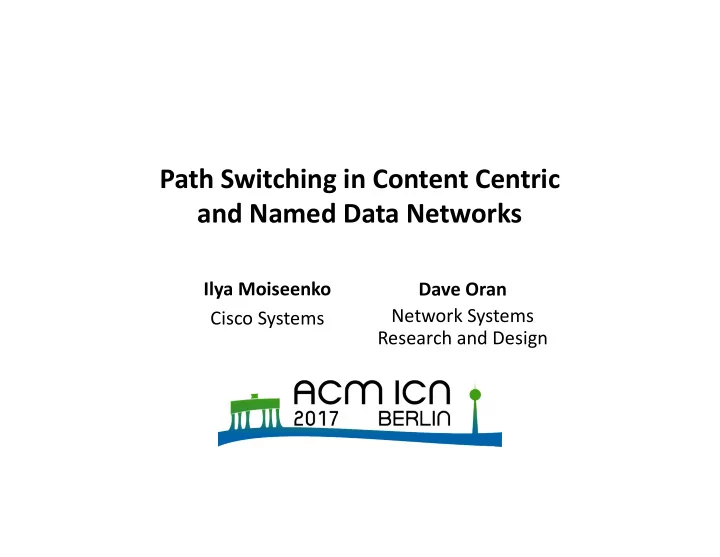

Path Switching in Content Centric and Named Data Networks

Ilya Moiseenko Cisco Systems Dave Oran Network Systems Research and Design

slide-2
SLIDE 2

Outline

I. Introduction

  • II. Design

– Path Discovery & Steering in regular ICN data plane – Path Switching ICN data plane

  • III. Evaluation
  • IV. Security considerations

2

slide-3
SLIDE 3

3

  • I. Introduction
slide-4
SLIDE 4

Motivation

  • ICN communication is inherently multi-path

and potentially multi-destination.

  • No mechanism for consumers to direct traffic
  • nto a specific path.

4

slide-5
SLIDE 5

ICN challenges

  • 1. Ability to discover, monitor and troubleshoot

multipath network connectivity based on names and name prefixes:

– Ping – Traceroute

  • 2. Ability to accurately measure a performance of

a specific network path.

5

slide-6
SLIDE 6

ICN challenges

  • 3. Ability to control multipath congestion:

– Count number of available paths – Uniquely identify a path – Allocate traffic to each path

  • 4. Ability for Traffic Engineering and SDN

– Externally programmable end-to-end paths are highly desirable in Data Center and Service Provider networks

6

slide-7
SLIDE 7

ICN challenges

  • 5. Per-packet Longest Name Prefix Match (LNPM)

FIB lookup seems to be a first-order bottleneck

– Not clear if hardware acceleration is cost-effective – Energy consumption using conventional multi-core CPUs is not competitive with IPv4/IPv6, MPLS, Segment Routing data planes.

7

slide-8
SLIDE 8
  • II. Design

8

slide-9
SLIDE 9

How to label paths?

9

What is a path label? One or more nexthop IDs Encoding options:

  • Bloom filter
  • Pairing function
  • Fixed size labels
  • Label Stack (similar to MPLS label stack)
slide-10
SLIDE 10

Path discovery and steering

10

Interest1 has no path label and is forwarded with LPM FIB

F2 F3 F4 P

Producer (Content Store)

Nexthop1 Nexthop4 Nexthop2 Nexthop5 Nexthop3 F1 C

Consumer

Interest1

Control plane Interest & Content (Data) network path

slide-11
SLIDE 11

Path discovery and steering

11

Content1 carries a path label modified on each hop

F2 F3 F4 P

Producer (Content Store)

Nexthop1 Nexthop4 Nexthop2 Nexthop5 Nexthop3 F1 C

Consumer

Content1 Interest1

Control plane Interest & Content (Data) network path

slide-12
SLIDE 12

Path discovery and steering

12

Interest2 has a path label and is forwarded with LPM FIB + nexthop selection

F2 F3 F4 P

Producer (Content Store)

Nexthop1 Nexthop4 Nexthop2 Nexthop5 Nexthop3 F1 C

Consumer

Interest2 Content1 Interest1

Control plane Interest & Content (Data) network path

slide-13
SLIDE 13

Advantages

  • ICN Ping application can reliably measure path RTT
  • ICN Traceroute application can iteratively discover

multiple network paths

  • Consumer multipath-aware congestion control can

discover and distribute load across paths

  • Consumer can mitigate content poisoning attacks
  • Traffic engineering (TE) and SDN solutions can be built
  • Can serve as a foundation for overlay networks

13

slide-14
SLIDE 14

Route updates

  • With path steering, LNPM FIB lookup is not

bypassed.

  • If nexthop selection fails:

– Interest-Return (NACK) carrying a new “Invalid path label” error code – or silently forward an Interest through any available nexthop

14

slide-15
SLIDE 15

Path Switching

  • Bypass LNPM FIB lookup.
  • Content (Data) messages are forwarded based on PIT

lookup as in regular CCN / NDN.

  • Interest messages undergo the same Content Store

and PIT lookup as in regular CCN / NDN.

– Note: this wins over LNPM since the match is exact against full name

  • Inherits the advantages of Path Steering alone.

15

slide-16
SLIDE 16

Handling Route updates

  • New nexthop label(s) assigned every time FIB

entry changes

  • On reverse path, Data and NACK is dropped
  • On forward path, Interest is NACK’ed

16

slide-17
SLIDE 17

Path switching data plane

17

slide-18
SLIDE 18

18

  • III. Evaluation
slide-19
SLIDE 19

Single prefix route update

  • Regular NDN data plane

– Forwarding strategy selects random ECMP nexthop

  • Path switching NDN data plane

– Consumer has basic path switching capabilities: a) discovers network paths, b) keeps track of unique paths, c) selects random path

19

C 2 3 4 5 6 P 1

slide-20
SLIDE 20

Single name prefix route update

20

Route update on Node 2 removes the adjacency with Node 3 and Node 4 after 20 seconds of simulation.

  • C

1 2 3 4 5 6 P 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 2000 4000 6000

Time FIB−forwarded Interests

  • C

1 2 3 4 5 6 P 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 2000 4000 6000

Time Path Switched Interests

  • C

1 2 3 4 5 6 P 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 5 10 15 20

Time FIB−forwarded Interests

slide-21
SLIDE 21

Multiple prefix route update

  • Path switching CCN/NDN data plane

– Nexthop relabeling impacts other ongoing flows with unrelated name prefix if nexthops are shared between FIB entries

21 C1 2 3 P2 P1 1 C2 /edu/ucla /com/cisco

slide-22
SLIDE 22

Multiple name prefix route update.

22

Route update on Node 2 removes C1 – P1 FIB entry after 30 seconds of simulation.

  • C1

C2 1 2 3 P1 P2 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 3000 6000 9000 12000

Time FIB−forwarded Interests

  • C1

C2 1 2 3 P1 P2 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 3000 6000 9000 12000

Time Path Switched Interests

  • C1

C2 1 2 3 P1 P2 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 0 20 40 60 3000 6000 9000 12000

Time FIB−forwarded Interests

slide-23
SLIDE 23

23

  • IV. Security considerations
slide-24
SLIDE 24

Malicious mis-steering

Consumer can use probing with Interests to discover path labels and then steer packets over wrong paths or to wrong destinations to mount a DoS attack.

  • 32-bit nexthop label requires on average 231 Interests to discover by

malicious consumer

  • Mitigation: periodically update nexthop labels to limit the maximum

lifetime of paths

  • To foil divide-and-conquer, use a void Hop Count field in “Invalid path

label” Interest-Return (NACK) message

  • Path label can be encrypted hop-by-hop on the reverse path

24

slide-25
SLIDE 25

Cache pollution

Malicious consumer & producer can inject an off-path and potentially bogus object in on-path caches.

  • Mitigation: Cache entries must be annotated with the

corresponding path label and only used to satisfy Interests with a matching path label.

  • Mitigation: Cache entries must not evict entries for the same object

with no path label, or a different path label.

25

slide-26
SLIDE 26

Conclusion

  • Enables Traffic Engineering, SDN, multipath congestion control, ping

and traceroute applications.

  • The speed of nexthop label lookup does not depend on the size and the

contents of FIB.

  • Simpler than MPLS because it does not require a separate label

distribution protocol.

26

slide-27
SLIDE 27

Q/A
