SLIDE 1
INTRODUCTION : Heterogeneous Applications
- Name resolution - CoDNS
- Scientific citations - OverCite
- Multiplayer game object location - Chord
- Email filtering - SpamWatch
Parameterizing Access Control for Heterogeneous Peer-to-Peer - - PowerPoint PPT Presentation
Parameterizing Access Control for Heterogeneous Peer-to-Peer - - PowerPoint PPT Presentation

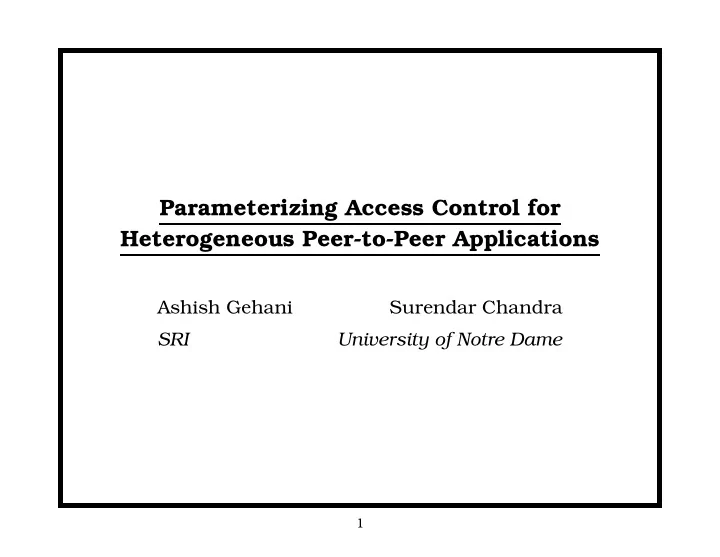

Parameterizing Access Control for Heterogeneous Peer-to-Peer Applications Ashish Gehani Surendar Chandra SRI University of Notre Dame 1 INTRODUCTION : Heterogeneous Applications Name resolution - CoDNS Scientific citations - OverCite
SLIDE 2
SLIDE 3
INTRODUCTION : What’s the problem?
- Discretionary access control
- Traditional concerns:
– Authorization service is central point of failure – Revocation enforcement
- Peer-to-peer environment concerns:
– Reliability (ρ) – Performance (operation execution time)
3
SLIDE 4
MOTIVATION : Heterogeneous Applications
Table 1: Operation timeframe Grant Revoke Request Name resolution Minute Minute Second Spam filtering Minute Hour Second Digital library Minute Day Minute Content sales Second Never Second Multiplayer game Second Minute Second
4
SLIDE 5
ASSUMPTIONS : System Model
- Peers have equivalent functionality
- Unauthorized reads preventable
- Unauthorized writes not preventable
– Must be detectable
- Fraction of peers are malicious (µ)
- Security should degrade gracefully
5
SLIDE 6
GOALS : Solution Constraints
- Flexible trust establishment
- Authorize users, not nodes
- Flexible operation order
6
SLIDE 7
DESIGN : Object Sealing
Owner Data Encrypted Verfication Key Signed Hash β α Object Name Object
7
SLIDE 8
DESIGN : Permission Processing
Verifiable Secret Shares Overlay Insertions Read Capability Write Capability Identity Based Encryption
8
SLIDE 9
DESIGN : Leveraging Peers’ Storage
β Request Retrieves Object Owner User Peer Nodes Grant Shares α
9
SLIDE 10
IMPLEMENTATION : DAAL’s Java API
static void grant(Globals globals, Delegation delegation, User owner, String user, String filename, boolean grantRead, boolean grantWrite, int alpha, int beta); static void revoke(Globals globals, Delegation delegation, User owner, String user, String filename, int alpha, int beta); static Capabilities request(Globals globals, User user, String filename, int alpha, int beta);
10
SLIDE 11
EVALUATION : If µ = α
β , ρ is independent of α
2 4 6 8 10 12 14 Α 0.2 0.4 0.6 0.8 1 Ρ Request with Β 20, ΜΑΒ
11
SLIDE 12
EVALUATION : If µ = α
β , ρ is independent of β
8 10 12 14 16 18 20 Β 0.2 0.4 0.6 0.8 1 Ρ Request with Α 5, ΜΑΒ
12
SLIDE 13
EVALUATION :
α β > µ
→ ρ grows with α
2 4 6 8 10 12 Α 0.2 0.4 0.6 0.8 1 Ρ Β20 , Α
- Β kΜ , k1.2,1.5,1.8
13
SLIDE 14
EVALUATION : For large β, ρ depends on
( α
β )
µ
10 12 14 16 18 20 Β 0.2 0.4 0.6 0.8 1 Ρ Α5 , Α
- Β kΜ , k1.2,1.5,1.8
14
SLIDE 15
EVALUATION : Revocation depends on
( α
β )
µ
2 4 6 8 10 12 14 Α 0.2 0.4 0.6 0.8 1 Ρ Revoke with Β 20, Α
- Β kΜ , k 1, 2
15
SLIDE 16
EVALUATION : Large β and α
β = 2µ
→ Reliable operations 8 10 12 14 16 18 20 Β 0.2 0.4 0.6 0.8 1 Ρ Revoke with Α 5, Α
- Β kΜ , k 1, 2
16
SLIDE 17
