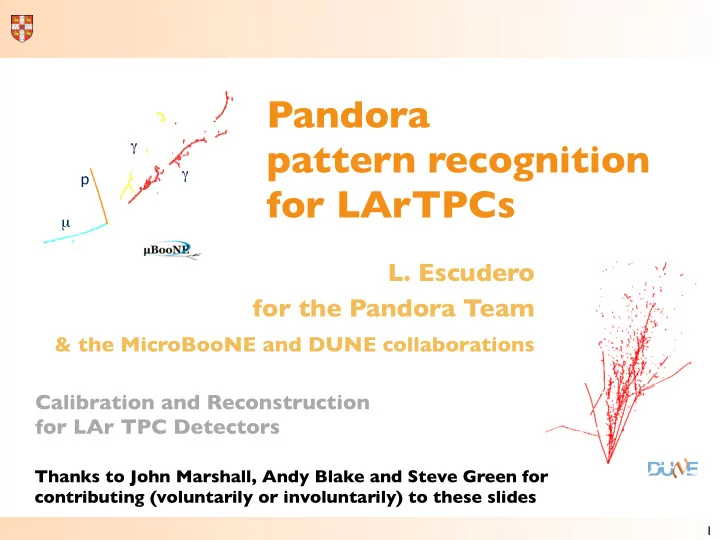

Pandora pattern recognition for LArTPCs

γ

p

µ γ

Calibration and Reconstruction for LAr TPC Detectors

Thanks to John Marshall, Andy Blake and Steve Green for contributing (voluntarily or involuntarily) to these slides

  • L. Escudero

for the Pandora Team

& the MicroBooNE and DUNE collaborations
