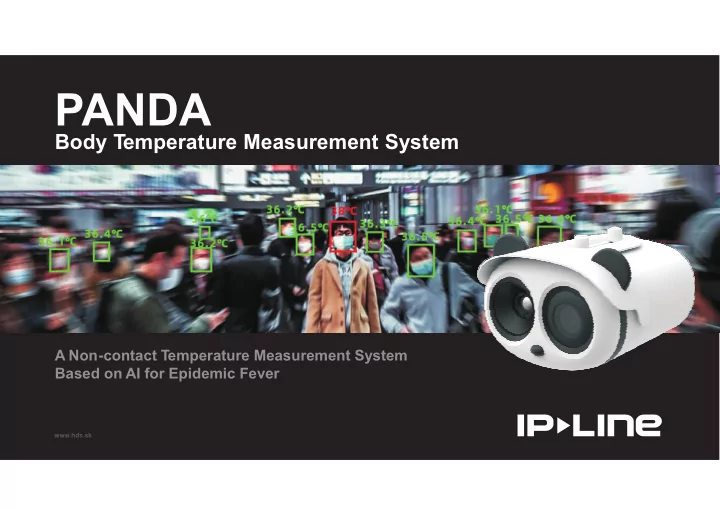

PANDA Body Temperature Measurement System A Non- contact Temperature Measurement System Based�on AI for Epidemic�Fever www.hds.sk

A Pneumonia from�a New�Coronavirus Broke out�in Wuhan When an�epidemic�breaks�out, a command�is�issued. It�is�our responsibility to�prevent�and�control�it. A pneumonia from�a�new coronavirus broke�out�in Wuhan�in�Dec,�2019. Due to human-to-human infection, even in the incubation period, the�coronavirus has rapidly spread�to�all parts�of�China in�a�short time. The prevention work has�been�even�more�difficult because many medical staff�were infected. The government has started�first-level response�to�the�prevention�and infection control.�Comes�at�a�time�when more�people are returning�from�their�Spring Festival�Holiday , various isolation measures have�been introduced throughout the country�to�control the spread�of�disease. www.hds.sk

The T ypical Pneumonic Symptom of 2019-nCoV Infection Is Fever According�to�the�statistics�of�clinical manifestations,�28�statutory�infectious diseases out�of�39�have�fever�symptoms in the�early�stage. Flu EBOLA Measles Phthisis Anthracnose hand-foot-and- Avian�influenza mouth disease Dengue Academician Zhong Nanshan said in�today's Plague Cholera SARS interview that fever is still the�typical 2019-nCoV Mumps symptom�of 2019-nCoV infection. “ Firstly, HIV Rubella （ Wuhan�Pneumonia ） fever is�the�main thing, and�then�fatigue." Zhong Nanshan said,�some patients only�have BODY TEMPERATURE symptom�once back�home, but no�symptom while�staying in Wuhan. So in the airport,�port MEASUREMENT and�railway, to take body�temperature measurement is�typical and�requisite. is�an important means of�epidemic prevention and control www.hds.sk

Guiding Principles for�Prevention and Control of�Infectious Diseases Early Discovery Early Report Early Isolation Early Treatment Prevent Diffusion Cut�off Transmission www.hds.sk

The Pain Points�of Traditional T emperature Measurements for�Preventing Infectious Virus No Formed Data Contact Temperature Waste Time�and Energy Not�for�Long-term Use Accumulation Measurement z In stations,�airports, z Easy to cause�cross z There�is�no�mechanism z Generally, temperature docks and other places infection to measure body information has�not with large�traffic flow, a temperature in�public formed as�data, so�it�is z Cause�psychological large�number of places�during�the�non- difficult to analyze and burden to�the detected passengers wait in epidemic period and�the evaluate�the health�and personnel queue early�outbreak period ， epidemic prevention, Easy�to cause�a�large and�difficult�to�improve area of�virus�infection the epidemic prevention and�control. www.hds.sk

Leading�T echnology Accurate face tracking Bi-spectrum, dual�channel Present results in�real time All-weather real-time�monitoring Face�recognition algorithm�is�used�to Visible light can�capture�human�face accurately locate the temperature�to and thermal imaging can�monitor the�target body temperature Multi-objective fast�non-contact T emperature temperature measurement accuracy 0.3 ℃ ≤ ≤ 0.3 ℃ Complete 16�target�temperature Modified 0.3 ℃ (emissivity , distance, ≤ measurements within 30 ambient temperature, etc.) milliseconds at�a�distance�of�3-5 meters Leading a�new�era�of AI+thermal technology www.hds.sk

Advantages�Compared�to�Traditional�System Body�T emperature Traditional Thermometer Measurement System T emperature Measurement 16�people temperature measurement Complete 16�people temperature within�30�ms measurement in 16s Max. 40 people can be�measured Only can simultaneously complete the 1 simultaneously in real-time person�temperature measurement VS Dynamic real-time continuous detection Need�arrange and irregular measurement Intelligent automatic temperature Manual temperature measurement detection www.hds.sk

Key�Features Intelligent Face Recognition Over-temperature Temperature Measure Real-time Warning Support Mobile Data can�be Checked APP and Analyzed www.hds.sk

Body�T emperature�Measurement�System IP LINE UI Cascaded System Unified Management Management Device App Management Attendance Online Real-Time Management Body�Temperature Monitoring Measurement System Personnel Alarm List Archives Management Health Warning Records Management Management Report Management www.hds.sk

Single�Point Applications Smart�NVR Thermal Camera Software Client NVR�Interface Thermal Camera Smart NVR www.hds.sk

Mini�& Medium�Scale Applications Smart�NVR NVR�interface Software Client Temperature Warning Smart�NVR Platform … … Thermal Camera Thermal Camera Thermal Camera Thermal Camera Screen Monitor Screen Monitor Screen Monitor Screen Monitor www.hds.sk

Medium�&�Large�Scale Applications Software Client Media�Distribution Server Media�Distribution Server Central�Management Server Intelligent Analysis Server Intelligent Analysis Server … … Thermal Camera Thermal Camera Thermal Camera Screen Monitor Screen Monitor Screen Monitor www.hds.sk

Body Temperature Measurement�System- Products Media Distribution Server Smart NVR Thermal Camera Blackbody Intelligent Analysis Server Central Management Server 1.Can�be�used for 1.Integrated with�face 1.T emperature measurement 1.Blackbody is�a�standard centralized management recognition accuracy 0.3 temperature source used for ≤ ℃ 2.Distributed deployment 2.Suitable for�single-point 2.Supports up to�40�targets at temperature calibration 3.Suitable for�selection of emergency deployment the same�time 2.When taking temperature medium and�large projects and small or medium- 3.T emperature measurement measurement, it is�greatly sized project selection response time 30ms affected by�environmental ≤ 4.Best distance for factors and it�needs to�be measurement: 3-4m calibrated in�real�time through the blackbody www.hds.sk

Application Cases for Epidemic Prevention and Control www.hds.sk

T ypical Application School Customs Hospital A irport Station
