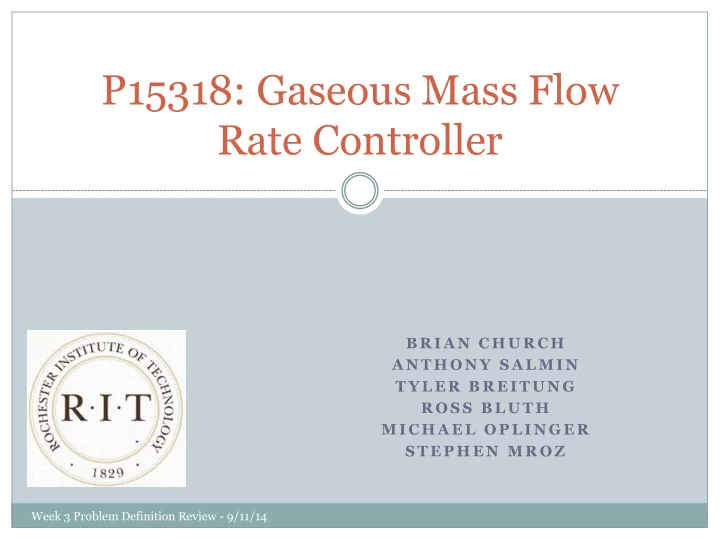

P15318: Gaseous Mass Flow Rate Controller B R I A N C H U R C H A N T H O N Y S A L M I N T Y L E R B R E I T U N G R O S S B L U T H M I C H A E L O P L I N G E R S T E P H E N M R O Z Week 3 Problem Definition Review - 9/11/14

SLIDE 1

B R I A N C H U R C H A N T H O N Y S A L M I N T Y L E R B R E I T U N G R O S S B L U T H M I C H A E L O P L I N G E R S T E P H E N M R O Z

P15318: Gaseous Mass Flow Rate Controller

Week 3 Problem Definition Review - 9/11/14

SLIDE 2

P15318 Introduction

Member Role

 Brian Church

Co-Team Leader

 Anthony Salmin

Co-Team Leader

 Tyler Breitung

Mechanical Engineer

 Ross Bluth

Electrical Engineer

 Michael Oplinger

Mechanical Engineer

 Stephen Mroz

Electrical Engineer

Week 3 Problem Definition Review - 9/11/14

SLIDE 3

Agenda

 Project Background  Problem Statement  Use Scenarios  Customer Requirements  Engineering Requirements  Draft of Project Plan  Top 5 Concerns with the Project

Week 3 Problem Definition Review - 9/11/14

SLIDE 4

Project Motivation

 Increases in oil prices  Increasing environmental concerns  Discovery of natural gas sources create the

pportunity for an alternative fuel source

Week 3 Problem Definition Review - 9/11/14

SLIDE 5

Pros Cons

 Cheaper  Cleaner Burning  Energy Security in USA  Less Energy Density  Lack of Infrastructure  Fracking Concerns

Pros and Cons of CNG (vs. Gasoline)

Week 3 Problem Definition Review - 9/11/14

SLIDE 6

Week 3 Problem Definition Review - 9/11/14

SLIDE 7

Project Objective



Develop a Gaseous Mass Flow Rate Controller (GMFRC) that can deliver a precise amount of CNG for use in an internal combustion engine



Design a distribution plate for a means of mixing the CNG with air

Week 3 Problem Definition Review - 9/11/14

SLIDE 8

Definition: Gaseous Mass Flow Rate Controller

 A device that can precisely regulate and control flow

rates of various gases

 Example: Regulator on a Gas Stove

Week 3 Problem Definition Review - 9/11/14

SLIDE 9

How will this CNG system work?

Week 3 Problem Definition Review - 9/11/14

Air intake Intake manifold Throttle body Fuel injector

SLIDE 10

Problem Statement: Current Design

 Dynamic Range of Flow of 100:1  Flow Rate Accuracy of ±1%  No means of Flow Rate Control  Not ready for use in an

Automotive Environment

Week 3 Problem Definition Review - 9/11/14

SLIDE 11

Problem Statement: Desired State

 Increase the flow rate accuracy to ±0.5%  A Distribution Plate for mixing CNG and Air  Smaller and Lighter than Current Prototype  A Proportional-Integral-Derivative (PID) Actuator

Control Algorithm to Increase Flow Rate Accuracy

Week 3 Problem Definition Review - 9/11/14

SLIDE 12

Problem Statement: Project Deliverables

 Fully operational Prototype that can be Tested and

Verified with Compressed Air

 Complete Technical Design Documentation  Comprehensive System Operation Instruction

Manual

 Technical Competitive Analysis  Documentation of Failure Modes  Demonstration at Imagine RIT

Week 3 Problem Definition Review - 9/11/14

SLIDE 13

Problem Statement: Constraints

 Low Cost  Small and Lightweight  Design for Manufacturability  Electrical/Mechanical Packaging for an Automotive

Environment

Week 3 Problem Definition Review - 9/11/14

SLIDE 14

Who are the Stakeholders?

 Alphacon LLC – Dr. Roman Press  MSD Team – P15318  MSD Guide – Edward Hanzlik  Natural Gas and Oil Industries  Automotive Industry  Automobile Drivers  RIT  EPA

Week 3 Problem Definition Review - 9/11/14

SLIDE 15

What are Some Use Scenarios?

 Installation and Purchase of GMFRC  Engine Operation  Non-Automotive Applications  Testing of GMFRC

Week 3 Problem Definition Review - 9/11/14

SLIDE 16

Use Scenario Example

Week 3 Problem Definition Review - 9/11/14

SLIDE 17

Customer Requirements

Week 3 Problem Definition Review - 9/11/14

SLIDE 18

Engineering Requirements

Week 3 Problem Definition Review - 9/11/14

SLIDE 19

House of Quality

Week 3 Problem Definition Review - 9/11/14

SLIDE 20

Draft Project Plan

Week 3 Problem Definition Review - 9/11/14

SLIDE 21

Top 5 Concerns with the Project

 Obtaining the necessary flow control accuracy and

repeatability with our budget

 Finding test equipment that is accurate enough to

verify our requirements

 Designing safety features  Limited Contact with Original Customer  Learning and implementing CFD analysis

Week 3 Problem Definition Review - 9/11/14

SLIDE 22

Sources

 http://www.afdc.energy.gov/fuels/natural_gas_ben

efits.html

 http://www.cngnow.com/average-cng-

prices/pages/default.aspx

 https://www.google.com/search?

Week 3 Problem Definition Review - 9/11/14

SLIDE 23

Questions?

Week 3 Problem Definition Review - 9/11/14
