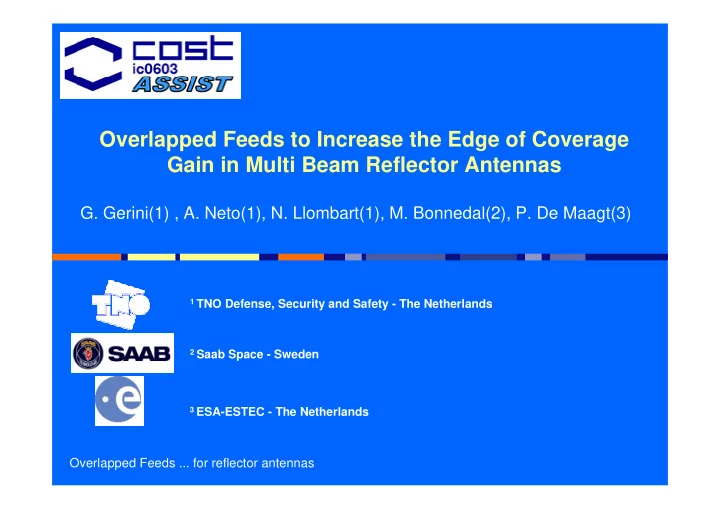

Overlapped Feeds to Increase the Edge of Coverage Gain in Multi Beam Reflector Antennas G. Gerini(1) , A. Neto(1), N. Llombart(1), M. Bonnedal(2), P. De Maagt(3) 1 TNO Defense, Security and Safety - The Netherlands 2 Saab Space - Sweden 3


slide-1
SLIDE 1

Overlapped Feeds ... for reflector antennas

Overlapped Feeds to Increase the Edge of Coverage Gain in Multi Beam Reflector Antennas

1 TNO Defense, Security and Safety - The Netherlands 3 ESA-ESTEC - The Netherlands 2 Saab Space - Sweden

  • G. Gerini(1) , A. Neto(1), N. Llombart(1), M. Bonnedal(2), P. De Maagt(3)
slide-2
SLIDE 2

9 April 2008 Overlapped Feeds ... for reflector antennas 2

Multi Spot Beam Satellite Scenario

Reuse scheme (x4)

Xout Y, Yout X

  • Maximize Edge of

Coverage Gain

Focal plane array Four colours reuse scheme

slide-3
SLIDE 3

9 April 2008 Overlapped Feeds ... for reflector antennas 3

The Imaging Problem

  • 3dB
  • 3dB=
  • 0/D
  • d /F

+

d =

  • 0 (F/D)

Similar efficiency for different F/D:

Cosq(

  • )

F/D q

  • (F/D)=1

Spill over efficiency 58%

slide-4
SLIDE 4

9 April 2008 Overlapped Feeds ... for reflector antennas 4

Free Space Configuration EoC Gain

Case 2 EoC Gain for different reflector diameters 38.5 39.0 39.5 40.0 40.5 41.0 9.4 9.6 9.8 10 10.2 10.4 10.6 Frequency [GHz] EoC Gain [dBi] 2.1 m F/D=0.95 2.2 m F/D=0.90 2.3 m F/D=0.87 2.4 m F/D=0.85

Only solution to date: 4 reflector antennas (combined Tx and Rx) Gain is moderate….

slide-5
SLIDE 5

9 April 2008 Overlapped Feeds ... for reflector antennas 5

Leaky Wave Approach

Oliner, Jackson, Di Nallo, Jecko, Mittra, Albani etc…

More layers equivalent to higher dielectric constant

Enhanced radiation by leaky-wave excitation Equivalent dielectric layers can be realized with metallic FSS

slide-6
SLIDE 6

9 April 2008 Overlapped Feeds ... for reflector antennas 6

Leaky Wave Pole Localization

  • lw

ebg

k GF s Y 1 Re

  • j

k f klw

  • sin

) (

slide-7
SLIDE 7

9 April 2008 Overlapped Feeds ... for reflector antennas 7

BW and Coupling Limits

Antenna BW very narrow and mutual coupling very high except for low

  • r !
  • lw

ebg

k GF s Y 1 Re

  • )

( ) ( ) ( ) (

1 2 2 1

f k f k f Y f Y

lw lw ebg ebg

  • j

k f klw

  • sin

) (

BW

BW , coupling 1/

  • j

k f klw

  • sin

) (

  • lw

jk lw ebg ij

e k GF s Y 1 Re

slide-8
SLIDE 8

9 April 2008 Overlapped Feeds ... for reflector antennas 8

Higher order leaky modes

0.5

  • Three Leaky Poles + Space Wave

e.g. third leaky mode, TM, …………..neglected by everyone Optimizing the parameters of the dielectric stratification:

  • distance of the first dielectric layer from the radiating plane
  • distance between layers in a multilayer structure

You can end up with configurations where also higher order leaky- wave modes are excited:

slide-9
SLIDE 9

9 April 2008 Overlapped Feeds ... for reflector antennas 9

Mode Suppression

1

  • Double Iris design

0.6

  • M. Qiu, G. Eleftheriades, A reduced surface-wave…, IEEE Microwave

Wireless Components Lett., pp. 459-461, Nov. 2001.

Cancellation by matching with zero of the Ms current

slide-10
SLIDE 10

9 April 2008 Overlapped Feeds ... for reflector antennas 10

Prototype Implementation

Polarization discrimination Frequency discrimination

  • Resistive

loading

  • Reactive

loading 4x reuse scheme

slide-11
SLIDE 11

9 April 2008 Overlapped Feeds ... for reflector antennas 11

Enhanced Feed System Performance

25 30 35 40 45

Nominal Adjacent

50

EoC EoC G [dB]

eoc

  • 1
  • 0.5

0.5 1 1.5 2 2.5 3 3.5 4 15 20 10

(degrees)

  • 1
  • 0.5

0.5 1 1.5 2 2.5 3 3.5 4 15 20 25 30 35 40 45

Nominal Adjacent

50 10

EoC EoC G [dB]

eoc

(degrees)

Free Space Enhanced Feed (Resistive loading)

Case 3 EoC Gain for different reflector diameters 38.5 39.0 39.5 40.0 40.5 41.0 9.4 9.6 9.8 10 10.2 10.4 10.6 Frequency [GHz] EoC Gain [dBi] 2.1 m F/D=0.95 2.3 m F/D=0.87 2.4 m F/D=0.85

Enhancement of 0.6 dB over 12% BW: moderate due to:

  • Stein Losses
  • Pattern widening due to mutual coupling
slide-12
SLIDE 12

9 April 2008 Overlapped Feeds ... for reflector antennas 12

Reactive Loading

Same configuration

  • r=4.5

Period d= 2.4

  • Isolated

Array

Equivalent short circuits loads for neighboring waveguides

slide-13
SLIDE 13

9 April 2008 Overlapped Feeds ... for reflector antennas 13

Demonstrator 2: Measured Patterns

E-plane H-plane

slide-14
SLIDE 14

9 April 2008 Overlapped Feeds ... for reflector antennas 14

Comparison

  • With single dielectric slab, EoC Gain increase 0.85 dB over 3% BW

BestCase(F/D=0.87) WorstCase (F/D=0.85) Reference (F/D=0.85)

9.4 9.6 9.8 10 10.2 10.4 10.6 38.5 39 39.5 40 40.5 41 41.5

G [dB]

eoc

f[GHz]

  • Adding reactive loadings (filters), EoC Gain increase 1.6 dB over 3% BW

Matched Loads Reactive Loads

slide-15
SLIDE 15

9 April 2008 Overlapped Feeds ... for reflector antennas 15

Larger F/D and more directive feeds

Feeds with higher directivity are required. Analyzed three different solutions, which do not require feeds of larger dimensions:

  • Single dielectric layer of high permittivity: r=20.25
  • Two dielectric layers of low permittivty: r=4.5
  • Metallic FSS (to avoid the use of dielectric layers)

F/D=1.71; Period (d) = 4.8 0 0=17o

slide-16
SLIDE 16

9 April 2008 Overlapped Feeds ... for reflector antennas 16

Patterns

Secondary Primary Double Dielectric Case FSS

slide-17
SLIDE 17

9 April 2008 Overlapped Feeds ... for reflector antennas 17

h1=15 mm h2=3.535 mm d=144 mm

Impedance Matching

Double Dielectric Case h1=14 mm t=0.25 mm d=144 mm FSS Case

slide-18
SLIDE 18

9 April 2008 Overlapped Feeds ... for reflector antennas 18

Comparison

  • Frequency range of applicabiltiy -

Best case: 2.0 dB, in 4.0 % BW

slide-19
SLIDE 19

9 April 2008 Overlapped Feeds ... for reflector antennas 19

New Demonstrator - Filters

19 elements (F/D=1.7; d= 4.8) 4x reuse scheme (2 pol. – 2 freq.) Filter High (10.01 – 10.10 GHz) Filter Low (9.875 – 9.965 GHz)

  • VSWR < -20 dB
  • Rejection > 28 dB
