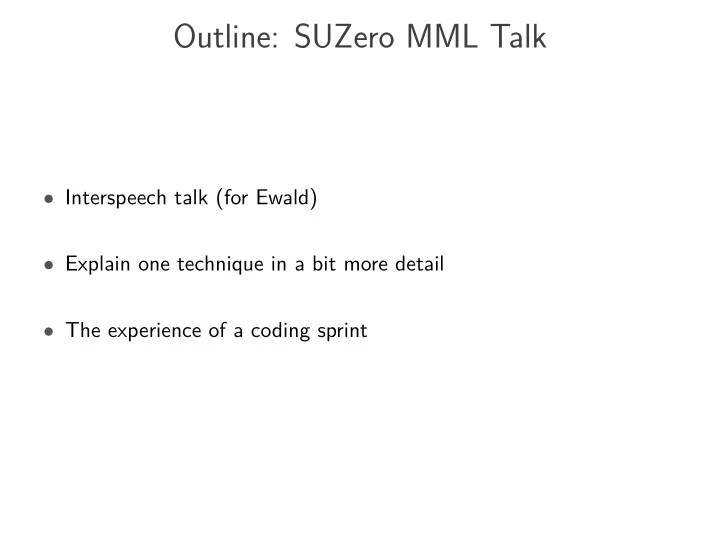

Outline: SUZero MML Talk Interspeech talk (for Ewald) Explain one - - PowerPoint PPT Presentation

Outline: SUZero MML Talk

• Interspeech talk (for Ewald)
• Explain one technique in a bit more detail
• The experience of a coding sprint

Unsupervised acoustic unit discovery for speech synthesis using discrete latent-variable neural networks

Interspeech 2019, Graz, Austria

Ryan Eloff, Andr´ e Nortje, Benjamin van Niekerk, Avashna Govender, Leanne Nortje, Arnu Pretorius, Elan van Biljon, Ewald van der Westhuizen, Lisa van Staden, Herman Kamper Stellenbosch University, South Africa & University of Edinburgh, UK https://github.com/kamperh/suzerospeech2019

Advances in speech recognition

1 / 35

Advances in speech recognition

• Addiction to text: 2000 hours transcribed speech audio;

∼350M/560M words text [Xiong et al., TASLP’17]

1 / 35

Advances in speech recognition

• Addiction to text: 2000 hours transcribed speech audio;

∼350M/560M words text [Xiong et al., TASLP’17]

• Sometimes not possible, e.g., for unwritten languages

1 / 35

Advances in speech recognition

• Addiction to text: 2000 hours transcribed speech audio;

∼350M/560M words text [Xiong et al., TASLP’17]

• Sometimes not possible, e.g., for unwritten languages
• Very different from the way human infants learn language

1 / 35

Zero-Resource Speech Challenges (ZRSC)

2 / 35

Zero-Resource Speech Challenges (ZRSC)

2 / 35

ZRSC 2019: Text-to-speech without text

Waveform generator Target voice ‘the dog ate the ball’

3 / 35

ZRSC 2019: Text-to-speech without text

Acoustic model

7 11 26 31

Waveform generator Target voice

11

3 / 35

What do we get for training?

4 / 35

What do we get for training?

No labels

4 / 35

What do we get for training?

No labels :)

4 / 35

What do we get for training?

No labels :)

Figure adapted from: http://zerospeech.com/2019 4 / 35

Approach: Compress, decode and synthesise

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Speaker ID Embed 5 / 35

Approach: Compress, decode and synthesise

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Training speaker Embed 5 / 35

Approach: Compress, decode and synthesise

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Target speaker Embed 5 / 35

Approach: Compress, decode and synthesise

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Speaker ID Embed 5 / 35

Approach: Compress, decode and synthesise

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Speaker ID Embed 5 / 35

Discretisation methods

• Straight-through estimation (STE)

binarisation:

• Categorical variational autoencoder

(CatVAE):

• Vector-quantised variational

autoencoder (VQ-VAE):

6 / 35 0.9 −0.1 0.3 0.7 −0.8 h threshold 1 −1 1 1 −1 z 0.9 −0.1 0.3 0.7 −0.8 h z 0.86 0.01 0.02 0.11 0.00

e(hk+gk)/τ K

k=1 e(hk+gk)/τ

0.9 −0.1 0.3 0.7 −0.8 h z 0.8 −0.2 0.3 0.5 −0.6 Choose closest embedding e

Neural network architectures

• Encoder: Convolutional layers, each layer with a stride of 2
• Decoder: Transposed convolutions mirroring encoder
• Waveform generation: FFTNet autoregressive vocoder
• Also experimented with WaveNet: Sometimes gave noisy output
• Bitrate: Set by number of symbols K and number of striding layers

7 / 35

Evaluation

Human evaluation metrics:

• Mean opinion score (MOS)
• Character error rate (CER)
• Similarity to the target speaker’s voice

8 / 35

Evaluation

Human evaluation metrics:

• Mean opinion score (MOS)
• Character error rate (CER)
• Similarity to the target speaker’s voice

Objective evaluation metrics:

• ABX discrimination
• Bitrate

8 / 35

Evaluation

Human evaluation metrics:

• Mean opinion score (MOS)
• Character error rate (CER)
• Similarity to the target speaker’s voice

Objective evaluation metrics:

• ABX discrimination
• Bitrate

Two evaluation languages:

• English: Used for development
• Indonesian: Held out “surprise language”

8 / 35

ABX on English with speaker conditioning

STE VQ-VAE CatVAE 10 20 30 ABX (%)

no speaker cond. speaker conditioning

9 / 35

ABX on English for different compression rates

64 64 64 256 256 256 512 512 512 STE VQ-VAE CatVAE 10 20 30 ABX (%)

no downsampling

10 / 35

ABX on English for different compression rates

64 64 64 256 256 256 512 512 512 STE VQ-VAE CatVAE 10 20 30 ABX (%)

no downsampling ×4 downsample

10 / 35

ABX on English for different compression rates

64 64 64 256 256 256 512 512 512 STE VQ-VAE CatVAE 10 20 30 ABX (%)

no downsampling ×4 downsample ×8 downsample

10 / 35

ABX on English for different compression rates

64 64 64 256 256 256 512 512 512 STE VQ-VAE CatVAE 10 20 30 ABX (%)

64 116 473 79 154 644 85 164 682 75 139 576 93 188 770 100 190 750 70 124 478 90 194 646 103 215 686 no downsampling ×4 downsample ×8 downsample

10 / 35

Official evaluation results

CER MOS Similarity ABX Model (%) [1, 5] [1, 5] (%) Bitrate English: DPGMM-Merlin 75 2.50 2.97 35.6 72 VQ-VAE-x8 75 2.31 2.49 25.1 88 VQ-VAE-x4 67 2.18 2.51 23.0 173 Supervised 44 2.77 2.99 29.9 38 Indonesian: DPGMM-Merlin 62 2.07 3.41 27.5 75 VQ-VAE-x8 58 1.94 1.95 17.6 69 VQ-VAE-x4 60 1.96 1.76 14.5 140 Supervised 28 3.92 3.95 16.1 35

11 / 35

Synthesised examples

Model Input Synthesised output Target speaker English: VQ-VAE-x4

Play Play Play

VQ-VAE-x4-new

Play

VQ-VAE-x4

Play Play Play

VQ-VAE-x4-new

Play

Indonesian: VQ-VAE-x4

Play Play Play

VQ-VAE-x4-new

Play

VQ-VAE-x4

Play Play Play

VQ-VAE-x4-new

Play

12 / 35

Conclusions

• Speaker conditioning consistently improves performance
• Different discretisation methods are similar (VQ-VAE slightly better)
• Different models difficult to compare because of bitrate
• Future: Does discritisation actually benefit feature learning?

13 / 35

https://github.com/kamperh/suzerospeech2019

https://github.com/kamperh/suzerospeech2019 (Update coming soon)

Straight-through estimation (STE) binarisation

• STE binarisation:

zk = 1 if hk ≥ 0 or zk = −1 otherwise

• For backpropagation we need: ∂J

∂h

• For single element: ∂J

∂hk = ∂zk ∂hk ∂J ∂zk

• What is ∂zk

∂hk with zk = threshold(hk)? Cannot solve directly

• Idea: If zk ≈ hk then we could use ∂J

∂hk ≈ ∂J ∂zk

15 / 35

0.9 −0.1 0.3 0.7 −0.8 1 −1 1 1 −1 h z h4 z4 threshold

Straight-through estimation (STE) binarisation

As an example, let us say hk = 0.7:

−1 0.7 1 16 / 35

Straight-through estimation (STE) binarisation

Instead of direct thresholding, let us set zk = 1 with probability 0.85 and zk = −1 with probability 0.15:

−1 0.7 1

Estimated mean of zk over 500 samples: 0.668

17 / 35

Straight-through estimation (STE) binarisation

• So, instead of direct thresholding, we set zk = hk + ǫ, where ǫ is

sampled noise: ǫ =

• 1 − hk

with probability 1+hk

2

−hk − 1 with probability 1−hk

2

• Since ǫ is zero-mean, the derivative of the expected value
• f zk is: ∂E[zk]

∂hk = 1

• Therefore, gradients are passed unchanged through the thresholding
• peration: ∂J

∂h ≈ ∂J ∂z

18 / 35

Outcome of ZRSC 2019

19 / 35

Coding sprint:

Stellenbosch University ZeroSpeech (SUZero) Team

Why do we have ten authors on this paper?

Ryan Eloff Andr´ e Nortje Benjamin van Niekerk Avashna Govender Leanne Nortje Arnu Pretorius Elan van Biljon Ewald van der Westhuizen Lisa van Staden Herman Kamper

21 / 35

Planned structure

• Original idea: Arnu had a sprint for some other work

22 / 35

Planned structure

• Original idea: Arnu had a sprint for some other work
• Duration: Two weeks (probably longer, but then you can leave)

22 / 35

Planned structure

• Original idea: Arnu had a sprint for some other work
• Duration: Two weeks (probably longer, but then you can leave)
• Two teams

22 / 35

Planned structure

• Original idea: Arnu had a sprint for some other work
• Duration: Two weeks (probably longer, but then you can leave)
• Two teams, with tech support (Elan) and someone crying (Herman)

22 / 35

Planned structure

• Original idea: Arnu had a sprint for some other work
• Duration: Two weeks (probably longer, but then you can leave)
• Two teams, with tech support (Elan) and someone crying (Herman)
• Compression team:

Arnu, Ryan, Andr´ e, Leanne

• Synthesis team:

Ewald, Benji, Lisa, Avashna

22 / 35

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Speaker ID Embed

Planned structure

• Original idea: Arnu had a sprint for some other work
• Duration: Two weeks (probably longer, but then you can leave)
• Two teams, with tech support (Elan) and someone crying (Herman)
• Compression team:

Arnu, Ryan, Andr´ e, Leanne

• Synthesis team:

Ewald, Benji, Lisa, Avashna

• Teams would work in parallel

22 / 35

Encoder Discretise FFTNet Decoder z1:N h1:N x1:T ˆ y1:T MFCCs Filterbanks Waveform Vocoder Compression model Symbol-to-speech module Speaker ID Embed

Planned structure

• Herman talks to team leaders every day
• Daily stand-ups within each of the teams
• Slack: All communication
• Trello: Track tasks with boards (backlog, in-progress, done)
• Bitbucket: Version control using git, pull requests need to be reviewed

23 / 35

Promises beforehand: What will you get from this?

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are
• Maybe a paper

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are
• Maybe a paper . . . probably

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are
• Maybe a paper . . . probably . . . almost certainly

24 / 35

Promises beforehand: What will you get from this?

• You can leave after two weeks (check with your supervisors)
• Have fun
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are
• Maybe a paper . . . probably . . . almost certainly
• Worst case: Pizza and beer

24 / 35

What actually happened

27 / 35

What actually happened

• Two teams

27 / 35

What actually happened

• Two teams ∼

27 / 35

What actually happened

• Two teams ∼
• Herman talks to team leaders every day

27 / 35

What actually happened

• Two teams ∼
• Herman talks to team leaders every day
• Daily stand-ups within each of the teams

27 / 35

What actually happened

• Two teams ∼
• Herman talks to team leaders every day
• Daily stand-ups within each of the teams
• Slack: All communication

27 / 35

What actually happened

• Two teams ∼
• Herman talks to team leaders every day
• Daily stand-ups within each of the teams
• Slack: All communication :(

27 / 35

What actually happened

• Two teams ∼
• Herman talks to team leaders every day
• Daily stand-ups within each of the teams
• Slack: All communication :(
• Some people didn’t respond; different time zones complicated things

27 / 35

28 / 35

29 / 35

30 / 35

What actually happened

• You can leave after two weeks

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . .

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼
• Learn something about speech!

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼
• Learn something about speech!
• Learn some software engineering skills . . . maybe

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are :(

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are :(
• Maybe a paper . . . probably . . . almost certainly

31 / 35

What actually happened

• You can leave after two weeks
• But for Ryan, Andr´

e, Benji . . . almost two months, up to day of submission deadline :(

• Have fun ∼
• Learn something about speech!
• Learn some software engineering skills . . . maybe
• Do something in a group
• Learn where the DSP and MediaLabs are :(
• Maybe a paper . . . probably . . . almost certainly
• Pizza and beer

31 / 35

What we learned: Things we did that worked

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)
• Role assignment beforehand

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)
• Role assignment beforehand
• Make expectations clear upfront (e.g. authors on paper and order)

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)
• Role assignment beforehand
• Make expectations clear upfront (e.g. authors on paper and order)
• Using team leaders to deal with big team

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)
• Role assignment beforehand
• Make expectations clear upfront (e.g. authors on paper and order)
• Using team leaders to deal with big team
• Flexible in restructuring things on the fly (based on listening to

recommendations from team)

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)
• Role assignment beforehand
• Make expectations clear upfront (e.g. authors on paper and order)
• Using team leaders to deal with big team
• Flexible in restructuring things on the fly (based on listening to

recommendations from team)

• Pizza and beer

32 / 35

What we learned: Things we did that worked

• Planning beforehand (Herman did some prototyping)
• Role assignment beforehand
• Make expectations clear upfront (e.g. authors on paper and order)
• Using team leaders to deal with big team
• Flexible in restructuring things on the fly (based on listening to

recommendations from team)

• Pizza and beer (Gino’s delivers)

32 / 35

What we learned: Things we did that didn’t work

33 / 35

What we learned: Things we did that didn’t work

• Some roles weren’t clear enough (especially for first year masters

students)

33 / 35

What we learned: Things we did that didn’t work

• Some roles weren’t clear enough (especially for first year masters

students)

• Some people had other stuff going on in the first two weeks

33 / 35

What we learned: Things we did that didn’t work

• Some roles weren’t clear enough (especially for first year masters

students)

• Some people had other stuff going on in the first two weeks
• We focussed on intermediate evaluations which turned out not be

that important in the end

33 / 35

What we learned: Things we did that didn’t work

• Some roles weren’t clear enough (especially for first year masters

students)

• Some people had other stuff going on in the first two weeks
• We focussed on intermediate evaluations which turned out not be

that important in the end

• Don’t do this in the first two weeks of Systems and Signals 414

lectures

33 / 35

What we learned: What we would do differently

34 / 35

What we learned: What we would do differently

• Smaller team: Can’t have stand-ups with 10 people; maybe apply the
• ne-pizza rule

34 / 35

What we learned: What we would do differently

• Smaller team: Can’t have stand-ups with 10 people; maybe apply the
• ne-pizza rule
• Every team member should have a specific purpose

34 / 35

What we learned: What we would do differently

• Smaller team: Can’t have stand-ups with 10 people; maybe apply the
• ne-pizza rule
• Every team member should have a specific purpose
• Locations: If possible, have everyone in one central place (a lab, not a

small room)

34 / 35

What we learned: What we would do differently

• Smaller team: Can’t have stand-ups with 10 people; maybe apply the
• ne-pizza rule
• Every team member should have a specific purpose
• Locations: If possible, have everyone in one central place (a lab, not a

small room)

• Get through the pipeline faster: Idea, model, implement, evaluate

34 / 35

Conclusions about sprint

35 / 35

Conclusions about sprint

• Frustrating but fun at the same time

35 / 35

Conclusions about sprint

• Frustrating but fun at the same time
• (New) students got to know each other

35 / 35

Conclusions about sprint

• Frustrating but fun at the same time
• (New) students got to know each other

Low-resource speech and language (LSL)

35 / 35

Conclusions about sprint

• Frustrating but fun at the same time
• (New) students got to know each other

Low-resource speech and language (LSL) and Lego group

35 / 35

Conclusions about sprint

• Frustrating but fun at the same time
• (New) students got to know each other

Low-resource speech and language (LSL) and Lego group

• Everyone learned something

35 / 35

Conclusions about sprint

• Frustrating but fun at the same time
• (New) students got to know each other

Low-resource speech and language (LSL) and Lego group

• Everyone learned something
• Pizza and beer

35 / 35
