"Increasing State Dredging Capacity Through the Beneficial Re-use of Dredged Material" Sea Isle City 5 th Street Landfill Remediation Project Douglas Gaffney, PE Matthew Dalon www.ocean-coastal.com Outline Project History

slide-1
SLIDE 1

1

www.ocean-coastal.com

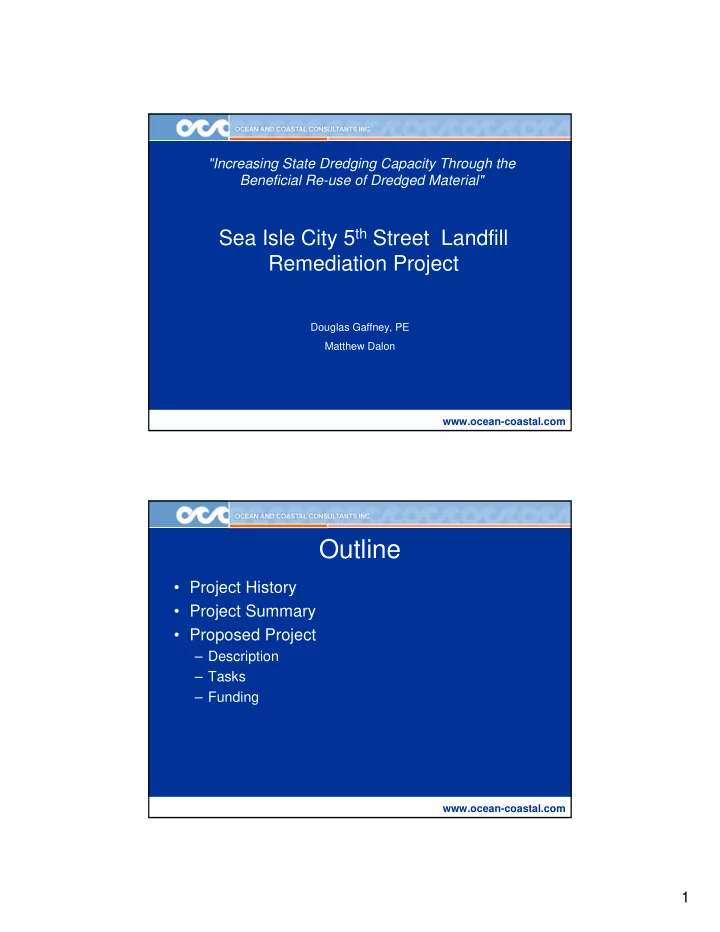

Sea Isle City 5th Street Landfill Remediation Project

"Increasing State Dredging Capacity Through the Beneficial Re-use of Dredged Material"

Douglas Gaffney, PE Matthew Dalon www.ocean-coastal.com

Outline

  • Project History
  • Project Summary
  • Proposed Project

– Description – Tasks – Funding

slide-2
SLIDE 2

2

www.ocean-coastal.com

Sea Isle City 5th Street Landfill

www.ocean-coastal.com

Sea Isle City 5th Street Landfill

  • Municipal Facility*
  • Area - 20 Acres*
  • Closed 1980*
  • No Official Closure*
  • 2007 NJDEP Site

Visit Issues

– Site Access – Site Use – Erosion

* data from NJDEP

slide-3
SLIDE 3

3

www.ocean-coastal.com

Landfill Issues - Usage

www.ocean-coastal.com

Landfill Issues - Erosion

slide-4
SLIDE 4

4

www.ocean-coastal.com

NJDEP Course of Action

  • Better Control of Access to the Landfill
  • Better Control of Public Works Activity
  • Remove all Surface Debris from the Landfill
  • Stabilize the Eroded Bank and Eliminate

Discharge of Leachate from the Landfill

From April 2007 letter from Michael Hansen (NJDEP) www.ocean-coastal.com

Stabilize the Erosion

  • SIC Hired ASG to Investigate the Erosion
  • f the Western Bank of the Landfill

– ASG Assessed Erosion (loss of ~2.6 acres) – Developed a Temporary and Long Term Erosion Solution

  • SIC Proceeding with Temporary Erosion

Control

  • Long Term Solution Must be Implemented
slide-5
SLIDE 5

5

www.ocean-coastal.com

SIC Options

Temporary Erosion Solution Long Term Erosion Solution + Closure

END USE

Long Term Erosion Solution Closure END USE

www.ocean-coastal.com

What is the Future of the Landfill?

Public Input Passive Park? Other Uses? Proper Closure is Necessary Closure is Regulated by NJDEP SWRM

slide-6
SLIDE 6

6

www.ocean-coastal.com

Landfill Closure

Purpose of Proper Closure

– Physical Barrier – Pollution Control – Necessary for End Use

  • Closure Regulations (NJDEP)

– Erosion Control – Final Soil Cover Material is Needed for Closure ~75,000 cy

www.ocean-coastal.com

Material Options

  • Material Quality is Regulated by NJDEP
  • Material Needs to be Suitable for Plant Growth
  • Typical Material Options
  • Alternative Material Options
slide-7
SLIDE 7

7

www.ocean-coastal.com

Partnership with NJDOT

Material is Needed for Landfill Closure

Beneficially Re-Use Dredged Material for Landfill Closure!!! WIN - WIN NJDOT Seeks to Beneficially Re-Use Dredged Material

www.ocean-coastal.com

State Dredging

  • Dredging is Needed for Navigation Channels
  • State is Responsible for Providing Capacity

for NJICWW Dredging

  • Dredged Material Placement Options

– Confined Disposal Facility (CDF) – Beneficial Re-Use

slide-8
SLIDE 8

8

www.ocean-coastal.com www.ocean-coastal.com

Site 90 - CDF

  • NJDEP Owned
  • Area - 12 acres
  • 1963-2000
  • ~375,000 cy
  • Limited Capacity

~18 ft

slide-9
SLIDE 9

9

www.ocean-coastal.com

If:

Clean Material can be Excavated from Site 90 and Utilized in the Closure of the Sea Isle City Landfill…

www.ocean-coastal.com

Benefits to Partnership

  • Local
  • Environmental
  • Economic
  • Boating
  • Funding
slide-10
SLIDE 10

10

www.ocean-coastal.com

Project Planning

  • Start with an End Goal

– Landfill End Use – Increase State Dredging Capacity

Resources Activities Outputs Short-term Outcome Mid-term Outcome Long-term Outcome Planning Implementation and Management

*NOAA Coastal Connections 2009

www.ocean-coastal.com

Pre-Planning

  • Meeting with Sea Isle City (June 2008)
  • Meeting with NJDOT (July 2008)
  • Joint Permit Process Meeting (Jan 2009)
  • Meeting with NJDEP (Feb 2009)

– Bureau of Coastal Engineering – Office of Dredging and Sediment Technology

  • Project Proposal (March 2009)
slide-11
SLIDE 11

11

www.ocean-coastal.com

Increasing State Dredging Capacity Through the Beneficial Re-use of Dredged Material

www.ocean-coastal.com

Project Description

  • Use Dredged Material from Site 90 for

Official Closure of the Sea Isle City Landfill

  • Increase State Dredging Capacity
  • Official Closure of Sea Isle City's 5th St

Landfill

– Erosion Control – Preliminary Landfill Development Plan

Project Goals

slide-12
SLIDE 12

12

www.ocean-coastal.com

Construction

Estimated Project Timeline

Site Investigation, Engineering, Design, and Permitting

2011 2010 2009

Phase I - Total Cost ~$433,000 Phase II - Estimated Cost ~$X,000,000

www.ocean-coastal.com

Who is Involved?

  • Sea Isle City
  • NJDOT
  • NJDEP
  • Ocean and Coastal

Consultants, Inc.

  • Amy S. Greene Environmental

Consultants, Inc.

  • Golder Associates, Inc.
slide-13
SLIDE 13

13

www.ocean-coastal.com

Project Outline

  • Pre-Planning*
  • Site Investigation
  • Engineering and Design
  • Permitting
  • Preliminary Landfill Development Plan
  • Wetlands Mitigation (if necessary)

*Initiated June 2008 www.ocean-coastal.com

Site Investigation

  • Landfill

– Survey – Wetlands Delineation – Environmental Study – Waste Delineation – Groundwater Seep Water Quality – Gas Migration Investigation

slide-14
SLIDE 14

14

www.ocean-coastal.com

Site Investigation

  • CDF

– Material Sampling and Testing (SAP) – Site Survey – Wetlands Delineation – Local Hydrographic Survey – Local Dredging Needs – Site Capacity – Dike Erosion/Stability

www.ocean-coastal.com

Engineering and Design

  • Landfill

– Shoreline Erosion Control – Coastal Impact Alternatives Analysis – Closure Plan – Re-Vegetation Plan

  • CDF

– Material Transportation – Site Reconstruction

  • Construction Estimate
slide-15
SLIDE 15

15

www.ocean-coastal.com

Material Transportation Options

  • Truck
  • Conveyor
  • Barge
  • Hydraulic

www.ocean-coastal.com

Permitting

  • Landfill

– USACE NWP #38 – NJDEP – Tidelands Grant

  • CDF

– AUD – NJDEP – USACE

slide-16
SLIDE 16

16

www.ocean-coastal.com

Landfill Development Plan

  • Closure Needs to

Consider End Use

  • Concept Design

– Community Input – Landscape Architect – Landfill Closure Plan – Re-Vegetation Plan

www.ocean-coastal.com

Wetlands Mitigation*

* If Necessary

– Site Identification – Site Investigation – Mitigation Plan

slide-17
SLIDE 17

17

www.ocean-coastal.com Engineering and Design

Estimated Project Timeline

2010 2009

Permit Application Preliminary Landfill Development Plan Site Investigation Pre-planning Project Management Wetlands Mitigation* * If necessary www.ocean-coastal.com

Funding

Engineering, Design, & Permitting (current)

  • Separated by Task

– Landfill Related – CDF Related – Common Interest (50/50)

Construction (future)

  • Cost Share (State % - SIC % TBD)
slide-18
SLIDE 18

18

www.ocean-coastal.com

Funding

Total Project Cost - $432,578 Sea Isle City - $244,196 NJDOT - $188,382

www.ocean-coastal.com

This Project Benefits:

  • Sea Isle City
  • New Jersey
  • Environment
