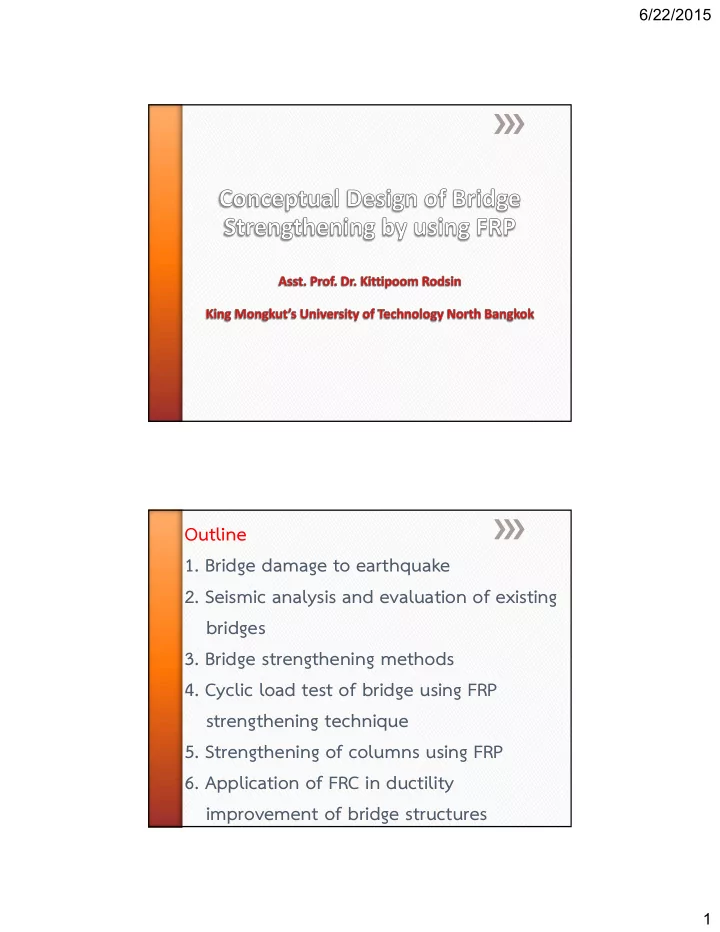

Outline

  • 1. Bridge damage to earthquake
  • 2. Seismic analysis and evaluation of existing

bridges

  • 3. Bridge strengthening methods
  • 4. Cyclic load test of bridge using FRP

strengthening technique

  • 5. Strengthening of columns using FRP
  • 6. Application of FRC in ductility

improvement of bridge structures

slide-2
SLIDE 2

6/22/2015 2

  • 1. Bridge damage due to earthquake

Potential Earthquake Sources

Indo-Australian plate Eurasian plate

  • Megathrust Sunda subduction zone,

where Indo-Australian plate moves toward Eurasian plate at a rate of 45-70 mm/year

Tectonic Plate Boundary

  • Largest recorded quake is Mw = 9.1

Sumatra-Andaman Earthquake in 2004, a cause of destructive tsunami.

Bangkok

  • Generates frequent and large earthquakes.

500-800 km

  • Nearest distance from this fault to

Bangkok is 500-800 km.

slide-3
SLIDE 3

6/22/2015 3 Potential Earthquake Sources

Crustal Faults

  • There are 13 known active faults in

Thailand.

Earthquake Sources

slide-4
SLIDE 4

6/22/2015 4

During 1912 to 2007, ~15,000 earthquakes with Mw ≥ 3.0, including foreshocks & aftershocks were recorded near Thailand.

Ye a r Sourc e L

  • c a tion

Ma g nitude Da ma g e 1935 Na a n 6.5 F e lt in BKK 1975 T a a k 5.6 1983 Ka nc ha na buri (Sri Sa wa t fa ult) 5.3,5.9,5.2 1995/ 96 Chia ng Ra i 5.1/ 5.5 Da ma g e to building s 1995 Phra e 5.2

Earthquakes IN Thailand (Mw ≥ 5) : Pan Hospital in 1995

Mae Lao Earthquake 5 May 2014

slide-5
SLIDE 5

6/22/2015 5

Masonry infill wall failure

slide-6
SLIDE 6

6/22/2015 6

slide-7
SLIDE 7

6/22/2015 7

slide-8
SLIDE 8

6/22/2015 8

slide-9
SLIDE 9

6/22/2015 9 Bridge pier collapse

slide-10
SLIDE 10

6/22/2015 10 Bridge pier collapse Unseating

slide-11
SLIDE 11

6/22/2015 11 Unseating Unseating

slide-12
SLIDE 12

6/22/2015 12 Bridge pier collapse- Flexure failure Bridge pier collapse- Flexure failure

slide-13
SLIDE 13

6/22/2015 13 Bridge pier collapse- Bar buckling Bridge pier collapse- Shear failure

slide-14
SLIDE 14

6/22/2015 14 Bridge pier collapse- Shear failure Joint failure

slide-15
SLIDE 15

6/22/2015 15 Joint failure Beam failure

slide-16
SLIDE 16

6/22/2015 16 Abutment failure

: Compare structural capacity and demand from earthquake 4 major methods

  • 1. LSP – Linear static procedure
  • 2. LDP – Linear dynamic procedure
  • 3. NLSP – Non‐linear static procedure
  • 4. NLDP – Non‐linear dynamic procedure
  • 2. Seismic analysis and evaluation of existing

bridges

slide-17
SLIDE 17

6/22/2015 17 Non‐linear static procedure using CPM

  • ตัวอย่างของ Capacity Spectrum Method

Demand vs Capacity

slide-18
SLIDE 18

6/22/2015 18

  • Bridge evaluation procedure using

Capacity Spectrum Method (CPM)

  • Analysis for seismic demand from earthquake using

Linear Elastic Time History Analysis and convert it into response spectrum result or “Demand Spectra”

  • Calculate structural capacity using pushover analysis

method to obtain force-lateral displacement of the bridge

  • Compare capacity and demand in the same chart. The

seismic resistance capacity of structures could be directly

  • btained form the chart
  • Reinforced concrete jacketing
  • Steel plate jacketing
  • FRP jacketing
  • Carbon fiber reinforced polymer (CFRP)
  • Glass fiber reinforced polymer (GFRP)
  • Aramid fiber reinforce polymer (AFRP)
  • 3. Bridge strengthening methods
slide-19
SLIDE 19

6/22/2015 19

  • RC Jacketing
slide-20
SLIDE 20

6/22/2015 20 การเปรียบเทียบการวิบัติของเสาที่มีการต่อทาบและไม่ต่อทาบ VDO\video total Zoom Crack column S1 and S1splice (WMV HD 720 ) NEW.wmv การวิบัติเนื่องจากแรงดัดVDO\S1L WMV HD 720 30p.avi การวิบัติเนื่องจากแรงเฉือนVDO\S3S WMV HD 720 30p.avi

slide-21
SLIDE 21

6/22/2015 21

slide-22
SLIDE 22

6/22/2015 22

  • Steel plate jacketing
slide-23
SLIDE 23

6/22/2015 23

  • FRP jacketing

What is FRP ?

There are three types of fiber

  • 1. Carbon fiber reinforced polymer (CFRP)
  • 2. Glass fiber reinforced polymer (GFRP)
  • 3. Aramid fiber reinforced polymer (AFRP)
slide-24
SLIDE 24

6/22/2015 24

“Stress‐strain relationship of different fiber type”

Advantages:

  • 1. Light weight
  • 2. Easy to install
  • 3. Environmental Durability

Type of CFRP

Disadvantages: 1. Expensive 2. Fire vulnerability 3. Require installation expert ROD PLATE SHEET

slide-25
SLIDE 25

6/22/2015 25

slide-26
SLIDE 26

6/22/2015 26 Strain Stress 35000 ksc 4000 ksc Design Stress Limit for CFRP(strain = 0.004)

FRP design for columns

Transverse direction for:

  • increase compressive strength due to

confinement effect

  • increase shear strength by truss action

The strength and ductility of concrete will increase when wrapped transversely by CFRP Longitudinal direction for enhancing moment resisting capacity It is more effective to increase the confinement when used in circular column compare to rectangular column

slide-27
SLIDE 27

6/22/2015 27

Collapse Behavior of a cylinder wrapped by FRP

Concrete cylinder with compressive strength of 24 MPa Concrete cylinder wrapped by 1 layer CFRP. Compressive strength 40 MPa

TYPE OF BRIDGE

Pile Bent with 4 columns with 1-layer bracing

  • 4. Cyclic load test of bridge using FRP

strengthening technique

Pile Bent with 4 columns with 2-layer bracing

slide-28
SLIDE 28

6/22/2015 28 CLASSIFICATION OF PILE BENT BRIDGE TYPE

3-span bridge 5-span bridge

EXPERIMENTAL PROGRAM

  • Test 4 half-scale model ทดสอบเสา 4 ต้นแบบลดขนาด (half-scale model)
  • Strengthening Method
  • GFRP- commercially available in Thailand
  • Use different type of strengthening location
slide-29
SLIDE 29

6/22/2015 29 DETAILING OF BRIDGE SPECIMEN FOUNDATION OF TEST BRIDGE

slide-30
SLIDE 30

6/22/2015 30

specimen Strengthening Material Strengthening Approach Test time C1r_GFRP GFRPP Strengthening after test 1 Month C2_GFRP GFRP Strengthening before test 1 Month C3r_GFRP GFRP Strengthening after test 1 Month C4_GFRP GFRP Strengthening before test 1 Month

TEST BRIDGES PREVIOUS BRIDGE COLUMN DAMAGE

slide-31
SLIDE 31

6/22/2015 31 STRENGTHENING BY GFRP TYPE1 STRENGTHENING BY GFRP TYPE2

slide-32
SLIDE 32

6/22/2015 32 CONSTRUCTION STAGE Setup Strain Gauge Longitudinal = 34 Ea. Strain Gauge Transverse = 12 Ea. Total Strain Gauge = 46 Ea. STRAIN GAGE LOCATIONS

slide-33
SLIDE 33

6/22/2015 33 LVDT LOCATION Setup LVDT = 20 Ea.

CYCLIC LOAD TEST SETUP

slide-34
SLIDE 34

6/22/2015 34

  • 3.00
  • 2.00
  • 1.00

0.00 1.00 2.00 3.00 5 10 15 20 25 30 35 40 45 Drift (%) Number of Steps

DISPLACEMENT HISTORY

C1r_GFRP

slide-35
SLIDE 35

6/22/2015 35 Actuator installation Transverse displacement prevention

slide-36
SLIDE 36

6/22/2015 36

  • Sensors

Load cell Displacement sensor Stain Gage

Reference name of strain gages

slide-37
SLIDE 37

6/22/2015 37

การติดตั้งLVDT

Measurement of curvature and shear deformation

การติดตั้งLVDTเพื่อวัดการเสียรูปเนื่องจากแรงเฉือน ในคาน

Lateral Drift +0.50% Cycle 1 Compressive strength 220‐270 ksc

slide-38
SLIDE 38

6/22/2015 38 Lateral drift +0.75% cycle 1 Lateral drift +1.5% cycle 1

slide-39
SLIDE 39

6/22/2015 39 Lateral force – displacement relationship

STRENGTHENING PROCEDURE FOR CFRP AND GFRP

slide-40
SLIDE 40

6/22/2015 40

  • 1. Grind 4 corner of the columns and beam.
  • 2. Use clean cloth to clean the concrete surface
  • 3. Mix Epoxy Resin using the proper mix ratio according to

manufacturing recommendation

  • 3. Use a brush to paint epoxy resin on the target surface
slide-41
SLIDE 41

6/22/2015 41

  • 4. Wrap the fiber and use the roller to roll on the fiber surface to make

sure that the fiber perfectly attach to the concrete surface. Paint the fiber with epoxy before wrapping another layer. Lateral drift +0.50% round 1

slide-42
SLIDE 42

6/22/2015 42 Lateral drift +0.75% round 1 Lateral drift +1.50% round 1

slide-43
SLIDE 43

6/22/2015 43 Lateral drift +3.50% round 1 Lateral force – displacement relationship

slide-44
SLIDE 44

6/22/2015 44 Comparison of Lateral force – displacement relationship

C2_GFRP

slide-45
SLIDE 45

6/22/2015 45 VDO\Pile bent 2 WMV HD 720 30p.wmv

slide-46
SLIDE 46

6/22/2015 46

C3r_GFRP

170 ksc 270 ksc 170 ksc

slide-47
SLIDE 47

6/22/2015 47 VDO\Pile bent 3 Before.mpg

After Strengthening

slide-48
SLIDE 48

6/22/2015 48 VDO\After Repair (Pile Bent3).mpg

C4_GFRP

slide-49
SLIDE 49

6/22/2015 49 150 ksc 150 ksc 150 ksc VDO\Pile bent 4.mpg

slide-50
SLIDE 50

6/22/2015 50

Durability Proof of GFRP ……………. undergoing research

Durability test of GFRP

Mixtures Cement Extract Mixtures Sodium Hydroxide (NaOH)

  • Weight Loss
  • Tensile Strength

Loss

slide-51
SLIDE 51

6/22/2015 51

Fiber + epoxy Steel plate 5 cm “ Weight Loss Test” “Tensile Strength Loss Test” “Tensile Strength Loss Test” Parameters to be studied

  • PH of solution
  • Temperature
slide-52
SLIDE 52

6/22/2015 52

Col. bxh (mm) Shear Span (mm) Aspect Ratio Splice Detailing Axial Load Ratio Mode of Failure Remarks S1CFRP 250x350 2050 5.85 No splice 0.2 Flexure GFRP wrap S1S CFRP 250x350 2050 5.85 25db 0.2 Flexure GFRP wrap S2CFRP 250x350 1570 4.5 No splice 0.2 Flexure‐shear GFRP wrap S2S CFRP 250x350 1570 4.5 25db 0.2 Flexure‐shear GFRP wrap S3CFRP 250x350 1100 3.15 No splice 0.2 Flexure‐Shear GFRP wrap S3S CFRP 250x350 1100 3.15 25 db 0.2 Flexure‐Shear GFRP wrap

Gravity Load (P)

M

M V Contraflexure Point

 

P V

h h

H=2.05m F P

  • 5. Strengthening of columns using FRP
slide-53
SLIDE 53

6/22/2015 53

106

  • 6. Application of FRC in ductility improvement of

bridge structures

slide-54
SLIDE 54

6/22/2015 54

107

Objective

To improve the ductility of non-ductile RC columns using steel reinforced concrete (SFRC)

Test Programs C1 – without SFRC S1 – with SFRC 1% by volume

“60mm hook- ended steel fiber”

108

slide-55
SLIDE 55

6/22/2015 55

109

Loading scheme

Test under Displacement Control Condition

110

At 0.5% Drift

C1 S1

slide-56
SLIDE 56

6/22/2015 56

111

At 1% Drift

C1 S1

112

At 3% Drift

C1 S1

slide-57
SLIDE 57

6/22/2015 57

113

At 3.5% Drift

C1 S1

114

At 8% Drift

S1

slide-58
SLIDE 58

6/22/2015 58

115

‐100.00 ‐80.00 ‐60.00 ‐40.00 ‐20.00 0.00 20.00 40.00 60.00 80.00 100.00 ‐9.00 ‐8.00 ‐7.00 ‐6.00 ‐5.00 ‐4.00 ‐3.00 ‐2.00 ‐1.00 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00

Lateral Load (kN) DRIFT (%)

Column 0.5% FRC Column S1 Column 1.00% FRC

Hysteresis loop comparison

116

Test Results

Column C1 S1

max load, (kN)

58.09 84.30

deflection at yield(mm)

28.79 38.00

load at yield1(kN)

43.57 63.23

deflection at yield(mm)

10.00 12.00

load at failure(kN)

46.47 67.44

deflection at failure (mm)

36.70 72.30

displacement ductility, 

3.67 6.03

Mode of failure

Flexure Flexure

m

P

m

P

m

u y Py Py u f Pf Pf ucol P

col

P

col

u

slide-59
SLIDE 59

6/22/2015 59

slide-60
SLIDE 60

6/22/2015 60 เสาที่ไม่มีการเสริม BRR เสาที่มีการเสริม BRR

slide-61
SLIDE 61

6/22/2015 61
