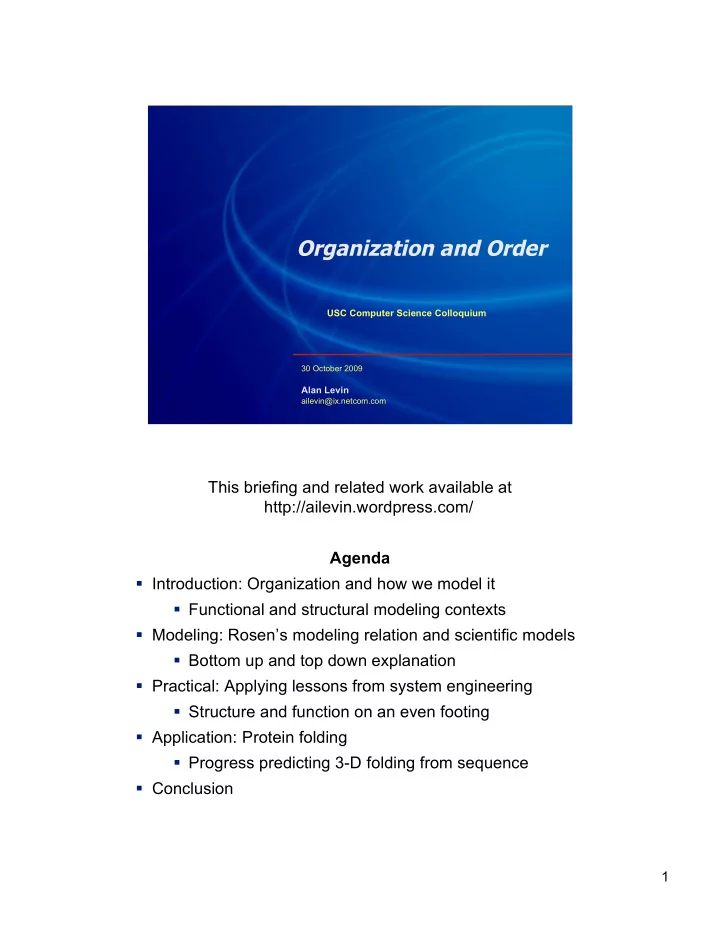

Organization and Order

Organization and Order

30 October 2009

Alan Levin

ailevin@ix.netcom.com

USC Computer Science Colloquium

This briefing and related work available at http://ailevin.wordpress.com/ Agenda

• Introduction: Organization and how we model it
• Functional and structural modeling contexts
• Modeling: Rosen’s modeling relation and scientific models
• Bottom up and top down explanation
• Practical: Applying lessons from system engineering
• Structure and function on an even footing
• Application: Protein folding
• Progress predicting 3-D folding from sequence
• Conclusion

2

Organization and Order 1

Organization Familiar, Not Well Explained

Organ Systems Ribosome Bacteria Flocking Birds

Introduction

• We see organization from molecular to ecosystem
• Defining biological characteristic
• Objective empirical data
• Used for classification categorization
• Explanations
• Self-organization, dissipative structures, bifurcation,

catastrophe, chaos, complexity theories

• Emergence: underlying models don’t predict it, or the

modelers didn’t expect it

• Order and organization often used synonymously
• Both seem to refer to pattern, regularity, symmetry
• Unfortunately this causes confusion

3

Organization and Order 2

One Organism 1014 Cells 10-9 cal/deg 1022 Polymers 0.6 cal/deg 1025 Monomers 401 cal/deg

Organization Is Not Order

Introduction

∆S = klnW

• Almost all of the ∆S is in forming the polymers
• Any 1014 cells have entropy of a person
• All the entropy is in forming the polymers
• The ∆S for boiling a cup of water is 343 cal/K
• Organization is not the same as order
• We throw away what we want to study in studying the

molecular level

• Studying organization structurally leads to confusion
• Calculation
• 75kg person -->10 kg amino acids,120 g nucleotides
• k is 3.3 x 10-24 calories per degree Kelvin (cal/K)
• 1023 nucleotides and 1025 amino acids

41023 nucleic acids 201025proteins 400 cal/K from protein and 1 cal/K from nucleic acids

4

Organization and Order 3

Organization Is Functional

“By thermodynamic criteria a biological system is not more ordered than a rock of the same weight.”

• L. Blumenfeld1

“When we talk about a ‘well-organized’ system–whether an organism, a business, a team, or a personal life–we are referring to how effectively it caries out certain activities, rather than to specific structural factors internal to the system.”

• J. Wicken6

Introduction

• Entropy analysis of organism very dissatisfying
• Nothing wrong with thermodynamics, but we are

asking the wrong sort of question

• A system at equilibrium may be orderly or disorderly

but it cannot be organized since it can’t do anything

• We need more than structural modeling for a scientific

explanation of organization

• What are functional models and how do they relate to

structural models?

5

Organization and Order 4

How Do Function And Structure Relate?

• Modeling
• What kinds of explanations do the models provide?
• Rosen’s modeling relation
• Practical
• What kinds of modeling methods are available?
• System engineering process
• Application
• How can both models be applied to the same problem?
• Protein folding example

Introduction

• Models are about questions and answers
• Rosen was a controversial theoretical biologist
• Consider underlying assumptions of scientific models
• Also relates to measurements and prediction
• System engineering is critical to interpreting Rosen
• Practical experience separating function, structure

and reintegrating

• Many useful analogies in role of architecture
• This also provides underpinning for SE indicating

possible extensions of SE methods

• Protein folding
• “Simple” functional biological system
• Really just to test the concepts

6

Organization and Order 5

Natural System Formal System Encoding Decoding Cause Infer

Modeling

Rosen’s Modeling Relation

The World

• r

Out There The Model

• r

In Here

• To the extent that we are closing the loop between formal

and natural systems we are doing science

• Encode perceptions (measurements) into symbols in a

math model

• Decode prediction from inferences in math model
• Relate inferential chain in the math to causal chain in

the world

• Encoding/decoding bridge “out there” and “in here,” and we

impute things to nature

• Laws, state spaces, abstract system spaces
• We pretend that nature is something with a

mathematical domain and range, but it’s not there

• ”Science, in fact, requires both; it requires an external,
• bjective world of phenomena, and the internal, subjective

world of the self, which perceives, organizes, acts, and understands.” R. Rosen5

7

Organization and Order 6

Structural Models Explain Bottom Up

Differential Equations State Space Trajectories

Modeling

dx dt = (y x) dy dt = x( z) y dz dt = xy z

Benard Cells Fluid Element Pieces

• Structural Question: What is this system made of and how

does it work?

• Answer: The pieces are incompressible fluid elements;

system DE explains system dynamics

• System inherits state space, DE from the pieces
• Different systems modeled by the same pieces
• Synthesis: choose pieces and build system model
• Agnostic to what the system does: no function
• Trajectories in state space are inference loop
• Lorenz attractor
• 2-D fluid flow with imposed temperature difference
• State variables are not physical coordinates
• Deterministic and chaotic depending on parameters
• http://mathworld.wolfram.com/LorenzAttractor.html

8

Organization and Order 7

Functional Components Functional Architecture

Modeling

Functional Models Explain Top Down

A B C f g D q h

Mappings Chloroplast

f:A B

System

C

• m

p

• n

e n t

• What does this system do and how is it organized?
• Behavior and organization are explained by how

components cooperate (functional architecture)

• Components inherit function from system context
• Component is the atom of functional model
• Defined by mapping: constitutive, domain: influence

by system, range: influence on system

• Mappings can also be in domain/range e.g q
• Very different systems modeled by the same

architecture and have a similar organization

• Analysis: Study system behaviors to choose components
• Agnostic to what the system is made of: no stuff
• Inference loop is path through functional architecture
• This functional architecture has nothing to do with

chloroplasts

9

Organization and Order 8

Lessons From System Engineering2

Practical

Requirements Analysis Functional Analysis Design Synthesis Design Loop Requirements Loop System

• Implementation

Operational

• Need
• Requirements loop is functional modeling
• Requirements analysis corresponds to encoding

functional observables and examining linkages

• Requirements describe system behaviors
• Functional analysis creates, refines functional

architecture

• Design loop is a metaphor for structural modeling
• Architecture covers many possible implementations
• Design synthesis does trade studies
• Requirements constrain specific implementation
• Separating function and implementation is one of the

great powers of system engineering

• Trade studies, prototypes divide and conquer
• therwise intractable problems

10

Organization and Order 9

Function, Structure on an Even Footing

Practical

Nature

Top Down Describe Class of Systems Bottom Up Choose Specific System

?

• Structure constrains function
• Synthesize a structural model and analyze the

model’s dynamics looking for organized behavior

• Scientists call this emergence
• Function constrains structure
• Analyze a functional model and synthesize the

model’s components looking for structural dynamics

• System engineers call this a trade study
• Crucial to decode and encode between models
• Functional first if more interested in organization and you

think whole is more than sum of parts

• Structural first if more interested in composition and you

think whole is merely sum of parts

• Why do we study emergence in Lorenz attractor rather

than organization in convective flow?

11

Organization and Order 10 Application

Why Protein Folding?

IVGGYTCGANTVPYQVSLN SGYHFCGGSLINSQWVVSA AHCYKSGIQVRLGEDNINV VEGNEQFISASKSIVHPSY NSNTLNNDIMLIKLKSAAS LNSRVASISLPTSCASAGT QCLISGWGNTKSSGTSYPD VLKCLKAPILSDSSCKSAY PGQITSNMFCAGYLEGGKD SCQGDSGGPVVCSGKLQGI VSWGSGCAQKNKPGVYTKV CNYVSWIKQTIASN

• Protein Sequence
• 3-D Folded Protein
• Folded proteins are ubiquitous functional components
• Biopolymer building blocks
• Metabolism, transport, regulation, …
• Wealth of physical, chemical, structural data
• 60K 3-D folded structures in Protein Data Bank4
• Many more protein sequences can be read off

genomes

• Bovine Trypsin: 223 Amino Acids, 11 peptide inhibitor, Ca

ion, 141 waters C gray, N blue, O red, S yellow

• Note tight 3-D structure
• Soluble proteins surprisingly dense
• Cartoon shows local helical, pleated sheet structures
• Local structures folded back on one another and

stabilized by disulfides and hiding “oily” side chains

12

Organization and Order 11

Biennial Protein Folding Competition7

• Started with purely structural modeling
• Best models today use templates from Protein Data Bank
• With reasonable template, model is very good
• Structural heuristics optimize from template starting point
• Often the correct template is not found
• Purely structural models must be used
• Results are much poorer

Application

• Structural model pieces are amino acids
• Constitutive parameters: side chain
• Variable parameters: alpha carbon angles at least
• From sequence to folded 3-D structure
• Seemed straight forward 50 years ago, but…
• Many degrees of freedom, complex dynamics, solvent
• Small energy differences between folded states
• 223 amino acids gives 3223 = 10106 conformations
• From physical chemistry to bio-informatic heuristics
• With reasonable template, model is very good
• Structural studies now drive template heuristics

13

Organization and Order 12

Evolution of Template Matching

Application

• Sequence matching
• Related evolutionary sequences
• Local structure matching
• Treat local structures as rigid units
• Threading
• Local structure motifs or folds

14

Organization and Order 13

Why Does Threading Work So Well?

• Threading greatly constrains structural modeling
• Protein conformation space is extremely large
• The fold space in Protein Data Bank is surprisingly small8
• Why is the fold space so small?
• Sequence variation must leave function close to wild type
• Naturally occurring folds constrained by evolutionary history
• Threading literally works from function to structure
• Theading: “Can this sequence perform template functions?”
• Protein Data Bank fold space is evolved biological function

Application

• For 223 amino acids estimate 3223 = 10106 conformations
• Only three alpha carbon angles per position
• Particles in universe 1080 ?
• Part of why problem is hard bottom up
• Fold space in PDB seems to be several thousand families
• Evolution is inherently constrained functionally
• Always working from an existing functional context
• Helpful or harmful depends on organism, environment
• Exploring possibility near existing functional success

15

Organization and Order 14

Conclusion

• System engineering provides powerful insights to science
• Functional analysis and system architecture methods
• Interplay of function and structure to extend science
• Well suited to tasks of proteomics, synthetic biology, bio/eco

technical challenges

• Function constrains intractable structural problems
• Recent progress in protein modeling demonstrates this
• Critical in synthetic biology, other complex problems
• Organization is functional, order is structural
• We demystify emergence simply by explaining it functionally
• Function and structure are complementary, neither is more

physical nor more empirical

• Organization must be measured by functional metrics
• SE in some sense grew out of OR in response to Nuclear

age and Space age technical problems

• Can a new methodology grow out of SE in response

to synthetic biology and other complex eco/bio problems?

• Proteomics asks how the proteins in a pathway, organelle,
• rganism cooperate
• This is a functional question
• State space grows like number of pieces factorial
• Order and organization metrics
• Entropy, information important in science, engineering
• Stat Mech links entropy and structural information
• Similar functional metric for functional information
• Organization and order subtlety interdependent
• Order limits maximal organization and organization

limits minimal order

16

Organization and Order 15

References

1. Blumenfeld L. (1981) Problems of Biological Physics. Berlin, New York: Springer-Verlag. 2. Defense Acquisition University (2005) Systems Engineering Fundamentals January 2001. Fort Belvoir, VA 3. Levin, A. (2009) A Top-Down Approach to a Complex Natural System: Protein Folding. Axiomathes. DOI: 10.1007/s10516-009-9093-0. 4. RCSB Protein Data Bank. Cited October 6, 2009 http://www.rcsb.org/pdb/statistics/contentGrowthChart.do?content=total&se qid=100 5. Rosen, R. (1991) Life Itself : a comprehensive inquiry into the nature, origin, and fabrication of life. New York: Columbia University Press. 6. Wicken, J. (1987) Evolution, Thermodynamics, and Information: extending the Darwinian program. New York: Oxford University Press. 7. Zhang, Y. (2008) Progress and Challenges in Protein Structure Prediction. Current Opinion in Structural Biology, 18(3), 342-348. 8. Zhang, Y, Skolnick J (2005)The protein structure prediction problem could be solved using the current PDB library. PNAS USA 102(4):1029-1034

Back Up

Photo Credits

• Benard Cells

http://www.catea.gatech.edu/grade/mecheng/mod8/mod8.h tml

• Chloroplast

http://research.nmsu.edu/molbio/bioinfo/tutorials/clip_art/in dex.html http://www.nrc- cnrc.gc.ca/eng/education/biology/gallery/chloroplast.html

• Bovine Trypsin Figures

http://www.proteopedia.org/wiki/index.php/1ox1

• Monomers

http://www.coolschool.ca/lor/BI12/unit2/U02L02/AminoAcid .jpg

• Lorenz Attractor

http://en.wikipedia.org/wiki/Lorenz_attractor

17

Organization and Order 16

Carlson’s Law

Back Up

18

Organization and Order 17

Bovine Trypsin 10x1

http://www.proteopedia.org/wiki/index.php/1ox1

Back Up
