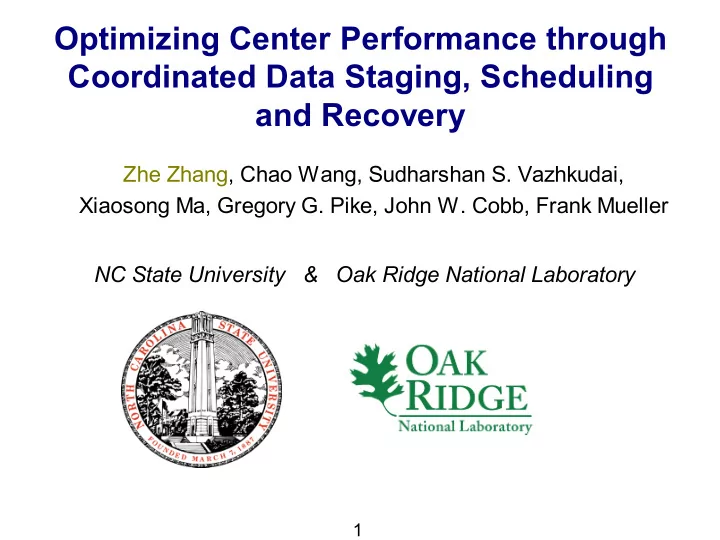

Optimizing Center Performance through Coordinated Data Staging, Scheduling and Recovery

Zhe Zhang, Chao Wang, Sudharshan S. Vazhkudai, Xiaosong Ma, Gregory G. Pike, John W. Cobb, Frank Mueller NC State University & Oak Ridge National Laboratory

slide-2
SLIDE 2

2

Problem Space: Petascale Storage Challenge

  • Unique storage challenges in scaling to PF scale

− 1000s of I/O nodes; 100K – 1M disks; Failure a norm, not an exception! − Data availability affects HPC center serviceability

  • Storage failures: significant contributor to system down time

− Macroscopic view − Microscopic view (from both commercial and HPC centers)

  • In a year:

− 3% to 7%

  • f disks fails; 3%

to 16%

  • f controllers; up to

12%

  • f SAN switches;

− 8.5%

  • f a million disks have latent sector faults
  • 10 times expected rates specified by disk vendors

Storage, mem 20 reboots/day 15000 Google Storage, mem 37.5 hrs 23452 NLCF (Jaguar) Storage, CPU Storage, CPU Outage Source 40 hrs 8192 ASCI White 6.5 hrs 8192 ASCI Q MTBF/I # CPUs System

slide-3
SLIDE 3

3

Data Availability Issues in Users' Workflow

  • Supercomputer service availability also affected by data staging

and offloading errors

  • With existing job workflows

− Manual staging

  • Error-prone
  • Early staging and late offloading wastes scratch space
  • Delayed offloading renders result data vulnerable

− Scripted staging

  • Compute time wasted on staging at beginning of job
  • Expensive
  • Observations

− Supercomputer storage systems host transient job data − Currently data operations not coordinated with job scheduling

slide-4
SLIDE 4

4

Solution

  • Novel ways to manage the way transient data is

− Scheduled and recovered

  • Coordinating data storage with job scheduling
  • On-demand, transparent data reconstruction to address

transient job input data availability

slide-5
SLIDE 5

5

Solution

  • Novel ways to manage the way transient data is:

− Scheduled and recovered

  • Coordinating data storage with job scheduling

− Enhanced PBS script and Moab scheduling system

  • On-demand, transparent data reconstruction to address

transient job input data availability

slide-6
SLIDE 6

6

Solution

  • Novel ways to manage the way transient data is:

− Scheduled and recovered

  • Coordinating data storage with job scheduling

− Enhanced PBS script and Moab scheduling system

  • On-demand, transparent data reconstruction to address

transient job input data availability

− Extended Lustre parallel file system

slide-7
SLIDE 7

7

Solution

  • Novel ways to manage the way transient data is:

− Scheduled and recovered

  • Coordinating data storage with job scheduling

− Enhanced PBS script and Moab scheduling system

  • On-demand, transparent data reconstruction to address

transient job input data availability

− Extended Lustre parallel file system

  • Results:

− From center's standpoint:

  • Optimized global resource usage
  • Increased data and service availability

− From a user job standpoint:

  • Reduced job turnaround time
  • Scripted staging without charges
slide-8
SLIDE 8

8

Coordination of Data Operations and Computation

  • Treat data transfers as “data jobs”

− Scheduling and management

  • Setup a zero-charge data queue

− Ability to account and charge if necessary

  • Decomposition of stage-in, stage-out and compute jobs
  • Planning

− Dependency setup and submission

Data Queue Job Queue Head Node

  • 1. Stage Data
  • 2. Compute Job
  • 3. Offload Data

Job Script I/O Nodes Compute Nodes Planner

1 2 after 1 3 after 2

slide-9
SLIDE 9

9

#STAGEOUT any parameters here #STAGEOUT scp /scratch/user/output/user@destination

Instrumenting the Job Script

#PBS -N myjob #PBS -l nodes=128, walltime=12:00 #STAGEIN any parameters here #STAGEIN -retry 2 #STAGEIN hpss://host.gov/input_file /scratch/dest_file

  • Example of Enhanced PBS job script

mpirun -np 128 ~/programs/myapp

slide-10
SLIDE 10

10

stageout.pbs #STAGEOUT any parameters here #STAGEOUT scp /scratch/user/output/user@destination

Instrumenting the Job Script

#PBS -N myjob #PBS -l nodes=128, walltime=12:00 stagein.pbs #STAGEIN any parameters here #STAGEIN -retry 2 #STAGEIN hpss://host.gov/input_file /scratch/dest_file

  • Example of Enhanced PBS job script

compute.pbs mpirun -np 128 ~/programs/myapp

slide-11
SLIDE 11

11

stageout.pbs #STAGEOUT any parameters here #STAGEOUT scp /scratch/user/output/user@destination

Instrumenting the Job Script

#PBS -N myjob #PBS -l nodes=128, walltime=12:00 stagein.pbs #STAGEIN any parameters here #STAGEIN -retry 2 #STAGEIN hpss://host.gov/input_file /scratch/dest_file

  • Example of Enhanced PBS job script

compute.pbs mpirun -np 128 ~/programs/myapp

slide-12
SLIDE 12

12

stageout.pbs #STAGEOUT any parameters here #STAGEOUT scp /scratch/user/output/user@destination

Instrumenting the Job Script

#PBS -N myjob #PBS -l nodes=128, walltime=12:00 stagein.pbs #STAGEIN any parameters here #STAGEIN -retry 2 #STAGEIN hpss://host.gov/input_file /scratch/dest_file

  • Example of Enhanced PBS job script

compute.pbs mpirun -np 128 ~/programs/myapp

slide-13
SLIDE 13

13

On-demand, Transparent Data Recovery

  • Ensuring availability of automatically staged data

− Against storage failures between staging and job dispatch − Standard availability techniques (RAID) not enough

slide-14
SLIDE 14

14

On-demand, Transparent Data Recovery

  • Ensuring availability of automatically staged data

− Against storage failures between staging and job dispatch − Standard availability techniques (RAID) not enough

  • Recovery from staging sources

− Job input data transient on supercomputer, with immutable primary copy elsewhere

  • Natural data redundancy for staged data

− Network costs drastically reducing each year − Better bulk transfer tools with support for partial data fetches

slide-15
SLIDE 15

15

On-demand, Transparent Data Recovery

  • Ensuring availability of automatically staged data

− Against storage failures between staging and job dispatch − Standard availability techniques (RAID) not enough

  • Recovery from staging sources

− Job input data transient on supercomputer, with immutable primary copy elsewhere

  • Natural data redundancy for staged data

− Network costs drastically reducing each year − Better bulk transfer tools with support for partial data fetches

  • Novel mechanisms to address “transient data availability”

− Augmenting FS metadata with “recovery info”

  • Again, automatically extracted from job script

− Periodic file availability checking for queued jobs − On-the-fly data reconstruction from staging source

slide-16
SLIDE 16

16

Augmenting File System Metadata

  • Metadata extracted from job script

− “source” and “sink” URIs recorded with staged files

  • Implementation: Lustre parallel file system

− Utilizing file extended attribute (EA) mechanism − New “recov” EA at metadata server

  • Less than 64 bytes per file
  • Minimal communication costs

− Additional Lustre commands

  • lfs setrecov
  • lfs getrecov
slide-17
SLIDE 17

17

Failure Detection & File Reconstruction

  • Periodic failure detection

− Parallel checking of storage units upon which dataset is striped

  • Reconstruction:

MDS Headnode

  • st1
  • st2
  • st3

Remote Source

slide-18
SLIDE 18

18

Failure Detection & File Reconstruction

  • Periodic failure detection

− Parallel checking of storage units upon which dataset is striped

  • Reconstruction:

MDS Headnode

hpss://host.gov/foo

  • st1
  • st2
  • st3

1 Remote Source

slide-19
SLIDE 19

19

Failure Detection & File Reconstruction

  • Periodic failure detection

− Parallel checking of storage units upon which dataset is striped

  • Reconstruction:

MDS Headnode

hpss://host.gov/foo

  • st1
  • st6
  • st3

2 1 Remote Source OST6 2

slide-20
SLIDE 20

20

Failure Detection & File Reconstruction

  • Periodic failure detection

− Parallel checking of storage units upon which dataset is striped

  • Reconstruction:

MDS Headnode

hpss://host.gov/foo

  • st1
  • st6
  • st3

2 1 Remote Source 3

(1M~2M) (4M~5M) (7M~8M)

OST6 2

slide-21
SLIDE 21

21

Failure Detection & File Reconstruction

  • Periodic failure detection

− Parallel checking of storage units upon which dataset is striped

  • Reconstruction:

MDS Headnode

hpss://host.gov/foo

  • st1
  • st6
  • st3

2 1 Remote Source 3

(1M~2M) (4M~5M) (7M~8M)

OST6 2 4

slide-22
SLIDE 22

22

Putting it all together…

slide-23
SLIDE 23

23

Performance - Overview

  • Part I: Cost of reconstruction with our method

− Real systems − Running our prototype on real cluster and data sources − Testing the costs of each step of our reconstruction − Using different system configurations and tasks

  • Part II:

− Trace-driven simulations − Taking result of Part I as parameters − Using real system failure and job submission traces − Simulating real HPC centers − Considering both average performance and fairness

slide-24
SLIDE 24

24

Reconstruction Testbed

  • A cluster with 40 nodes at ORNL

− 2.0GHz Intel P4 CPU − 768 MB memory − 10/100 Mb ethernet − FC4 Linux, 2.6.12.6 kernel − 32 data servers, 1 metadata server, 1 client (also as headnode)

  • Data sources

− NFS server at ORNL (Local NFS) − NFS server at NCSU (Remote NFS) − GridFTP server with PVFS file system at ORNL (GridFTP) ORNL NCSU

NFS NFS PVFS Internet Intranet Intranet

slide-25
SLIDE 25

25

  • Finding failed server

Performance - Reconstruction

slide-26
SLIDE 26

26

  • Patching the lost data

Performance - Reconstruction

Local NFS

Local NFS Remote NFS GridFTP

slide-27
SLIDE 27

27

  • Patching the lost data

Performance - Reconstruction

Remote NFS

Local NFS Remote NFS GridFTP

slide-28
SLIDE 28

28

  • Patching the lost data

Performance - Reconstruction

GridFTP

Local NFS Remote NFS GridFTP

slide-29
SLIDE 29

29

Simulation Setup

  • Operational data from Los Alamos National Laboratory

http://institutes.lanl.gov/data/fdata

− System 20, with 512 nodes, 4CPUs/node

  • Node failure trace

− 2,049 failure records over 1,349 days

  • Job submission trace

− 489,376 job submission and completion records over 1,073 days

  • Coupling failure & job traces

− Calculated failure rate, repair time, and generated I/O node failure events

  • Obtained scratch logs and file statistics from ORNL NLCF to

create input files and stating operations

slide-30
SLIDE 30

30

  • Mean wait time of jobs
  • Standard deviation for wait time of jobs
  • Performance degradation with larger stripe count w/o reconstruction
  • Performance w. reconstruction close to ”no failure” case

Performance – Scheduling Simulation

slide-31
SLIDE 31

31

Related Work: Coordination

  • Coordinating data and job scheduling

− Stork, Condor and DAGMan: used to schedule data and computation together in Grid environments − Condor and SRM: used to schedule jobs where data is available − Simulation studies in Grid suggest data-aware scheduling improves job response time − Focused as part of an application workflow rather than a set of HPC center integrated services

  • BAD-FS

− A “file system” for I/O intensive batch jobs on remote clusters − Exposes distributed file system decisions to an external, workload- aware scheduler

  • IBP and Kangaroo:

− Address scratch space purging problem by timely offloading of results − Do not address the scheduling or coupling of this activity along side computation

  • Moab has similar goals and allows staging specification

− However, it is not fault-tolerant − Does not support offloading and is not cheap!

slide-32
SLIDE 32

32

Related Work: Storage System Availability

  • Standard data availability techniques designed with persistent

data in mind

− Multiple disk failure within a RAID-group can be crippling − I/O node failovers not always possible (thousands of nodes) − Replication consumes extra scratch space, which is an expensive commodity

  • We address availability of transient, job input data!
slide-33
SLIDE 33

33

  • In Summary

− Novel ways to schedule and recover transient data − Coordination b/w data movement and computation

  • Modification of production job scheduler (deployed @ ORNL)

− On-demand recovery techniques for data availability issue

  • Extension of Lustre: transparent replacement of failed OSTs
  • Next Steps

− Online recovery − Result data offloading

Conclusion and Future Work

slide-34
SLIDE 34

34
