Optimal Currents and Optimal Antennas Preliminary Results Miloslav Capek Lukas Jelinek Department of Electromagnetic Field Czech Technical University in Prague, Czech Republic miloslav.capek@fel.cvut.cz The 12th European Conference on

slide-1
SLIDE 1

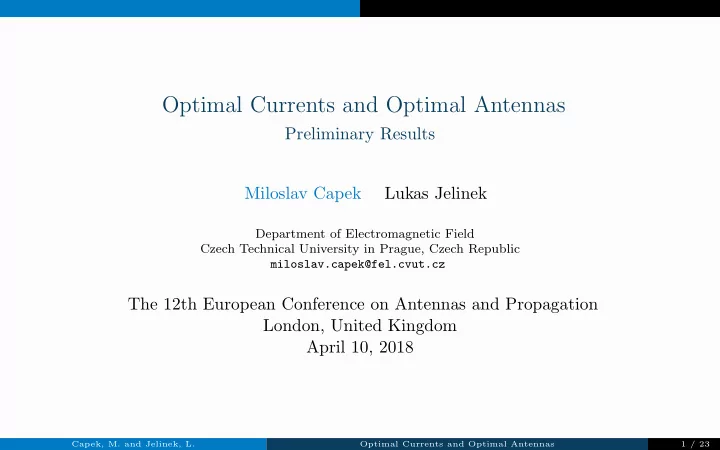

Optimal Currents and Optimal Antennas

Preliminary Results Miloslav Capek Lukas Jelinek

Department of Electromagnetic Field Czech Technical University in Prague, Czech Republic miloslav.capek@fel.cvut.cz

The 12th European Conference on Antennas and Propagation London, United Kingdom April 10, 2018

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 1 / 23

slide-2
SLIDE 2

Outline

1 Electrically Small Antennas 2 Fundamental Bounds 3 Synthesis: Determination of Feeder’s Position 4 Synthesis: Reduction of Degrees of Freedom 5 Synthesis: Results 6 Concluding Remarks This talk concerns: ◮ electric currents in vacuum, ◮ time-harmonic quantities, i.e., A (r, t) = Re {A (r) exp (jωt)}.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 2 / 23

slide-3
SLIDE 3

Electrically Small Antennas

Electrically Small Antennas

Directivity

D

Efficiency

η

Bandwidth

FBW

Electrical size

ka < 1/2

◮ ESAs (ka < 1/2) mainly suffer from restrictions on directivity D, efficiency η, and bandwidth ∝ 1/Q. ◮ Each antenna parameter can independently be boosted (but price is paid)

  • superdirectivity,
  • 3D/volumetric antennas,
  • active antennas – any bounds?

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 3 / 23

slide-4
SLIDE 4

Electrically Small Antennas

Electrically Small Antennas

Directivity

D

Efficiency

η

Bandwidth

FBW

Electrical size

ka < 1/2

◮ ESAs (ka < 1/2) mainly suffer from restrictions on directivity D, efficiency η, and bandwidth ∝ 1/Q. ◮ Each antenna parameter can independently be boosted (but price is paid)

  • superdirectivity,
  • 3D/volumetric antennas,
  • active antennas – any bounds?

◮ On the fundamental level, the optimal distribution of the sources is sought for. . .

  • fundamental bounds.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 3 / 23

slide-5
SLIDE 5

Fundamental Bounds

Optimal Currents and Optimal Antennas

What is the best current distribution in principle?

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 4 / 23

slide-6
SLIDE 6

Fundamental Bounds

Optimal Currents and Optimal Antennas

What is the best current distribution in principle? “The best” in what sense? ◮ Boundary region Ω → ΩN, ◮ angular frequency ω (el. size ka), ◮ selected antenna metric(s). Ω ΩN

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 4 / 23

slide-7
SLIDE 7

Fundamental Bounds

Optimal Currents and Optimal Antennas

What is the best current distribution in principle? What is the best reachable current distribution? “The best” in what sense? ◮ Boundary region Ω → ΩN, ◮ angular frequency ω (el. size ka), ◮ selected antenna metric(s). Ω ΩN

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 4 / 23

slide-8
SLIDE 8

Fundamental Bounds

Optimal Currents and Optimal Antennas

What is the best current distribution in principle? What is the best reachable current distribution? “The best” in what sense? ◮ Boundary region Ω → ΩN, ◮ angular frequency ω (el. size ka), ◮ selected antenna metric(s). “The best” in what sense? ◮ ← Same as on the left and ◮ feeding. Ω ΩN

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 4 / 23

slide-9
SLIDE 9

Fundamental Bounds

Determination of Fundamental Bounds

Minimization of bilinear form κ = IHAI IHBI, A ≻ 0, B ≻ 0 (3) solved via generalized eigenvalue problem AI = κBI. (4)

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 5 / 23

slide-10
SLIDE 10

Fundamental Bounds

Determination of Fundamental Bounds

Minimization of bilinear form κ = IHAI IHBI, A ≻ 0, B ≻ 0 (3) solved via generalized eigenvalue problem AI = κBI. (4) Multi-objective form A =

  • i

αiAi,

  • i

αi = 1. (5) ◮ No feeding, ◮ no geometry modifications

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 5 / 23

slide-11
SLIDE 11

Fundamental Bounds

Determination of Fundamental Bounds

Example: Minimum Q-factor1 A = (1 − ν) Xm + νXe = W, (1) B = R, (2) where Z = R + jX is impedance matrix. Minimization of bilinear form κ = IHAI IHBI, A ≻ 0, B ≻ 0 (3) solved via generalized eigenvalue problem AI = κBI. (4) Multi-objective form A =

  • i

αiAi,

  • i

αi = 1. (5) ◮ No feeding, ◮ no geometry modifications

  • 1M. Capek, M. Gustafsson, and K. Schab, “Minimization of antenna quality factor”,

IEEE Trans. Antennas Propag.,

  • vol. 65, no. 8, pp. 4115–4123, 2017. doi: 10.1109/TAP.2017.2717478

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 5 / 23

slide-12
SLIDE 12

Fundamental Bounds

Antenna Synthesis: Combinatorial Explosion

How much DOF we have?

W

N (unknowns) 28 52 120 ∞ possibilities 5.24 · 1029 1.39 · 1068 1.15 · 10199 ∞ unique solutions 2.68 · 108 4.50 · 1015 1.33 · 1036 ∞

Complexity of geometrical optimization for given voltage gap (red line) and N unknowns.

◮ Combinatorial explosion → curse of complexity → NP-hard problem, ◮ good parametrization is needed, reduction of DOFs, application of GA.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 6 / 23

slide-13
SLIDE 13

Synthesis: Determination of Feeder’s Position

Determination of Feeder’s Position

◮ For one feeder, the optimal placement with respect to a given quantity can be found directly (no heuristics)!

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 7 / 23

slide-14
SLIDE 14

Synthesis: Determination of Feeder’s Position

Determination of Feeder’s Position

◮ For one feeder, the optimal placement with respect to a given quantity can be found directly (no heuristics)! Example: minimum Q-factor Q = IHWI IHRI =

  • Z−1V

H W

  • Z−1V
  • (Z−1V)H R (Z−1V)

= VHWZV VHRZV , (6) with ZI = V, AZ ≡ Z−HAZ−1, A ∈ RN×N, and since vector of excitation coefficients is full of zero except one position with Vn = 1, we get optimal position as n : min {diag (WZ) ⊘ diag (RZ)} (7)

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 7 / 23

slide-15
SLIDE 15

Synthesis: Reduction of Degrees of Freedom

Geometry

Initial Geometry

PEC rectangular plate of L × L/2 size.

◮ Rectangular plate L × L/2, ◮ electrical size ka = 0.5, ◮ k is wavenumber, ◮ a = √ 5L/4. Number of possibilities: ∞. Our ambition: Reduce the complexity.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 8 / 23

slide-16
SLIDE 16

Synthesis: Reduction of Degrees of Freedom

Geometry

Initial Geometry

PEC rectangular plate of L × L/2 size.

◮ Rectangular plate L × L/2, ◮ electrical size ka = 0.5, ◮ k is wavenumber, ◮ a = √ 5L/4. Number of possibilities: 4.83 · 10170. Our ambition: Reduce the complexity.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 8 / 23

slide-17
SLIDE 17

Synthesis: Reduction of Degrees of Freedom

Geometry

Reducing Geometrical Complexity

Reducing complexity of the shape to be optimized.

◮ Number of RWG is drastically decreased, ◮ shorts are eliminated, ◮ symmetry is preserved for MoM acceleration.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 9 / 23

slide-18
SLIDE 18

Synthesis: Reduction of Degrees of Freedom

Geometry

Discretization Grid

Discretized model.

◮ Uniform grid to preserve symmetries and improve convergence. Number of possibilities: 2.16 · 10127.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 10 / 23

slide-19
SLIDE 19

Synthesis: Reduction of Degrees of Freedom

Geometry

Feedable Edges

Edges to be potentially fed.

To calculate optimal feeding, not all edges have to be taken into account: ◮ Some can cause shorts. Number of potent. feeders: 103. One feeder preserves symmetry: 4 possibilities.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 11 / 23

slide-20
SLIDE 20

Synthesis: Reduction of Degrees of Freedom

Geometry

Pixelized Structure ✶ ✷ ✸ ✹ ✺ ✻ ✼ ✽ ✾ ✶✵ ✶✶ ✶✷ ✶✸ ✶✹ ✶✺ ✶✻ ✶✼ ✶✽ ✶✾ ✷✵ ✷✶ ✷✷ ✷✸ ✷✹ ✷✺ ✷✻ ✷✼ ✷✽ ✷✾ ✸✵ ✸✶ ✸✷ ✸✸ ✸✹ ✸✺ ✸✻ ✸✼ ✸✽ ✸✾ ✹✵ ✹✶ ✹✷ ✹✸ ✹✹ ✹✺ ✹✻ ✹✼ ✹✽ ✹✾ ✺✵ ✺✶ ✺✷ ✺✸ ✺✹ ✺✺ ✺✻ ✺✼ ✺✽ ✺✾ ✻✵ ✻✶ ✻✷ ✻✸ ✻✹ ✻✺ ✻✻ ✻✼ ✻✽ ✻✾ ✼✵ ✼✶ ✼✷ ✼✸ ✼✹ ✼✺ ✼✻ ✼✼ ✼✽ ✼✾ ✽✵

Pixelization of rectangle into 80 unknowns.

To compress the optimization problem, map from RWG to GA “pixels” is done: ◮ pixel enabled (1) = all RWG edges present, ◮ pixel disabled (0) = all RWG edges removed. Number of possibilities: 1.21 · 1024.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 12 / 23

slide-21
SLIDE 21

Synthesis: Reduction of Degrees of Freedom

Geometry

Optimized Structures and Their Reduction

H Holes Grid RWGs RWGs (reduced) Feedable edges GA pixels 6 6 × 3 14 × 7 564 423 103 80 8 8 × 4 18 × 9 945 689 169 130 10 10 × 5 22 × 11 1419 1019 192 192

Comparison of optimized structures.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 13 / 23

slide-22
SLIDE 22

Synthesis: Results

What Can Be Optimized?

Following criteria are always calculated and optimized2 only when chosen so: ◮ minimum Q-factor, ◮ external tuning |Xin| Rin = 2Qext, ◮ input resistance |R0 − Rin| R0 , ◮ radiation (in)efficiency 1 − ηrad, ◮ total area spanned by the structure Aused Atot . Notes: ◮ Arbitrary number of criteria can be optimized (recommended: 2–4). ◮ All quantities normalized (no units) and to be minimized.

2(2017). Fast Optimization Procedures (FOPS), , Czech Technical University in Prague, [Online]. Available:

www.antennatoolbox.com/fops

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 14 / 23

slide-23
SLIDE 23

Synthesis: Results

Multiobjective Optimization

Quality factor Q vs tuning element.

50 55 60 65 70 75 5 10 15 20 25 30 min

Ω,V {Q}

min

Ω,V {|Xin| /Rin}

H = 6, 500 agents, 1500 iterations cut from Q/Qext/Rin/A optimization

◮ Expected result. ◮ External tuning helps a lot.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 15 / 23

slide-24
SLIDE 24

Synthesis: Results

Multiobjective Optimization

Quality factor Q vs required area A.

102 103 104 0.1 0.2 0.3 0.4 min

Ω,V {Q}

min

Ω,V {Aused/Atot}

250 agents, 1000 iterations 6 × 3, 1040 s 8 × 4, 2397 s 10 × 5, 3860 s 8 × 4 (50 iters., 250 ags.)

◮ The granularity of the grid causes big difference in Q-factor.

  • What about convergence?
  • ↑ N →↓ Q → combinatorial

explosion

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 16 / 23

slide-25
SLIDE 25

Synthesis: Results

Multiobjective Optimization

Sample of 3(4)-criteria optimization.

260 270 220 225 230 235 240 245 250 0.96 0.96 0.96 0.96 0.96 0.97 min

Ω {Q}

min

Ω,V {|Xin| /Rin}

min

Ω,V {|R0 − Rin| /R0}

1 Area

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 17 / 23

slide-26
SLIDE 26

Synthesis: Results

Optional Features – Flood-Filling (FF) Algorithm

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Green: kept, red: removed by GA, yellow: removed by FF.

Flood-filling implemented: ◮ All isolated pixels are removed by FF algorithm before physics is evaluated. ◮ Kind of penalization.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 18 / 23

slide-27
SLIDE 27

Synthesis: Results

Optional Features – Probability Map

1

Statistics how often were the pixels used.

Probability map of how often were various pixels used. ◮ Reveals trends.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 19 / 23

slide-28
SLIDE 28

Synthesis: Results

Multiobjective Optimization (6 × 3 test case)

Q-factor vs tuning element (currents).

Optimal current with respect to min

Ω,V {Q}.

Optimal current with respect to min

Ω,V {|Xin| /Rin}. Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 20 / 23

slide-29
SLIDE 29

Synthesis: Results

Multiobjective Optimization (10 × 5 fine case)

Q-factor vs radiation efficiency ηrad (currents).

Optimal current with respect to min

Ω,V {Q}.

Optimal current with respect to max

Ω,V {ηrad}. Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 21 / 23

slide-30
SLIDE 30

Concluding Remarks

Conclusions

What is the best current distribution in principle? What is the best reachable current distribution?

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 22 / 23

slide-31
SLIDE 31

Concluding Remarks

Conclusions

What is the best current distribution in principle? What is the best reachable current distribution? ◮ Optimum is practically unreachable. ◮ Problem is solvable straightforwardly via convex optimization. ◮ Problem cannot be exactly solved (at least now). ◮ Suboptimality as problem of geometry (integer) optimization.

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 22 / 23

slide-32
SLIDE 32

Concluding Remarks

Conclusions

What is the best current distribution in principle? What is the best reachable current distribution? ◮ Optimum is practically unreachable. ◮ Problem is solvable straightforwardly via convex optimization. ◮ Problem cannot be exactly solved (at least now). ◮ Suboptimality as problem of geometry (integer) optimization. What next? ◮ further reduction of the solution space (proper parametrization), ◮ investigation of the solution space properties (sub-optimality), ◮ mixture of heuristic and gradient techniques (no-free-lunch, topology deriv.).

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 22 / 23

slide-33
SLIDE 33

Questions?

For a complete PDF presentation see

capek.elmag.org

Miloslav ˇ Capek miloslav.capek@fel.cvut.cz

  • 10. 04. 2018, v1.0

Capek, M. and Jelinek, L. Optimal Currents and Optimal Antennas 23 / 23
