Optimal Algorithm for Online Multiple Knapsack Marcin Bie nkowski Krzysztof Piecuch Maciej Pacut (speaker) Knapsack Knapsack Knapsack Knapsack Knapsack Knapsack Multiple Knapsack Textbook Knapsack (offline) Given one knapsack of

slide-1
SLIDE 1

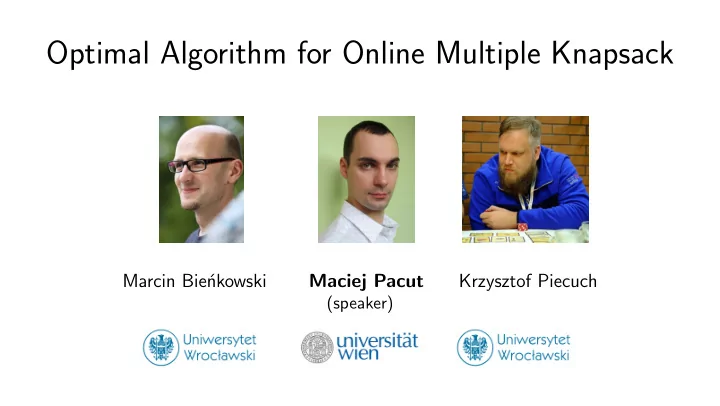

Optimal Algorithm for Online Multiple Knapsack

Marcin Bie´ nkowski Maciej Pacut Krzysztof Piecuch

(speaker)

slide-2
SLIDE 2

Knapsack

slide-3
SLIDE 3

Knapsack

slide-4
SLIDE 4

Knapsack

slide-5
SLIDE 5

Knapsack

slide-6
SLIDE 6

Knapsack

slide-7
SLIDE 7

Knapsack

slide-8
SLIDE 8

Multiple Knapsack

slide-9
SLIDE 9

Textbook Knapsack (offline)

Given

  • one knapsack of capacity 1
  • multiset of items (size and weight)

Choose a subset of items

  • sum of sizes ≤ 1
  • maximize total weight

1

slide-10
SLIDE 10

Proportional Knapsack (offline)

Given

  • one knapsack of capacity 1
  • multiset of items (size and weight)

Choose a subset of items

  • sum of sizes ≤ 1
  • maximize total weight size

1

slide-11
SLIDE 11

Multiple Knapsack (offline)

Choose a subset of items

  • assign accepted items to a knapsacks
  • in each knapsack: total size of items ≤ 1
  • maximize total size

1 1 1 1

slide-12
SLIDE 12

Online

slide-13
SLIDE 13

Online Multiple Knapsack

REJECT

slide-14
SLIDE 14

Online Multiple Knapsack

REJECT

maximize ALGonline

OPToffline

slide-15
SLIDE 15

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-16
SLIDE 16

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-17
SLIDE 17

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-18
SLIDE 18

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-19
SLIDE 19

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-20
SLIDE 20

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-21
SLIDE 21

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-22
SLIDE 22

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-23
SLIDE 23

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-24
SLIDE 24

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-25
SLIDE 25

Known results

FirstFit is 0.5-competitive (Cygan et al. [TOCS 2016])

slide-26
SLIDE 26

Known results

Bad news for One Online Knaspack

ǫ 1

item 1 item 2 ALGonline OPToffline

slide-27
SLIDE 27

Known results

Bad news for One Online Knaspack

ǫ 1

item 1 item 2 ALGonline OPToffline ǫ seems small...

slide-28
SLIDE 28

Known results

Bad news for One Online Knaspack

ǫ 1

item 1 item 2 ALGonline OPToffline ǫ seems small...

ǫ

slide-29
SLIDE 29

Known results

Bad news for One Online Knaspack

ǫ 1

item 1 item 2 ALGonline OPToffline

ǫ 1

slide-30
SLIDE 30

Known results

Algorithm Adversary 0.5

ln−1(2e) ≈ 0.59

FirstFit Randomized bound by Cygan et al.

(max objective: higher is better)

slide-31
SLIDE 31

Our contributions

Algorithm Adversary 0.5

ln−1(2e) ≈ 0.59

FirstFit Randomized bound by Cygan et al. Rising Threshold Algorithm

(max objective: higher is better)

slide-32
SLIDE 32

Rising Threshold Algorithm

We say that items (1/2, 1] are large

L L L L

1/2 1

(max 1 large per knapsack)

slide-33
SLIDE 33

Rising Threshold Algorithm

Step 1. Algorithm for large items

L L L L L

slide-34
SLIDE 34

Rising Threshold Algorithm (for large items)

slide-35
SLIDE 35

Rising Threshold Algorithm (for large items)

assign each knapsack a threshold (tbd)

slide-36
SLIDE 36

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-37
SLIDE 37

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-38
SLIDE 38

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-39
SLIDE 39

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-40
SLIDE 40

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-41
SLIDE 41

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-42
SLIDE 42

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-43
SLIDE 43

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-44
SLIDE 44

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-45
SLIDE 45

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-46
SLIDE 46

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-47
SLIDE 47

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-48
SLIDE 48

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-49
SLIDE 49

Rising Threshold Algorithm (for large items)

  • fill from the left
  • reject if under threshold
slide-50
SLIDE 50

Rising Threshold Algorithm Threshold function

f (x) = max{1/2, (2e)x−1}

n knapsacks

slide-51
SLIDE 51

Rising Threshold Algorithm Threshold function

f (x) = max{1/2, (2e)x−1}

interval [0, 1] 1

slide-52
SLIDE 52

Rising Threshold Algorithm Threshold function

f (x) = max{1/2, (2e)x−1}

interval [0, 1] 1

slide-53
SLIDE 53

Rising Threshold Algorithm Threshold function

f (x) = max{1/2, (2e)x−1}

interval [0, 1] 1

slide-54
SLIDE 54

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

slide-55
SLIDE 55

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-56
SLIDE 56

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-57
SLIDE 57

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-58
SLIDE 58

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-59
SLIDE 59

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-60
SLIDE 60

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-61
SLIDE 61

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-62
SLIDE 62

Rising Threshold Algorithm Basic properties of f

f (x) = max{1/2, (2e)x−1}

1 1

ln−1(2e) ≈ 0.59

slide-63
SLIDE 63

Rising Threshold Algorithm Most important property of f

x f (t)dt f (x) · 1 = green area area below blue = ln−1(2e) ≈ 0.59

1 1

ln−1(2e) ≈ 0.59

slide-64
SLIDE 64

Rising Threshold Algorithm Most important property of f

x f (t)dt f (x) · 1 = green area area below blue = ln−1(2e) ≈ 0.59

1 1

ln−1(2e) ≈ 0.59

slide-65
SLIDE 65

Rising Threshold Algorithm Most important property of f

x f (t)dt f (x) · 1 = green area area below blue = ln−1(2e) ≈ 0.59

1 1

ln−1(2e) ≈ 0.59

slide-66
SLIDE 66

Rising Threshold Algorithm Most important property of f

x f (t)dt f (x) · 1 = green area area below blue = ln−1(2e) ≈ 0.59

1 1

ln−1(2e) ≈ 0.59

slide-67
SLIDE 67

Rising Threshold Algorithm

Analysis for large = x f (t)dt f (x) · 1 ≈ 0.59 + items exceeding threshold benefit both ALG and OPT

slide-68
SLIDE 68

Rising Threshold Algorithm Next steps

  • Step 1. Algorithm for large items (1/2, 1]
slide-69
SLIDE 69

Rising Threshold Algorithm Next steps

  • Step 1. Algorithm for large items (1/2, 1]
slide-70
SLIDE 70

Rising Threshold Algorithm Next steps

  • Step 1. Algorithm for large items (1/2, 1]
  • Step 2. Algorithm for large and medium items (1/3, 1/2]:

L L

1/2 2/3 1/3

M M M (two medium items fit in 1 knapsack)

slide-71
SLIDE 71

Adding medium items (1/3, 1/2]

Algorithm properties

  • take large items according to threshold
  • never reject medium items
slide-72
SLIDE 72

Adding medium items (1/3, 1/2]

Algorithm properties

  • take large items according to threshold
  • never reject medium items

⇓

  • Observation. If finished with some empty knapsacks ⇒ optimal!

ALGL + M OPTL + M ≥ ALGL OPTL

slide-73
SLIDE 73

Adding medium items (1/3, 1/2]

  • Case 1. Finished with some empty knapsacks
  • Case 2. Finished with no empty knapsacks:
slide-74
SLIDE 74

Adding medium items (1/3, 1/2]

  • Case 1. Finished with some empty knapsacks
  • Case 2. Finished with no empty knapsacks:

1 1 1 1

slide-75
SLIDE 75

Adding medium items (1/3, 1/2]

  • Case 1. Finished with some empty knapsacks
  • Case 2. Finished with no empty knapsacks:

1 1 1 1 Good that I waited for them! – OPT

slide-76
SLIDE 76

Three options to arrange mediums

M M stack

(with medium)

M L combine

(with large)

M wait

(for large)

slide-77
SLIDE 77

How we arrange mediums

M M stack

(with medium)

M L combine

(with large)

M wait

(for large)

ALG:

slide-78
SLIDE 78

How we arrange mediums

M M stack

(with medium)

M L combine

(with large)

M wait

(for large)

always attempt ALG:

slide-79
SLIDE 79

How we arrange mediums

M M stack

(with medium)

M L combine

(with large)

M wait

(for large)

always attempt ALG: keep some

slide-80
SLIDE 80

How we arrange mediums

M M stack

(with medium)

M L combine

(with large)

M wait

(for large)

always attempt ALG: keep some if too many waits

slide-81
SLIDE 81

How many medium items should wait?

M M M M M M M M M M M M M M M M M

L

too many waiting not enough waiting

1 1 1 1

slide-82
SLIDE 82

How many medium items should wait?

1 1

ln−1(2e) ≈ 0.59

slide-83
SLIDE 83

How many medium items should wait?

M M M M M M M M M M M M M M M M M

L

too many waiting not enough waiting

1 1 1 1

slide-84
SLIDE 84

How many medium items should wait?

M M M M M M M M M M M M M M M M M

L

too many waiting not enough waiting

1 1 1 1

slide-85
SLIDE 85

How many medium items should wait?

L L M M M M M

slide-86
SLIDE 86

How many medium items should wait?

M M M M m M L L

Simplify: all mediums of size m ∈ (1/3, 1/2]

slide-87
SLIDE 87

How many medium items should wait?

Answer: to have gain ≥ 0.59

slide-88
SLIDE 88

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M

slide-89
SLIDE 89

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M M

slide-90
SLIDE 90

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M

slide-91
SLIDE 91

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M

slide-92
SLIDE 92

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M M

slide-93
SLIDE 93

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M

slide-94
SLIDE 94

How many medium items should wait?

Each medium item is size m

  • gain on waiting = m
  • gain on stacked = 2m
  • gain on large ≥ 1 − m

M M M M

L waiting

M M

slide-95
SLIDE 95

How many medium items should wait?

Answer: fix m, solve for gain(#waiting) ≥ 0.59

slide-96
SLIDE 96

How many medium items should wait?

Answer: fix m, solve for gain(#waiting) ≥ 0.59

slide-97
SLIDE 97

How many medium items should wait?

Answer: fix m, solve for gain(#waiting) ≥ 0.59

slide-98
SLIDE 98

How many medium items should wait?

Answer: fix m, solve for gain(#waiting) ≥ 0.59

slide-99
SLIDE 99

How many medium items should wait?

Answer: fix m, solve for gain(#waiting) ≥ 0.59

slide-100
SLIDE 100

How many medium items should wait?

Answer: fix m, solve for gain(#waiting) ≥ 0.59

slide-101
SLIDE 101

Beyond single medium item

M M M M m M L L

slide-102
SLIDE 102

Beyond single medium item

L L M M M M M

slide-103
SLIDE 103

Beyond single medium item size

slide-104
SLIDE 104

Beyond single medium item size

How many should wait? For different m, different answer!

slide-105
SLIDE 105

Beyond single medium item size

  • Sort waiting medium items
  • Incoming medium item waits if fits below the curve

1/2

slide-106
SLIDE 106

Beyond single medium item size

  • Sort waiting medium items
  • Incoming medium item waits if fits below the curve

1/2

slide-107
SLIDE 107

Beyond single medium item size

  • Sort waiting medium items
  • Incoming medium item waits if fits below the curve

1/2

slide-108
SLIDE 108

Beyond single medium item size

  • Sort waiting medium items
  • Incoming medium item waits if fits below the curve

1/2 x

incoming item x

slide-109
SLIDE 109

Analysis

1/2

slide-110
SLIDE 110

Analysis

1/2

slide-111
SLIDE 111

Possible to extend for (α, 1]

(α ≈ 0.2192)

1/2

slide-112
SLIDE 112

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-113
SLIDE 113

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-114
SLIDE 114

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-115
SLIDE 115

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-116
SLIDE 116

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-117
SLIDE 117

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-118
SLIDE 118

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-119
SLIDE 119

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

α ≈ 0.2191

slide-120
SLIDE 120

Next steps: algorithm for small items (0, α]

just the idea – simply stacking small items is not enough

M α ≈ 0.2191

slide-121
SLIDE 121

Rising Threshold Algorithm is optimal for Online Knapsack

and the function f (x) = max{1/2, (2e)x−1} is natural for this problem

1 1

ln−1(2e) ≈ 0.59

slide-122
SLIDE 122

Rising Threshold Algorithm is optimal for Online Knapsack

and the function f (x) = max{1/2, (2e)x−1} is natural for this problem

1 1

ln−1(2e) ≈ 0.59

maciej.pacut@univie.ac.at
