Open Flight Trajectories for Reproducible ANS Performance Review Enrico Spinielli, Rainer Koelle Ken Barker, Nicholas Korbey 6 th Dec 2018 (updated: Mon Dec 03 2018 @ 12:23:30) Context Performance review for all ANS in EUROCONTROL Member

slide-1
SLIDE 1

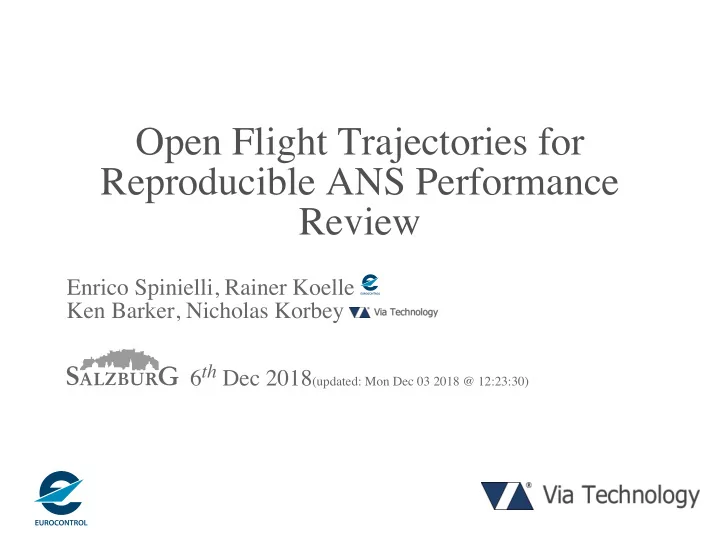

Open Flight Trajectories for Reproducible ANS Performance Review

Enrico Spinielli, Rainer Koelle Ken Barker, Nicholas Korbey 6th Dec 2018(updated: Mon Dec 03 2018 @ 12:23:30)

slide-2
SLIDE 2

Context

Performance review for all ANS in EUROCONTROL Member States (41 + 2) EU-US comparison International Studies (Brasil, China, Japan, Singapore) Flown Flight Trajectories are input for our indicators: Traffic counts (Country FIR & ANSP, ACC, ...) Horizontal Flight Efficiency Vertical Flight Efficiency (en-route, climb & descent) Additional ASMA time Traffic Complexity

slide-3
SLIDE 3

Principles

Impartiality

We do not serve any vested interest.

Transparency

We are open to scrutiny and willing to collaborate.

slide-4
SLIDE 4

Principles' Consequences

Reproducibility

slide-5
SLIDE 5

If it ain't openly reproducible don't call it performance review

...or research ...or science

slide-6
SLIDE 6

Logical Architecture

slide-7
SLIDE 7

Upload Data Source Data Products Trajectory Module Trajectory Assessment Module CPR FR24 OSN APDS Flights Positions Events Smoothed Trajectories Quality Metrics Production Trajectories Cleaning Metrics Refine Data Merge Trajectories Analyse Trajectories Interpolate Trajectories

RT Production Pipeline

slide-8
SLIDE 8

Geographical Scope

slide-9
SLIDE 9

Earth-Centered, Earth-Fixed (ECEF)

slide-10
SLIDE 10

ECEF Cross Track Distance

n-vector: cross track diagram. Originaly from Chris Veness at Movable Type Ltd

slide-11
SLIDE 11

Trajectory projected along a Great Circle

slide-12
SLIDE 12

a b r a d b d d α

Path Distance

slide-13
SLIDE 13

Current Leg Preceding Leg Subsequent Leg Previous Point Current Point

Path Distance of a Point

slide-14
SLIDE 14

Vertical Profile altitude vs path distance

slide-15
SLIDE 15

Speed Profile speed vs path distance (raw)

slide-16
SLIDE 16

Speed Profile speed vs path distance (filtered)

slide-17
SLIDE 17

Processing Times (hours)

slide-18
SLIDE 18

Processing Monthly Cost (US$)

slide-19
SLIDE 19

Use Case: EGLL (Heathrow) holdings

slide-20
SLIDE 20

Use Case: EGLL holdings ok-ish

slide-21
SLIDE 21

Use Case: EGLL holdings spiky

slide-22
SLIDE 22

Use Case: EGLL holdings WHY spiky

slide-23
SLIDE 23

Repositories

Reference Trajectory Repo https://github.com/euctrl-pru/reftrj Code Documentation, and Flown Trajectories (few days samples but growing) Spherical Vector Geometry library https://bitbucket.org/viaaero/via-sphere A header-only C++ library with Python bindings for calculating distances, angles and positions on the surface of a sphere. MIT licence

slide-24
SLIDE 24

Questions?

slide-25
SLIDE 25

Thanks!

slide-26
SLIDE 26

Trajectory: cross track distance exaggerated

slide-27
SLIDE 27

Trajectory: iteration 1

slide-28
SLIDE 28

Trajectory: iteration 2

slide-29
SLIDE 29

Trajectory: iteration 3

slide-30
SLIDE 30

Trajectory: extreme points

slide-31
SLIDE 31

a b Along track distance Across track distance

Strait Leg Line Fitting

slide-32
SLIDE 32

r d α α

A Turn between Route Legs

slide-33
SLIDE 33

r d α α l θ

Calculate True Radius
