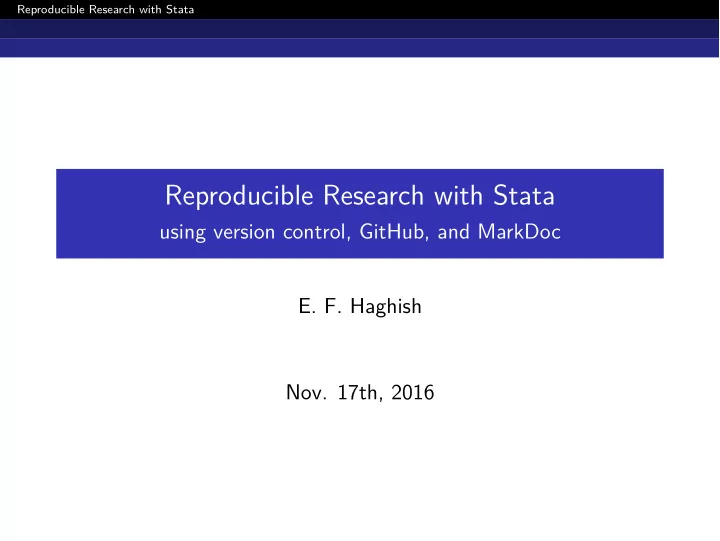

Reproducible Research with Stata

Reproducible Research with Stata

using version control, GitHub, and MarkDoc

• E. F. Haghish
• Nov. 17th, 2016

Reproducible Research with Stata

Reproducible Analysis

Overview Definition

Figure 1: Reproducible Analysis

Reproducible Research with Stata

to do so, we will need: the same version of software, data, and code, (and the same OS, depending on the software) and a literate programming software

Figure 2: version control and literate programming also imply coding the analysis

Reproducible Research with Stata

the analysis should be reproduced with identical software we should be able to access the software without requesting it from the author.

the data, code, and software should be accessible publicly all versions of the software used for running the analysis should be accessible.

archiving older versions becomes crucial. For example, Statistical Software Component (SSC) does not archive different versions of a package, in contrast to CRAN for developing computational programs, version control becomes much more important for fixing bugs and cooperating

• n the software

Reproducible Research with Stata

Concerns about package archiving

While the idea and importance of archiving versions is clear, some users may have concerns such as:

1 having access to different versions of a software might cause

confusion for users, making them install old software

2 that can cause confusion for users from where they should

install their software?

3 some would argue that we simply don’t need to make archives

• f older software because there is no use in that

4 software update fixes bugs. what is the point of using previous

versions if we knew they are buggy?

5 what is the point of reproducing the same results, using the

same software version, when we know they are bugged?

Reproducible Research with Stata

GitHub for Stata community

GitHub is a general platform that is used for variety of purposes:

1 sharing data 2 sharing code 3 developing and collaborating software 4 hosting software for R, Stata, . . . 5 archiving software versions 6 documenting software, using GitHub WiKi 7 reading code within browser

Reproducible Research with Stata

Learning GitHub

Using GitHub has a learning curve Using the GitHub desktop can considerable eliminate the learning curve. GitHub has a desktop GUI for Windows and Mac. Linux users have several third-party software options

I recommend SmartGit for Linux users

When using GitHub, you still write and update your code in your computer. Once you have made a change, you can register your commit on your machine (via the App or command-line), and when you are through, you can push it to the repository on GitHub website. Therefore the workflow for programming does not change much.

Reproducible Research with Stata

Figure 3: a screenshot of the github package on my local drive, where programming takes place

Reproducible Research with Stata

Figure 4:

• nce you’re done with coding, commit the changes and push

them to GitHub

Reproducible Research with Stata

Figure 5: viewing the history of changes

Reproducible Research with Stata

The github package

It’s similar to the ssc command in Stata. But it is used for searching, installing, and uninstalling Stata packages from GitHub. The package can be installed from GitHub using:

. net install github, from("https://raw.githubusercontent.com/haghish/github/master/")

such a command is usually required for installing any Stata package on GitHub. But github command makes life easier in many ways

Reproducible Research with Stata

Examples

let’s search for a package named markdoc on GitHub using github search command followed by the keyword this searches first for all repositories named markdoc that have Stata as their language and are installable packages (have the pkg and toc files in the repository) the output shows a description of the package, along with its dependencies which will be installed automatically

. github search markdoc

• repository

Author Install Description

• MarkDoc

haghish Install A literate programming package for Stata 3937k which develops dynamic documents, slides, and help files in various formats homepage: http://haghish.com/markdoc Hits:49 Stars:5 Lang:Stata (Depend)

Reproducible Research with Stata

The github command allows you to specify the dependencies

• f the package and install them automatically after the

package. the dependencies are simply a file named dependency.do that includes the code for installing a particular version of the package or alternatively, the latest version of it. But it allows the user to define a particular version of the dependencies, to ensure the package works as expected by the author and recent development of the dependency packages do not yield unexpected results You can install the package with a mouse click or, type the github install followed by username/repository names:

. github install haghish/markdoc

Reproducible Research with Stata

executing the command shows that markdoc installs weaver package and weaver package installs another package called statax which is its own dependency having the option to install dependencies, allows the authors to break their packages into pieces, which allows others to rely on the smaller pieces in their programs. Having the option version, makes it safe to use a particular version of the package. that also means more citations

Reproducible Research with Stata

The versions are in fact GitHub releases, which are so easy to make

Figure 6: Viewing the software releases on GitHub

Reproducible Research with Stata

clicking on the releases button will open a page where all the previous releases are listed, the fixed bugs are explained, and you can download the old as well as the newest source code

Figure 7: Creating a new release

Reproducible Research with Stata

Figure 8: publishing the new release

Reproducible Research with Stata

Accessing releases via Stata

Once a new release is made on GitHub or the package master is updated, the new version becomes available for all users instantly. You can view all of the available versions using the github query command followed by the username/repository

Reproducible Research with Stata . github query haghish/markdoc

• Version

Release Date Install

• 3.8.8

2016-11-16 Install 3.8.7 2016-11-10 Install 3.8.6 2016-11-10 Install 3.8.5 2016-10-16 Install 3.8.4 2016-10-13 Install 3.8.3 2016-10-03 Install 3.8.2 2016-10-01 Install 3.8.1 2016-09-29 Install 3.8.0 2016-09-24 Install 3.7.9 2016-09-20 Install 3.7.8 2016-09-19 Install 3.7.7 2016-09-18 Install 3.7.6 2016-09-13 Install 3.7.5 2016-09-08 Install 3.7.4 2016-09-07 Install 3.7.3 2016-09-06 Install 3.7.2 2016-09-05 Install 3.7.0 2016-08-23 Install 3.6.9 2016-08-16 Install 3.6.7 2016-02-27 Install

Reproducible Research with Stata

Clicking on the install text would install any of the previous versions Alternatively we can use the version(tag) option to install any version. The tag is the version that we specify for each

• release. For example, version 3.8.7 of MarkDoc (old version)

can be installed as follows:

. github install haghish/markdoc, version(3.8.7)

the same procedure can be used in the dependency.do file to install a particular version of a package

Reproducible Research with Stata

Other github subcommands

you can uninstall a package, which only requires the repository name

. github uninstall markdoc

you can check whether a repository is installable? This will confirms that the packagename.pkg and the stata.toc files exist in the repository. The github search command also carries out this process and only shows the install text if the package is installable

. github check haghish/markdoc stata.toc file was found pkg file was found haghish/markdoc is installable

Reproducible Research with Stata

You can view the Stata packages that are popular and you have plenty of options to search different repositories: try:

. github hot . github hot, n(30) . github hot, all . github hot, all language(Python)

the data is available on GitHub: https://raw.githubusercontent.com/haghish/github/ master/data/archive.dta you can build a fresh archive of Stata repositories on GitHub

• anytime. and it takes about 10 minutes to be executed. The

command will create a dataset with the given name.

. github list stata, language(all) in(all) all save(archive) append

Reproducible Research with Stata

Literate Programming

Reproducible documentation Idea

Figure 9: Literate Programming Process

Reproducible Research with Stata

The main idea is to make the code more readable and well-written by preparing it for others to read and comprehend

• it. The document is only a byproduct.

Literate programming must not be reduced to generating dynamic document! It is meant to:

1 make reading and comprehending source code and data analysis

code easier by including the documentation

2 make the analysis and documentation reproducible 3 make writing documentation easier

Reproducible Research with Stata

The documentation is written inside the code file to make them more understandable, therefore the readability of the code is central to literate programming paradigm the markup language used for documentation should be as simple as possible, to avoid unnecessary complications in the source code the markup language should not impose learning curve using HTML and LaTeX for documentation is only popular among nerds

Reproducible Research with Stata

Workflow

The same workflow is used in statistics for data analysis The documentation is specified with an especial notation

Therefore, the source code is not directly sourceable The most popular programs only include the Weave process.

Reproducible Research with Stata

Workflow

This workflow can be improved in a variety of ways: Interactive literate programming Real-time weaving Supporting different markup languages Supporting all documentation features required by statisticians Producing documents in various formats, using the same source Thinking about procedures to improve the readability of the code Keep the source code sourceable

Reproducible Research with Stata

Making literate programming convenient

Real-time document update in different formats

Docx, html, latex, PDF, slides, etc.

A simple GUI interface to facilitate working with the packages Support for LaTeX mathematical notations in all document formats Automated process for capturing, saving, and including figures in the document Creating automatic layouts for markup languages (Improving readability) Ensuring that the code files remain sourceable

Reproducible Research with Stata

MarkDoc package

MarkDoc is a general purpose literate programming package for Stata it supports Markdown, LaTeX, and HTML it provides a holistic approach to reproducible documentation

• f produce various formats from the same source

Microsoft Office Docx OpenOffice ODT LaTeX HTML Beamer slides Web-based HTML slides epub Stata help files (sthlp) Stata package vignette in all formats mentioned above

Reproducible Research with Stata

Figure 10: MarkDoc includes several engines for processing do, smcl, ado, and mata files

Reproducible Research with Stata

MarkDoc’s features

MarkDoc supports interactive workflow

using the smcl log as the source code allows you to view the document in any of the formats after making a change, without re-executing the whole code using the do file as the source requires re-executing the whole source code for generating the document using ado and mata code, which are used for programming,

• nly extract the documentation for generating Stata help files

and package vignettes.

Script files written for MarkDoc will remain sourceable in Stata, i.e. the analysis can be executed as usual in Stata because the documentation are written as a special comment format, only meaningful to MarkDoc

Reproducible Research with Stata

MarkDoc’s features

has a very simple method for capturing and including graphs in the dynamic document supports writing dynamic text supports creating dynamic tables conveniently it defined markers for keeping the output document simple, while preserving all of the analysis code and results

1 //ON and //OFF for activating and deactivating the results of a

code chunk

2 /**/ for hiding a command 3 /***/ for hiding output 4 //IMPORT filename for importing documentation from

external files, which helps to keep the do-files clean

Reproducible Research with Stata

Installation

MarkDoc is hosted on SSC and can be installed by:

. github install haghish/markdoc

Since Feb 2016, all of the releases of MarkDoc are accessible via GitHub:

. github query haghish/markdoc

an analysis that is used by older versions of MarkDoc will be reproducible, because you can install older versions of MarkDoc to generate the documentation

Reproducible Research with Stata

Documentation

The documentation is written as comment, between /*** and ***/ comment signs. For example, your do file could look like:

. stata command /*** Markdown heading 1 =============== Markdown heading 2

• documentation text.

***/ . stata command

Reproducible Research with Stata

Markdown syntax is explained on GitHub Wiki, which holds the manual of the package: https://github.com/haghish/ MarkDoc/wiki/Markdown-tutorial examples of MarkDoc package can be found on GitHub as well: https: //github.com/haghish/MarkDoc/tree/master/Examples

Reproducible Research with Stata

Learning MarkDoc

MarkDoc comes with a graphical user interface which makes learning the package much easier. Typing db markdoc opens the dialog box The dialog box has 3 independent tabs, each work with a particular engine, and has its own options.

Reproducible Research with Stata

Figure 11: MarkDoc GUI

Reproducible Research with Stata

Applications in research

Reproducible research software can improve analysis transparency by: Documenting the process of data analysis Allowing the whole analysis to be reproduced step by step Embedding the interpretation Automatizing reporting the results and eliminating untraceable human errors Combining the results, figures, and all of the interpretations in a publication-ready document that ideally should be available in various document formats (Docx, LaTeX, PDF, OpenOffice ODT).

Reproducible Research with Stata

Applications in education

Reproducible research tools can be used by students to:

Create notes for themselves within statistical packages Document their code Read and comprehend code that is written by others in the same fashion Practice data analysis in a more disciplined way

Reproducible Research with Stata

Applications in education

Reproducible research tools are very useful tools for teaching statistics at any level for teachers, students, and programmers

Teachers can use them for creating educational materials using the same “source files”. The source files can be used to produce: Presentation slides Handouts HTML documents for websites or blog posts eBooks Produce documents with different levels of documentation e.g. slides and detailed handouts can be produced from the same source by specifying how and to what extent the documentations should be included The documentation can be reused in other formats, which encourages practicing literate programming

Reproducible Research with Stata

Applications in statistical programming

Programmers can get benefit from this paradigm for documenting their own code

Making it more comprehensible for others Encouraging others to read their code Using the documentation to produce various documentation formats Help files, package vignettes, etc. Reading

Reproducible Research with Stata

If you found this talk interesting, you can expect a book that touches on the topics of this presentation in much more details and examples: https://leanpub.com/reproducible/
