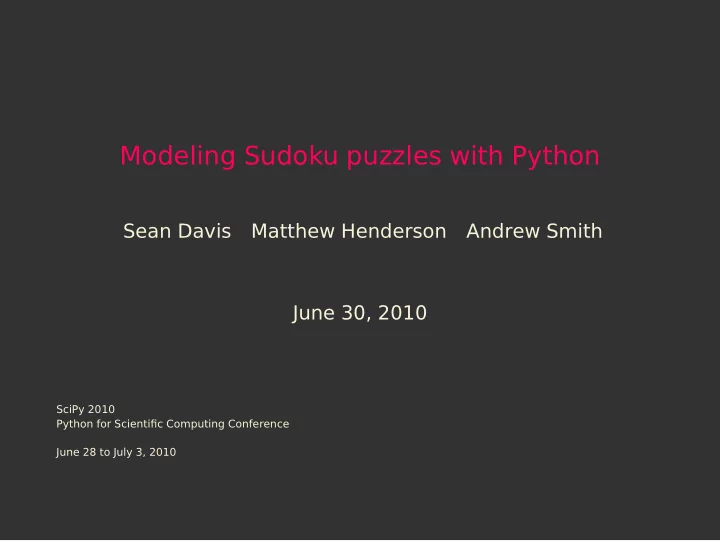

Modeling Sudoku puzzles with Python Sean Davis Matthew Henderson Andrew Smith June 30, 2010 SciPy 2010 Python for Scientific Computing Conference June 28 to July 3, 2010 Background - The OKlibrary http://www.ok-sat-library.org/

slide-1
SLIDE 1

Modeling Sudoku puzzles with Python

Sean Davis Matthew Henderson Andrew Smith June 30, 2010

SciPy 2010 Python for Scientific Computing Conference June 28 to July 3, 2010

slide-2
SLIDE 2

Background - The OKlibrary

◮ http://www.ok-sat-library.org/

slide-3
SLIDE 3

Background - The OKlibrary

◮ http://www.ok-sat-library.org/ ◮ Open-source research platform and generative library for

generalised SAT solving

slide-4
SLIDE 4

Background - The OKlibrary

◮ http://www.ok-sat-library.org/ ◮ Open-source research platform and generative library for

generalised SAT solving

◮ Developed by Oliver Kullmann at the University of

Swansea since 2005.

slide-5
SLIDE 5

Background - The OKlibrary

◮ http://www.ok-sat-library.org/ ◮ Open-source research platform and generative library for

generalised SAT solving

◮ Developed by Oliver Kullmann at the University of

Swansea since 2005.

◮ Modeling of combinatorial puzzles via SAT (Latin

squares/Sudoku)

slide-6
SLIDE 6

Background - The OKlibrary

◮ http://www.ok-sat-library.org/ ◮ Open-source research platform and generative library for

generalised SAT solving

◮ Developed by Oliver Kullmann at the University of

Swansea since 2005.

◮ Modeling of combinatorial puzzles via SAT (Latin

squares/Sudoku)

◮ C++/Lisp/Bash

slide-7
SLIDE 7

Background - sudoku.py

◮ http://bitbucket.org/matthew/scipy2010

slide-8
SLIDE 8

Background - sudoku.py

◮ http://bitbucket.org/matthew/scipy2010 ◮ Open-source

slide-9
SLIDE 9

Background - sudoku.py

◮ http://bitbucket.org/matthew/scipy2010 ◮ Open-source ◮ Developed by authors at Berea College since 2010

slide-10
SLIDE 10

Background - sudoku.py

◮ http://bitbucket.org/matthew/scipy2010 ◮ Open-source ◮ Developed by authors at Berea College since 2010 ◮ Modeling of Sudoku puzzles in a variety of domains

slide-11
SLIDE 11

Background - sudoku.py

◮ http://bitbucket.org/matthew/scipy2010 ◮ Open-source ◮ Developed by authors at Berea College since 2010 ◮ Modeling of Sudoku puzzles in a variety of domains ◮ Python

slide-12
SLIDE 12

Overview

◮ Modeling Sudoku in Python

slide-13
SLIDE 13

Overview

◮ Modeling Sudoku in Python

◮ Constraint models

slide-14
SLIDE 14

Overview

◮ Modeling Sudoku in Python

◮ Constraint models ◮ Graph models

slide-15
SLIDE 15

Overview

◮ Modeling Sudoku in Python

◮ Constraint models ◮ Graph models ◮ Integer programming models

slide-16
SLIDE 16

Overview

◮ Modeling Sudoku in Python

◮ Constraint models ◮ Graph models ◮ Integer programming models ◮ Polynomial models

slide-17
SLIDE 17

Overview

◮ Modeling Sudoku in Python

◮ Constraint models ◮ Graph models ◮ Integer programming models ◮ Polynomial models

◮ Using sudoku.py

slide-18
SLIDE 18

Overview

◮ Modeling Sudoku in Python

◮ Constraint models ◮ Graph models ◮ Integer programming models ◮ Polynomial models

◮ Using sudoku.py

◮ Creating puzzles

slide-19
SLIDE 19

Overview

◮ Modeling Sudoku in Python

◮ Constraint models ◮ Graph models ◮ Integer programming models ◮ Polynomial models

◮ Using sudoku.py

◮ Creating puzzles ◮ Solving puzzles

slide-20
SLIDE 20

A traditional Sudoku puzzle is a partial assignment of 1, . . . , 9 to the cells of a 9 × 9 grid with the latin property on rows, columns and boxes. 2 5 3 9 1 1 4 4 7 2 8 5 2 9 8 1 4 3 3 6 7 2 7 3 9 3 6 4

slide-21
SLIDE 21

A solution of a Sudoku puzzle is a total assignment which extends the original partial assignment and satisfies the same latin properties. 2 5 8 7 3 6 9 4 1 6 1 9 8 2 4 3 5 7 4 3 7 9 1 5 2 6 8 3 9 5 2 7 1 4 8 6 7 6 2 4 9 8 1 3 5 8 4 1 6 5 3 7 2 9 1 8 4 3 6 9 5 7 2 5 7 6 1 4 2 8 9 3 9 2 3 5 8 7 6 1 4

slide-22
SLIDE 22

A (generalized) Sudoku puzzle

  • f boxsize n is a partial

assignment of 1, . . . , n2 to the cells of an n2 × n2 grid with the latin property on rows, columns and boxes. 2 5 3 9 1 1 4 4 7 2 8 5 2 9 8 1 4 3 3 6 7 2 7 3 9 3 6 4

slide-23
SLIDE 23

Constraint Satisfaction Problems

A constraint satisfaction problem (CSP) is a collection of constraints.

slide-24
SLIDE 24

Constraint Satisfaction Problems

A constraint satisfaction problem (CSP) is a collection of constraints. A constraint restricts the values assigned to certain variables.

slide-25
SLIDE 25

Constraint Satisfaction Problems

A constraint satisfaction problem (CSP) is a collection of constraints. A constraint restricts the values assigned to certain variables. A variable v has an associated domain D(v).

slide-26
SLIDE 26

Constraint Satisfaction Problems

A constraint satisfaction problem (CSP) is a collection of constraints. A constraint restricts the values assigned to certain variables. A variable v has an associated domain D(v). A solution of a CSP is an assignment to the variables which satisfies all the constraints.

slide-27
SLIDE 27

Modeling Sudoku – Variables

For a Sudoku puzzle of boxsize n we have variables xi 1 ≤ i ≤ n4 The domain D(xi) = {1, . . . , n2}. xi = j means that cell i is assigned value j.

slide-28
SLIDE 28

Modeling Sudoku – The AllDifferent constraint

The AllDifferent constraint forces a set of variables to have mutually different values.

slide-29
SLIDE 29

Modeling Sudoku – The AllDifferent constraint

The AllDifferent constraint forces a set of variables to have mutually different values.

slide-30
SLIDE 30

Modeling Sudoku – The AllDifferent constraint

The AllDifferent constraint forces a set of variables to have mutually different values. For example, if n = 2:

slide-31
SLIDE 31

Modeling Sudoku – The AllDifferent constraint

The AllDifferent constraint forces a set of variables to have mutually different values. For example, if n = 2:

◮ Row 1: AllDifferent(x1, x2, x3, x4)

slide-32
SLIDE 32

Modeling Sudoku – The AllDifferent constraint

The AllDifferent constraint forces a set of variables to have mutually different values. For example, if n = 2:

◮ Row 1: AllDifferent(x1, x2, x3, x4) ◮ Column 1: AllDifferent(x1, x5, x9, x13)

slide-33
SLIDE 33

Modeling Sudoku – The AllDifferent constraint

The AllDifferent constraint forces a set of variables to have mutually different values. For example, if n = 2:

◮ Row 1: AllDifferent(x1, x2, x3, x4) ◮ Column 1: AllDifferent(x1, x5, x9, x13) ◮ Box 1: AllDifferent(x1, x2, x5, x6)

slide-34
SLIDE 34

Modeling Sudoku – The ExactSum constraint

The ExactSum constraint restricts the values of variables to have a given sum. So, if x4 = 3, we can use the constraint ExactSum(x4, 3)

slide-35
SLIDE 35

Modeling Sudoku – python-constraint

http://labix.org/python-constraint Developed by Gustavo Niemeyer.

slide-36
SLIDE 36

Modeling Sudoku – python-constraint

http://labix.org/python-constraint Developed by Gustavo Niemeyer. > > > from constraint import Problem > > > from sudoku import cells , symbols

slide-37
SLIDE 37

Modeling Sudoku – python-constraint

http://labix.org/python-constraint Developed by Gustavo Niemeyer. > > > from constraint import Problem > > > from sudoku import cells , symbols > > > cp = Problem() > > > cp. addVariables ( cells (2) , symbols(2))

slide-38
SLIDE 38

Modeling Sudoku – The empty board

> > > from sudoku import \ cells_by_row , cells_by_col , cells_by_box

slide-39
SLIDE 39

Modeling Sudoku – The empty board

> > > from sudoku import \ cells_by_row , cells_by_col , cells_by_box > > > sudoku. cells_by_row (2) [[1 , 2, 3, 4] , [5 , 6, 7, 8] , [9 , 10, 11, 12], [13, 14, 15, 16]]

slide-40
SLIDE 40

Modeling Sudoku – The empty board

> > > from sudoku import \ cells_by_row , cells_by_col , cells_by_box > > > sudoku. cells_by_row (2) [[1 , 2, 3, 4] , [5 , 6, 7, 8] , [9 , 10, 11, 12], [13, 14, 15, 16]] > > > sudoku. cells_by_col (2) [[1 , 5, 9, 13], [2 , 6, 10, 14], [3 , 7, 11, 15], [4 , 8, 12, 16]]

slide-41
SLIDE 41

Modeling Sudoku – The empty board

> > > from sudoku import \ cells_by_row , cells_by_col , cells_by_box > > > sudoku. cells_by_row (2) [[1 , 2, 3, 4] , [5 , 6, 7, 8] , [9 , 10, 11, 12], [13, 14, 15, 16]] > > > sudoku. cells_by_col (2) [[1 , 5, 9, 13], [2 , 6, 10, 14], [3 , 7, 11, 15], [4 , 8, 12, 16]] > > > sudoku. cells_by_box (2) [[1 , 2, 5, 6] , [3 , 4, 7, 8] , [9 , 10, 13, 14], [11, 12, 15, 16]]

slide-42
SLIDE 42

Modeling Sudoku – The empty board

> > > for row in cells_by_row (2): . . .

  • cp. addConstraint ( AllDifferentConstraint () , row)

. . .

slide-43
SLIDE 43

Modeling Sudoku – The empty board

> > > for row in cells_by_row (2): . . .

  • cp. addConstraint ( AllDifferentConstraint () , row)

. . . > > > for col in cells_by_col (2): . . .

  • cp. addConstraint ( AllDifferentConstraint () ,

col ) . . .

slide-44
SLIDE 44

Modeling Sudoku – The empty board

> > > for row in cells_by_row (2): . . .

  • cp. addConstraint ( AllDifferentConstraint () , row)

. . . > > > for col in cells_by_col (2): . . .

  • cp. addConstraint ( AllDifferentConstraint () ,

col ) . . . > > > for box in cells_by_box (2): . . .

  • cp. addConstraint ( AllDifferentConstraint () , box)
slide-45
SLIDE 45

Modeling Sudoku – Puzzles

> > > d = {3: 2, 5: 2, 6: 1, 7: 4, \ 8: 3, 10: 4, 12: 2, 13: 1}

slide-46
SLIDE 46

Modeling Sudoku – Puzzles

> > > d = {3: 2, 5: 2, 6: 1, 7: 4, \ 8: 3, 10: 4, 12: 2, 13: 1} > > > from constraint import ExactSumConstraint as Exact > > > for cell in d: . . .

  • cp. addConstraint (Exact(d[ cell ]) ,

cell )

slide-47
SLIDE 47

Modeling Sudoku – Solving

> > > cp. getSolution () {1: 4, 2: 3, 3: 2, 4: 1, 5: 2, 6: 1, 7: 4, 8: 3, 9: 3, 10: 4, 11: 1, 12: 2, 13: 1, 14: 2, 15: 3, 16: 4}

slide-48
SLIDE 48

Modeling Sudoku – Puzzle objects

> > > from sudoku import Puzzle

slide-49
SLIDE 49

Modeling Sudoku – Puzzle objects

> > > from sudoku import Puzzle > > > Puzzle (cp. getSolution () , 2) +

− − − − −+ − − − − −+

| 4 3 | 2 1 | | 2 1 | 4 3 | +

− − − − −+ − − − − −+

| 3 4 | 1 2 | | 1 2 | 3 4 | +

− − − − −+ − − − − −+

slide-50
SLIDE 50

Modeling Sudoku – The solve function

> > > p = Puzzle (d, 2)

slide-51
SLIDE 51

Modeling Sudoku – The solve function

> > > p = Puzzle (d, 2) > > > from sudoku import solve > > > solve (p) +

− − − − −+ − − − − −+

| 4 3 | 2 1 | | 2 1 | 4 3 | +

− − − − −+ − − − − −+

| 3 4 | 1 2 | | 1 2 | 3 4 | +

− − − − −+ − − − − −+

slide-52
SLIDE 52

Modeling Sudoku – Graph models

◮ J. Gago-Vargas, I. Hartillo-Hermosa, J. Martin-Morales, J. M.

Ucha- Enriquez, Sudokus and Groebner Bases: not only a Divertimento, In: Lecture Notes in Computer Science, vol.

  • 4194. pp. 155-165. 2005
slide-53
SLIDE 53

Modeling Sudoku – Graph models

◮ J. Gago-Vargas, I. Hartillo-Hermosa, J. Martin-Morales, J. M.

Ucha- Enriquez, Sudokus and Groebner Bases: not only a Divertimento, In: Lecture Notes in Computer Science, vol.

  • 4194. pp. 155-165. 2005

◮ The graph model has a node for every cell. T

wo nodes are adjacent in the graph model if they represent dependent cells.

slide-54
SLIDE 54

Modeling Sudoku – Graph models

11 10 13 12 15 14 16 1 3 2 5 4 7 6 9 8

Figure: The Shidoku graph

slide-55
SLIDE 55

Modeling Sudoku – Graph models

Networkx : http://networkx.lanl.gov/ > > > from networkx import Graph > > > g = Graph() > > > g. add_nodes_from( cells (2))

slide-56
SLIDE 56

Modeling Sudoku – Graph models

Networkx : http://networkx.lanl.gov/ > > > from networkx import Graph > > > g = Graph() > > > g. add_nodes_from( cells (2)) > > > from sudoku import dependent_cells > > > g. add_edges_from( dependent_cells (2))

slide-57
SLIDE 57

Modeling Sudoku – Node coloring

> > > for cell in d: . . . g.node[ cell ][ ’ color ’ ] = d[ cell ]

slide-58
SLIDE 58

Modeling Sudoku – Node coloring

> > > for cell in d: . . . g.node[ cell ][ ’ color ’ ] = d[ cell ] > > > from sudoku import node_coloring , n_colors > > > cg = node_coloring (g) > > > n_colors (cg) 6

slide-59
SLIDE 59

Modeling Sudoku – Node coloring

> > > for cell in d: . . . g.node[ cell ][ ’ color ’ ] = d[ cell ] > > > from sudoku import node_coloring , n_colors > > > cg = node_coloring (g) > > > n_colors (cg) 6 > > > from sudoku import graph_to_dict > > > s = Puzzle ( graph_to_dict (cg) , 2) > > > s +

− − − − −+ − − − − −+

| 3 5 | 2 6 | | 2 1 | 4 3 | +

− − − − −+ − − − − −+

| 5 4 | 3 2 | | 1 2 | 5 4 | +

− − − − −+ − − − − −+

slide-60
SLIDE 60

Modeling Sudoku – Further models

Modeling domain Python library Integer Programming pyglpk v0.3 http://tfinley.net/software/pyglpk/ Polynomials sympy http://code.google.com/p/sympy/
