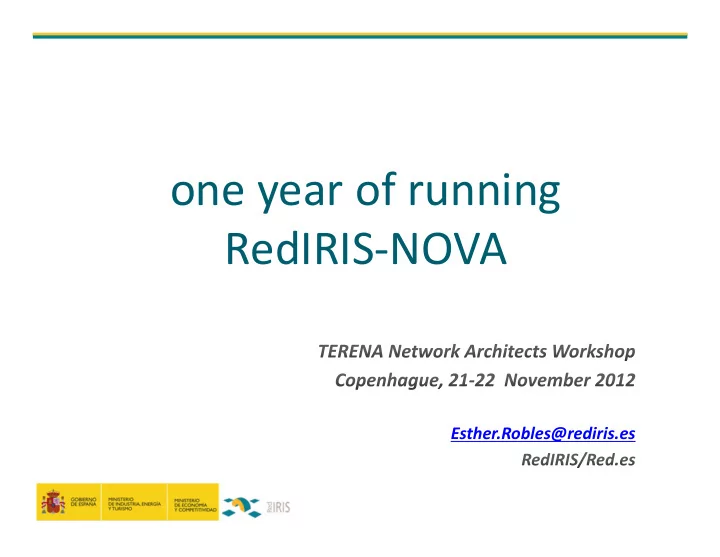

  • ne year of running

RedIRIS‐NOVA

Esther.Robles@rediris.es

slide-2
SLIDE 2

2011 ‐ 2042 : RedIRIS‐NOVA

2

slide-3
SLIDE 3

RedIRIS IP Backbone

2x10G 10G

slide-4
SLIDE 4

RedIRIS External Connectivity

4 TERENA Network Architects Workshop

slide-5
SLIDE 5

RedIRIS‐NOVA Optical Equipment

  • Alcatel-Lucent Equipment:1626 Light Manager Rel 5.0A (6.0 update included)
  • WSS (Wavelength Selective Switch) technology. No O/E/O conversion.
  • 50 Ghz grid spacing: 93 x 10 G / 80 x 40G
  • 10G, 40G and 100G supported.
  • 8-degree ( 7x1)
  • Directionless and colorless support.
  • EDFA and RAMAN amplification
  • Variable Optical Attenuators (VOA) in transponders and amplifiers.
  • Automatic Power Equalization
  • Automatic Pre-emphasis Adjustment
  • User ports ( required by RedIRIS): 10GE, GE and OTN.
  • OSNCP protection 1+1 included.
  • OSC running at 1510nm (4 Mbps)
  • GMPLS support ( version 6.0)
  • Network Management System: 1350 OMS Rel. 5.0A
  • Optical Network Design Platform - ONDP Rel. 5.0A

5 TERENA Network Architects Workshop

slide-6
SLIDE 6

100Gbps trial (Nov. 2011)

6

Backbone IP trunk Backbone IP trunk Demo Transfer S purious data

TERENA Network Architects Workshop

slide-7
SLIDE 7

Optical Services configured (one year running)

  • 77 fiber links lighted ( 3 submarine links)
  • 60 TROADMS colorless and direction less, where:
  • 5-degree -> 4
  • 4-degree -> 11
  • 3-degree -> 8
  • 2-degree -> 33
  • 1-degree -> 4
  • 127 lambdas x 10Gbps currently configured, but:
  • upto 80 lambdas x 10Gbps per link -> 6.160 lambdas x 10Gbps
  • upto 128 in submarine links
  • Protected lambdas: OSNCP 1+1 is configured
  • Flexible and quick process to set up lambdas: as example, a long link with

several bypass TROADMs takes about 20 minutes.

  • but not an easy process ( well-skilled technicians)

7 TERENA Network Architects Workshop

slide-8
SLIDE 8

10 GE Optical Transport Services

  • Classification:

 T1: Primary access to RedIRIS IP backbone  T2: Secondary access to RedIRIS IP backbone  T3: Support IP regional network backbone  T4: Intra-Institutions connectivity ( University inter-campus connections)  T5: projects

8 TERENA Network Architects Workshop

slide-9
SLIDE 9

Spanish Regional Networks

9

E3 IP regional networks supported by RedIRIS-NOVA Optical Service

TERENA Network Architects Workshop

slide-10
SLIDE 10

RedIRIS‐NOVA usage enhacements...

10 TERENA Network Architects Workshop

slide-11
SLIDE 11

GMPLS activation

11 TERENA Network Architects Workshop

slide-12
SLIDE 12

RedIRIS‐NOVA resources manager

12

slide-13
SLIDE 13

Optical Service Monitoring Tool

13

slide-14
SLIDE 14

Potencial new public sector customers

14 TERENA Network Architects Workshop

slide-15
SLIDE 15

FIWAT

the Spanish FI‐WARE Test Platform

slide-16
SLIDE 16

FIWAT an open platform for new services

16 SMART Home Lab SMART City Lab SMART Biz Lab

FIWAT project aims to provide developers and infrastructure for the promotion of Future Internet services based on the FI‐WARE platform

  • To be the FI‐WARE testbed
  • Provide a neutral environment for all

developers

  • Easily federated with FI-WARE

testbeds in other countries

  • Capable to support the future

Innovation Lab to run User Cases Trial Projects

  • To help companies to test and

certified services in the Future Internet environment

  • To connect with real smart cities

infraestructures to support services based on real open data

service proposals developed by

small and medium companies local developers researcher and universities developers big software companies

TERENA Network Architects Workshop

slide-17
SLIDE 17

FIWAT : network architecture

Red.es

Testbed configuration management

UPM

FI-WARE development

Sevilla

node

Málaga

node

. . .

management and configuration network FIWAT is articulated through two parallel networks:

An operation network to connect services with real users Internal management and configuration network for systems administration and service developers

TERENA Network Architects Workshop

slide-18
SLIDE 18

FIWAT network on top of RedIRIS

Internet connection (10G) UPM node CICA node

  • perative

10G connection Sevilla City Council (10G) Málaga City Council (1G or 10G) UM A CIEMA T CIC A

Node connections to RedIRIS-NOVA

  • Optical circuit
  • Minimum bandwidth 1G Eth
  • Redundant connection
  • At least 2 VLANs per circuit
  • Internet
  • Management network

FIWAT platform will be available at least until 2017

TERENA Network Architects Workshop

slide-19
SLIDE 19

FIWAT: Arquitectura de nodos de la plataforma

Internet access network

Aggregation switches Access switches Server s Management switch

Operation and management server

remote access to consoles and power strips

management network

CICA node Sevilla CC Sevilla CC Malaga

TERENA Network Architects Workshop

slide-20
SLIDE 20

Physical Distribution of the Platform

20

. . .

. . .

Internet

Phase 2 Platform Router firewall Management network TERENA Network Architects Workshop

slide-21
SLIDE 21

FI‐WARE GEs: testbed Implementation so far

TERENA Network Architects Workshop 21

INTERNET INTERNET6

Router REDIRIS Fiwat01 (Router/FW)

VLAN209 130.206.192.140/30 2001:720:400::1000:80/126 130.206.81.32/27 2001:720:1514:4::/64

Eth0.209 .142 :82

FI WARE TESTBED (*.lab.fi ware.eu / *.lab6.fi ware.eu)

Fiwatse01 – Apps

br0 .4 ::4 eth0 .34 ::34 eth0 .35 ::35 eth0 .36 ::36 eth0 .37 ::37 eth0 .38 ::38

Fiwatse02 IoT

br0 .5 ::5 eth0 .66 ::66 eth0 .67 ::67 eth0 .68 ::68

Fiwatse04 – I2ND

br0 .7 ::7 eth0 eth0

Fiwatse03 DATA

br0 .6 ::6 eth0 .98 ::98 eth0 .99 ::99 eth0 .100 ::100 eth0 .101 ::101 eth0 .102 ::102 eth0 .103 ::103 eth0 .97 ::97 eth0 .104 ::104

Fiwatse05 SEC

br0 .8 ::8 eth0 .162 ::162 eth0 .163 ::163

Fiwatse08 11 CLOUD

br0 .11 ::11 Br3:1 130.206.80.1 2001:720:1514:80::1 2001:720:1514:4::1 2001:720:1514:5::1 2001:720:1514:6::1 2001:720:1514:7::1 2001:720:1514:8::1 2001:720:1514:11::1 Br0 .12 ::12 Br0 .13 ::13 Br0 .14 ::14 Br0 .15 ::15 composi onex composi oned appsnserv mediator wirecloud gwdatahdl1 gwdatahdl2 thingsman bigdata cep cdvideo loca on qbroker seman cas seman can pubsub datahdl dbanon eth0 .39 ::39 mashupfac eth0 .69 ::69 deviceman

CLOUD VMs 130.206.80.192/27 2001:720:1514::110:/64 VMs deployed in the CLOUD 130.206.80.224/27 2001:720:1514:111::/64 130.206.81.64/27 2001:720:1514:5::/64 130.206.81.96/27 2001:720:1514:6::/64 130.206.81.128/27 2001:720:1514:7::/64 130.206.81.160/27 2001:720:1514:8::/64

eth0 .164 ::164 secmonitoring eth0 .165 ::165

  • ssimsiem

eth0 .166 ::166 secstorage eth0 .70 ::70 protoadapter

130.206.80.0/27 2001:720:1514:80::/64

eth0 .80.101 cloud

CLOUD PORTAL
