On water and indoor fungi Fungal workshop Berkeley USA September 23 2014 Olaf Adan Tranport in Permeable Media-Applied Physics Karel van Laarhoven Mirjam Bekker 17 PhD students+ 3 Post-docs 2-4 Master students Staff: 1 Professor, 1

slide-1
SLIDE 1

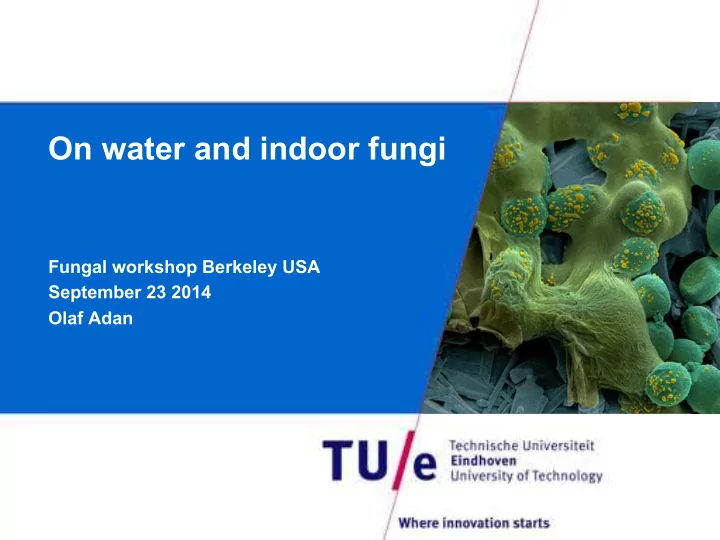

On water and indoor fungi

Fungal workshop Berkeley USA September 23 2014 Olaf Adan

slide-2
SLIDE 2

Tranport in Permeable Media-Applied Physics

  • 17 PhD students+ 3 Post-docs
  • 2-4 Master students
  • Staff: 1 Professor, 1 Associate professor, 1 Assistant professor

3 Industrial Research fellows (AkzoNobel, Canon-Oce, TNO)

  • 2 Technical assistents
  • 1 Secretary

Karel van Laarhoven Mirjam Bekker

slide-3
SLIDE 3

Unique infrastructure Darcy Lab

PAGE 3 9/24/14

  • Homebuilt
  • Spatial resolution: 5 µm
  • Additional info from relaxation
slide-4
SLIDE 4

Outline

  • Water in the air: introducing humidity dynamics
  • Water in the substrate
  • Humidity dynamics revisited
slide-5
SLIDE 5

Outline

  • Water in the air: introducing humidity dynamics
  • Water in the substrate
  • Humidity dynamics revisited
slide-6
SLIDE 6

Time-Of-Wetness (TOW)

PAGE 6 9/24/14

80% RH thresshold RH growth no growth time

indoor air RH

‘Time-Of-Wetness’ TOW

surface RH

slide-7
SLIDE 7

TOW as function of RH

PAGE 7 9/24/14

10 minutes vapor production… (=TOW <0.02) wet surface > 6 hours! (=TOW >0.5)

gypsum plaster

slide-8
SLIDE 8

Growth as function of TOW

PAGE 8 9/24/14

20 40 60 80 100 0.0 0.2 0.4 0.6 0.8 1.0 relative growth rate (-) TOW (%)

prediction by standard model

slide-9
SLIDE 9

Growth as function of TOW

PAGE 9 9/24/14

20 40 60 80 100 0.0 0.2 0.4 0.6 0.8 1.0

bare gypsum

coated gypsum

relative growth rate (-) TOW (%)

prediction by standard model

Penicillium rubens

slide-10
SLIDE 10

Growth as function of TOW

PAGE 10 9/24/14

20 40 60 80 100 0.0 0.2 0.4 0.6 0.8 1.0

bare gypsum

coated gypsum

relative growth rate (-) TOW (%)

prediction by standard model

model : underestimated growth model :

  • verestimated growth

Penicillium rubens

slide-11
SLIDE 11

Growth as function of TOW

PAGE 11 9/24/14

20 40 60 80 100 0.0 0.2 0.4 0.6 0.8 1.0

bare gypsum

coated gypsum

relative growth rate (-) TOW (%)

prediction by standard model

Penicillium rubens

slide-12
SLIDE 12

Outline

  • Water in the air: introducing humidity dynamics
  • Water in the substrate
  • Humidity dynamics revisited
slide-13
SLIDE 13

Complexity of the water-fungus relation

PAGE 13 9/24/14

indoor air RH porous material aw & θ

evaporation condensation

RH = relative humidity aw = water activity θ = moisture content in different phases aw, nutrients aw hyphae

diffusion

slide-14
SLIDE 14

Unraveling the aw - θ effect

PAGE 14 9/24/14

aw RH

equilibrium

θ aqueous glycerol solution (controlled aw)

maximum

θ experiment: same aw, different θ

equilibrium sorption equilibrium saturation

slide-15
SLIDE 15

PAGE 15 9/24/14

Growth on gypsum equilibrated with RH=97%

Hyphae extension as a measure for growth

!!!!!!!!!!USB!Microscope!recordings:!op1cal!resolu1on!~1.5µm!(pixel~0.6µm)!

!

slide-16
SLIDE 16

PAGE 16 9/24/14

0.78 0.80 0.82 0.84 0.86 0.88 0.90 0.92 0.94 0.96 0.98 1.00 2 4 6 8 10 12 14 16 18 20

Equilibrated

Growth rate (µm/h) Water activity

slide-17
SLIDE 17

PAGE 17 9/24/14

0.78 0.80 0.82 0.84 0.86 0.88 0.90 0.92 0.94 0.96 0.98 1.00 2 4 6 8 10 12 14 16 18 20

Equilibrated

Growth rate (µm/h) Water activity

θ~8% θ~3% θ~2% θ~2% θ~1%

slide-18
SLIDE 18

PAGE 18 9/24/14

0.78 0.80 0.82 0.84 0.86 0.88 0.90 0.92 0.94 0.96 0.98 1.00 2 4 6 8 10 12 14 16 18 20

Equilibrated Soaked Glycerol

Growth rate (µm/h) Water activity

θ~35%

slide-19
SLIDE 19

PAGE 19 9/24/14

0.78 0.80 0.82 0.84 0.86 0.88 0.90 0.92 0.94 0.96 0.98 1.00 2 4 6 8 10 12 14 16 18 20

Equilibrated Soaked Glycerol Soaked water

Growth rate (µm/h) Water activity

Pure water

saturated sample

θ ~ 35%

equilibrated sample

θ ~ 10%

slide-20
SLIDE 20

0.78 0.80 0.82 0.84 0.86 0.88 0.90 0.92 0.94 0.96 0.98 1.00 2 4 6 8 10 12 14 16 18 20

Soaked Glycerol Equilibrated Soaked KCl Soaked NaCl Soaked PEG Soaked water

Growth rate (µm/h) Water activity

PAGE 20 9/24/14

slide-21
SLIDE 21

Conclusion

The effect of the moisture content θ on hyphal growth

  • Strong indication: θ affects growth rate,

apart from aw or compatible solutes.

  • This effect is inherent to the material(-geometry):

not relevant on agar, highly relevant on porous media

PAGE 21 9/24/14

slide-22
SLIDE 22

Summary (Penicillium rubens)

  • Indoor climate dynamics matter

Growth and TOW are non-linearly related

  • Both water activity&substrate water content

play a role in growth Porous media ≠ culture media: less water, inertia

Culture media data cannot be extrapolated to porous substrates

slide-23
SLIDE 23

Outline

  • Water in the air: introducing humidity dynamics
  • Water in the substrate
  • Humidity dynamics revisited
slide-24
SLIDE 24

Our FOCUS

PAGE 24 9/24/14

Fungal Observatory Climate controlled aUtomized Set-up

Response monitoring: quantified macroscopic surface discoloration (digital analysis)

slide-25
SLIDE 25

PAGE 25 9/24/14

0! 0.05! 0.1! 0.15! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!! Penicillium rubens

slide-26
SLIDE 26

PAGE 26 9/24/14

0! 0.05! 0.1! 0.15! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!!

a

Penicillium rubens

slide-27
SLIDE 27

PAGE 27 9/24/14

0! 0.05! 0.1! 0.15! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!!

a b

slide-28
SLIDE 28

PAGE 28 9/24/14

0! 0.05! 0.1! 0.15! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!!

a b c

slide-29
SLIDE 29

PAGE 29 9/24/14

C0.02! 0.03! 0.08! 0.13! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!! !!!!!!!!!!0! 0!! Penicillium rubens

slide-30
SLIDE 30

PAGE 30 9/24/14

C0.02! 0.03! 0.08! 0.13! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!! period!of!desicca1on! !!!!!!!!!!0! 0!! Penicillium rubens

slide-31
SLIDE 31

PAGE 31 9/24/14

C0.02! 0.03! 0.08! 0.13! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!! period!of!desicca1on! !!!!!!!!!!0! 0!! ‘reset’ ‘germination’ time of conidia Penicillium rubens

slide-32
SLIDE 32

PAGE 32 9/24/14

C0.02! 0.03! 0.08! 0.13! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!! !!!!!!!!!!!!0! !!!!!!!!!!0! period!of!desicca1on! Penicillium rubens

slide-33
SLIDE 33

PAGE 33 9/24/14

C0.02! 0.03! 0.08! 0.13! 0! 40! 80! 120! 160! 200! 240! 280! discolora1on!(C)! 1me!(hours)!! !!!!!!!!!!!!0! !!!!!!!!!!0! period!of!desicca1on! No ‘reset’ Penicillium rubens

slide-34
SLIDE 34

Conclusion

Colony recovery (P. rubens) after first desiccation

  • “full reset” after a 48 h desiccation in initial stages

recovery: conidia, and (not) more?

  • “ignores” a 6 h desiccation in initial stages

recovery: more than conidia

PAGE 34 9/24/14

slide-35
SLIDE 35

PAGE 35 9/24/14

ungerminated spores ungerminated spores + ECM Extra Cellular Matrix (ECM)

slide-36
SLIDE 36

PAGE 36 9/24/14
