[PPT] - On-line Hierarchical Multi-label Text Classification Jesse Read PowerPoint Presentation

SLIDE 1

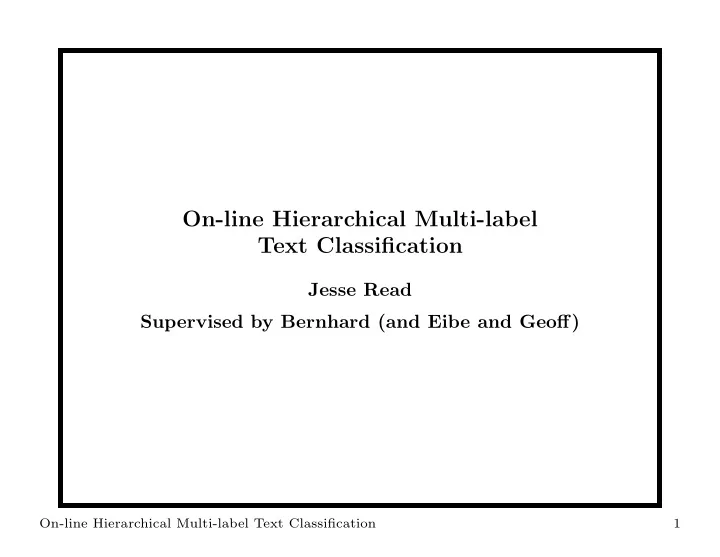

On-line Hierarchical Multi-label Text Classification

Jesse Read Supervised by Bernhard (and Eibe and Geoff)

On-line Hierarchical Multi-label Text Classification 1

SLIDE 2

Multi-label Classification

Multi-class (“Single-label”) Classification e.g. Class set C = {Sports, Environment, Science, Politics} For a text document d, select a class c ∈ C Multi-label Classification e.g. Label set L = {Sports, Environment, Science, Politics}. For a text document d select a label subset S ⊆ L e.g.: Doc. Labels (S ⊆ L) 1 {Sports,Politics} 2 {Science,Politics} 3 {Sports} 4 {Environment,Science} ...how to do multi-label classification?

On-line Hierarchical Multi-label Text Classification 2

SLIDE 3

Problem Transformation Methods (PT)

Transforming a multi-label problem into a multi-class problem without losing information:

1. (LC) Label Combination Method
2. (BC) Binary Classifiers Method
3. (RT) Ranking Threshold Method

Our toy multi-label problem: Label Set L = {Sports, Environment, Science, Politics} Doc. Labels (S ⊆ L) 1 {Sports,Politics} 2 {Science,Politics} 3 {Sports} 4 {Environment,Science}

On-line Hierarchical Multi-label Text Classification 3

SLIDE 4

1. Label Combination Method (LC)

Train Doc. Class 1 Sports+Politics 2 Science+Politics 3 Sports 4 Science+Environment Test Doc. Class X ?

May generate many classes for few documents
Possibly inflexible for time-ordered data

On-line Hierarchical Multi-label Text Classification 4

SLIDE 5

2. Binary Classifiers Method (BC)

Train BSports Doc. Class 1 1 2 3 1 4 BEnvironment Doc. Class 1 2 3 4 1 BScience Doc. Class 1 2 1 3 4 1 BP olitics Doc. Class 1 1 2 1 3 4 Test Doc. BSports BEnvironment BScience BP olitics X ? ? ? ?

Slow, need |L| classifiers.
Assumes that all labels are independent

On-line Hierarchical Multi-label Text Classification 5

SLIDE 6

3. Ranking Threshold Method (RT)

Train Doc. Class 1 Sports 1 Politics 2 Science 2 Politics 3 Sports 4 Science 4 Environment Test Doc. Certainty Distribution X (Yw,Yx,Yy,Yz) = (?,?,?,?)

Difficulty in selecting a threshold
Assumes that all labels are independent

On-line Hierarchical Multi-label Text Classification 6

SLIDE 7

Algorithm Adaption Methods

We have seen the 3 main “Problem Transformation” methods. There are also Algorithm Adaption methods, for example:

Modifying the entropy of J48
Multiple actions for Association Rules
AdaBoost.MH, AdaBoost.MR
Modifications to SMO, kNN, . . .

Although most algorithm adaption methods just use a problem transformation method internally, e.g. Association Rules—LC, AdaBoost.MH—“AdaBoost Transformation”(AT), AdaBoost.MR—RT ...what about hierarchy?

On-line Hierarchical Multi-label Text Classification 7

SLIDE 8

Hierarchical Classification

Includes some method to recognise relationships between labels. For text data, we recognise a tree structured topic hierarchy, known as a taxonomy. There are two approaches to hierarchical classification:

Global Hierarchical (a.k.a. the “big bang” approach)
Local Hierarchical (a.k.a the “top down” approach)

On-line Hierarchical Multi-label Text Classification 8

SLIDE 9

Global Hierarchical

Americas. US Americas Canada MidEast. Iraq MidEast. Iran Sports. Soccer Sports. Rugby Sci/Tech root

+ Improvements in accuracy − Difficult to maintain; can get very computationally complex E.g.

Stacking (e.g. on BC)
EM (e.g. on LC)
Boosting (e.g. with AT)
Association Rules
Predictive Clustering Trees (multi-label tree learners)

On-line Hierarchical Multi-label Text Classification 9

SLIDE 10

Local Hierarchical

US Canada Iraq Iran Soccer Rugby Sci/Tech Americas Mid.East Sports root

+ Divides up the problem: easy to maintain; intuitive − Error propagation; accuracy similar to flat PT E.g.

Pachinko Machine, e.g. Fuzzy Relational Thesauri (FRT)
Probabilistic
Hybrid: ECOC, Error Recovery, Can return to higher nodes

On-line Hierarchical Multi-label Text Classification 10

SLIDE 11

Multi-label Datasets

Key |D| |L| UC(D, L) LC(D, L) Hier. Seq. Text YEAST 2,417 14 198 4.24 N N N MEDC 978 45 94 1.25 N N Y 20NG 19,300 20 55 1.03 Y Y Y ENRN 1,702 53 753 3.38 Y Y Y MARX 3,617 101 208 1.13 Y Y Y REUT 6,000 103 811 1.46 Y N Y |D| = Number of documents |L| = Number of possible labels UC(D, L) = |S|S ⊆ L, ∃d ∈ D : L(d) = S| LC(D, L) = for i = 1 · · · |D|, Si ⊆ L, where (di, Si):

1 |D|

|D|

i=1 |Si|

Hier. = Hierarchical structure defined within dataset
Seq. = Time-ordered data

Text = Text Dataset

On-line Hierarchical Multi-label Text Classification 11

SLIDE 12

Multi-label Evaluation

Percentage of correctly classified instances? – Too harsh
Percentage of correctly classified labels? – Too easy

Let C be a multi-label classifier, Si ⊆ L and Yi = C(xi) be label predictions by C for document xi: Accuracy(C, D) = 1 |D|

|D|

i=1

|Si ∩ Yi| |Si ∪ Yi| (1) Hierarchical Evaluation:

Should we give partial credit?
If so, how?

On-line Hierarchical Multi-label Text Classification 12

SLIDE 13

Algorithms

Multi-class algorithms commonly used in prior multi-label work: Key Type Description NB Bayes Na¨ ıve Bayes BAG. Meta Bagging (with J48) SMO Function Support Vector Machines J48 Tree J48 IBk kNN k Nearest Neighbor NN Neural Neural Networks Pilot experiments showed that:

Default NN too slow
IBk does not perform well with sparse data

On-line Hierarchical Multi-label Text Classification 13

SLIDE 14

Experiments — Tables

Flat vs Global Hierarchical vs Local Hierarchical

1. Problem Transformation LC BC RT NB BAG SMO J48 NB BAG SMO J48 NB BAG SMO J48 MEDI 68.05 71.77* 71.10* 72.13* 55.82 75.58* 73.59* 65.83 67.81 64.20 65.72 60.22 20NG 57.47* 57.58* 57.35* 52.74 32.33

47.67

41.09 56.05* 47.19 54.61* 50.55 ENRN 32.72* 25.42

22.96

21.82 31.35* 30.56* 26.26 15.16 30.25* 24.09 27.82 MARX 48.15* 48.93* 43.26 44.79 32.6 31.69 38.64 33.95 48.44* 36.07 40.46 38.71 REUT 43.76 51.47

41.68

18.21 44.09 56.23* 43.83 37.13 45.9 58.65* 45.31 2. Global Hierarchical LC-EM BC-Stack(RT-NB) AT NB BAG SMO J48 NB BAG SMO J48 BAG J48 MEDI 67.45 74.71* 70.75 72.31 56.09 70.76 73.65* 65.85 67.06 67.82 20NG 57.48* 57.58* 57.45* 53.39 29.8

49.06

40.88

ENRN

34.6* 25.46

23.31

20.66 31.79 27.01 25.35

MARX

48.18 50.64* 43.29 44.82 39.09 32.08 38.87 34.25

REUT

43.77 51.49*

41.69

19.78 43.83 57.32* 43.68

3.

Local Hierarchical LC BC RT NB BAG SMO J48 NB BAG SMO J48 NB BAG SMO J48 20NG 56.49 58.31* 58.83* 53.48 43.68

52.44

42.03 54.87 40.58 53.37 49.26 ENRN 25.96 29.38 27.73 25.23 15.3 34.99*

26.26

4.67 25.51 23.59 27.63 MARX 48.49 54.57* 42.4 46.84 41.69 38.67 40.34 38.65 46.44 33.59 38.32 41.23

On-line Hierarchical Multi-label Text Classification 14

SLIDE 15

Experiments — 20NG — Accuracy

20 40 60 80 100 10 100 1000 10000 100000 % Labeled(Training) Examples LH.LC-SMO LH.BC-SMO LH.RT-NB GH.LC_EM-NB GH.BC_STACK-SMO GH.AT_J48 On-line Hierarchical Multi-label Text Classification 15

SLIDE 16

Experiments — 20NG — Build Time

2000 4000 6000 8000 10000 12000 10 100 1000 10000 100000 % Labeled(Training) Examples LH.LC-SMO LH.BC-SMO LH.RT-NB GH.LC_EM-NB GH.BC_STACK-SMO GH.AT_J48 On-line Hierarchical Multi-label Text Classification 16

SLIDE 17

Experiments — ENRN — Accuracy

20 40 60 80 100 10 100 1000 10000 % Labeled(Training) Examples LH.LC-SMO LH.BC-SMO LH.RT-NB GH.LC_EM-NB GH.BC_STACK-SMO GH.AT_J48 On-line Hierarchical Multi-label Text Classification 17

SLIDE 18

Experiments — ENRN — Build Time

500 1000 1500 2000 2500 3000 3500 4000 4500 10 100 1000 10000 % Labeled(Training) Examples LH.LC-SMO LH.BC-SMO LH.RT-NB GH.LC_EM-NB GH.BC_STACK-SMO GH.AT_J48 On-line Hierarchical Multi-label Text Classification 18

SLIDE 19

Experiments — MARX — Accuracy

20 40 60 80 100 10 100 1000 10000 % Labeled(Training) Examples LH.LC-SMO LH.BC-SMO LH.RT-NB GH.LC_EM-NB GH.BC_STACK-SMO GH.AT_J48 On-line Hierarchical Multi-label Text Classification 19

SLIDE 20

Experiments — MARX — Build Time

200 400 600 800 1000 1200 1400 10 100 1000 10000 % Labeled(Training) Examples LH.LC-SMO LH.BC-SMO LH.RT-NB GH.LC_EM-NB GH.BC_STACK-SMO GH.AT_J48 On-line Hierarchical Multi-label Text Classification 20

SLIDE 21

Conclusions

Problem Transformation methods:

No problem transformation method is best on all datasets
BC and RT might do better with a better selected |S|
Complexity determined by D, L, LC(D, L) and UC(D, L)

Multi-class algorithms:

J48 not that great
BC doesn’t go well with Na¨

ıve Bayes, RT does, and LC works equally with either Hierarchical:

Global PT-extensions improve on flat
In practice there is overhead involved with building local

hierarchical classifiers but also in theory more flexible

On-line Hierarchical Multi-label Text Classification 21

SLIDE 22

Applications

Email
Bookmarks (Web browser, del.ic.ous, Google Bookmarks)
Folksonomies (Wikipedia, CiteULike)
Websites
Other (Medical Text Classification, etc.)

These all tend to be (or could be):

Multi-label
Hierarchical
Supervised
On-line
Time-evolving

On-line Hierarchical Multi-label Text Classification 22

SLIDE 23

Future Work

Only just the beginning. Other things to look into:

Modelling multi-label hierarchical on-line data
Topic/“burst” detection (N.B. - not topic creation)
Minimising human interaction
Active learning?
Incremental algorithms
Adaptive learning

On-line Hierarchical Multi-label Text Classification 23
