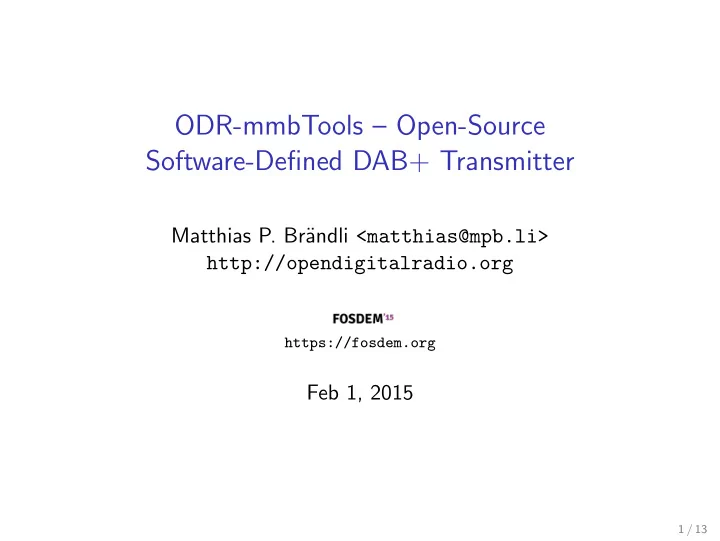

ODR-mmbTools – Open-Source Software-Defined DAB+ Transmitter

Matthias P. Br¨ andli <matthias@mpb.li> http://opendigitalradio.org

https://fosdem.org

Feb 1, 2015

1 / 13

About the speaker

Matthias P. Br¨ andli

Lead developer of the ODR-mmbTools Studied in Lausanne Member of student radio station

2 / 13

ODR-mmbTools

Contents

• ODR-DabMux
• ODR-DabMod
• fdk-aac-dabplus
• toolame-dab
• Scripts, examples, monitoring, documentation

Everything on http://opendigitalradio.org and GitHub.

3 / 13

ODR-mmbTools

History

It all started at Communications Research Centre Canada 2002 First DAB developments at CRC 2009 CRC-DABMUX open-source Availability of CRC-DABPLUS encoder 2010 CRC-DABMOD open-source 2012 Tools used in production in DK mpb mmbtools-SFN development 2013 fdk-aac goes open-source 2014 MOT Slideshow by CSP.it CRC involvement stops, development taken over by ODR

4 / 13

ODR-mmbTools

Single Transmitter

Multiplexer ODR-DabMux Modulator ODR-DabMod USRP Analog stuff dabplus-enc dabplus-enc stream dec

IP IP

Studio B Studio A stream enc Multiplex operator Programme originators

5 / 13

ODR-mmbTools

Single-Frequency Network

... Multiplexer ODR-DabMux Modulator ODR-DabMod USRP

Includes timestamps into ETI stream

Modulator ODR-DabMod USRP IP Network USRP Time standard

10MHz & 1PPS 10MHz & 1PPS Several km

Time standard Multiplex operator Transmitter site #2 Transmitter site #1

6 / 13

ODR-mmbTools

Single-Frequency Network on the Scope

7 / 13

ODR-mmbTools

MOT Slideshow – CSP.it & ODR

8 / 13

ODR-mmbTools

ARM platform

Odroid U3, Source: Hardkernel website 9 / 13

Monitoring

Buffers

10 / 13

Monitoring

Encoder Audio Level

11 / 13

Conclusions Development and testing community getting bigger Tools used in production environment

12 / 13

Questions ?

http://opendigitalradio.org

13 / 13
