8/19/2015 Accessibility Survey Techniques John Salmen, AIA Andrew Yarrish, AIA Universal Designers & Consultants, Inc. www.UDConsultants.com Outline of Program Universal Designers & Consultants, Inc. 1. Tools UDConsultants.com

slide-1

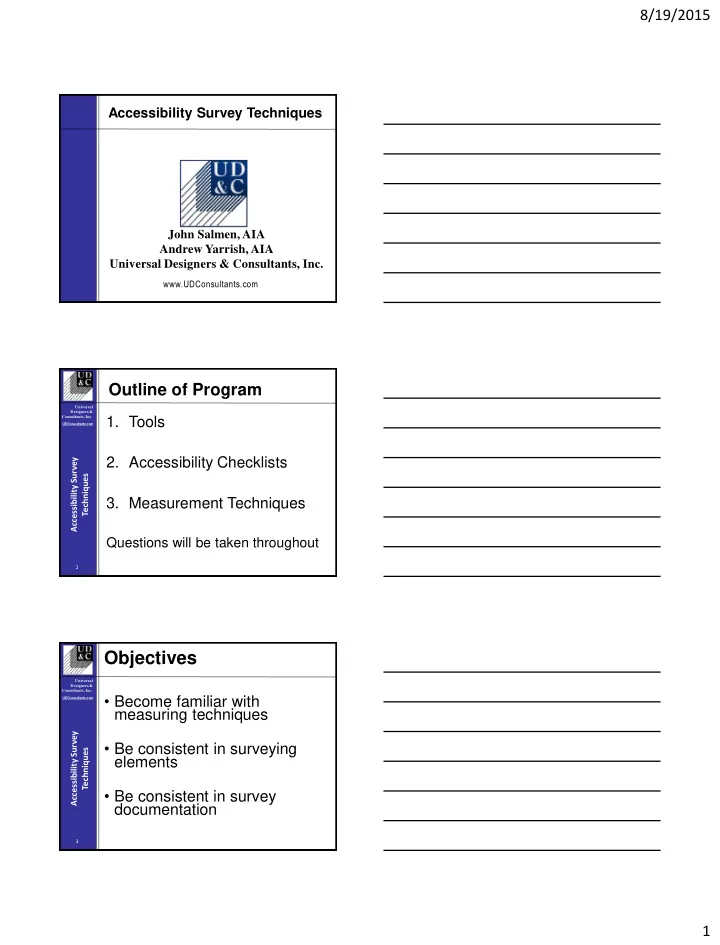

SLIDE 1

8/19/2015 1

John Salmen, AIA Andrew Yarrish, AIA Universal Designers & Consultants, Inc.

www.UDConsultants.com

Accessibility Survey Techniques

Universal Designers & Consultants, Inc.

2

UDConsultants.com

Accessibility Survey Techniques

  • 1. Tools
  • 2. Accessibility Checklists
  • 3. Measurement Techniques

Questions will be taken throughout

Outline of Program

Universal Designers & Consultants, Inc.

3

UDConsultants.com

Accessibility Survey Techniques

  • Become familiar with

measuring techniques

  • Be consistent in surveying

elements

  • Be consistent in survey

documentation

Objectives

slide-2
SLIDE 2

8/19/2015 2

Universal Designers & Consultants, Inc.

4

UDConsultants.com

Accessibility Survey Techniques

DOJ Info http://www.ada.gov/toolstec.pdf

Universal Designers & Consultants, Inc.

5

UDConsultants.com

Accessibility Survey Techniques

Tools

  • Tape Measure
  • Digital Slopemeter
  • Pressure Gauge
  • Camera

Universal Designers & Consultants, Inc.

6

UDConsultants.com

Accessibility Survey Techniques

Tape Measure

  • Measurements will be taken to the

closest 1/8 of an inch.

slide-3
SLIDE 3

8/19/2015 3

Universal Designers & Consultants, Inc.

7

UDConsultants.com

Accessibility Survey Techniques

Slopemeter

  • Calibrate before every survey and if dropped.
  • Take readings as a %.

Universal Designers & Consultants, Inc.

8

UDConsultants.com

Accessibility Survey Techniques

Pressure Gauge

  • The plunger has two scales: pounds and kilograms. Use the

pounds scale. – Read the edge of the O-ring closer to the zero end of the scale to find the amount of force.

Universal Designers & Consultants, Inc.

9

UDConsultants.com

Accessibility Survey Techniques

Camera

  • A (good) picture is worth a thousand words.
slide-4
SLIDE 4

8/19/2015 4

Universal Designers & Consultants, Inc.

10

UDConsultants.com

Accessibility Survey Techniques

Taking Pictures

Is enough shown to present a correct perspective?

Universal Designers & Consultants, Inc.

11

UDConsultants.com

Accessibility Survey Techniques

Actual Condition Shows Offsets

Universal Designers & Consultants, Inc.

12

UDConsultants.com

Accessibility Survey Techniques

Taking Pictures

slide-5
SLIDE 5

8/19/2015 5

Universal Designers & Consultants, Inc.

13

UDConsultants.com

Accessibility Survey Techniques

  • 1. Tools
  • 2. Accessibility Checklists
  • 3. Measurement Techniques

Questions will be taken throughout

Outline of Program

Universal Designers & Consultants, Inc.

14

UDConsultants.com

PNC

Accessibility Checklist

Accessibility Checklists

US Department of Justice Website ADA.gov

  • Voting Stations
  • http://www.ada.gov/votingchecklist.htm
  • Lodging Facilities
  • http://www.ada.gov/lodgesur.htm
  • Emergency Shelters
  • http://www.ada.gov/pcatoolkit/chap7shelter

chk.htm

Universal Designers & Consultants, Inc.

15

UDConsultants.com

Accessibility Survey Techniques

Take the Standards with You

10 Chapters 1. Application & Administration 2. Scoping Requirements 3. Building Blocks 4. Accessible Routes 5. General Site and Building Elements 6. Plumbing Elements and Facilities 7. Communication Elements and Facilities 8. Special Rooms, Spaces and Elements 9. Built-in Elements 10. Recreation Elements

slide-6
SLIDE 6

8/19/2015 6

Universal Designers & Consultants, Inc.

16

UDConsultants.com

Accessibility Survey Techniques

  • 1. Tools
  • 2. Accessibility Checklists
  • 3. Measurement Techniques

Questions will be taken throughout

Outline of Program

Universal Designers & Consultants, Inc.

17

UDConsultants.com

Accessibility Survey Techniques

Using the Accessibility Checklist

Photos Yes/No Measurement Comment

Universal Designers & Consultants, Inc.

18

UDConsultants.com

Accessibility Survey Techniques

Accessible Routes

slide-7
SLIDE 7

8/19/2015 7

Universal Designers & Consultants, Inc.

19

UDConsultants.com

Accessibility Survey Techniques

Accessible Routes

Accessible Entry to:

  • Public Transit Stops
  • Accessible Parking
  • Public Right of Way

Accessible Entry to

  • Teller
  • 24 hr ATM
  • After Hours Drop Box
  • Restrooms

Universal Designers & Consultants, Inc.

20

UDConsultants.com

Accessibility Survey Techniques

Exterior Accessible Route

Route from public transit Route from public right of way Route from accessible parking

Entry Door Universal Designers & Consultants, Inc.

21

UDConsultants.com

Accessibility Survey Techniques

Exterior Accessible Routes

  • Clear widths
  • Abrupt level changes
  • Gaps
  • Running and cross slopes
slide-8
SLIDE 8

8/19/2015 8

Universal Designers & Consultants, Inc.

22

UDConsultants.com

Accessibility Survey Techniques

Measuring the Accessible Route

Universal Designers & Consultants, Inc.

23

UDConsultants.com

Accessibility Survey Techniques

Slope of Exterior Accessible Route

Universal Designers & Consultants, Inc.

24

UDConsultants.com

Accessibility Survey Techniques

Interior Accessible Routes & Elements

  • Clear widths
  • Running and cross

slopes

  • Abrupt level changes
slide-9
SLIDE 9

8/19/2015 9

Universal Designers & Consultants, Inc.

25

UDConsultants.com

Accessibility Survey Techniques

Interior Accessible Route

Primary Functions Restrooms

Accessible Route AR to the restrooms

Universal Designers & Consultants, Inc.

26

UDConsultants.com

Accessibility Survey Techniques

Measuring the Accessible Route

Universal Designers & Consultants, Inc.

27

UDConsultants.com

Accessibility Survey Techniques

Curb Ramps

  • Flush

Transitions

  • Running and

Cross Slopes

  • Landings
  • Side Flares
slide-10
SLIDE 10

8/19/2015 10

Universal Designers & Consultants, Inc.

28

UDConsultants.com

Accessibility Survey Techniques

Running Slope, Cross Slope and Landing

36”

Universal Designers & Consultants, Inc.

29

UDConsultants.com

Accessibility Survey Techniques

Curb Ramp Width

Universal Designers & Consultants, Inc.

30

UDConsultants.com

Accessibility Survey Techniques

Curb Ramp Flares & Landings

406.3 Sides of Curb Ramps 406.4 Landings at Top of Curb Ramps

slide-11
SLIDE 11

8/19/2015 11

Universal Designers & Consultants, Inc.

31

UDConsultants.com

Accessibility Survey Techniques

Parking Spaces & Aisles

502.2 Vehicle Parking Spaces 502.3 Parking Space Access Aisle

Universal Designers & Consultants, Inc.

32

UDConsultants.com

Accessibility Survey Techniques

Parking Sign Height

Universal Designers & Consultants, Inc.

33

UDConsultants.com

Accessibility Survey Techniques

Striping

slide-12
SLIDE 12

8/19/2015 12

Universal Designers & Consultants, Inc.

34

UDConsultants.com

Accessibility Survey Techniques

Parking Stall Width

Universal Designers & Consultants, Inc.

35

UDConsultants.com

Accessibility Survey Techniques

Parking Stall Slope

Universal Designers & Consultants, Inc.

36

UDConsultants.com

Accessibility Survey Techniques

Ramp Slope

  • 3 running slope

measurements and 3 cross slope measurements

  • Take the measurements

down the center of the ramp.

30” Max

slide-13
SLIDE 13

8/19/2015 13

Universal Designers & Consultants, Inc.

37

UDConsultants.com

Accessibility Survey Techniques

Handrails

505.7.2 Handrail Non- Circular Cross Section 505.10.1 Top and Bottom Handrail Extension at Ramps

Universal Designers & Consultants, Inc.

38

UDConsultants.com

Accessibility Survey Techniques

Ramp Landings

405.7 Ramp Landings

Universal Designers & Consultants, Inc.

39

UDConsultants.com

Accessibility Survey Techniques

Edge Protection

Extended Floor or Ground Surface Edge Protection Curb or Barrier Edge Protection

slide-14
SLIDE 14

8/19/2015 14

Universal Designers & Consultants, Inc.

40

UDConsultants.com

Accessibility Survey Techniques

Ramp Width

Universal Designers & Consultants, Inc.

41

UDConsultants.com

Accessibility Survey Techniques

Doors

  • Clear Width
  • Hardware
  • Automatic Opener
  • Door Closer
  • Closing Speed
  • Closing Force
  • Threshold
  • Latch
  • Door Maneuvering

Clearance

  • Pull Side
  • Push Side

Universal Designers & Consultants, Inc.

42

UDConsultants.com

Accessibility Survey Techniques

Door Clear Width

slide-15
SLIDE 15

8/19/2015 15

Universal Designers & Consultants, Inc.

43

UDConsultants.com

Accessibility Survey Techniques

Door Hardware

Universal Designers & Consultants, Inc.

44

UDConsultants.com

Accessibility Survey Techniques

Door Force & Closing Speed

Door Force

  • Unlatch the door
  • Place plunger above or below

the hardware

  • Apply constant pressure

Closing Speed

  • Open door to 90 degrees
  • Release door and count
  • End count at 12 degrees

from latch

Universal Designers & Consultants, Inc.

45

UDConsultants.com

Accessibility Survey Techniques

Door Threshold

303.3 Beveled Change in Level

slide-16
SLIDE 16

8/19/2015 16

Universal Designers & Consultants, Inc.

46

UDConsultants.com

Accessibility Survey Techniques

Maneuvering Clearances

404.2.4.1 Maneuvering Clearances at Manual Swinging Doors and Gates

Universal Designers & Consultants, Inc.

47

UDConsultants.com

Accessibility Survey Techniques

Self Service Items

  • Dispenser
  • Reach Range
  • Clear Floor Space
  • Reach Over an Obstacle
  • Operable with a Closed Fist

Universal Designers & Consultants, Inc.

48

UDConsultants.com

Accessibility Survey Techniques

Reach Range to Self Service Items

slide-17
SLIDE 17

8/19/2015 17

Universal Designers & Consultants, Inc.

49

UDConsultants.com

Accessibility Survey Techniques

Self Service Items

Universal Designers & Consultants, Inc.

50

UDConsultants.com

Accessibility Survey Techniques

Counters

  • Counter
  • Height
  • Clear Floor Space
  • Slope
  • Reach Over an Obstacle

Universal Designers & Consultants, Inc.

51

UDConsultants.com

Accessibility Survey Techniques

Counters

slide-18
SLIDE 18

8/19/2015 18

Universal Designers & Consultants, Inc.

52

UDConsultants.com

Accessibility Survey Techniques

Restroom

  • Door and Hardware ( Complete Door

Form)

  • Size
  • Grab Bars
  • Lavatory Knee and Toe Clearance
  • Insulated Pipes
  • Mirror
  • Reach Range (Complete

Operable Parts Form)

  • Turning Space

Universal Designers & Consultants, Inc.

53

UDConsultants.com

Accessibility Survey Techniques

Space at Water Closet

604.3.1 Size of Clearance at Water Closets 604.8.1.1 Size of Wheelchair Accessible Toilet Compartment

Universal Designers & Consultants, Inc.

54

UDConsultants.com

Accessibility Survey Techniques

Grab Bars

604.5.2 Rear Wall Grab Bar 604.5.1 Side Wall Grab Bar

slide-19
SLIDE 19

8/19/2015 19

Universal Designers & Consultants, Inc.

55

UDConsultants.com

Accessibility Survey Techniques

Grab Bars

Universal Designers & Consultants, Inc.

56

UDConsultants.com

Accessibility Survey Techniques

Lavatory – Knee Clearance

Universal Designers & Consultants, Inc.

57

UDConsultants.com

Accessibility Survey Techniques

Knee & Toe Clearance

slide-20
SLIDE 20

8/19/2015 20

Universal Designers & Consultants, Inc.

58

UDConsultants.com

Accessibility Survey Techniques

Insulated Pipes

Universal Designers & Consultants, Inc.

59

UDConsultants.com

Accessibility Survey Techniques

Accessible Faucet Hardware

Universal Designers & Consultants, Inc.

60

UDConsultants.com

Accessibility Survey Techniques

Mirror Height

slide-21
SLIDE 21

8/19/2015 21

Universal Designers & Consultants, Inc.

61

UDConsultants.com

Accessibility Survey Techniques

Amenity Height & Control

Universal Designers & Consultants, Inc.

62

UDConsultants.com

Accessibility Survey Techniques

Coat Hook Height

48” max Measure to top of hook

Universal Designers & Consultants, Inc.

63

UDConsultants.com

Accessibility Survey Techniques

Coat Hook Height

slide-22
SLIDE 22

8/19/2015 22

Universal Designers & Consultants, Inc.

64

UDConsultants.com

Accessibility Survey Techniques

Turning Space & Clear Floor Space

Universal Designers & Consultants, Inc.

65

UDConsultants.com

Accessibility Survey Techniques

Completing the Survey

Finalize the Survey

  • Make sure every line is completed
  • Number the pages
  • Complete the Summary (Cover) Page
  • Make sure the location information, date

and your name is listed on every page.

  • Re-orient and re-name your photographs
