3/5/2014 Approach to Pediatric Autoimmune Encephalitis Eyal Muscal , MD, MS Immunology, Allergy, and Rheumatology Co-Appointment in Child Neurology Amber Stocco MD Medical Director Pediatric Movement Disorder Clinic Medical Co-Director


slide-1
SLIDE 1

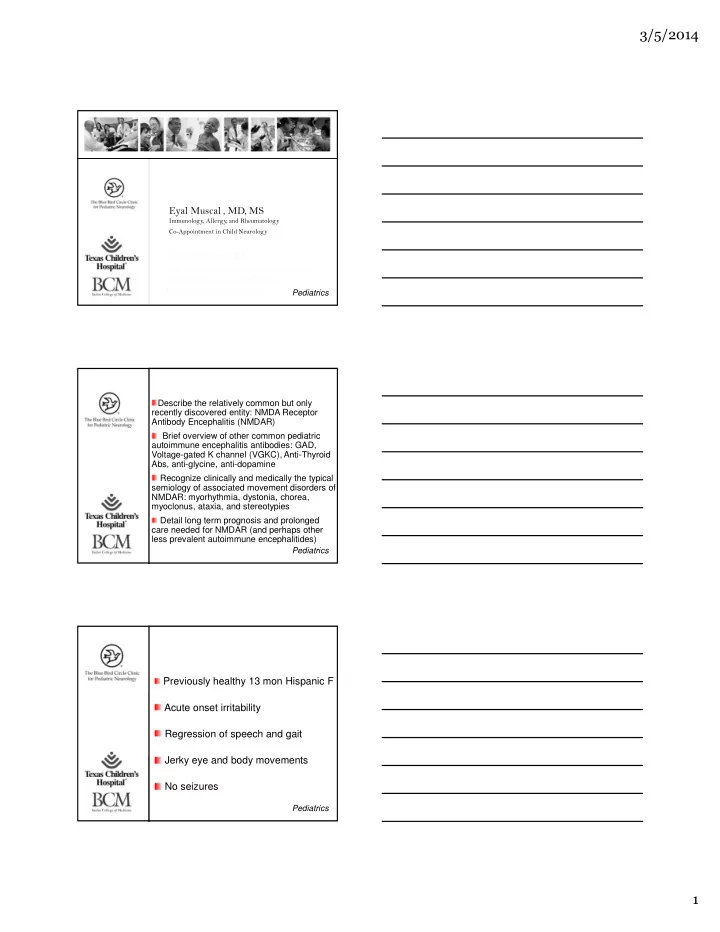

3/5/2014 1

Pediatrics

Approach to Pediatric Autoimmune Encephalitis

Amber Stocco MD

Medical Director Pediatric Movement Disorder Clinic Medical Co-Director Cerebral Palsy Clinic Blue Bird Pediatric Neurology Clinic

Eyal Muscal , MD, MS

Immunology, Allergy, and Rheumatology Co-Appointment in Child Neurology

Pediatrics

Objectives

Describe the relatively common but only recently discovered entity: NMDA Receptor Antibody Encephalitis (NMDAR) Brief overview of other common pediatric autoimmune encephalitis antibodies: GAD, Voltage-gated K channel (VGKC), Anti-Thyroid Abs, anti-glycine, anti-dopamine Recognize clinically and medically the typical semiology of associated movement disorders of NMDAR: myorhythmia, dystonia, chorea, myoclonus, ataxia, and stereotypies Detail long term prognosis and prolonged care needed for NMDAR (and perhaps other less prevalent autoimmune encephalitides) Pediatrics

Vignette #1

Previously healthy 13 mon Hispanic F Acute onset irritability Regression of speech and gait Jerky eye and body movements No seizures

slide-2
SLIDE 2

3/5/2014 2

Page 3 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics Although semiology is distinctive no single antibody yet identified Strong association in children with neural crest tumors Ongoing surveillance for tumors Although movements improve there is guarded outcome developmentally and behaviorally

Opsoclonus Myoclonus

Pediatrics

Vignette #2

Previously healthy 8 yr old Hispanic male 3 days PTA had HA, developed intractable seizures and lapsed into prolonged coma T2 hyperintense bilateral temporal lobe signal changes (limbic) Marked dystonia, myoclonus, and seizures Developed severe “rage attacks” and regression that has persisted

slide-3
SLIDE 3

3/5/2014 3

Page 6 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics

2 main antigens identified (LGl1, CASPR2) Rare (15 % in adults) association with malignancy Refractory seizures a major feature “Limbic” changes especially agitation, cognitive impairment, and insomnia

Voltage Gated K Channel Encephalopathy

Pediatrics

Vignette #3

Previously healthy 3 yr old Hispanic male 3 days PTA had myalgia, HA, N/V Given Abx for serum WBC 29, proteinuria Day of admit: insomnia, confusion, hallucinations, slurred speech, ataxia, expressive aphasia IgM mycoplasma + (IgG neg) A few days later seizures and then chorea

slide-4
SLIDE 4

3/5/2014 4

Page 9 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics

EEG: sz, slow background, & left post temp spikes Extensive autoimmune/infectious work up CSF - WNL NMDA IgG AB + Treatment: Steroids then IVIG Multiple relapses BNZ, tetrabenazine, and AEDs symptomatically

Vignette #3 (cont.)

Pediatrics IgG to NMDA receptor Discovered in 2005 in women with

  • varian teratomas

Recognized as the most prevalent autoimmune encephalitis Prevalence of NMDAR surpassed all combined viral encephalitis in one epidemiology study

NMDAR Encephalitis

Gable MS et al. Clinical Infectious Diseases. 2012; 54: 899-904

slide-5
SLIDE 5

3/5/2014 5

Pediatrics

MRI brain normal 67% (33% w/ nonspecific T2 changes) EEG abnormal 90% (slowing or epileptiform) CSF abnormal 79% (mild pleocytosis, elevated protein) CSF NMDAR + in 100% (Serum NMDAR +, only 85%)

NMDAR Encephalitis

Page 13 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics

AMS Sz Movements Time to onset of immuno-modulation is key to recovery. 12 % chance of relapse rate, less in those who had 2nd line therapy Prolonged recovery time up to 18 mo Being hopeful with family is realistic.

Take Home Points from Vignette #3

slide-6
SLIDE 6

3/5/2014 6

Pediatrics

Vignette #4

Previously healthy 13 yr old AAF 7 days PTA c/o leg “heaviness”, “looked confused,” “laughing and singing hysterically” Went to ER x 2 and discharged Day of admit: neighbors called police because of hallucinations/agitation Given Geodon for agitation obtunded

Page 16 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics

Most common movement disorder associated with NMDAR Encephalitis Stereotyped and purposeless Movement Fragment Semi-volitional ?

Orobuccal Stereotypies

slide-7
SLIDE 7

3/5/2014 7

Pediatrics

Myorhythmia

Rhythmic (may vary slightly in rate) Oscillatory but slower then tremor (< 3 Hertz) Purposeless Sometimes suppressible associated w/ brainstem involvement Does not carry the volitional connotation of stereotypy

Page 19 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics

MRI brain: subtle temporoparietal hyperintensity EEG: slowing and sz CSF: cell count/ protein/glucose WNL Agitated, nonverbal, apneas intubation and trach Negative systemic autoimmune and infectious work up NMDA IgG AB + Aggressive immunosupression Stimulants for promoting wakefulness

Vignette #4 (cont.)

slide-8
SLIDE 8

3/5/2014 8

Page 21 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics Hemiparesis and ataxia more common in pediatrics (often presenting symptom) Autonomic instability Symptoms improve in the reverse order, usually movements going away first. 80% improve with proper treatment but course prolonged ADHD-like symptoms may persist

Take Home Points from Vignette #4

Page 23 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

slide-9
SLIDE 9

3/5/2014 9

Page 24 xxx00.#####.ppt 3/5/2014 2:17:05 PM

Pediatrics

Pediatrics Early identification and rapid escalation of immunomodulation with better outcome Psychiatric presentations easily missed Reasonable optimism with the family Early involvement of multi-disciplinary care team

NMDAR Take Home Points

Page 26 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

slide-10
SLIDE 10

3/5/2014 10

Page 27 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

Page 28 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

Pediatrics

Chorea

Involuntary / insuppressible Non-rhythmic (random) Purposeless, Sudden Spreading/migrating (one body part to another) Motor-impersistence Hypotonia Hung-up Reflexes Hypometric Saccades

slide-11
SLIDE 11

3/5/2014 11

Page 30 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

Page 31 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

Pediatrics

Age: 5 to 15 yrs Gender: F > M Typical 4 - 8 wks s/p Group A Strep May be unilateral in up to 30% Typically lasts 2 - 6 months, almost always < 2 yrs Comorbid Psych: OCD, ADHD, Anxiety, Depression Exacerbations/Recurrences: 20 - 60% Re-infection, OCPs, Pregnancy (Chorea Gravidarum) Lab: +ANA, +/- ASO, +/- Anti-DNAase MRI: Normal to BG Enlargement/T2 Changes

Sydenham’s Chorea

slide-12
SLIDE 12

3/5/2014 12

Pediatrics AMS, most have seizures then chorea vs. myorythemia In children most cancer associations are rare Initial ovarian or testicular ultrasound as only screening Recent discussion that older girls may need semi-annual MRI evaluations Only 1 of 14 patients at TCH with a teratoma (11 yr old; pubertal)

NMDA Encephalitis in the younger child

Pediatrics Involuntary / Insuppressible Stereotyped (opposite of chorea) Twisting (hyperextension) Generalized or task specific Exacerbated by movement or emotion Hypertonia during movement Reflexes range: normal to increased

Dystonia

Pediatrics

Ataxia

Dysmetria

  • Finger to chin
  • Heel to shin

Unsteady

  • Wide-based gait

Impaired Dysdiadochokinesia Scanning Speech Unlike other “BG” movements, usually cerebellar in etiology

slide-13
SLIDE 13

3/5/2014 13

Pediatrics

Myoclonus

Sudden, “shock-like” May be:

Epileptic (cortical) Non-Epileptic (subcortical) Physiologic (e.g. sleep myoclonus)

Many Etiologies:

Benign Myoclonic Syndromes Epileptic Myoclonic Encephalopathies Post Anoxic (Lance-Adams Syndrome) Myoclonic Dystonia (DYT-11) Opsoclonus Myoclonus Pediatrics ADEM 50 NMDAR 14 Opsoclonus Myoclonus 12 Hashimoto’s Encephalopathy 5 Anti-GAD 3 Anti-VGKC 2

Autoimmune Encephalitis TCH 2009-2013

Pediatrics

shrimplate.blogsot.com

slide-14
SLIDE 14

3/5/2014 14

Pediatrics

  • SLE-spectrum disorders?
  • CNS vasculitides?
  • Other systemic autoimmune dx?
  • Immunosuppression anyone?

Why Rheumatology?

Pediatrics

Page 41 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

CNS Deficit in a Child or Adolescent I

Twilt M et al. Nature Rev Rheum 2012.

slide-15
SLIDE 15

3/5/2014 15

Page 42 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

CNS Deficit in a Child or Adolescent II

  • Change in behavior
  • Seizures
  • Movement disorder

Page 43 xxx00.#####.ppt 3/5/2014 2:17:06 PM

Pediatrics

Mechanisms Clinical Features Diagnostic Measures Treatment Approaches

thecontinentalblog.wordpress.com

Pediatrics

Where are Ab’ ’ ’ ’s From?

slide-16
SLIDE 16

3/5/2014 16

Pediatrics

Where Do Antibodies Go?

Pediatrics

What Do Antibodies Do?

Pediatrics

What Do Antibodies Do?

slide-17
SLIDE 17

3/5/2014 17

Pediatrics

“Epidemiology”

phrei.org

Pediatrics

Dalmau 2011

  • 100/400 in case series are pediatric
  • Less than 40% of pedi cases have tumors

Pediatrics

Dalmau 2013

  • 177/ 577 in case series are pediatric
  • 40% of 12-17 yr old girls have tumors
slide-18
SLIDE 18

3/5/2014 18

Pediatrics Pediatrics

What Did We Know in 2011?

  • In 2011 most of outcome data was adult based

Pediatrics

beaconcompanies.com

slide-19
SLIDE 19

3/5/2014 19

Pediatrics

Treatment Algorithm: 2011

Pediatrics

Toronto Sick Kids Protocol

Pediatrics

“EBM”: TCH 2012

slide-20
SLIDE 20

3/5/2014 20

Pediatrics

“EBM”: TCH 2012

Page 58 xxx00.#####.ppt 3/5/2014 2:17:08 PM

Pediatrics

http://faithrichardson.com/images/pharmacology.gif

Pediatrics

Steroids

slide-21
SLIDE 21

3/5/2014 21

Pediatrics

IVIG

Kazatchkine et al. NEJM, 345 (10): 2001, 237-245

Pediatrics

TPE

/www.apheresis.com/img/substitution.gif

Pediatrics

Rituximab

slide-22
SLIDE 22

3/5/2014 22

Pediatrics

Cyclophosphamide

http://www.pharmgkb.org/search/pathway/cyclophos/cyclophos-pk.jsp

Pediatrics

beaconcompanies.com

Pediatrics

  • Crunching data (n=8?)
  • Diagnosis within 4 weeks (62%?)
  • Max Follow up 2 years (most <1 yr)
  • No Flares !!!!
  • All back in school
  • Deficits? Frontal? “ADHD”

So How Are We Doing?

slide-23
SLIDE 23

3/5/2014 23

Pediatrics

elisteincartoons.com

Pediatrics

  • 48% flunk 1st line Tx!
  • At 24 mon f/u 81% had good outcome

(mRS 0-2)

  • Improvement continued at 18 mon
  • 2nd line works when 1st line fails
  • pedi and adult pooled data

Dalmau 2013

Pediatrics

Outcomes: Dalmau 2013

slide-24
SLIDE 24

3/5/2014 24

Pediatrics

Outcomes: Dalmau 2013 II

Pediatrics

  • No ICU stay
  • Tx within first 4 weeks of onset
  • 2nd line Tx (multi-variable analysis)
  • Predictors of effect and magnitude of 2nd

line effect were similar in children

Dalmau 2013: Predictors of Success

Pediatrics

Relapse Lower with 2nd Line Tx?

slide-25
SLIDE 25

3/5/2014 25

Pediatrics

Gaps in Knowledge 2013

  • True NP deficits at: 12, 18 and 24 months?
  • Utility of psychotropic medications?
  • Early roles of PM+R and psychiatry?
  • Utilization of decision tools in EMR?
  • Are other autoimmune encephalitides to

be treated the same? Pediatrics

shrimplate.blogsot.com Page 74 xxx00.#####.ppt 3/5/2014 2:17:09 PM

Pediatrics

References

Treatment and prognostic factors for long-term

  • utcome in patients with anti-NMDA receptor

encephalitis: an observational cohort study. Titulaer, M, Dalmau J, et al Lancet Neurol. 2013 Jan;12:157-65 Clinical experience and laboratory investigations in patients with anti-NMDAR encephalitis. Dalmau J, Lancaster E, Martinez-Hernandez E, Rosenfeld MR, Balice-Gordon R. Lancet Neurol. 2011 Jan;10(1):63-74. Cellular and synaptic mechanisms of anti-NMDA receptor encephalitis. Hughes EG, Peng X, Gleichman AJ, Lai M, Zhou L, Tsou R, Parsons TD, Lynch DR, Dalmau J, Balice-Gordon RJ. J Neurosci. 2010 Apr 28;30(17):5866-75.

slide-26
SLIDE 26

3/5/2014 26

Page 75 xxx00.#####.ppt 3/5/2014 2:17:09 PM

Pediatrics

References

Clinical Features, Treatment, and Outcome

  • f 500 Patients with Anti-NMDA Receptor

Encephalitis. March 14, 2012 Lecture AAN, Maarten Titulaer, MD, PhD Auto-Immune Encephalopathies. Feb 5, 2012 Lecture TNS Winter Conf, Amy Pruitt MD Movement Disorder Emergencies, K. Poston MD, S. Frucht MD, J Neurology , 2008; 4:2-13 Continuum (Lifelong Learning in Neurology), “Movement Disorders”, Vol 13, Number 1,

  • Feb. 2007. American Academy of Neurology,

Lippincott Williams & Wilkins, Hagerstown, MD.

Page 76 xxx00.#####.ppt 3/5/2014 2:17:09 PM

Pediatrics

References

A Comprehensive Review of Movement Disorders for the Clinical Practitioner, Vol. 3, July 30-31 2006. Stanley Fahn MD, Joseph Jankovic MD, Mark Hallett MD, Peter Jenner Principles and Practice of Movement Disorders, Stanley Fahn MD, Joseph Jankovic MD, Mark Hallett MD, Peter Jenner PhD. Churchill Livingstone, Philadelphia, PA: 2007. Chorea in Fifty Consecutive Patients with Rheumatic Fever. F. Cardoso MD, C. Eduardo MD, AP Silva MD, CC Mota MD. IN: Movement Disorders, 1997; 12:701-703.
