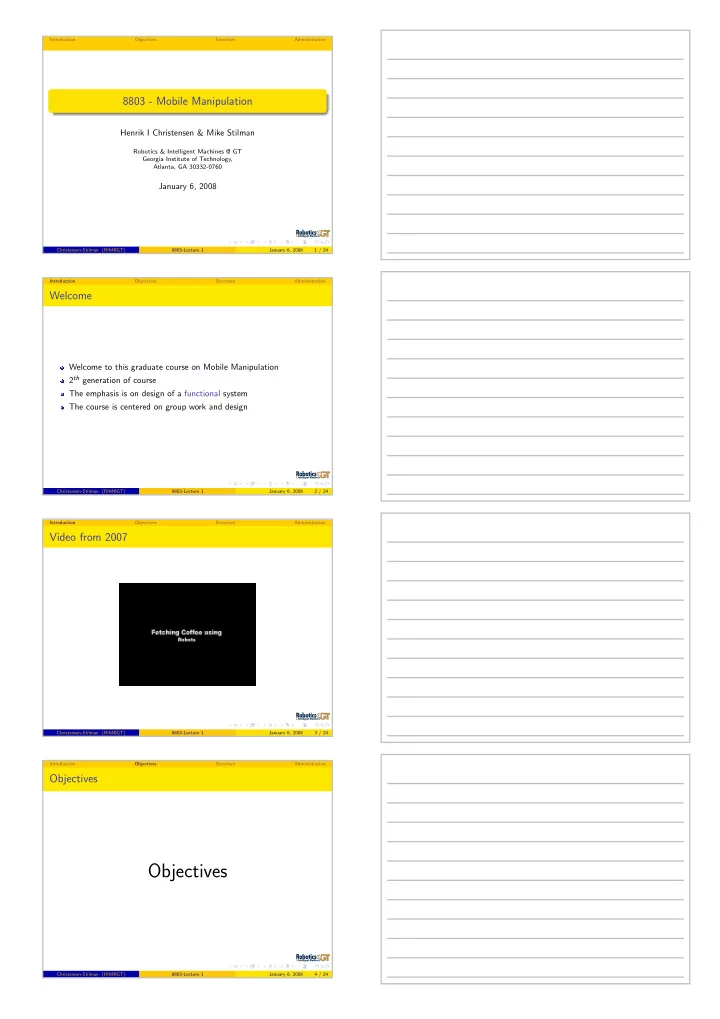

8803 - Mobile Manipulation

Henrik I Christensen & Mike Stilman

Robotics & Intelligent Machines @ GT Georgia Institute of Technology, Atlanta, GA 30332-0760

January 6, 2008

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 1 / 24 Introduction Objectives Structure Administration

Welcome

Welcome to this graduate course on Mobile Manipulation 2th generation of course The emphasis is on design of a functional system The course is centered on group work and design

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 2 / 24 Introduction Objectives Structure Administration

Video from 2007

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 3 / 24 Introduction Objectives Structure Administration

Objectives

Objectives

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 4 / 24

Introduction Objectives Structure Administration

Motivation

Mobility is a “mature” field

Without manipulation the interaction is very limited

Manipulation is a “mature” technology

Without mobility the flexibility is limited

The next big problem domain is mobile manipulation

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 5 / 24 Introduction Objectives Structure Administration

Objectives

Acquire knowledge about all the key aspects of mobile manipulation Mobility, Manipulation, Systems Integration Mobility

Control, Localization and Navigation

Manipulation

Detection, Servoing, Grasping, Handling

Integration

Utilization of the redundancy of the system

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 6 / 24 Introduction Objectives Structure Administration

Real Objective

Design of a system for demonstration of mobile manipulation Fetch-and-Carry type system Design is a key aspect Fielding of systems for demonstration at Automatica 2008

The biggest automation show in the world (Jun 10-13, 2008)

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 7 / 24 Introduction Objectives Structure Administration

The System

Segway RMP200 KUKA LWR Robot Schunk Gripper SICK LMS291 FireWire Camera

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 8 / 24

Introduction Objectives Structure Administration

Platform System

Segway RMP200 (USB) Sick LMS291 Scanner EATON Industry PC WXP SP2 w MSRS

Platform Control Localisation & Local navigation Player / Stage? Microsoft Robotics Studio

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 9 / 24 Introduction Objectives Structure Administration

Arm System

KUKA LWR System Prototype System KRC2lw controller Schunck Parallel Gripper (RS232) FireWire Camera (color)

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 10 / 24 Introduction Objectives Structure Administration

Software Structure

Based on Microsoft Robotics Studio C#, Python, VPL, (C++) Basic Drivers Available for all parts

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 11 / 24 Introduction Objectives Structure Administration

Structure

Structure

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 12 / 24

Introduction Objectives Structure Administration

Style of course

Mixture of

lectures / discussions design discussions on system components

Lectures

Provide background information and example methods

Design discussions

Design discussion and review of progress

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 13 / 24 Introduction Objectives Structure Administration

Startup lectures / discussions

System outline / scenario Robot kinematics MSRS discussion / tutorial KUKA Robot Systems KUKA Robot Programming Localization and Navigation Vision for Recognition and Servoing Systems Integration

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 14 / 24 Introduction Objectives Structure Administration

KUKA Training

After KUKA Lectures Training on basic programming KRL RSI Basics Manipulate API

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 15 / 24 Introduction Objectives Structure Administration

Tasks to be achieved

Basic Platform Control Localization using Laser Data Navigation and trajectory following Arm Control incl compliance Object Recognition and Servoing Grasp Planning Task / Systems Integration

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 16 / 24

Introduction Objectives Structure Administration

System Outline

Pose Estimator SegWay Control Navigation Arm Control Visual Recognition Visual "servoing" Grasp Est Task FSA Visual Pose Est Joint Control Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 17 / 24 Introduction Objectives Structure Administration

Administrative Details

Administrative Details

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 18 / 24 Introduction Objectives Structure Administration

Organization

Work will be performed in groups of 4-5 Once plan in place progress will be discussed weekly The groups should be self-organized Groups must be formed by January 25.

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 19 / 24 Introduction Objectives Structure Administration

Rough Time Table

Jan Background / organization Feb Planning / Early Design Mar Part Prototyping Apr Integration / Testing

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 20 / 24

Introduction Objectives Structure Administration

Expected Results

Design document with associated time table (March 1) A mid-term report that details the progress (April 1) A functional system that executes the task (May 1) A conference paper that details the design (May 6)

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 21 / 24 Introduction Objectives Structure Administration

Other Things

KUKA will offer 4-5 students a scholarship to goto Germany for June

Early June - Preparation of a Demo System Jun 10-13: Presentation of system at Automatica 2008 Jun 15-25: De-brief with KUKA R&D Staff

Great exposure of research and networking Selection model is open for discussion

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 22 / 24 Introduction Objectives Structure Administration

Material

Course web page http://www.cc.gatech.edu/~hic/8803-Mobile-08 Lecture notes and associated material will be published on page Blog will report on updates. Check frequently

Christensen-Stilman (RIM@GT) 8803-Lecture 1 January 6, 2008 23 / 24 Introduction Objectives Structure Administration

Questions?
