Object/Class Design Slides adapted from Craig Zilles 1 Design is hard Design is an art, not a science Large/infinite design space, not enumerable Requirements, constraints, trade-offs, and priorities You get better with practice /

slide-1
SLIDE 1

1

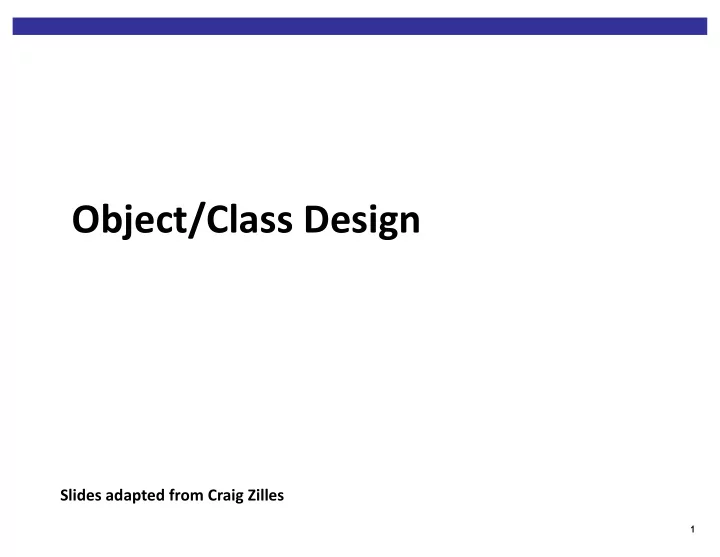

Object/Class Design

Slides adapted from Craig Zilles

slide-2
SLIDE 2

2

Design is hard

¢ Design is an art, not a science ¢ Large/infinite design space, not enumerable ¢ Requirements, constraints, trade-offs, and priorities ¢ You get better with practice / experience / seeing good

design / hearing critiques of others designs

slide-3
SLIDE 3

3

Virtues of a good design (software)

¢ Manages complexity ¢ Loose coupling ¢ Reusability ¢ Ease of maintenance ¢ Standard techniques ¢ Extensibility ¢ Lots of Uses ¢ Few Dependencies

slide-4
SLIDE 4

4

Good Design Manages Complexity

¢ “Seven plus or minus two” (Miller’s Law) ¢ The goal of all software-design techniques

§ Break complicated problems into simple problems

¢ Separation of concerns

§ Focus on one at a time

slide-5
SLIDE 5

5

Keep Coupling Loose

¢ small interfaces (few methods, few arguments/method) ¢ obvious (interactions through parameter passing) ¢ flexible

slide-6
SLIDE 6

6

How hard was third code review assignment?

A) Easy B) Moderate C) Challenging D) Unreasonable

slide-7
SLIDE 7

7

How long did third assignment take?

A) Less than 3 hours B) 3 to 6 hours C) 6 to 9 hours D) 9 to 12 hours E) More than 12 hours

slide-8
SLIDE 8

8

Abstract Data Types

¢ Define a class based around conceptual structures

§ Encapsulation / information-hiding § Make interfaces more informative (self-documenting) § Easier to reason about correctness

¢ Treat even simple items as ADTs

§ Good for extensibility

slide-9
SLIDE 9

9

Java Collection Framework

slide-10
SLIDE 10

10

Map

¢ Allows lookups from one kind of object to find another

  • bject

Map<KeyType, ValueType> myMap = HashMap<KeyType, ValueType>(); KeyType key = …; ValueType value = …; myMap.put(key, value); ValueType lookup = myMap.get(key); assert lookup == value;

slide-11
SLIDE 11

11

Map Interface

§

put(k,v) Associate v with k

§

get(k) The value associated with k

§

size() The number of pairs

§

isEmpty() Whether it is empty

§

remove(k) Remove the mapping for k

§

clear() Remove all mappings

§

containsKey(k) Whether contains a mapping for k

§

containsValue(v) Whether contains a mapping to v

§

keySet() Returns the Set view of keys

§

entySet() Returns the Set view of keys and values

slide-12
SLIDE 12

12

Inheritance can provides 2 things

¢ Shared interface:

§ Public methods § Ensure methods have consistent meaning in derived class

§ Liskov Substitution Principle

¢ Shared implementation

§ Code in shared super class, not replicated in each derived § Could be private data/methods

slide-13
SLIDE 13

13

hasA vs. isA relationship

Which is a candidate for inheritance? A) hasA relationship B) isA relationship C) both hasA and isA relationships D) neither hasA and isA relationships

slide-14
SLIDE 14

14

Inheritance vs. Interfaces

¢ Inheritance should be a isA relationship ¢ Interfaces are for capabilities (“mixin”s)

slide-15
SLIDE 15

15

Designing Good Interfaces

¢ Sufficiently Expressive ¢ General ¢ Minimal
