SLIDE 1

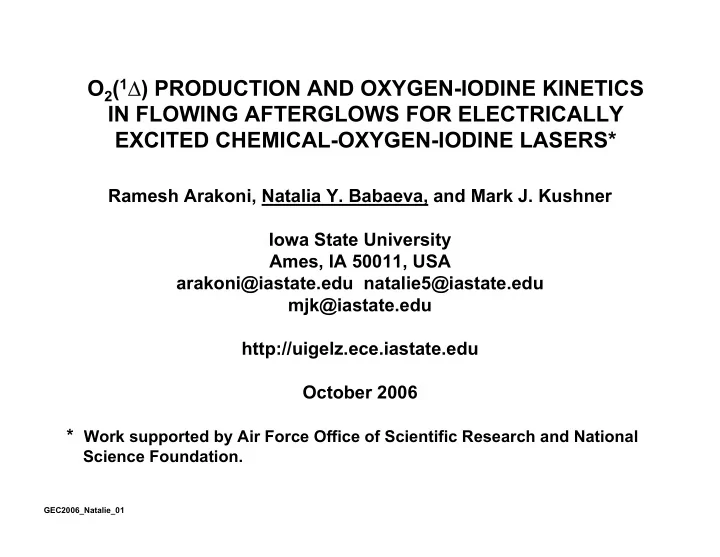

O2(1∆) PRODUCTION AND OXYGEN-IODINE KINETICS IN FLOWING AFTERGLOWS FOR ELECTRICALLY EXCITED CHEMICAL-OXYGEN-IODINE LASERS*

Ramesh Arakoni, Natalia Y. Babaeva, and Mark J. Kushner Iowa State University Ames, IA 50011, USA arakoni@iastate.edu natalie5@iastate.edu mjk@iastate.edu http://uigelz.ece.iastate.edu October 2006 * Work supported by Air Force Office of Scientific Research and National

Science Foundation.

GEC2006_Natalie_01

SLIDE 2

Iowa State University Optical and Discharge Physics

AGENDA

Introduction to eCOIL
Description of the model
Oxygen-iodine kinetics mechanism
NO/NO2 addition, I2 dissociation
Concluding Remarks

GEC2006_Natalie_02

SLIDE 3

Iowa State University Optical and Discharge Physics

ELECTRICALLY EXCITED OXYGEN-IODINE LASERS

In chemical oxygen-iodine lasers (COILs), oscillation at 1.315 µm

I(2P1/2)→ I(2P3/2) occurs by excitation transfer of O2(1∆) to I2 and I.

Plasma production of O2(1∆) in electrical COILs (eCOILs) eliminates

liquid phase generators.

I2 injection and supersonic expansion (required to lower Tgas for

inversion) occurs downstream of the plasma zone.

GEC2006_Natalie_03

Ref: CU Aerospace

SLIDE 4

Iowa State University Optical and Discharge Physics

NO AND NO2 INJECTION

Excitation of O2(1∆) optimizes at Te = 1 eV whereas self sustaining

discharges require Te = 2-3 eV.

NO additive (lower ionization potential) to inlet flow may lower Te to

a more optimum value.

Significant electron impact dissociation of O2 produces large

fluxes of O atoms which:

Quench the upper laser level → Increases O2(1∆) for oscillation.
Dissociate I2 → Decreases O2(1∆) required to produce I atoms.
NO2 injection may be used to control O atom inventory

NO2 + O → O2 + NO

GEC2006_Natalie_04

SLIDE 5

Iowa State University Optical and Discharge Physics

GEOMETRY FOR CAPACITIVE EXCITATION

Cylindrical flow tube 6

cm diameter

Capacitive excitation

(10s MHz) using ring electrodes.

Ring injection nozzles
Typical Conditions:

He/O2=70/30, 3 Torr 10s to 100 W

Outflow:

O2(1∆)/O2 = 0.15 - 0.25

He/NO2 Injection He/I2 Injection Primary inflow He/O2/NO

NO2

GEC2006_Natalie_05

Outflow

SLIDE 6

Electron impact [0.9 eV] and excitation of O2(1Σ) with quenching to

O2(1∆) are the main channels of O2(1∆) production.

O atom and O3 production result in quenching and I2-oxygen

chemistry downstream.

Iowa State University Optical and Discharge Physics

O2(1∆) KINETICS IN He/O2 DISCHARGES

GEC2006_Natalie_06

SLIDE 7

I2 is rapidly dissociated by atomic
xygen and O2(1∆, 1Σ).
Population inversion by excitation

transfer of O2(1∆) to I(2P3/2).

Iowa State University Optical and Discharge Physics

OXYGEN-IODINE AND NOx KINETICS

GEC2006_Natalie_07

NO/NO2 recycling chain

scavenges O atoms.

SLIDE 8

Iowa State University Optical and Discharge Physics

THE ROLE OF ADDITIVES

The roles of additives (NO, NO2), their synergy with I2 injection and

production of I(2P1/2) in eCOILS were computationally investigated.

Global modeling: Basic kinetics and scaling
2-d modeling: Hydrodynamics and injection strategies.
What are tradeoffs in using additives to optimize I(2P1/2)?

GEC2006_Natalie_08

SLIDE 9

Iowa State University Optical and Discharge Physics

Poisson’s equation, continuity equations and surface charge are

simultaneously solved using a Newton iteration technique.

Electron energy equation:

∑

+ = Φ ∇ ⋅ ∇ −

j s j jq

N ρ ε

j j j

S t N + ⋅ −∇ = ∂ ∂ φ r

∑

Φ −∇ ⋅ ∇ − + ⋅ ∇ − = ∂ ∂

j j j j s

S q t )) ( ( ) ( σ φ ρ r

( )

e i e i i e e

q j T N n E j t n φ λ εϕ κ ∂ ε ∂ r r r r = ⎟ ⎠ ⎞ ⎜ ⎝ ⎛ ∇ − ⋅ ∇ − − ⋅ =

∑

, 2 5

DESCRIPTION OF 2d-MODEL: CHARGED PARTICLES, SOURCES

GEC2006_Natalie_09

SLIDE 10

Iowa State University Optical and Discharge Physics

Fluid averaged values of mass density, mass momentum and

thermal energy density obtained using unsteady algorithms.

Individual fluid species diffuse in the bulk fluid.

) pumps , inlets ( ) v ( t + ⋅ −∇ = r ρ ∂ ρ ∂

( ) ( ) ( )

∑

+ ⋅ ∇ − ⋅ ∇ − ∇ =

i i i i

E N q v v NkT t v v r r r µ ρ ∂ ρ ∂

( ) ( )

∑ ∑

⋅ + − ⋅ ∇ + + ∇ − −∇ =

i i i i i f i p p

E j H R v P T c v T t T c r r r ∆ ρ κ ∂ ρ ∂

( ) ( ) ( )

S V T i T i f i i

S S N t t N N D v t N t t N + + ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ + ∇ − ⋅ ∇ − = + ∆ ∆ r

DESCRIPTION OF 2d-MODEL: NEUTRAL PARTICLE TRANSPORT

GEC2006_Natalie_10

SLIDE 11

Iowa State University Optical and Discharge Physics

GEC2006_Natalie_11

[NO] INLET ADDITIVE

The effect of NO
n electron

density is small.

O atoms are

rapidly depleted by NO.

Global model

captures trends.

He/O2/NO=

70/30/0-3 3 Torr, 40W, 25 MHz, 6000 sccm

Global Model
2d Model

SLIDE 12

Iowa State University Optical and Discharge Physics

BASE CASE PARAMETERS

Peak Te above that for
ptimum O2(1∆)

production.

Electron density

localized due to rapid attachment.

O2(1∆) yield is 15%.
O atoms consumed

primarily by O3 production.

He/O2=70/30, 3 Torr,

40W, 25MHz, 6000 sccm

GEC2006_Natalie_12

MIN MAX

He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

He/O2

SLIDE 13

Iowa State University Optical and Discharge Physics

0.2 sccm NO2 AND I2 INJECTION

GEC2006_Natalie_13

Injection:

He/NO2=0.995/0.005, 36 sccm

Injection:

He/I2=0.995/0.005, 36 sccm

Atomic O nominally

depleted by NO2

Excess atomic
xygen totally

dissociates small amount of injected iodine.

He/O2 He/NO2 He/I2 MIN MAX

He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

SLIDE 14

He/NO2 He/I2 He/O2 Iowa State University Optical and Discharge Physics

GEC2006_Natalie_14

Injection:

He/NO2=0.9/0.1, 36 sccm

Injection:

He/I2=0.9/0.1, 36 sccm

MIN MAX

Atomic oxygen is almost

completely scavenged by NO2

O2(1∆) is rapidly depleted

by I2 in pumping reaction.

Only fraction of injected I2

is dissociated.

I* peaks near inlet.
He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

3.6 sccm NO2 AND I2 INJECTION

SLIDE 15

Iowa State University Optical and Discharge Physics

EFFECT OF ADDITIVES ON GAS TEMPERATURE

MIN MAX

GEC2006_Natalie_15

He/NO2=0.995/0.005
He/I2=0.995/0.005

He/NO2 He/I2 or He/I (36 sccm)

Gas temperature increases due to exothermicity of scavenging

and dissociation reactions NO2 + O → O2 + NO O + I2 → IO + I

Injection of I atoms reduces downstream Tgas.
He/NO2=0.9/0.1
He/I2=0.9/0.1
He/NO2=0.9/0.1
He/I=0.9/0.1

Predissociated iodine

He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

SLIDE 16

Iowa State University Optical and Discharge Physics

GEC2006_Natalie_16

Injection:
He/NO2=0.9/xxx, 36 sccm
He/I2=0.995/0.005, 36 sccm
Injection:
He/NO2=0.9/xxx, 36 sccm
He/I2=0.9/0.1, 36 sccm
NO2 injection has little effect on O2(1∆).
I2 and I quenching (laser pumping reactions) rapidly deplete O2(1∆).

O2(1∆) vs ADDITIVES

He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

SLIDE 17

Iowa State University Optical and Discharge Physics

GEC2006_Natalie_17

ATOMIC OXYGEN vs ADDITIVES

Injection:
He/NO2=0.9/xxx, 36 sccm
He/I2=0.995/0.005, 36 sccm
Injection:
He/NO2=0.9/xxx, 36 sccm
He/I2=0.9/0.1, 36 sccm
Optimum NO2 flow rate scavenges excess O atoms

leaving enough atoms to dissociate injected I2.

He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

SLIDE 18

Iowa State University Optical and Discharge Physics

GEC2006_Natalie_18

Injection:
He/NO2=0.995/0.005, 36 sccm
He/I2=0.995/0.005, 36 sccm
Injection:
He/NO2=0.9/0.1, 36 sccm
He/I2=0.9/0.1, 36 sccm
Optimum NO2 injection will optimize density of I* for a given O2(1∆)

production.

IODINE SPECIES vs ADDITIVES

He/O2=70/30, 6000 sccm 3 Torr, 40W, 25 MHz

SLIDE 19

Iowa State University Optical and Discharge Physics

OPTIMIZING I* PRODUCTION

GEC2006_Natalie_19

Injection:
He/NO2=0.9/xxx, 36 sccm
He/I2=0.995/0.005, 36 sccm
Injection:
He/NO2=0.9/xxx, 36 sccm
He/I2=0.9/0.1, 36 sccm
Predissociation of I2 lessens the need to have a small O

atom flow for dissociation of I2.

Optimum NO2 completely scavenges O atoms.

SLIDE 20

Iowa State University Optical and Discharge Physics

CONCLUDING REMARKS

GEC2006_Natalie_20

Oxygen-iodine kinetics in flowing afterglows for electrically

excited chemical-oxygen-iodine lasers has been computationally investigated.

NO2 injection scavenges O atoms.
Reduces amount of quenching of I*.
Also reduces the amount of dissociation of I2.
End result is delicate balance is required.
Injection of pre-dissociated I2 eliminates competition between
