slide-1
SLIDE 1

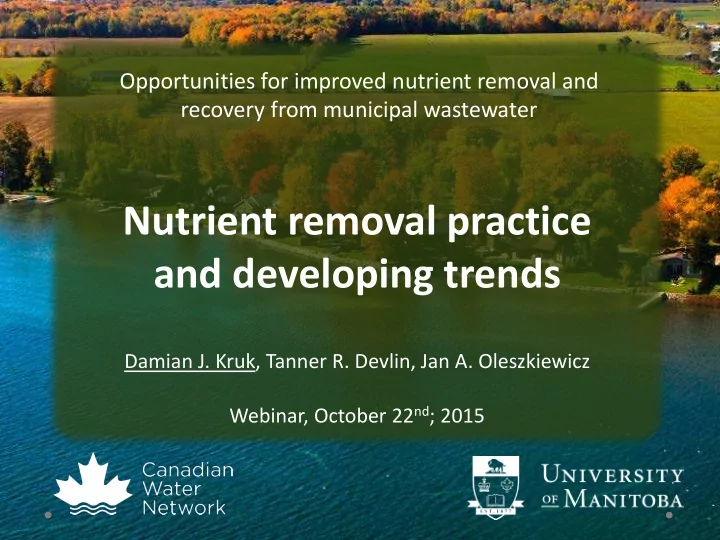

Nutrient removal practice and developing trends

Damian J. Kruk, Tanner R. Devlin, Jan A. Oleszkiewicz

Opportunities for improved nutrient removal and recovery from municipal wastewater

Webinar, October 22nd; 2015

slide-2
SLIDE 2

2

  • 1. Modified Ludzcak-Ettinger (MLE)
  • TN removal
  • Defined Aerobic and Anoxic zones

Influent SC RAS Aer Effluent Anx IR

Biological N removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-3
SLIDE 3

3

  • 2. CAS Extended aeration
  • E.g. oxidation ditch
  • Only nitrification
  • SRT > 10d

Biological N removal

Aerator Influent SC RAS Effluent Sludge

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-4
SLIDE 4

4

  • 3. Carousel oxidation ditch
  • Both processes occur in the same tank

Simultaneous Nite/Denite

  • Extended SRT required

Aerator Anoxic Aerobic Influent SC RAS Effluent Sludge

Biological N removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-5
SLIDE 5

5

EBPR: PAO metabolism

Anaerobic Aerobic PE Effluent

Biological P removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-6
SLIDE 6

6

EBPR: PAO metabolism

Anaerobic Aerobic

PO4-P

PE Effluent

Biological P removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-7
SLIDE 7

7

EBPR: PAO metabolism

Anaerobic Aerobic

PO4-P

P removed in WAS

PE Effluent

Biological P removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-8
SLIDE 8

8

EBPR: PAO metabolism

Anaerobic Aerobic

PO4-P

P removed in WAS

PE Effluent

Biological P removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

EBPR needs VFA!

slide-9
SLIDE 9

9

BNR with EBPR

Simultaneous N and P removal

Influent RAS Aer S.C. Effluent WAS Ax NOx recycle

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-10
SLIDE 10

10

BNR with EBPR

Ana Influent RAS Aer S.C. Effluent WAS (containing P) Ax NOx recycle

NOx!!!

  • Reduce ORP in

Anaerobic zone

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-11
SLIDE 11

11

BNR with EBPR

Ana Influent RAS A x Aer S.C. Effluent WAS (containing P) Ax NOx recycle

  • Reduce ORP in

Anaerobic zone

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-12
SLIDE 12

12

BNR with EBPR

Ana Influent RAS A x Aer S.C. Effluent WAS (containing P) Ax Fermenter NOx recycle

VFA

  • Reduce ORP in

Anaerobic zone

  • Provide sufficient

VFA

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-13
SLIDE 13

13

  • Chem. P removal: Coagulation
  • Al and Fe salts: Al3+ ; Fe3+
  • Small footprint
  • Easy to retrofit

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-14
SLIDE 14

14

  • Chem. P removal: Coagulation
  • Al and Fe salts: Al3+ ; Fe3+
  • Small footprint
  • Easy to retrofit

… but:

  • Higher sludge production
  • High chemical costs
  • Prevents recovery from liquid phase

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-15
SLIDE 15

15

Ferric dose for P precipitation

Fe:P (mol:mol)

0.1 1 10 100 0.01 0.1 1 10

Effluent P (mg/L)

Data Dr S Hermanowicz, UC Berkeley

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-16
SLIDE 16

16

Ferric dose for P precipitation

Fe:P (mol:mol)

0.1 1 10 100 0.01 0.1 1 10

Effluent P (mg/L)

Data Dr S Hermanowicz, UC Berkeley

Target P < 0.1 mg/L ↓ Ferric dose skyrockets

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-17
SLIDE 17

19

Fe:P (mol:mol)

0.1 1 10 100 0.01 0.1 1 10

Effluent P (mg/L)

Data Dr S Hermanowicz, UC Berkeley

EBPR vs + Chem. P

EBPR

  • Chem. P

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-18
SLIDE 18

20

Fe:P (mol:mol)

0.1 1 10 100 0.01 0.1 1 10

Effluent P (mg/L)

Data Dr S Hermanowicz, UC Berkeley

EBPR vs + Chem. P

EBPR to the limit of carbon +

  • Chem. P for the reminder

EBPR

  • Chem. P

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-19
SLIDE 19

21

Key issues of nutrient removal

  • 1. Oxygen demand
  • DN is advantageous
  • Reduction of oxygen demand

1 kg NO3-N removed = 2.9 kg O2 saved

  • Recovers Alkalinity

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-20
SLIDE 20

22

Key issues of nutrient removal

  • 1. Oxygen demand
  • DN is advantageous
  • Reduction of oxygen demand

1 kg NO3-N removed = 2.9 kg O2 saved

  • Recovers Alkalinity
  • Sidestream PN/Anammox

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-21
SLIDE 21

Biological N removal

Oc to b e r 22nd, 2015 23 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

NH4

+

NO2

  • N2

NO3

  • NO2
  • 40%

carbon 60% carbon 25% O2 75% O2

Nitrification

Autotrophic

Denitrification

Heterotrophic

4.5 kg O2/kg 2.9 kg COD/kg

slide-22
SLIDE 22

NO3

  • NO2
  • 40%

carbon 60% carbon 25% O2

24

NH4

+

~60% NO2

  • N2 and ~10% NO3
  • 45% O2

AOB AMX

PN/Anammox

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-23
SLIDE 23

NO3

  • NO2
  • 40%

carbon 60% carbon 25% O2

25

NH4

+

~60% NO2

  • N2 and ~10% NO3
  • 45% O2

AOB AMX

Savings:

  • 55% O2 demand
  • 90% carbon demand

PN/Anammox

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-24
SLIDE 24

26

Key issues of nutrient removal

  • 2. Carbon demand
  • Approx. requirements
  • 6 g bCOD/g N
  • 20 g bCOD/g P

In Out 35 5 mg N/L 5.5 0.5 mg P/L Need: 280 mg bCOD/L Have: 380*0.65 = 247 mg bCOD/L Missing: 33 mg bCOD/L

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-25
SLIDE 25

27

Key issues of nutrient removal

  • 2. Carbon demand

Possible improvements:

  • Fermentation of PS

+ 34 mg bCOD/L (VFA)

  • Sidestream PN/Anammox

+ 47 mg bCOD/L

  • Sidestreeam P recovery

+ 80 mg bCOD/L

  • Simultaneous Nite/Dinite
  • Supplemental COD
  • Chem. P removal

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-26
SLIDE 26

28

Key issues of nutrient removal

  • 2. Carbon demand

Possible improvements:

  • Fermentation of PS

+ 34 mg bCOD/L (VFA)

  • Sidestream PN/Anammox

+ 47 mg bCOD/L

  • Sidestreeam P recovery

+ 80 mg bCOD/L

  • Simultaneous Nite/Dinite
  • Supplemental COD
  • Chem. P removal

In many cases fermentation is enough

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-27
SLIDE 27

29

Key issues of nutrient removal

  • 3. Limit of technology

Process TP mg P/L TAN mg N/L TN mg N/L

CAS EA

5 <3 25

CAS EA with SND + Chem. P

<0.3 <1 <7

BNR with adequate VFA

<0.3 <1 <7

BNR with adequate VFA + Filtration

<0.1 <1 <7

CAS EA with SND+ ballasted flocculation

<0.1 <1 <7

BNR + post DN + post-precipitation + UF

0.01 <1 <3

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-28
SLIDE 28

30

Key issues of nutrient removal

  • 3. Limit of technology

Process TP mg P/L TAN mg N/L TN mg N/L

CAS EA

5 <3 25

CAS EA with SND + Chem. P

<0.3 <1 <7

BNR with adequate VFA

<0.3 <1 <7

BNR with adequate VFA + Filtration

<0.1 <1 <7

CAS EA with SND+ ballasted flocculation

<0.1 <1 <7

BNR + post DN + post-precipitation + UF

0.01 <1 <3

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-29
SLIDE 29

31

Key issues of nutrient removal

  • 3. Limit of technology

Process TP mg P/L TAN mg N/L TN mg N/L

CAS EA

5 <3 25

CAS EA with SND + Chem. P

<0.3 <1 <7

BNR with adequate VFA

<0.3 <1 <7

BNR with adequate VFA + Filtration

<0.1 <1 <7

CAS EA with SND+ ballasted flocculation

<0.1 <1 <7

BNR + post DN + post-precipitation + UF

0.01 <1 <3

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-30
SLIDE 30

32

Key issues of nutrient removal

  • 3. Limit of technology

Process TP mg P/L TAN mg N/L TN mg N/L

CAS EA

5 <3 25

CAS EA with SND + Chem. P

<0.3 <1 <7

BNR with adequate VFA

<0.3 <1 <7

BNR with adequate VFA + Filtration

<0.1 <1 <7

CAS EA with SND+ ballasted flocculation

<0.1 <1 <7

BNR + post DN + post-precipitation + UF

0.01 <1 <3

Oc to b e r 22nd, 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

rDON is the absolute TN limit (1 to 2 mg/L)

slide-31
SLIDE 31

Total present worth for a 38 MLD WWTP

33

Million $

No N, P TN 8 TP 1 TN 4-8 TP 0.1-03 50 100 150 200 250 300 350 1 2 3 4 5 TN 3 TP<0.1 TN 2 TP <0.02

from JB Neethling, HDR, 16 May, 2012, WERF CBP STAC Workshop

The last 1.1 t P/a costs US $100 M The first 70 t P/a costs US $40 M

High costs of low limits

Oc to b e r 22nd, 2015

slide-32
SLIDE 32

Thank you

Opportunities for improved nutrient removal and recovery from municipal wastewater

slide-33
SLIDE 33

Nutrient Recovery and Reuse: Practice and Developing Trends

Tanner R. Devlin, Damian J. Kruk, Jan A. Oleszkiewicz Webinar, October 22nd, 2015

Opportunities for improved nutrient removal and recovery from municipal wastewater

slide-34
SLIDE 34

Recovery and reuse practice

2

Should we recover or reuse nutrients?

If

  • 1. Recognized ROI; or
  • 2. Mandated

Then yes!

Fluctuating market:

  • Phosphorus = $0.75/kg P
  • Ammonium = $0.20/kg N
  • Dried biosolids = $0.15/kg DS

22/ 10/ 2015

slide-35
SLIDE 35

Recovery and reuse practice

3

Cases

Saskatoon BNR facility (85 MLD)

  • Crystallizer + P stripping from WAS
  • 7 to 10 year payback

Miami-Dade HPO facility (541 + 426 MLD)

  • Crystallizer on centrate (planned)
  • NPV(20y) < 2x existing operations and ferric dosing!

New York 26th Ward Centrate facility (4.5 MLD)

  • Ion-exchange based ammonium capture and extraction
  • Promising, but lost bid in 2014 to anammox removal

22/ 10/ 2015

slide-36
SLIDE 36

Recovery and reuse practice

Nutrient targets – N

4

BNR Dewatering P.C. S.C. 100% 10% Sludge liquor Biosolids 5% 65% Remove or recover? Gone Anaerobic Digester 20% Removal can be 2x less expensive than recovery

22/ 10/ 2015

slide-37
SLIDE 37

Recovery and reuse practice

Nutrient targets – P

5

Solids processing

Biological sludge Chemical sludge

Yields large P cache when EBPR P locked and unavailable?

22/ 10/ 2015

slide-38
SLIDE 38

Recovery and reuse practice

Nutrient targets – P

6

BNR Dewatering P.C. S.C. 100% 5% Sludge liquor 45% Biosolids 50% Low hanging fruit Anaerobic Digester

22/ 10/ 2015

slide-39
SLIDE 39

Recovery and reuse practice

Nutrient targets – P in sludge liquor

7

Sludge liquor Caustic Magnesium chloride Effluent to mainstream Struvite

Many processes:

  • Ostara Pearl
  • Multiform harvest
  • PHOSNIX
  • P-RoC
  • Phospaq
  • Crystalactor

Struvite from Pearl

22/ 10/ 2015

slide-40
SLIDE 40

Sludge liquor

Recovery and reuse practice

Nutrient targets – P stripping sidestream

8

BNR Dewatering P.C. S.C. 100% 5% WAS Stripping 45% Biosolids 50% VFA Anaerobic Digester

22/ 10/ 2015

slide-41
SLIDE 41

Recovery and reuse practice

Nutrient targets – P

9

BNR Anaerobic Digester Dewatering P.C. S.C. 100% 5% Sludge liquor 45% Biosolids 50% Target P load before dewatering AirPrex

22/ 10/ 2015

slide-42
SLIDE 42

10

AirPrex

Recovery and reuse practice

Nutrient targets – P in digested sludge

Struvite Magnesium chloride Air Digested sludge to dewatering Digested sludge Benefits:

  • 1. Better solids dewaterability

(> 4% improvement)

  • 2. Reduced maintenance costs

(up to 50%)

  • 3. Reduced P recycle (up to 90%)

and then…

  • 4. Increased revenue from fertilizer

(up to 10%)

22/ 10/ 2015

vs

slide-43
SLIDE 43

Recovery and reuse practice

Nutrient targets – P

11

BNR or CAS+Chem P.C. S.C. 100% 5% Ash 95% Raw sludge incineration > 2x cost of P recovery from liquor But largest source of P! Dewatering

22/ 10/ 2015

slide-44
SLIDE 44

12

Recovery and reuse practice

Nutrient targets – P in ash

Digested and dewatered solids Digested, dewatered and lime treated solids Dried solids Dried solids Digested liquid solids Dried solids Ash

22/ 10/ 2015

slide-45
SLIDE 45

Equalization

13

Recovery and reuse practice

Nutrient targets – P in ash

PASH

Centrifuge Liquid/liquid extraction Extractant conditioning Calcium phosphate Lime Ash Hydrochloric acid Solid residue Filter

22/ 10/ 2015

slide-46
SLIDE 46

Recovery and reuse practice

Nutrient targets – N & P in biosolids

14

BNR Dewatering P.C. S.C. Biosolids 50% P 100% N & P 5% N Class A: N:P from 1:1 to 3:1 w/w Anaerobic Digester Want N:P 6:1 w /w !

22/ 10/ 2015

slide-47
SLIDE 47

15

Neutralizer

Recovery and reuse practice

Nutrient targets – N & P in biosolids

Processing tank Biosolids product Biosolids Chlorine dioxide Sulfuric acid Sodium nitrite Sodium hydroxide Ferric sulfate (optional)

22/ 10/ 2015

Source of nitrogen! Class A!

slide-48
SLIDE 48

16

Recovery and reuse practice

Summary:

  • N recovery is usually not economical
  • Cheaper to remove and produce N
  • Many P recovery technologies, but…
  • Need recognized ROI
  • Recovery from liquor dominates
  • Recovery from ash pros and cons?
  • Decision = f(ROI & Regulations)

22/ 10/ 2015

slide-49
SLIDE 49

Thank you!

Opportunities for improved nutrient removal and recovery from municipal wastewater

slide-50
SLIDE 50

Emerging issues and research needs. Improvement of current performance

Jan Oleszkiewicz, Damian Kruk, Tanner Devlin

Nutrient Removal and Recovery Webinar

slide-51
SLIDE 51
  • Full scale application of one-stage

anammox processes in high-ammonia side-stream treatment (100 installations, none in Canada)

  • NH3NO2 nitrifiers
  • NO2+NH3 N2 anammox
  • Bioaugmentation and retention of

granules or media in tank

Lowering ammonia load by sludge liquor treatment with decreased energy demand

World Water Works Inc

22.X. 2015 2 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-52
SLIDE 52

Lowering ammonia load by sludge liquor treatment: bioaugmentation and RAS reaeration

Anox 8 g VSS/L RAS

Oleszkiewicz CIVL7930, University of Manitoba

X = 7 g/L Aerobic Anoxic Anox Aerobic Sludge Liquor 1000 mg N/L RAS Final clarifier effluent influent

22.X. 2015 3 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-53
SLIDE 53
  • Fit aerobic granular sludge (AGS) for removal
  • f N, P into existing bioreactors
  • Apply AGS to continuous flow

Retrofit nutrient removal (NR) into existing systems

After 3‘ settling

T Devlin, University of Manitoba 2015

Granular sludge Activated sludge

22.X. 2015 4 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-54
SLIDE 54

5

Retrofit NR into an existing system

2 4 6 8 10 12 4 8 12 16 20 24

MLE MBR MLE Biogradex

  • r BioMag

MLE IFAS MLE SBR BioDenitro

MLSS, g/L

HRT, h

CAS- EA

Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

  • Biomass retention and concentration is the key
  • Possible immediate CAS EA process upgrades to a BNR

enabling P recovery

Kruk & Oleszkiewicz, 2015

slide-55
SLIDE 55

22 X 2015 6

Retrofit NR into existing systems

Extended aeration 8 h HRT 12oC MLE system 8 h HRT 12oC Continuous re-oxidation

  • f ammonia

NH3-N = 2 NO3-N = 30 NH3-N = 2 NO3-N = 12 25% less energy Aerobic Aerobic Anoxic

Oleszkiewicz CIVL7930, University of Manitoba

slide-56
SLIDE 56

Retrofit NR into existing systems

Conventional Activated Sludge; 6 h HRT NH3-N = 10 NO3-N = 23 NH3-N = 8 NO3-N = 12 15% less energy X = 7 g/L MLE 6 h HRT Final clarifier Final clarifier Aerobic MLSS 7 g/L Anoxic Aerobic MLSS 3 g/L Vacuum degasification

Oleszkiewicz CIVL7930, University of Manitoba

slide-57
SLIDE 57

Retrofit NR into existing systems: lagoon’s effluent

2 4 6 10 20 30 40

02-Jan-10 01-Feb-10 03-Mar-10 02-Apr-10

T oC

ToC

mg/L NH3-N

Nelson Environmental

  • Commercially available technologies to remove TN and TP

at 1°C

SAGR

in

  • ut
  • 2. X. 2015

Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-58
SLIDE 58
  • There is too much P in biosolids but not

enough N

  • Unsure fate of P from Chem. P biosolids
  • Full scale field research needed
  • Triple bottom line analysis of [CAS EA +

Chem P] versus [BNR + Chem P] both achieving limit of treatment level. Factor- in potential of P recovery

Research: Chemical versus biological P removal

22 .X. 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-59
SLIDE 59

Principled nutrient management

  • Demonstrate cost-effectiveness of nutrient

recovery and nutrient trading in watershed partnerships where agricultural stakeholders would be recipients of the recovered nutrients

  • Example: Great Miami River Watershed Water

Quality Trading Program (2015 NACWA)

  • WWTP point sources: remove $11/kg P through BNR
  • Nonpoint source: $0.5/kg P removed through agricultural

management e.g. change of farmer’s practices: conservation tillage, grassed waterways, cover crops

  • 22. X. 2015

Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-60
SLIDE 60
  • Affordable P recovery from ash
  • Reliable P removal to 0.01 mg TP/L
  • Retrofit technologies for internal generation of

carbon for biological P removal and denitrification.

  • Improved removal of emerging substances of

concern in biological nutrient removal processes

Research: pre-commercialization technologies

22.X.2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

slide-61
SLIDE 61
  • Process upgrades to promote release of P from WAS

biomass stream, ahead of sludge processing.

Research on pre-commercialization technology : P removal/recovery in conventional activated sludge (CAS)

CAS

P recovery

filter Anaerobic digestion WAS stripping Fe

22.X. 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

Low P biosolids

slide-62
SLIDE 62
  • Application of a PhoStrip process on RAS ahead of

solids treatment

Research: Phosphorus removal/recovery in CAS

CAS

P recovery

filter Anaerobic digestion Fe RAS stripping

22.X. 2015 Nutrie nt Re mo va l a nd Re c o ve ry We b ina r

Low P biosolids

slide-63
SLIDE 63

Research: Pre-commercialization technology

Energy neutral facility

HR AS

PN/Anammox PN/ Amx

PE Effluent WAS thickening Sludge digester CHP Electric power and heat N and P Fertilizer Dewatering C and P removal N removal N removal Biosolids

slide-64
SLIDE 64

Thank you

Nutrient Removal and Recovery Workshop: Improving Canadian Wastewater Management
