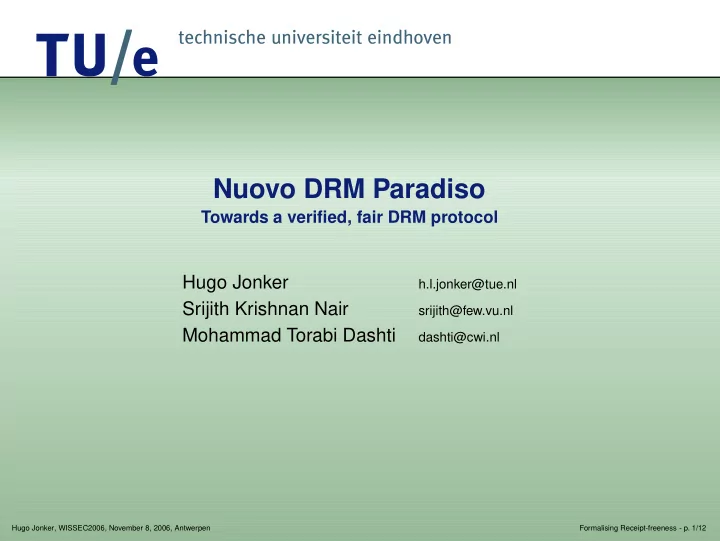

Nuovo DRM Paradiso

Towards a verified, fair DRM protocol

Hugo Jonker

h.l.jonker@tue.nl

Srijith Krishnan Nair

srijith@few.vu.nl

Mohammad Torabi Dashti

dashti@cwi.nl

SLIDE 2

Introduction

Digital Rights Management

NPGCT Scheme Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 2/12

Digital Rights Management

■ Goal: ◆ restrict access to digital contents ◆ access granted only when complying with license

SLIDE 3

Introduction

Digital Rights Management

NPGCT Scheme Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 2/12

Digital Rights Management

■ Goal: ◆ restrict access to digital contents ◆ access granted only when complying with license ■ Method:

enforce link by bundling license with content

SLIDE 4

Introduction

Digital Rights Management

NPGCT Scheme Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 2/12

Digital Rights Management

■ Goal: ◆ restrict access to digital contents ◆ access granted only when complying with license ■ Method:

enforce link by bundling license with content

■ Environment: ◆ trusted devices (well...) ◆ trusted content providers

SLIDE 5

Introduction

Digital Rights Management

NPGCT Scheme Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 2/12

Digital Rights Management

■ Goal: ◆ restrict access to digital contents ◆ access granted only when complying with license ■ Method:

enforce link by bundling license with content

■ Environment: ◆ trusted devices (well...) ◆ trusted content providers ■ Enemy: ◆ untrusted device owners ◆ Untrusted network

SLIDE 6

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 3/12

Enabling C2C exchange

■ bottleneck in provider-to-client exchanges: bandwidth

SLIDE 7

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 3/12

Enabling C2C exchange

■ bottleneck in provider-to-client exchanges: bandwidth ■ solution: enable client-to-client exchanges...

SLIDE 8

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 3/12

Enabling C2C exchange

■ bottleneck in provider-to-client exchanges: bandwidth ■ solution: enable client-to-client exchanges... ■ ... whilst preserving DRM

SLIDE 9

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 3/12

Enabling C2C exchange

■ bottleneck in provider-to-client exchanges: bandwidth ■ solution: enable client-to-client exchanges... ■ ... whilst preserving DRM

Adapt intruder model:

SLIDE 10

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 3/12

Enabling C2C exchange

■ bottleneck in provider-to-client exchanges: bandwidth ■ solution: enable client-to-client exchanges... ■ ... whilst preserving DRM

Adapt intruder model:

■ complete, lasting protection unrealistic...

SLIDE 11

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 3/12

Enabling C2C exchange

■ bottleneck in provider-to-client exchanges: bandwidth ■ solution: enable client-to-client exchanges... ■ ... whilst preserving DRM

Adapt intruder model:

■ complete, lasting protection unrealistic... ■ thus: migitation procedures: ◆ detection ◆ revocation list

SLIDE 12

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 4/12

Protocols

Provider-client:

1. C → P : Request content 2. C ↔ P : Mutual authentication, [payment] 3. P → C : {M}K, {K}pk(C), R, metadata(M), Λ

Client-client:

1. D → C : Request content 2. C ↔ D : Mutual authentication 3. C → D : {M}K′, {K′}pk(D), RC(M), R′, metadata(M), Λ, Λ′ 4. D : Verification 5. D → C : ψ, [payment]

SLIDE 13

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 5/12

Weaknesses

1. P2C: no link request — rights

attack: insert rights

SLIDE 14

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 5/12

Weaknesses

1. P2C: no link request — rights

attack: insert rights

2. C2C: No link delivery — payment

attack: abort before payment

SLIDE 15

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 5/12

Weaknesses

1. P2C: no link request — rights

attack: insert rights

2. C2C: No link delivery — payment

attack: abort before payment Fairness (violated in C2C): “Either both parties terminate successfully, or none does”

SLIDE 16

Introduction NPGCT Scheme

Enabling C2C exchange
Protocols
Weaknesses

Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 5/12

Weaknesses

1. P2C: no link request — rights

attack: insert rights

2. C2C: No link delivery — payment

attack: abort before payment Fairness (violated in C2C): “Either both parties terminate successfully, or none does”

■ Not possible without TTP ■ Optimistic fair exchange: only use TTP if fairness violated

therwise

■ Two protocols: optimistic exchange and recovery

SLIDE 17

Introduction NPGCT Scheme Nuovo DRM

Design
P2C protocol
C2C protocols

Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 6/12

Design

Motivation: Goals of Nuovo:

SLIDE 18

Introduction NPGCT Scheme Nuovo DRM

Design
P2C protocol
C2C protocols

Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 6/12

Design

Motivation:

■ address weaknesses ■ increase assurance of security

Goals of Nuovo:

SLIDE 19

Introduction NPGCT Scheme Nuovo DRM

Design
P2C protocol
C2C protocols

Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 6/12

Design

Motivation:

■ address weaknesses ■ increase assurance of security

Goals of Nuovo:

■ effectiveness ■ secrecy ■ resist content masquerading ■ fairness

SLIDE 20

Introduction NPGCT Scheme Nuovo DRM

Design
P2C protocol
C2C protocols

Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 7/12

P2C protocol

Provider — client exchange:

1.

wner(C) → C :

P, h(M), R 2. C → P : C, nC 3. P → C : {nP , nC, C}sk(P ) 4. C → P : {nC, nP , h(M), R, P}sk(C) 5. P → C : {M}K, {K}pk(C), {R, nC}SK(P )

■ concrete protocol ■ first weakness addressed (validity of R)

SLIDE 21

Introduction NPGCT Scheme Nuovo DRM

Design
P2C protocol
C2C protocols

Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 8/12

C2C protocols

Client — client optimistic exchange:

1.

wner(D) → D :

C, h(M), R′ 2. D → C : D, nD 3. C → D : {nC, nD, D}sk(C) 4. D → C : {nD, nC, h(M), R′, C}sk(D) 5. C → D : {M}K, {K}pk(D), {R′, nD}sk(C)

Client — client, recovery:

5r. D : resolves(D) 6r. D → P : D, n′

D

7r. P → D : {nP , n′

D, D}sk(P )

8r. D → P : {n′

D, nP , nD, nC, h(M), R′, C, P}sk(D)

9r. P → D : {M}K, {K}pk(D), {R′, n′

D}SK(P )

SLIDE 22

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 9/12

Formal analysis

Modelling in µCRL:

■ Nuovo DRM ■ communication model ■ intruder model – Dolev-Yao, with restrictions

Analysed scenario’s:

1. no intruder, synchronous communication

(effectiveness)

2. intruder, asynchronous communication

(secrecy, masquerading, fairness)

SLIDE 23

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 10/12

Analysis results

Modelled scenario’s checked with CADP: – effectiveness – secrecy – resisting content masquerading – fairness

SLIDE 24

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 10/12

Analysis results

Modelled scenario’s checked with CADP: √ effectiveness – secrecy – resisting content masquerading – fairness

SLIDE 25

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 10/12

Analysis results

Modelled scenario’s checked with CADP: √ effectiveness √ secrecy – resisting content masquerading – fairness

SLIDE 26

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 10/12

Analysis results

Modelled scenario’s checked with CADP: √ effectiveness √ secrecy √ resisting content masquerading – fairness

SLIDE 27

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 10/12

Analysis results

Modelled scenario’s checked with CADP: √ effectiveness √ secrecy √ resisting content masquerading √ fairness

SLIDE 28

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 11/12

Device revocation

■ goal: limit interaction with compromised devices ■ method: Device Revocation List (DRL) ■ trade off: size vs. security

Nuovo’s approach:

SLIDE 29

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 11/12

Device revocation

■ goal: limit interaction with compromised devices ■ method: Device Revocation List (DRL) ■ trade off: size vs. security

Nuovo’s approach:

■ P maintains DRL

SLIDE 30

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 11/12

Device revocation

■ goal: limit interaction with compromised devices ■ method: Device Revocation List (DRL) ■ trade off: size vs. security

Nuovo’s approach:

■ P maintains DRL ■ C maintains DRLc and list of friends fc,

DRLc = Lc(s) ∪ Lc(o)

SLIDE 31

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 11/12

Device revocation

■ goal: limit interaction with compromised devices ■ method: Device Revocation List (DRL) ■ trade off: size vs. security

Nuovo’s approach:

■ P maintains DRL ■ C maintains DRLc and list of friends fc,

DRLc = Lc(s) ∪ Lc(o)

■ on contact with P:

Lc(s) := fc ∩ DRL; DRLc := Lc(s) ∪ Lc(o)

SLIDE 32

Introduction NPGCT Scheme Nuovo DRM Assessment

Formal analysis
Analysis results
Device revocation

Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 11/12

Device revocation

■ goal: limit interaction with compromised devices ■ method: Device Revocation List (DRL) ■ trade off: size vs. security

Nuovo’s approach:

■ P maintains DRL ■ C maintains DRLc and list of friends fc,

DRLc = Lc(s) ∪ Lc(o)

■ on contact with P:

Lc(s) := fc ∩ DRL; DRLc := Lc(s) ∪ Lc(o)

■ on contact with D:

Lc(o) := Lc(o) ∪ Ld(s); DRLc := Lc(s) ∪ Lc(o)

SLIDE 33

Introduction NPGCT Scheme Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 12/12

Concluding

■ Identified weaknesses in NPGCT ■ Designed improvement: Nuovo DRM Paradiso ■ Formally verified design goals ■ Provide a reworked revocation method

SLIDE 34

Introduction NPGCT Scheme Nuovo DRM Assessment Conclusions Hugo Jonker, WISSEC2006, November 8, 2006, Antwerpen Formalising Receipt-freeness - p. 12/12

Concluding

■ Identified weaknesses in NPGCT ■ Designed improvement: Nuovo DRM Paradiso ■ Formally verified design goals ■ Provide a reworked revocation method
