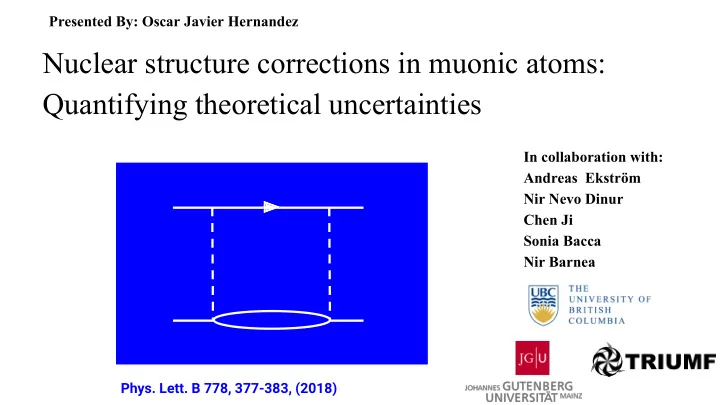

Presented By: Oscar Javier Hernandez Nuclear structure corrections in muonic atoms: Quantifying theoretical uncertainties In collaboration with: Andreas Ekstrm Nir Nevo Dinur Chen Ji Sonia Bacca Nir Barnea Phys. Lett. B 778, 377-383,

slide-1
SLIDE 1

In collaboration with: Andreas Ekström Nir Nevo Dinur Chen Ji Sonia Bacca Nir Barnea

Nuclear structure corrections in muonic atoms: Quantifying theoretical uncertainties

  • Phys. Lett. B 778, 377-383, (2018)

Presented By: Oscar Javier Hernandez

slide-2
SLIDE 2

The growing proton radius puzzle

1

[Chen et al, JPG 45, 093002, 2018.]

slide-3
SLIDE 3

The growing proton radius puzzle

1

[Chen et al, JPG 45, 093002, 2018.]

slide-4
SLIDE 4

There is a discrepancy between eD and μD data

2

[Chen et al, JPG 45, 093002, 2018.]

slide-5
SLIDE 5

There is a discrepancy between eD and μD data 5.6 σ

2

[Chen et al, JPG 45, 093002, 2018.]

slide-6
SLIDE 6

There is a discrepancy between eD and μD data 3.5σ

2

5.6 σ

[Chen et al, JPG 45, 093002, 2018.]

slide-7
SLIDE 7

There is a discrepancy between eD and μD data 3.5σ

2

5.6 σ

[Chen et al, JPG 45, 093002, 2018.]

slide-8
SLIDE 8

The Lamb shift

3

slide-9
SLIDE 9

The Lamb shift

The dominant nuclear structure corrections are given by the two-photon exchange

3

slide-10
SLIDE 10

The Lamb shift

The dominant nuclear structure corrections are given by the two-photon exchange

Nucleonic Nuclear

3

* C. E. Carlson et al. Phys. Rev. A 89, 022504 (2014).

  • J. J. Krauth, et al. Ann. of Phy. 366, 168 (2016).
slide-11
SLIDE 11

228.7766 (10) meV 1.7096 (200) meV

The physics problem

1.7638 (68) meV

4

Theory Experiment

slide-12
SLIDE 12

228.7766 (10) meV 1.7096 (200) meV

The physics problem

1.7638 (68) meV

4

Theory Experiment

slide-13
SLIDE 13

228.7766 (10) meV 1.7096 (200) meV

The physics problem

1.7638 (68) meV

4

Theory Experiment

slide-14
SLIDE 14

μD

5

The nuclear polarizability is a sum of many terms

[JPG 45, 093002, 2018.]

slide-15
SLIDE 15

μD

5

The nuclear polarizability is a sum of many terms

[JPG 45, 093002, 2018.]

Each correction is an integral over the response Corrections are ordered according to the power

  • f the expansion parameter η
slide-16
SLIDE 16

Improving the uncertainty estimates

LO NLO

...

N2LO

...

Ekström et al., PRL (2013), JPG (2015), Carlsson et al., PRX (2016)

6

slide-17
SLIDE 17

Improving the uncertainty estimates

LO NLO

...

N2LO

...

Ekström et al., PRL (2013), JPG (2015), Carlsson et al., PRX (2016)

Statistical uncertainties: 6

slide-18
SLIDE 18

Improving the uncertainty estimates

LO NLO

...

N2LO

...

Ekström et al., PRL (2013), JPG (2015), Carlsson et al., PRX (2016)

Statistical uncertainties: Systematic uncertainties: 6

slide-19
SLIDE 19

Improving the uncertainty estimates

LO NLO

...

N2LO

...

Ekström et al., PRL (2013), JPG (2015), Carlsson et al., PRX (2016)

Statistical uncertainties: Systematic uncertainties: 6

slide-20
SLIDE 20

Improving the uncertainty estimates

LO NLO

...

N2LO

...

Ekström et al., PRL (2013), JPG (2015), Carlsson et al., PRX (2016)

Statistical uncertainties: Systematic uncertainties: Single Nucleon: 6

slide-21
SLIDE 21

Improving the uncertainty estimates

LO NLO

...

N2LO

...

Ekström et al., PRL (2013), JPG (2015), Carlsson et al., PRX (2016)

Statistical uncertainties: Systematic uncertainties: Single Nucleon: Higher Order Corrections: 6

slide-22
SLIDE 22

Statistical uncertainties

Propagate uncertainty using standard techniques

7

slide-23
SLIDE 23

Statistical uncertainties

N2LOsim 8

slide-24
SLIDE 24

Statistical uncertainties

N2LOsim Statistical uncert. Correction % Uncert. Statistical 0.06 8

slide-25
SLIDE 25

Sytematic Tlab uncertainties

N2LOsim Systematic Tlab uncert. Correction % Uncert. Statistical 0.06 Tlab Sys. 0.2 9

slide-26
SLIDE 26

Chiral truncation uncertainties

Expand observable in the same Chiral EFT pattern, LO NLO

...

=

10

slide-27
SLIDE 27

Chiral truncation uncertainties

Expand observable in the same Chiral EFT pattern, Truncation uncertainty can then be calculated according to LO NLO

...

=

10 Correction % Uncert. Chiral Trunc. 0.4

slide-28
SLIDE 28

Additional uncertainties

Two body currents + relativistic corr.

Seagull Pion-in-flight

11 Correction % Uncert. MEC 0.15

  • Rel. Corr.

0.05

slide-29
SLIDE 29

Additional uncertainties

Two body currents + relativistic corr.

Seagull Pion-in-flight

Correction % Uncert. MEC 0.15

  • Rel. Corr.

0.05 Nucleon* 0.6

Single Nucleon Physics

* C. E. Carlson et al. Phys. Rev. A 89, 022504 (2014).

  • J. J. Krauth, et al. Ann. of Phy. 366, 168 (2016).

11

slide-30
SLIDE 30

Additional uncertainties

Two body currents + relativistic corr.

Seagull Pion-in-flight

Correction % Uncert. MEC 0.15

  • Rel. Corr.

0.05 Nucleon* 0.6 Atomic Phys. 1.0

Single Nucleon Physics Atomic Physics uncert.

* C. E. Carlson et al. Phys. Rev. A 89, 022504 (2014).

  • J. J. Krauth, et al. Ann. of Phy. 366, 168 (2016).

11

slide-31
SLIDE 31

Final uncertainty budget meV

+0.008 +0.001 +0.005 +0.0102 +0.172 +0.22 12

slide-32
SLIDE 32

Uncertainty comparisons

[Pohl et. al. Science] [Krauth et. al.]

13

slide-33
SLIDE 33

14

Uncertainty in other muonic atoms

[Chen et al, JPG 45, 093002, 2018.]

slide-34
SLIDE 34

14

Uncertainty in other muonic atoms

η-expansion uncertainty estimates are quite large in A=3 systems. Can we confirm this estimate using Bayesian methods?

[Chen et al, JPG 45, 093002, 2018.]

slide-35
SLIDE 35

Can we identify the scale parameter of our expansion (η) and unknown coefficients ?

Estimating the natural scale parameter

15

slide-36
SLIDE 36

Can we identify the scale parameter of our expansion (η) and unknown coefficients ?

Estimating the natural scale parameter

15

slide-37
SLIDE 37

Can we identify the scale parameter of our expansion (η) and unknown coefficients ?

Estimating the natural scale parameter

Bayesian parameter estimation problem independent

15

slide-38
SLIDE 38

MCMC Sampling

16

3H 3He

EMCEE

slide-39
SLIDE 39

Preliminary estimates

17

0.107 0.109 0.109 0.110

Physics based estimates

slide-40
SLIDE 40

Outlook

18

Results: Experimental vs theory difference improved by thorough analysis of nuclear TPE uncertainty. Uncertainty in TPE cannot solve the 5.6 σ discrepancy.

slide-41
SLIDE 41

Outlook

Uncertainty Analysis: Reduce atomic physics uncert.

18

Results: Experimental vs theory difference improved by thorough analysis of nuclear TPE uncertainty. Uncertainty in TPE cannot solve the 5.6 σ discrepancy. Use bayesian methods to combine statistical and chiral EFT truncation uncertainty Complete Bayesian η-expansion uncertainty analysis

slide-42
SLIDE 42

Thank you!
