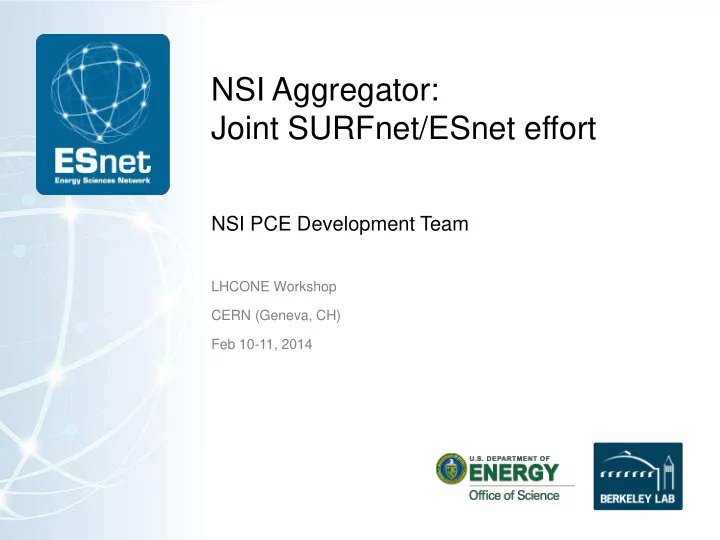

NSI Aggregator: Joint SURFnet/ESnet effort

LHCONE Workshop CERN (Geneva, CH) Feb 10-11, 2014

NSI PCE Development Team

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

NSI Connection Segmentation

PA

1 2 3 4 5 6 1 2 3 4 5 6

uRA PA PA A B C D A B C D Chain model Tree model

A

Z

A

Z

3 4 5 6 1 2

A B C D

7 8

Chain model Tree model Chain model Tree model

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

NSI Aggregator Implementation

• SURFnet BoD and OSCARS are uPA only
• Will depend solely on this Aggregator for inter-domain services
• NSI Aggregator
• can be deployed in different environments and functionality can be

tuned to these environments by build time selection of modules

• At this time, the different environments include ESnet,

NORDUnet+SURFnet+GEANT, the A-GOLE

• Has a simple administrator web GUI for monitoring and debugging
• Does *not* have a user web GUI, use the GUI of your network’s

uRA

3

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

SURFnet/ESnet Inter-domain pathfinder (NSI Aggregator)

4

Internet2 ION SURFnet BoD RNP OpenNSA SURFnet/ESnet pathfinder

NSI Connection Service NSI Topology Service

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

NSI Path Computation Element v1.0

REST Interfaces Validation

• Validates request against

known service templates

Scheduler

• Discovery and auditing
• Remote task control

through REST API

Configuration

• Runtime configuration

Logging

• Local HDD logging.
• Remote log access

through REST API

Topology Manager

• Consolidates inter-

domain topology and builds domain model.

Path Computation Core

• Orchestrates path

computation

• Returns resolved path

request segments

NSI PCE

5

NSAs (Topology)

Find Path API Topology API Management API

Path Modules

• Configurable path

computation modules

Topology Providers

• Dynamic topology

discovery

• NML to NSI topology

conversion

Client

Path results Path request Management NSI topology

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

What is it?

• Standalone path computation engine built for use by the

SURFnet/ESnet aggregator NSA.

• 100% Java server implemented using the lightweight Grizzly HTTP

container, Jersey 2.2 for JAX-RS, Spring for IoC, and Jung for graphing.

• Provides a REST-based path finding, NSI topology, and

management interfaces supporting both JSON and XML encodings.

• Supports both local file and GitHub-based HTTP discovery

mechanisms for NML topology.

• Utilizes configurable path finding modules allowing for different

algorithms and custom data handling to be incorporated.

6

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

SingAREN TBD StarLight OpenNSA ESnet OSCARS MANLAN OSCARS NetherLight BoD SURFnet BoD urn:ogf:network: manlan.net:2013: manlan-esnet urn:ogf:network: starlight.net:2013: starlight-esnet urn:ogf:network: manlan.net:2013: manlan-netherlight urn:ogf:network: netherlight.net:2013: netherlight-manlan urn:ogf:network: netherlight.net:2013: netherlight-surfnet urn:ogf:network: surfnet.net:2013: surfnet-netherlight urn:ogf:network: singaren.net:2013: singaren-starlight urn:ogf:network: starlight.net:2013: starlight-singaren

SURFnet/ESnet Aggregator NSA

urn:ogf:network: es.net:2013: esnet-manlan urn:ogf:network: es.net:2013: esnet-starlight

GLIF Singapore Video Streaming Demo (Resource Layout)

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

GLIF Singapore Video Streaming Demo (Demo Sequence)

SingAREN TBD StarLight OpenNSA ESnet OSCARS MANLAN OSCARS NetherLight BoD SURFnet BoD

SURFnet/ESnet Aggregator NSA Request 100Mbps VC

1

Transmit video stream

3

Provision 100Mbps VC

2

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

GLIF Singapore Video Streaming Demo (Demo Sequence)

SingAREN TBD StarLight OpenNSA ESnet OSCARS MANLAN OSCARS NetherLight BoD SURFnet BoD

SURFnet/ESnet Aggregator NSA Observe video degradation

6

Re-provision VC to 10Mbps

5

Request VC Modify to 10Mbps

4

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

GLIF Singapore Video Streaming Demo (Demo Sequence)

SingAREN TBD StarLight OpenNSA ESnet OSCARS MANLAN OSCARS NetherLight BoD SURFnet BoD

SURFnet/ESnet Aggregator NSA Observe video improve

9

Re-provision VC to 100Mbps

8

Request VC Modify to 100Mbps

7

Lawrence Berkeley National Laboratory U.S. Department of Energy | Office of Science

What is next?

11

• Support final NSI v2.0 service schema.
• Add support for path constraints and exclusions based
• n error feedback.
• Support path results based on control plane signally

topology.

• Enhanced path computation workflows allowing for

parallel evaluation.

• More complete Service Definition support.
• Unidirectional services.
