NI Chamber Energy Forum 2016/2017 Inclusive value chain redesign Ton van Keken SVP Operations EMEA 1 Inventor of modular carpet Nasdaq listed Sales $1,1 billion Employees 3.800 6 Factories on 4 continents One day people

slide-1
SLIDE 1

1

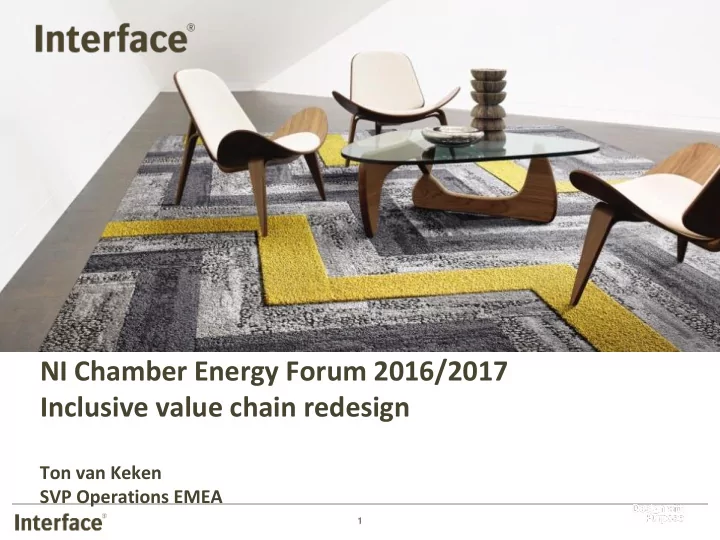

NI Chamber Energy Forum 2016/2017 Inclusive value chain redesign

Ton van Keken SVP Operations EMEA

slide-2
SLIDE 2
slide-3
SLIDE 3
  • Inventor of modular carpet
  • Nasdaq listed
  • Sales $1,1 billion
  • Employees 3.800
  • 6 Factories on 4 continents
slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7

“One day people like me will go to jail”

Ray Anderson Oprichter, Interface

slide-8
SLIDE 8

Journey to Zero: The seven fronts

ELIMINATE WASTE BENIGN EMISSIONS RENEWABLE ENERGY CLOSING THE LOOP RESOURCE EFFICIENT TRANSPORTATION SENSITISING STAKEHOLDERS REDESIGN COMMERCE

slide-9
SLIDE 9

68% 9% 8% 8% 7%

Raw Materials Interface Manufacturing Use & Maintenance End of Life Interface Transportation

Transparancy

slide-10
SLIDE 10

68% 9% 8% 8% 7%

Raw Materials Interface Manufacturing Use & Maintenance End of Life Interface Transportation

slide-11
SLIDE 11

11

Biomimicry – Learning from nature

slide-12
SLIDE 12

Towards zero installation waste using Random Design

Normal carpet tile 3 - 4% Average wastage Broadloom 12% Random carpet tile 1 - 2%

slide-13
SLIDE 13

Use less yarn Use recycled yarn Invent a new yarn

Three ways to reduce the biggest impact

  • f a carpet tile:
slide-14
SLIDE 14

14

Use less yarn

Microtuft: Around 50% less yarn

slide-15
SLIDE 15
slide-16
SLIDE 16

ReUse

Social hubs-sorting:

  • Reuse
  • Recycling
  • Waste-to-energy

ReEntry Hub Veenendaal, the Netherlands Greenstream Recycling, Wales

slide-17
SLIDE 17

Insert background Image here

ReEntry 2.0 recycling Scherpenzeel

slide-18
SLIDE 18

Fluff Separated

slide-19
SLIDE 19

Recycled backing crumb

slide-20
SLIDE 20

Fishing nets to carpet

Aquafil’s yarn is made with 50% pre-consumer and 50% post-consumer recycled material

slide-21
SLIDE 21

Networks

slide-22
SLIDE 22

Philippines and Cameroon

slide-23
SLIDE 23

Fotosfera is our first product using bio- based nylon yarn

63% bio-based yarn

Invent a new yarn

slide-24
SLIDE 24

24

  • Glue-free installation
  • Virtually zero VOCs
  • Fast, clean and easy
  • Eases re-use and

recycling

TacTiles™

slide-25
SLIDE 25

RECYCLED PVB ADHESIVE

  • Recycled content
  • Cost advantage

conf nfide idential ntial

slide-26
SLIDE 26

FACTORIES TO ZERO

2020

PEOPLE PRODUCTS TO ZERO SUPPLIERS TO ZERO

Pathways to 2020 - What’s Left to Be Done

slide-27
SLIDE 27

27

92% 84% 45% 91% 87% NOW

Zero non renewable energy Zero process water in manufacturing Zero waste will leave our factories

Factories to Zero 3 Goals

slide-28
SLIDE 28

28

Energy: sustainability and costs

Year Electricity SPZ Electricity CAV Electricity total Gas SPZ Gas CAV Gas total 2015 9.040.656 kWh 1.625.998 kWh 10.666.654 kWh 1.420.908 m² 92.778 m² 1.513.686 m² Electricity SPZ Costs Electricity CAV Costs Electricity total costs Gas SPZ Costs Gas CAV Costs Gas total costs Total energy cost 813.659 € 146.340 € 959.999 € 554.154 € 36.183 € 590.338 € 1.550.336 €

SPZ: Plant in Scherpenzeel, The Netherlands Cav: Plant in Craigavon , NI

slide-29
SLIDE 29

Thermal isolation project 22.000m3 annual gas usage reduction

slide-30
SLIDE 30

LED lighting

slide-31
SLIDE 31

Our new Pre-coat process consumes 50% less gas per m2

New pre-coat manufacturing line

New pre-coat line 360.000m3 annual gas usage saving

slide-32
SLIDE 32

32

By recovering rejected heat and reusing it in our factory heating cycle allowed us?

Heat Recovery From The Compressed Air System

  • To further improve the overall efficiency of the compressed air system
  • To reduce our factory`s total energy heating consumption by 28%
slide-33
SLIDE 33

Project CEA-EU-0017 New GA55kw VSD Atlas Capco Air compressor Installed Recover Heat From Compressor & Duct into factory

  • Heat outlet ducting Installed from the

compressor into the factory which creates an invisible warm air curtain reducing the factory's heating costs

slide-34
SLIDE 34

2016 Savings Up To Wk32

Frequent open & close

  • peration of the speed door

5°c 20°c

slide-35
SLIDE 35

35

92% 84% 45% 91% 87% NOW

Factories to Zero Renewable Energy Leadership

slide-36
SLIDE 36

Green gas

Netherlands: Biogas from fish waste

slide-37
SLIDE 37

Factory & Warehouse Proposal

CLINT Reversible Heat Pump Air / Water System 570 Kwh Heating Energy & 490 Kwh Cooling Energy

37

  • Uses Non – Ozone depleting refrigerant R410A
  • Heating Energy 570 Kwh / Cooling Energy 490 Kwh
  • 100% Green Electricity
  • RIF : Power factor Correction 15% reduction of input current
  • Electronic soft start reduces starting current by 30%
  • Permits operation in the winter & summer with external temps

dropping to -20 oC & rising to 50 oC Our electricity is 100% renewable therefore the heat pumps have no impact on the environment. The heat which the heat pump extract`s from the air, is constantly being renewed naturally

slide-38
SLIDE 38

Annual Energy Efficiency Gain

Current Natural Gas Heating Total Kwh 1,046,259 Kwh Gas cost per kwh 0.05 Natural Gas cost GBP £52,300.00 Green Electricity Heat Pump Total Kwh 331,793 Kwh Cost per kwh 0.10 Total Green Electricity Cost : £33,179.00 Positives Kwh % reduction 46% GBP £ Gain £19,000 Please *note projected costs are based on current market share prices*

slide-39
SLIDE 39

Ultrasonic cutting

Carpet Die cut Tiles 6 cuts + waste Carpet Ultra Sonic cut Tiles 1 cut + waste

‘window waste’ with ultra sonic cutting ‘window waste’ with die cutting

slide-40
SLIDE 40

Water in closed circuit

slide-41
SLIDE 41

Zero Virgin Materials Zero Chemicals of Concern Zero Carbon Footprint

Supplies to Zero We Can’t Do This Alone

slide-42
SLIDE 42

42

92% 84% 45% 91% NOW

Zero carbon footprint Zero virgin raw materials

Products to Zero 4 Goals

Zero chemicals

  • f concern

Reuse/ReEntry in every market

slide-43
SLIDE 43

Technology-led carbon reductions in carpet

slide-44
SLIDE 44

Ecometrics, Dec 2015

92% reduction

in green house gas emissions 50% raw materials recycled or biobased 50% reduction in product carbon footprint

slide-45
SLIDE 45

Global projections 2020

0 waste will leave our factories 95% reduction in green house gas emissions 95% raw materials recycled or biobased 80% reduction in product carbon footprint Carpet take-back available in every market

slide-46
SLIDE 46

Business case for sustainability

  • Competitive advantages: proposition, design, function
  • Productivity gains (eg. energy, waste)
  • Internal engagement
  • Recruiting
  • Open new markets
  • Create barriers to entry
  • Reputation
