NEW PRODUCT LAUNCH: MC300 MC CART Part Number: MC300 FASTER - - PowerPoint PPT Presentation

NEW PRODUCT LAUNCH: MC300 MC CART Part Number: MC300 FASTER Rough-in an entire suite using one cart. SAFER No lifting of heavy spools and wont tip over. SMARTER Compact design is reconfigurable. MC CART Part Number: MC300 FLEXIBLE


slide-1
SLIDE 1

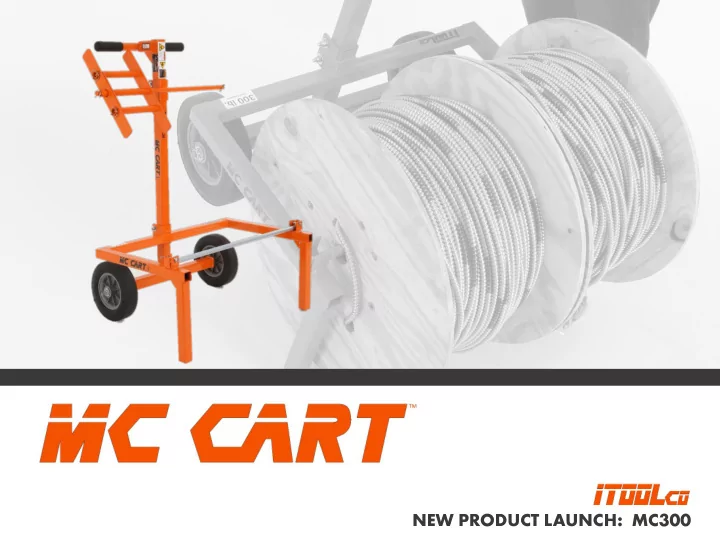

NEW PRODUCT LAUNCH: MC300

slide-2
SLIDE 2

MC CART

Part Number: MC300

FASTER Rough-in an entire suite using one cart. SAFER No lifting of heavy spools and won’t tip over. SMARTER Compact design is reconfigurable.

slide-3
SLIDE 3

FLEXIBLE CONFIGURATION Sets-up vertically or horizontally. Upper assembly can be adjusted to match the needs of the job. Easily expanded with additional accessories.

MC CART

Part Number: MC300

slide-4
SLIDE 4

EASY SET-UP AND OPERATION Only requires one person to operate and sets-up in under one minute. Simply tip cart forward to load. Lightweight and sturdy construction. Transports coils or spools quickly.

MC CART

Part Number: MC300

slide-5
SLIDE 5

Cushioned Handles are ergonomically designed for comfortable mobility. Heavy-duty Wheels roll smoothly on rough surfaces. Durable Steel Axle easily handles spools as large as 24”dia. x 28”W. Adjustable Bolt-on Wire Bar (MCA02) can be vertically repositioned and holds two 12- 1/2”W spools. Cable Mate (MCA01) slides

  • nto the Bolt-on Wire Bar

and swivels smoothly.

*MC300 sold as shown.

MC CART

Part Number: MC300

slide-6
SLIDE 6

SPECIFICATIONS Model: MC300 Description: MC Cart Includes: 1 Cable Mate (MCA01) & 1 Bolt-on Wire Bar (MCA02)

Height: 46" Width: 31-1/2” Weight: 67 lb. Maximum Spool Size: 24”dia.X28”W Maximum Load Capacity: 300 lb. Cable Mate: Accepts coils minimum 7-1/2”ID up to 16”OD

MC CART

Part Number: MC300

slide-7
SLIDE 7

CABLE MATE

Part Number: MCA01

CABLE MATE Model: MCA01 Attaches and disconnects quickly with the pin with locking ring. Swivels smoothly on the Bolt-on Wire Bar. Accepts coils a minimum of 7-1/2”ID up to 16”OD.

slide-8
SLIDE 8

LIMITED PREORDERS: Available through August 31, 2016 Ships after September 1, 2016 NATIONAL LAUNCH: September 1, 2016

MC CART

Part Number: MC300

slide-9
SLIDE 9

CONTACT YOUR ITOOLCO REP FOR PRICING
