Neural Networks - Deep Learning Artificial Intelligence @ Allegheny College Janyl Jumadinova March 4-6, 2020 Credit: Google Workshop Janyl Jumadinova March 4-6, 2020 1 / 35 Neural Networks - Deep Learning Neural Networks Janyl Jumadinova

slide-1

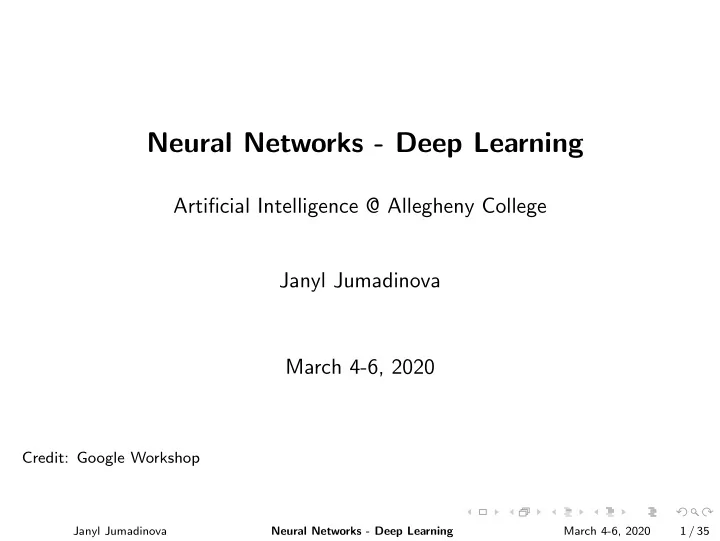

SLIDE 1

Neural Networks - Deep Learning

Artificial Intelligence @ Allegheny College Janyl Jumadinova March 4-6, 2020

Credit: Google Workshop

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 1 / 35

slide-2
SLIDE 2

Neural Networks

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 2 / 35

slide-3
SLIDE 3

Neural Networks

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 3 / 35

slide-4
SLIDE 4

Neural Networks

Neural computing requires a number of neurons, to be connected together into a neural network. Neurons are arranged in layers.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 4 / 35

slide-5
SLIDE 5

Neural Networks

Neural computing requires a number of neurons, to be connected together into a neural network. Neurons are arranged in layers. Two main hyperparameters that control the architecture or topology of the network: 1) the number of layers, and 2) the number of nodes in each hidden layer.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 4 / 35

slide-6
SLIDE 6

Activation Functions

The activation function is generally non-linear. Linear functions are limited because the output is simply proportional to the input.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 5 / 35

slide-7
SLIDE 7

Activation Functions

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 6 / 35

slide-8
SLIDE 8

Network structures

Two phases in each iteration:

1 Calculating the predicted output y, known as feed-forward 2 Updating the weights and biases, known as backpropagation Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 7 / 35

slide-9
SLIDE 9

Feed-forward example

Feed-forward networks: Single-layer perceptrons Multi-layer perceptrons

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 8 / 35

slide-10
SLIDE 10

Feed-forward example

Feed-forward networks: Single-layer perceptrons Multi-layer perceptrons

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 8 / 35

slide-11
SLIDE 11

Single-layer Perceptrons

Output units all operate separately – no shared weights. Adjusting weights moves the location, orientation, and steepness of cliff.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 9 / 35

slide-12
SLIDE 12

Multi-layer Perceptrons

Layers are usually fully connected. Numbers of hidden units typically chosen by hand.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 10 / 35

slide-13
SLIDE 13

Neural Networks

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 11 / 35

slide-14
SLIDE 14

Neural Networks

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 12 / 35

slide-15
SLIDE 15

Neural Networks

A fully connected NN layer

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 13 / 35

slide-16
SLIDE 16

Implementation as Matrix Multiplication

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 14 / 35

slide-17
SLIDE 17

Non-Linear Data Distributions

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 15 / 35

slide-18
SLIDE 18

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 16 / 35

slide-19
SLIDE 19

Deep Learning

Most current machine learning works well because of human-designed representations and input features. Machine learning becomes just optimizing weights to best make a final prediction.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 17 / 35

slide-20
SLIDE 20

Deep Learning

Most current machine learning works well because of human-designed representations and input features. Machine learning becomes just optimizing weights to best make a final prediction. Deep learning algorithms attempt to learn multiple levels of representation of increasing complexity/abstraction.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 17 / 35

slide-21
SLIDE 21

Deep Learning

Each neuron implements a relatively simple mathematical function. y = g(w · x + b)

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 18 / 35

slide-22
SLIDE 22

Deep Learning

Each neuron implements a relatively simple mathematical function. y = g(w · x + b) The composition of 106 − 109 such functions is powerful.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 18 / 35

slide-23
SLIDE 23

Deep Learning

Book: http://www.deeplearningbook.org/ Chapter 5 “A core idea in deep learning is that we assume that the data was generated by the composition of factors or features, potentially at multiple levels in a hierarchy.”

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 19 / 35

slide-24
SLIDE 24

Results get better (to a degree) with: more data bigger models more computation

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 20 / 35

slide-25
SLIDE 25

Results get better (to a degree) with: more data bigger models more computation Better algorithms, new insights and improved methods help, too!

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 20 / 35

slide-26
SLIDE 26

TensorFlow

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 21 / 35

slide-27
SLIDE 27

Adoption of Deep Learning Tools on GitHub

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 22 / 35

slide-28
SLIDE 28

TensorFlow

Epoch: a training iteration (one pass through the dataset). Batch: Portion of the dataset (number of samples after dataset has been divided). Regularization: a set of techniques that helps learning models to converge (http://www.godeep.ml/regularization-using-tensorflow/).

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 23 / 35

slide-29
SLIDE 29

TensorFlow

Operates over tensors: n-dimensional arrays

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 24 / 35

slide-30
SLIDE 30

TensorFlow

Operates over tensors: n-dimensional arrays Using a flow graph: data flow computation framework

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 24 / 35

slide-31
SLIDE 31

TensorFlow

Operates over tensors: n-dimensional arrays Using a flow graph: data flow computation framework

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 24 / 35

slide-32
SLIDE 32

TensorFlow

5.7 ← Scalar Number, Float, etc.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 25 / 35

slide-33
SLIDE 33

TensorFlow

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 26 / 35

slide-34
SLIDE 34

TensorFlow

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 27 / 35

slide-35
SLIDE 35

TensorFlow

Tensors have a Shape that is described with a vector

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 28 / 35

slide-36
SLIDE 36

TensorFlow

Tensors have a Shape that is described with a vector [1000, 256, 256, 3] 10000 Images Each Image has 256 Rows Each Row has 256 Pixels Each Pixel has 3 values (RGB)

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 28 / 35

slide-37
SLIDE 37

TensorFlow

Computation is a dataflow graph

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 29 / 35

slide-38
SLIDE 38

TensorFlow

Computation is a dataflow graph with tensors

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 30 / 35

slide-39
SLIDE 39

TensorFlow

Computation is a dataflow graph with state

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 31 / 35

slide-40
SLIDE 40

Core TensorFlow data structures and concepts

Graph: A TensorFlow computation, represented as a dataflow graph:

  • collection of ops that may be executed together as a group.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 32 / 35

slide-41
SLIDE 41

Core TensorFlow data structures and concepts

Graph: A TensorFlow computation, represented as a dataflow graph:

  • collection of ops that may be executed together as a group.

Operation: a graph node that performs computation on tensors

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 32 / 35

slide-42
SLIDE 42

Core TensorFlow data structures and concepts

Graph: A TensorFlow computation, represented as a dataflow graph:

  • collection of ops that may be executed together as a group.

Operation: a graph node that performs computation on tensors Tensor: a handle to one of the outputs of an Operation:

  • provides a means of computing the value in a TensorFlow Session.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 32 / 35

slide-43
SLIDE 43

TensorFlow

Constants

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 33 / 35

slide-44
SLIDE 44

TensorFlow

Constants Placeholders: must be fed with data on execution.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 33 / 35

slide-45
SLIDE 45

TensorFlow

Constants Placeholders: must be fed with data on execution. Variables: a modifiable tensor that lives in TensorFlow’s graph of interacting operations.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 33 / 35

slide-46
SLIDE 46

TensorFlow

Constants Placeholders: must be fed with data on execution. Variables: a modifiable tensor that lives in TensorFlow’s graph of interacting operations. Session: encapsulates the environment in which Operation objects are executed, and Tensor objects are evaluated.

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 33 / 35

slide-47
SLIDE 47

TensorFlow

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 34 / 35

slide-48
SLIDE 48

TensorFlow https://playground.tensorflow.org

Janyl Jumadinova Neural Networks - Deep Learning March 4-6, 2020 35 / 35
