Department of Pathology Inflammatory Bowel Disease Neoplasia Mary P. Bronner, MD Division Chief of Anatomic Pathology University of Utah Department of Pathology Neoplastic Progression in Chronic Inflammatory GI Dz Inflammation Dysplasia

slide-1

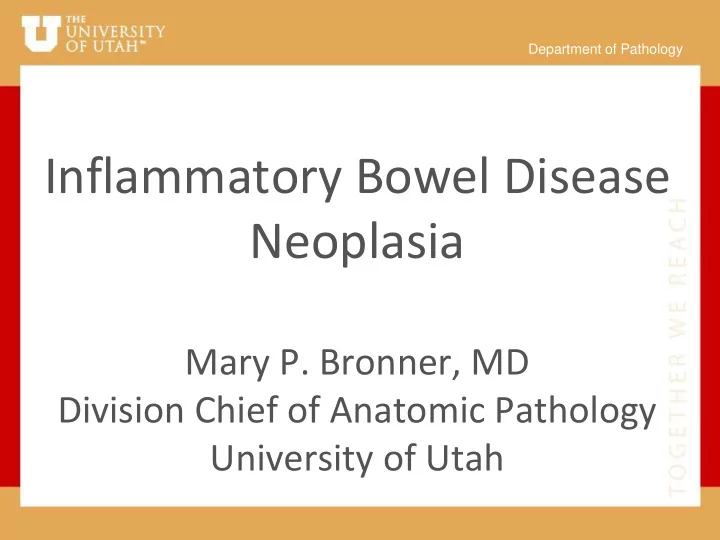

SLIDE 1

Department of Pathology

Inflammatory Bowel Disease Neoplasia

Mary P. Bronner, MD Division Chief of Anatomic Pathology University of Utah

slide-2
SLIDE 2

Department of Pathology

Neoplastic Progression in Chronic Inflammatory GI Dz

Inflammation Dysplasia Carcinoma

slide-3
SLIDE 3

Department of Pathology

Chronic Inflammatory GI Disease & Cancer

  • Barrett’s Esoph

Esoph CA

  • HP Gastritis

Gastric CA

  • Hepatitis B & C

HCC

  • Ch Pancreatitis

Panc CA

  • UC and Crohn’s

Intestinal CA

slide-4
SLIDE 4

Department of Pathology

Ulcerative Colitis: A Paradigm

slide-5
SLIDE 5

Department of Pathology

slide-6
SLIDE 6

Department of Pathology

Managing Cancer Risk in UC

  • Ignore it
  • “Prophylactic” colectomy
  • Colonoscopic surveillance for

dysplasia / early carcinoma

slide-7
SLIDE 7

Department of Pathology

Optimal Colonic Biomarker

  • Pancolonic distribution
  • Predate incurable cancer
  • Objective
  • Sensitive, Specific, PPV, NPV
slide-8
SLIDE 8
slide-9
SLIDE 9

Gold Standard Biomarker: Dysplasia

slide-10
SLIDE 10

Department of Pathology

Dysplasia: Problems

  • Sampling
  • Distinction from reactive change
  • Observer variation
  • Natural history incompletely

understood

slide-11
SLIDE 11

Department of Pathology

Adequate Bx Sampling

Histology

From: Rubin CE, et al. Gastroenterology 1992;103:1611

Dysplasia Cancer

  • No. Bx’s for

90% confidence 33 34

  • No. Bx’s for

95% confidence 56 64

slide-12
SLIDE 12

Department of Pathology

UC Surveillance Protocol

10 cm 5 cm

X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X

slide-13
SLIDE 13

Department of Pathology

Rectosigmoid Predominance of Ulcerative Colitis Cancer

Location of Colorectal Carcinoma

RS D T A/C 52% 12% 21% 15%

Choi PM. Gastroenterology 1993;104:666 Summary of 5 Studies

slide-14
SLIDE 14

Department of Pathology

Dysplasia: Problems

  • Sampling
  • Distinction from reactive change
  • Observer variation
  • Natural history incompletely

understood

slide-15
SLIDE 15

Department of Pathology

slide-16
SLIDE 16

Department of Pathology

slide-17
SLIDE 17

Department of Pathology

Dysplasia: Problems

  • Sampling
  • Distinction from reactive change
  • Observer variation
  • Natural history incompletely

understood

slide-18
SLIDE 18

Department of Pathology

Outcome of 40 UC LGD Patients

  • 78% no progression, avg f/u 5y (1-13 y)
  • 22% HGD, avg f/u 1.5 y (1-3 y)
  • ≥3 LGD biopsies: 9x progression risk
  • 2 non-compliant patients developed

Dukes’ A cancer

Brentnall, Bronner, et al. Prospective study of progression of LGD in UC. Inflamm Bowel Dis 18:2240-6, 2012.

slide-19
SLIDE 19

Dysplastic Field: Limited

slide-20
SLIDE 20

Department of Pathology

Better Biomarkers of Cancer Risk Greatly Needed!

slide-21
SLIDE 21

Department of Pathology

slide-22
SLIDE 22

Department of Pathology

Chromosomal Instability?

  • FCM Aneuploidy - Detects gross

chromosomal instability

  • CGH - Detects clonal gains and losses
  • f chromosomal regions
  • FISH - Detects clonal and non-clonal

chromosomal abnormalities

slide-23
SLIDE 23

Department of Pathology

Biopsy Sampling: Flow Cytometry

Rubin CE, et al. Gastroenterology 1992;103:1611

Dysplasia Cancer

  • No. Bx for

90% confidence 20 8

  • No. Bx for

95% confidence 30 14

slide-24
SLIDE 24

Morphologic + DNA Ploidy Neoplastic Field: Larger

slide-25
SLIDE 25

Department of Pathology

Metaphase Comparative Genomic Hybridization in UC

39% (15/38) of diploid bx’s near dysplasia or cancer showed CGH detectable alterations

Performed in collaboration with

  • F. Waldman, UCSF
slide-26
SLIDE 26

Department of Pathology

Array-based Comparative Genomic Hybridization (CGH)

Chromosomes replaced by ordered array of targets Karyotyping of metaphase spreads not necessary Greatly increased resolution

slide-27
SLIDE 27

Department of Pathology

Array CGH in UC

  • 100% (9/9) UC-progressors

extensive chromosomal gains and losses

  • FISH and PCR targets identified

Bronner MP, Mod Pathol 2010;23:1624-33

slide-28
SLIDE 28

Department of Pathology

Ulcerative Colitis A-CGH

PROGRESSORS NON-PROGRESSORS

Gain Loss

Bronner MP, Mod Pathol 2010;23:1624-33.

slide-29
SLIDE 29

Department of Pathology

BAC CGH Whole Genome Log2-Ratio Plots of All Chromosomes

Normal Non-UC Control UC Non-progressor UC Progressor UC Progressor

Bronner MP, Mod Pathol 2010;23:1624-33.

slide-30
SLIDE 30

Morphology + DNA Ploidy + CGH Neoplastic Field: Larger Still

slide-31
SLIDE 31

Department of Pathology

Non-Clonal Change in UC: Wider Field?

  • DNA Flow & CGH detect clonally expanded

abnormalities only

  • Larger fields of non-clonal instability?

Detectable in negative biopsies, even from rectum?

  • Assessed by Fluorescence In Situ Hybridization

(FISH)?

slide-32
SLIDE 32

Department of Pathology

UC FISH

Hypothesis:

UC progressors differ from UC non-progressors using non-clonal genomic instability biomarkers on single negative rectal biopsies

slide-33
SLIDE 33

Department of Pathology

FISH

  • Interphase nuclear suspensions placed
  • n glass slide
  • Locus specific probes (Chrom 8, 11, 17,

18) & centromeres (green and red)

  • Red and green FISH spots counted per

100 nuclei

slide-34
SLIDE 34

Normal Cells

Abnormal Cells

slide-35
SLIDE 35

Department of Pathology

Control Normal Colon FISH Chrom11 Probe Set

Red and Green Signal Counts % of Nuclei 0r2g 1r1g 1r2g 1r3g 2r1g 2r2g 2r3g 2r4g 3r2g 3r3g 1 1 2 2 2 2 20 40 60 80 100

90

slide-36
SLIDE 36

Department of Pathology

Diploid Neg Rectal Bx UC Progressor Chrom11 Probe Set

Red and Green Signal Counts % of Nuclei

0r2g 1r1g 1r2g 1r3g 2r1g 2r2g 2r3g 2r4g 3r2g 3r3g 4 2 1 1 8 11

74

20 40 60 80 100

slide-37
SLIDE 37

Department of Pathology

FISH in Ulcerative Colitis

% cells with FISH abnormalities Arm loss 2 4 6 8 10 Arm gain Centromere loss Centromere gain p0.001 p0.001 p=0.001 p0.001 Non-UC controls N=10 UC non-progressors N=18 UC progressors N=12 Bronner MP, et al. Am J Pathol 2008;173:1853.

slide-38
SLIDE 38

Department of Pathology

8q: c-myc Specificity Sensitivity

0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0

11q: CyclinD1

0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0

17p: p53 Specificity Sensitivity

0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0

1-Specificity 1-Specificity Sensitivity 18q: DCC Sensitivty

0.0 0.2 0.4 0.6 0.8

1.0

0.0 0.2 0.4 0.6 0.8 1.0

1-Specificiy

ROC Analysis of FISH Biomarkers

Bronner MP, et al. Am J Pathol 173:1853-1860, 2008

1-Specificity

slide-39
SLIDE 39

Department of Pathology

All 4 chromosomes combined

1-Specificity Sensitivity

0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0

Bronner MP, et al. Am J Pathol 2008;173:1853.

ROC Analysis of FISH Biomarkers

slide-40
SLIDE 40

Department of Pathology

Consequences of Shortened Telomeres

  • Sticky chromosomal ends
  • Bridge-breakage-fusion cycles
  • Chromosomal arm losses/gains

and dicentrics

Studied by peptide nucleic acid (PNA) probe ISH or RT PCR

slide-41
SLIDE 41

Department of Pathology

slide-42
SLIDE 42

Department of Pathology

Telomere Shortening in UC

Epithelial: Stromal Telomere Ratio

1.4 Non-UC control 1.2 1.0 0.8 0.6 0.4 0.2 Non- progressors Progressors p=0.08 p=0.001 p=0.02 O’Sullivan J, et al. Nat Genet 2002;32:280-284.

slide-43
SLIDE 43

Anaphase Bridges in UC

% Anaphase Bridges

0.03

Non-UC control

0.025

Non- progressors Progressors p=0.011 p=0.0002

0.02 0.015 0.01 0.005

Bronner MP, et al. Am J Pathol 173:1853-1860, 2008

slide-44
SLIDE 44

Department of Pathology

NGS miRNA bioclassifier of UC patients at increased risk of colon cancer

  • Why miRNAs?

–Small size (~21nt) more stable, less ribonuclease degradation –Readily detectable in FFPE and stained slides –Important roles in immune regulation

slide-45
SLIDE 45

Department of Pathology

miRNAs misregulation in UC-P, UC-NP

  • Linear discriminant

analysis to predict UC-P

  • vs. UC-NP
  • Robust candidate panel

selected for RT-PCR & additional cohort validation

UC-NP vs. nl (26 miRNAs) UC-P vs. nl (29 miRNAs)

11

18 15

Normalized Read count

100 1000 UC_NP+UC_P

mir

UC_NP UC_P

UC-NP 9/10 UC-P 10/10

miRNA Panel

slide-46
SLIDE 46

Histology + DNA Ploidy + CGH +FISH +Telomeres +Ana Bridges +miRNA Neoplastic Field: Entire Colon

slide-47
SLIDE 47

Department of Pathology

slide-48
SLIDE 48

Department of Pathology

UC Polypoid Dysplasia You’re dalmed if you do, and dalmed if you don’t Teri Brentnall,MD

slide-49
SLIDE 49

Department of Pathology

slide-50
SLIDE 50

Department of Pathology

Dysplasia in UC vs Adenoma

  • No clinical features
  • No endoscopic features
  • No pathologic features
  • No molecular tests
slide-51
SLIDE 51

Department of Pathology

HOWEVER

  • If the lesion can be demonstrably

completely removed endoscopically

  • Has only Low-Grade Dysplasia
  • There is no other dysplasia on

adequate sampling

  • Then, careful follow-up may be

considered

slide-52
SLIDE 52

Department of Pathology

UC Dysplasia Management

Continue Surveillance with adequate sampling: –Single site LGD while in surveillance –Indefinite of negative for dysplasia

slide-53
SLIDE 53

Department of Pathology

UC Dysplasia Management

Consider Colectomy: –Multiple LGD sites –LGD on more than one endoscopy –LGD at initial colonoscopy –Excessive inflammatory polyps

slide-54
SLIDE 54

Department of Pathology

Inflammatory Polyps

slide-55
SLIDE 55

Department of Pathology

UC Dysplasia Management

Colectomy Indicated: –HGD –Endoscopically unresectable dysplastic lesion

slide-56
SLIDE 56

Department of Pathology

Conclusions

  • Molecular alterations are widespread in

UC, CD, CP, HP, HCV

  • Single non-dysplastic bx alterations show

promise for reducing sampling error

  • Paradigm for cancer in chronic

inflammatory disease

slide-57
SLIDE 57

Department of Pathology

Further Work:

  • Reproducibility
  • Longitudinal analyses
  • Prospective validation
  • High throughput
  • Reduced numbers of markers
  • Mechanism: why progressors?
slide-58
SLIDE 58

Department of Pathology

Thanks To My Colleagues: Bonnie Shadrach Teri Brentnall Peter Rabinovitch Ru Chen David Crispin Rosana Risques Jacintha O’Sullivan Noah Welker Keith Lai Danielle Elsberry Ryan O’Connell June Round John Valentine
