NDPA Overview Slides Justin J Kringstad Geological Engineer Director North Dakota Pipeline Authority September 4, 2020 Bakken & Three Forks Formations Bakken Formation Three Forks Formation 2 2 JJ Kringstad - North Dakota Pipeline

slide-1
SLIDE 1

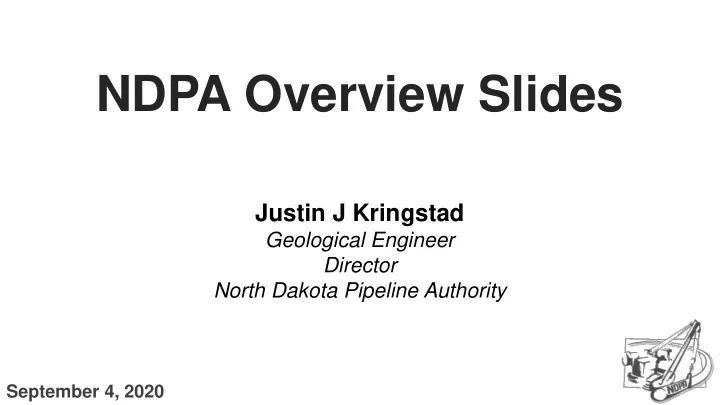

NDPA Overview Slides

September 4, 2020

Justin J Kringstad

Geological Engineer Director North Dakota Pipeline Authority

slide-2
SLIDE 2

2

Bakken & Three Forks Formations

JJ Kringstad - North Dakota Pipeline Authority 2 Bakken Formation Three Forks Formation

slide-3
SLIDE 3

3

Monthly Oil & Gas Production Change

JJ Kringstad - North Dakota Pipeline Authority 3

slide-4
SLIDE 4

4

Holding Aug. 2020 Oil Constant at 1.23MMBPD (est.)

Answering the question, “How many well completions to hold oil production flat?”

JJ Kringstad - North Dakota Pipeline Authority 4

Below Curve: Oil Production Dropping Above Curve: Oil Production Increasing

slide-5
SLIDE 5

5

Base Decline Challenges

JJ Kringstad - North Dakota Pipeline Authority 5

slide-6
SLIDE 6

6

March to June 75+% M-O-M Oil Drop

JJ Kringstad - North Dakota Pipeline Authority 6

(Non-Confidential Wells Only)

slide-7
SLIDE 7

7 JJ Kringstad - North Dakota Pipeline Authority 7

(Non-Confidential Wells Only)

May & June Comparison

June 2020 May 2020

slide-8
SLIDE 8

8

Vintage Year of Shut-In Wells – June 2020

JJ Kringstad - North Dakota Pipeline Authority 8

(Non-Confidential Wells Only)

slide-9
SLIDE 9

9

Wells Most Likely to Return Quickly? (May)

JJ Kringstad - North Dakota Pipeline Authority 9

1,881 Wells (28%) WOR: 2 or Lower BOPD: 50+ Total: 356,816 BOPD (70+%)

Shut-In

slide-10
SLIDE 10

10

GOR Decrease From Returning Curtailed Wells

JJ Kringstad - North Dakota Pipeline Authority 10

(Non-Confidential Wells Only)

Well Selection Criteria Production Days in May: 0-1 Days March Oil Production: >1 BOPD June Oil Production: >1 BOPD Pool: Bakken/Three Forks/Sanish

slide-11
SLIDE 11

11

EIA Price Deck (Near Term)

JJ Kringstad - North Dakota Pipeline Authority 11

slide-12
SLIDE 12

12

Shut-In Assumptions: EIA Price Deck

JJ Kringstad - North Dakota Pipeline Authority 12

slide-13
SLIDE 13

13

ND Oil Production: EIA Price Deck (Near Term)

JJ Kringstad - North Dakota Pipeline Authority 13

slide-14
SLIDE 14

14

ND Completions: EIA Price Deck (Near Term)

JJ Kringstad - North Dakota Pipeline Authority 14

Base & High Cases Low Case

slide-15
SLIDE 15

15

ND Oil Production: EIA Price Deck

JJ Kringstad - North Dakota Pipeline Authority 15

slide-16
SLIDE 16

16

Monthly Completion Scenarios: Crude Oil

JJ Kringstad - North Dakota Pipeline Authority 16

slide-17
SLIDE 17

17

Monthly Completion Scenarios: Wellhead Gas

JJ Kringstad - North Dakota Pipeline Authority 17

slide-18
SLIDE 18
slide-19
SLIDE 19

19 19

slide-20
SLIDE 20
slide-21
SLIDE 21

Williston Basin Oil Production & Export Capacity, BOPD

21

21 JJ Kringstad - North Dakota Pipeline Authority JJ Kringstad - North Dakota Pipeline Authority 21

Showing DAPL Outage Unlikely Near Term Scenario with Recent Court Decisions

slide-22
SLIDE 22

22

NDPA Production Forecast and Rail Transportation

JJ Kringstad - North Dakota Pipeline Authority 22

NDPA Base Case Oil Production Forecast (Green) Pipeline Capacity Shortfall (Grey): “Need” to Rail Rail History (Red): Exceeds “Need” - Delta Considered “Elective/Market Driven” Assumes DAPL Returns to Service Sep 2021

slide-23
SLIDE 23

Estimated Williston Basin Oil Transportation

23 23 JJ Kringstad - North Dakota Pipeline Authority 23

slide-24
SLIDE 24

24

Estimated ND Rail Export Volumes

JJ Kringstad - North Dakota Pipeline Authority 24

slide-25
SLIDE 25

Rail Destinations Market Share (May 2020)

25 Data for Rail Destination Market Share Provided by the US Energy Information Administration JJ Kringstad - North Dakota Pipeline Authority 25

slide-26
SLIDE 26

26 26

slide-27
SLIDE 27

27

Natural Gas Update

Production

  • Technology
  • Markets

Gathering

  • Capacity
  • Connections

Processing

  • Capacity
  • Location

Transmission

  • Dry Gas
  • Natural Gas

Liquids

JJ Kringstad - North Dakota Pipeline Authority 27

slide-28
SLIDE 28

28

ND Gas Production: EIA Price Deck

JJ Kringstad - North Dakota Pipeline Authority 28

slide-29
SLIDE 29

29

Natural Gas Update

Production

  • Technology
  • Markets

Gathering

  • Capacity
  • Connections

Processing

  • Capacity
  • Location

Transmission

  • Dry Gas
  • Natural Gas

Liquids

JJ Kringstad - North Dakota Pipeline Authority 29

slide-30
SLIDE 30

30 JJ Kringstad - North Dakota Pipeline Authority

Solving the Flaring Challenge

JJ Kringstad - North Dakota Pipeline Authority 30

slide-31
SLIDE 31

31

Natural Gas Update

Production

  • Technology
  • Markets

Gathering

  • Capacity
  • Connections

Processing

  • Capacity
  • Location

Transmission

  • Dry Gas
  • Natural Gas

Liquids

JJ Kringstad - North Dakota Pipeline Authority 31

slide-32
SLIDE 32

32 JJ Kringstad - North Dakota Pipeline Authority

Solving the Flaring Challenge

Assumes Current Technology – Enhanced Oil Recovery Not Included

JJ Kringstad - North Dakota Pipeline Authority 32

slide-33
SLIDE 33

33 JJ Kringstad - North Dakota Pipeline Authority

Solving the Flaring Challenge

Assumes Current Technology – Enhanced Oil Recovery Not Included

JJ Kringstad - North Dakota Pipeline Authority 33

slide-34
SLIDE 34

34 JJ Kringstad - North Dakota Pipeline Authority

Gas Processing Capacity & Future Outlook

Assumes Current Technology – Enhanced Oil Recovery Not Included

JJ Kringstad - North Dakota Pipeline Authority 34

Historical Historical Expected Expected

slide-35
SLIDE 35

35 JJ Kringstad - North Dakota Pipeline Authority

Gas Processing Capacity & Spare Capacity

JJ Kringstad - North Dakota Pipeline Authority 35

Historical Expected

slide-36
SLIDE 36

36 JJ Kringstad - North Dakota Pipeline Authority

Gas Processing Capacity & Spare Capacity

JJ Kringstad - North Dakota Pipeline Authority 36

Historical Expected 9% 24%

slide-37
SLIDE 37

37 JJ Kringstad - North Dakota Pipeline Authority

Gas Processing Capacity & Spare Capacity

JJ Kringstad - North Dakota Pipeline Authority 37

Historical Expected 9%

slide-38
SLIDE 38

38

Natural Gas Update

Production

  • Technology
  • Markets

Gathering

  • Capacity
  • Connections

Processing

  • Capacity
  • Location

Transmission

  • Dry Gas
  • Natural Gas

Liquids

JJ Kringstad - North Dakota Pipeline Authority 38

slide-39
SLIDE 39

Major Gas Pipeline and Processing Infrastructure

WBI Transmission Whiting

JJ Kringstad - North Dakota Pipeline Authority JJ Kringstad - North Dakota Pipeline Authority 39

slide-40
SLIDE 40

Bakken Natural Gas Infrastructure

40 40 JJ Kringstad - North Dakota Pipeline Authority 40

slide-41
SLIDE 41

JJ Kringstad - North Dakota Pipeline Authority 41

Northern Border Pipeline

*Data Source: Northern Border

slide-42
SLIDE 42

Northern Border BTU at Glen Ullin, ND

JJ Kringstad - North Dakota Pipeline Authority 42 *Data Source: Northern Border

slide-43
SLIDE 43

JJ Kringstad - North Dakota Pipeline Authority 43

NB Pipeline Interconnects With Known BTU Limits

NGPL: 1,065 Midwestern: 1,100 Vector: 1,100 Guardian: 1,100

slide-44
SLIDE 44

JJ Kringstad - North Dakota Pipeline Authority 44

NB Pipeline Interconnects With BTU Limits > 1,100

NNG: No Limit ANR: 1,200

slide-45
SLIDE 45

JJ Kringstad - North Dakota Pipeline Authority 45

NB Pipeline Interconnects With Ability to Add Limits

Horizon: Ability to Post Upper Limit

slide-46
SLIDE 46

JJ Kringstad - North Dakota Pipeline Authority 46

Northern Border – BTU Calculations*

*Includes Updated Tariff Timeline to 1,100

slide-47
SLIDE 47

JJ Kringstad - North Dakota Pipeline Authority 47

Northern Border – BTU Calculations*

*Assumes Equivalent Net Replacement of 1,035 Canadian Gas

Does Not Include Market Based Pairing Expenses

  • Est. Annual
slide-48
SLIDE 48

JJ Kringstad - North Dakota Pipeline Authority 48

BTU Calculations to Meet Proposed 1,100 BTU Spec.

Approximate Q1-20 BTU Breakdown Demo Pairing Exercise to Meet 1,100 or Less*

*Exact plant specifications are not publicly available and many assumptions needed to be made for demo pairing. Table may contain errors.

slide-49
SLIDE 49

Regional NGL Infrastructure

Kinder

JJ Kringstad - North Dakota Pipeline Authority 49

Marathon Petroleum

slide-50
SLIDE 50

NGL Pipeline Takeaway Options

50 50 50 JJ Kringstad - North Dakota Pipeline Authority 50

slide-51
SLIDE 51

Justin J. Kringstad, Director North Dakota Pipeline Authority 600 E. Boulevard Ave. Dept. 405 Bismarck, ND 58505-0840 Phone: (701)220-6227 Fax: (701)328-2820 E-mail: jjkringstad@ndpipelines.com Websites: www.pipeline.nd.gov www.northdakotapipelines.com

Contact Information

JJ Kringstad - North Dakota Pipeline Authority 51
