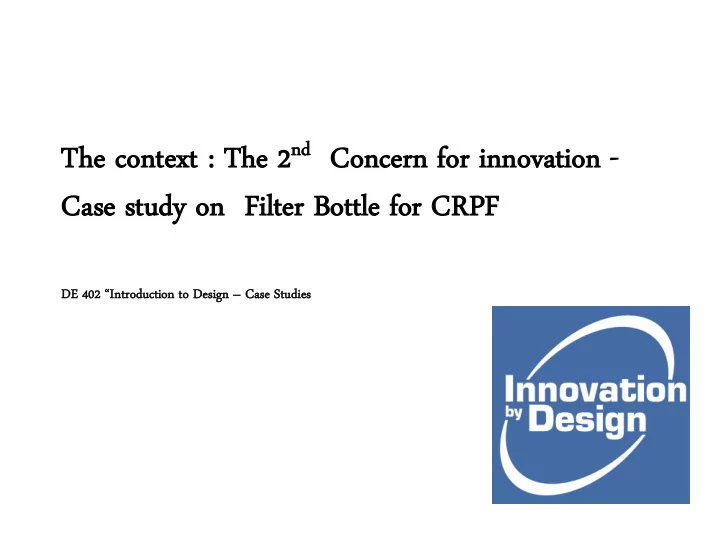

nd Conce e 2 nd The e cont ntext ext : The ncern rn for r innov ovati ation on - Case e study dy on Filter ter Bottle tle for r CRPF F DE 402 Introduction to Design Case Studies ies 1st concern for innovation The Cause

slide-1
SLIDE 1

The e cont ntext ext : The e 2nd

nd Conce

ncern rn for r innov

  • vati

ation

  • n -

Case e study dy on Filter ter Bottle tle for r CRPF F

DE 402 “Introduction to Design – Case Studies ies

slide-2
SLIDE 2
slide-3
SLIDE 3

1st concern for innovation The Cause – Earlier Case Study

slide-4
SLIDE 4

Chakku’s 7Cs:

  • 1. The Cause – The concern to solve a problem.
  • 2. The Context – Understanding the problem space and the environment.
  • 3. The Comprehension – Arriving at design insights.
  • 4. The Check – Creating a list of key requirements as a check-list/product brief.
  • 5. The Conception – Generating multiple ideas and combining them into concepts.
  • 6. The Crafting – Converting the selected concept in to mock-ups, functional prototypes and mass

production.

  • 7. The Connection – Creating user satisfaction and delight
slide-5
SLIDE 5

The Context - Understanding the User and the Scenario

  • Circumstances in which the problem exists.
  • The environment surrounding the problem space including the social and cultural

aspects.

  • The socio economic structures that surround the user scenario
slide-6
SLIDE 6

CA CASE SE ST STUD UDY : Y : WAT ATER ER FI FILTE LTER R BO BOTTL TTLE FOR E FOR CR CRPF PF JA JAWANS ANS

6

slide-7
SLIDE 7
slide-8
SLIDE 8

TAR ARGET GET USE SERS: S: CR CRPF F jawans ans on ope peration ation at t remote

  • te

pl places ces fo for th their r miss ssion ions

slide-9
SLIDE 9

Contaminated water

Limited supply of potable water No filtration available (trained to use minimum water)

Carrying heavy water storage for a long distance

PROBLEMS THEY HAVE ENCOUNTERED

slide-10
SLIDE 10

HANDKERCHIEF (Not safe enough) CHLORINE TABLETS (expires after 2-3 months, becomes red) WATER FILTER BOTTLE (Aquaguard on the Go 3 bottles for 38 jawans)

METHODS FOR CLEANING WATER

1

slide-11
SLIDE 11
slide-12
SLIDE 12

Different Bottles

slide-13
SLIDE 13

Understanding uniforms and rucksacks

slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16

Existing Water Filter Bottles in market

Lifestraw Lifestraw Go Lifestraw Family Lifestraw Mission LifeSaver Katadyn Aquaguard

  • n the Go

Pure Mini Sawyer Clean Sip

slide-17
SLIDE 17

Product Name Technology Mechanism Sizes Bacteria Virus Lifetime Capacity Bottle Price LifeStraw/LifeStr aw Go Hollow Fibre Membrane Sipping 0.2 micron Yes No 1,000 L Yes ,700ml ₹1190 ₹1990 LifeStraw Mission/Family Ultrafiltration Hollow Fibre Membrane Hand Pump 0.02 micron Yes Yes 18,000 L Reservoir 5L & 12L ₹ 8200 ₹ 5100 LifeSaver Activated carbon with ultra filtration membrane Hand Pump Yes Yes 4,000 L Yes, 750ml ₹ 9900 CleanSip Activated carbon micro filter, patented media Sipping Yes Yes No ₹ 900 MiniSawyer Hollow Fibre Membrane Sipping 0.1 micron Yes No 100,000 gallons (30 times) Yes ₹ 2950 Katadyn Pocket Pump Filter Hand Pump 0.2 micron Yes No 50,000 L No ₹ 30000 Aquaguard On the go Space Nano Technology Squeezing 0.1 micron Yes Yes 300 L/ cartridge Yes ₹ 595 Pure Water Filter Bottle UV Light Bulb Plunging Yes Yes Yes Not launched yet

WATER FILTERS COMPARISON

slide-18
SLIDE 18

WHY AQUAGUARD ON THE GO AS SELECTED FILTER?

smaller pore sizes than Lifestraw cheaper & replaceable easily available in Indian market safe

slide-19
SLIDE 19

Pump Filter Dirty Water Outlet Tube Inlet Tube Bottle Glass

slide-20
SLIDE 20
slide-21
SLIDE 21

Lightweight Soundproof Fits in the side pocket or inside the bag easily Durable Camouflage coloured bottle 1 to 2 L water capacity

Economically feasible

Filter system for potable water Easy to carry and maintain Sturdy

SUGGESTIONS GIVEN BY JAWANS

slide-22
SLIDE 22

To design a water bottle that:

  • 1. should be easy

y to filte ter

  • 2. should have an integ

egra ral l pump mp

  • 3. should be easy

y to main intai tain and not smell ell

  • 4. should store 2

2 litre tre of water er

  • 5. should be sound

ndpro roof

  • f
  • 6. should be suitable to carry in the side

e pocket kets s or inside side the bag ag

  • 7. Should cost

t tha han INR 2000

The Check

slide-23
SLIDE 23

IDEATIONS

23

slide-24
SLIDE 24

24

slide-25
SLIDE 25

Concept generation

  • Clustering of ideas as per their affinity
  • Grouping consideration based on the top three requirements of

the project brief. Ease of Use Ease of Carrying Ease of Pumping.

slide-26
SLIDE 26

CLUSTERS OF IDEAS

slide-27
SLIDE 27

CONCEPT GENERATIONS

Concept 1 Concept 2 Concept 3 One champion idea was chosen from the cluster and the other ideas were added to make the concept more effective to solve all the issues in the project brief

slide-28
SLIDE 28

Concept 1: Ease of use

slide-29
SLIDE 29

Concept 2: Easy to Pump

slide-30
SLIDE 30

Concept 3: Easy To carry

slide-31
SLIDE 31

EVALUATION CRITERIA CONCEPT 1 CONCEPT 2 CONCEPT 3 Lightweight 9 9 9 Easy to use 6 3 9 Easy to carry 6 6 9 Easy to maintain 6 3 9 Cost effective 3 6 9 TOTAL 30 27 45

CONCEPT EVALUATION

slide-32
SLIDE 32

FINAL CONCEPT

slide-33
SLIDE 33
slide-34
SLIDE 34

Filter Inlet Tube Pump Bottle Knob

slide-35
SLIDE 35

4 1 2 3 8 5 6 7 12 9 10 11

3 5

slide-36
SLIDE 36

FEEDBACK OF THE CONCEPT FROM CRPF JAWANS

slide-37
SLIDE 37

Refinements after user feedback

slide-38
SLIDE 38

REFINED CONCEPT 1

Pump and filter vertical to each other

slide-39
SLIDE 39

REFINED CONCEPT 2

Pump and filter Horizontal to each other

slide-40
SLIDE 40

Hook Bottle cap with flap Main body Base Cap

slide-41
SLIDE 41
slide-42
SLIDE 42

Cap Flap Cap screw Hook Body Attached to the body Pump with hand crank Tube Filter Base Cap

slide-43
SLIDE 43

Inside the pump

slide-44
SLIDE 44

4 4

slide-45
SLIDE 45

Design Prototyping Product Planning Mass Manufacturing

Detail Design, Soft Tooling, 3d Printing, Design Thinking, Prototype Design Small Vendors, Small Manufacturers, Tooling, Jigs, Fixtures

WORKING PROTOTYPE MOCK UP PILOT PRODUCTION FINAL PRODUCTION

Large Scale Manufacturers Manufacturer User Testing User Testing Product Development

slide-46
SLIDE 46

User feedback of final design

slide-47
SLIDE 47
slide-48
SLIDE 48

User suggestions:

  • The handle of the pump should be more strong
  • Filter should be vertical rather than horizontally as it

is time consuming.

  • Thread of the bottle can be reduced and the neck
  • f the bottle eliminated so that the cap fits the

shoulder of the bottle.

  • Better locking mechanism for base cap.
slide-49
SLIDE 49

3D printer

slide-50
SLIDE 50
slide-51
SLIDE 51
slide-52
SLIDE 52
slide-53
SLIDE 53

SPECIFICATION SHEET

SR NO DESCRIPTION SPECIFICATIONS 1 Body Polycarbonate : Blow moulding (solid colour), bean shape with serrations 2 Drinking Cap Polycarbonate (Injected moulded) with flap and serrations 3 Base Cap Polycarbonate (Injected moulded), with snap on and perforated 4 Pump Polycarbonate (Injected moulded), waterproof, airtight, leakproof 5 Pump gears Nylon gear, brass, rubber 6 Filter Aquaguard on the Go, connected to the pump with silicone tube 7 Tube Silicone tube (similar to saline tube), 5mm dia

slide-54
SLIDE 54

Valley of Death (Bottlenecks at various stages)

Design Prototyping Product Planning Mass Manufacturing

Detail Design, Soft Tooling, 3d Printing, Design Thinking, Prototype Design Small Vendors, Small Manufacturers, Tooling, Jigs, Fixtures

WORKING PROTOTYPE MOCK UP PILOT PRODUCTION FINAL PRODUCTION

Large Scale Manufacturers Manufacturer User Testing User Testing Product Development

slide-55
SLIDE 55

SUPPORT FROM SMALL SCALE MANUFACTURER FOR PILOT PRODUCTION

slide-56
SLIDE 56

Tooling vendor : M/s. Vishwakarma Engineering, Mumbai

slide-57
SLIDE 57

Blow-moulding manufacturer

slide-58
SLIDE 58
slide-59
SLIDE 59

Design Prototyping Product Planning Mass Manufacturing

Detail Design, Soft Tooling, 3d Printing, Design Thinking, Prototype Design Small Vendors, Small Manufacturers, Tooling, Jigs, Fixtures

WORKING PROTOTYPE MOCK UP PILOT PRODUCTION FINAL PRODUCTION

Large Scale Manufacturers Manufacturer User Testing User Testing Product Development

slide-60
SLIDE 60

Support for mass manufacture

  • Contacted M/s Premsons for mass manufacturing support.
  • Using the synergy of manufacturer helps in quick launch.
  • IP agreement.
slide-61
SLIDE 61
slide-62
SLIDE 62

Design Prototyping Product Planning Mass Manufacturing

Detail Design, Soft Tooling, 3d Printing, Design Thinking, Prototype Design Small Vendors, Small Manufacturers, Tooling, Jigs, Fixtures

WORKING PROTOTYPE MOCK UP PILOT PRODUCTION FINAL PRODUCTION

Large Scale Manufacturers Manufacturer User Testing User Testing Product Development
