Nb 3 Sn IR Quadrupoles for HL-LHC GianLuca Sabbi for the LARP HiLumi LHC Collaboration 2012 Applied Superconductivity Conference 1 ASC 2012 Nb 3 Sn IR Quadrupoles for HL-LHC G. Sabbi Contributions M. Anerella, J. Cozzolino, J.

slide-1
SLIDE 1

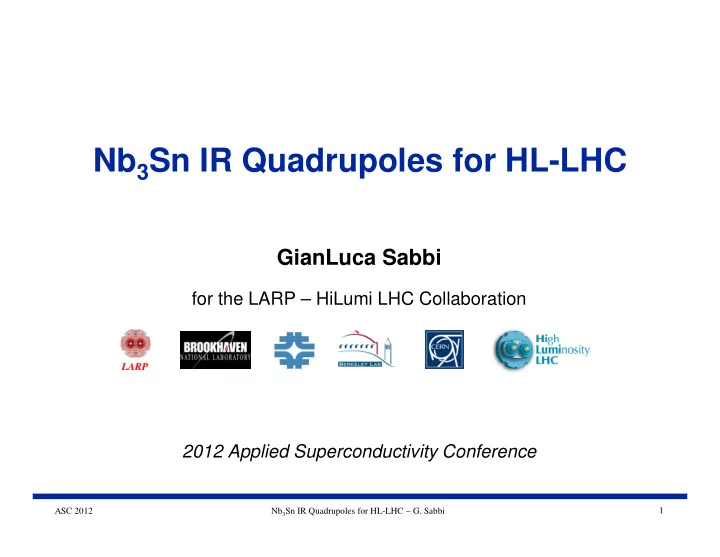

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 1

Nb3Sn IR Quadrupoles for HL-LHC

GianLuca Sabbi

for the LARP – HiLumi LHC Collaboration 2012 Applied Superconductivity Conference

slide-2
SLIDE 2

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 2

  • M. Anerella, J. Cozzolino, J. Escallier, A.K. Ghosh, J. Muratore,
  • S. Peggs, J. Schmalzle, P. Wanderer
  • H. Bajas, M. Bajko, L. Bottura, G. DeRijk, O. Dunkel, P. Ferracin,
  • J. Feuvrier, L. Fiscarelli, C. Giloux, J. Perez, L. Rossi,
  • S. Russenschuck, E. Todesco
  • G. Ambrosio, N. Andreev, E. Barzi, R. Bossert, J. DiMarco,
  • G. Chlachidze, F. Nobrega, I. Novitski, V. Kashikhin, J. Kerby,
  • M. Lamm, P. Limon, D. Orris, E. Prebys, M. Tartaglia, D. Turrioni,
  • G. Velev, M. Whitson, R. Yamada, M. Yu, A. Zlobin
  • S. Caspi, D.W. Cheng, D.R. Dietderich, H. Felice, A. Godeke, S.

Gourlay A.R. Hafalia, R. Hannaford, J.M. Joseph, A.F. Lietzke, J. Lizarazo, M. Marchevsky, G. Sabbi, A. Salehi; T. Salmi, R. Scanlan,

  • X. Wang

Contributions

slide-3
SLIDE 3

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 3

1. Program motivation and goals 2. Overview of LARP magnet R&D 3. Main achievements to date 4. Outstanding technical issues 5. Prototype design and development plans

Presentation Outline

Related presentations at ASC 2012:

  • G. Ambrosio et al., “Test results and analysis of Long Nb3Sn Quadrupole Series by LARP”
  • H. Bajas et al., “Cold Test Results of the LARP HQ01e Nb3Sn quadrupole magnet at 1.9 K”
  • D. Cheng et al., “Evaluation of insulating coatings for wind-and-react coil fabrication”
  • G. Chlachidze et al., “Test of optimized LARP Nb3Sn quadrupole coil using magnetic mirror structure”
  • A. Ghosh “Perspective on Nb3Sn Conductor for the LHC Upgrade Magnets”
  • A. Godeke et al., “Review of Conductor Performance for the LARP High-Gradient Quadrupole Magnets”
  • E. Todesco et al., “Design studies of NbTi and Nb3Sn Low- Quadrupoles for the High Luminosity LHC”
  • X. Wang et al., “A system for high-field accelerator magnet field quality measurements”
slide-4
SLIDE 4

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 4

High Luminosity LHC

Physics goals:

  • Improve measurements of new phenomena seen at the LHC
  • Detect/search low rate phenomena inaccessible at nominal LHC
  • Increase mass range for discovery

Required accelerator upgrades include new IR magnets:

  • Directly increase luminosity through stronger focusing

decrease β*

  • Provide design options for overall system optimization/integration

collimation, optics, vacuum, cryogenics

  • Be compatible with high luminosity operation

Radiation lifetime, thermal margins Figure of merit is integrated luminosity, with a target of 3000 fb-1

slide-5
SLIDE 5

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 5

IR Upgrade “Roadmap”

  • !
  • !

"#

Complex interplay between different aspects of the machine design: beam dynamics, magnets, energy deposition and shielding, cooling, powering…

  • F. Zimmerman, IR’07 Workshop
  • E. Todesco, 2011 HiLumi-LARP meeting
slide-6
SLIDE 6

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 6

Quadrupole Optimization Roadmap

High field technology provides design options to maximize luminosity

Higher Field Larger Aperture

(same/lower gradient)

Thicker absorbers More Operating Margin

(at same gradient / aperture)

Longer Lifetime Lower radiation and heat loads Better Field Quality Stronger focusing Higher Gradient

(same/lower aperture)

Shorter magnets Higher T margin Better IR layout Stable operation Easier cooling More Design Margin

(same gradient / aperture)

Lower risk Faster development Less cost & time

for small production

More luminosity

slide-7
SLIDE 7

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 7

LARP Magnet Program

Goal: Develop Nb3Sn quadrupoles for the LHC luminosity upgrade Potential to operate at higher field and larger temperature margin R&D phases:

  • 2005-2010: technology development: conductor, coil, structure
  • 2007-2012: length scale-up from 1 to 4 meters
  • 2009-2014: incorporation of accelerator quality features

Program achievements to date:

  • TQ models (90 mm aperture, 1 m length) reached 240 T/m gradient
  • LQ models (90 mm aperture, 4 m length) reached 220 T/m gradient
  • HQ models (120 mm aperture, 1 m length) reached 184 T/m gradient

Current activities:

  • Completion of LQ program to extend TQ results to long models
  • Optimization of HQ, fabrication of LHQ coils and test in mirror
  • Design and planning of the MQXF IR Quadrupole development
slide-8
SLIDE 8

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 8

Overview of LARP Magnets

SQ SM TQS LR LQS HQ TQC

slide-9
SLIDE 9

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 9

Sub-scale Quadrupoles (SQ)

  • Four “SM” racetrack coils
  • 130 mm bore, length 30 cm

Achieved 97% of SSL at 4.5K & 1.9K

  • Validated conductor for TQ01 models
  • First shell-based quadrupole structure
  • Verification/optimization of FEA models
  • Quench propagation/protection studies

C C

slide-10
SLIDE 10

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 10

Long Racetracks (LR)

SG1 SG2 SG3 SG4 SG5 SG6

  • Scale up of “SM” coil and structure: 30 cm to 4 m
  • Coil R&D: first successful length scale-up
  • Structure R&D: friction effects, magnet assembly
  • Achieved 11.5 T, 96% of short sample limit

LRS01b: segmented shell

LRS01a: single shell

  • P. Ferracin, J. Muratore et al.,

IEEE Trans. Appl. Supercond. Vol: 18 (2), 2008, pp. 167-170

slide-11
SLIDE 11

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 11

Technology Quadrupoles (TQ)

  • Double-layer, shell-type coil
  • 90 mm aperture, 1 m length
  • Two support structures:
  • TQS (shell based)
  • TQC (collar based)
  • Target gradient 200 T/m

TQC TQS

  • Three coil series using different wire design

MJR 54/61; RRP 54/61; RRP 108/127

  • More than 30 coils fabricated
  • Distributed coil production line
  • 15 magnet tests in different configurations
  • Two models assembled and tested at CERN
slide-12
SLIDE 12

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 12

TQ Highlights

Quench performance

  • Maximum gradient 240 T/m
  • 20% above target
  • No retraining

Stress limits

  • TQS03a: 120 MPa at pole, 93% SSL
  • TQS03b: 160 MPa at pole, 91% SSL
  • TQS03c: 200 MPa at pole, 88% SSL
  • Peak stresses are considerably higher
  • Considerably widens design window

Cycling test

  • 1000 cycles
  • No change in mechanical parameters
  • No change in quench levels
slide-13
SLIDE 13

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 13

Long Quadrupole (LQ)

S1 (2) D1 (1) S2 (4) S3 (2) S4 (2) D2 (4) D3 (1)

  • TQ length scale-up from 1 m to 4 m
  • Three series of coils
  • All models reached 200 T/m target
  • Recent results and next steps in:
  • G. Ambrosio et al.

4LA-01 (Thursday AM)

slide-14
SLIDE 14

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 14

High-Field Quadrupole (HQ)

R&D goals:

  • Explore “new territory” in energy and force levels (~3xTQ)
  • Incorporate field quality and full alignment

Main parameters:

  • 120 mm aperture, 15 T peak field at 220 T/m (1.9K)
  • Coil stresses approaching 200 MPa (if pre-loaded for SSL)
slide-15
SLIDE 15

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 15

HQ Highlights – Pre-load control

  • HQ explores stress limits and

test results confirm pre-load window is very narrow

  • HQ01e: asymmetric loading

for better stress uniformity

  • P. Ferracin et al., IEEE Trans.
  • Appl. Supercond. Vol: 22 (3), 2012
slide-16
SLIDE 16

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 16

HQ Highlights – Field Quality

Discussion of magnetic measurement system by X. Wang et al., 4JE-04 (Thursday PM)

  • Geometric harmonics show good coil uniformity and structure alignment
  • Persistent current effects are large but within limits set by design study
  • Large dynamic effects indicate need to better control inter-strand resistance

Cored cables incorporated in second generation coils

Eddy current harmonics for different ramp rates

1.E-03 1.E-02 1.E-01 1.E+00 1 2 3 4 5 6 7 8 9 10 harmonics σ (units) Harmonic order

fit normal skew

12 kA, R.ref = 21.55 mm

Block positioning error ~29.6 µm.

Analysis of geometric accuracy from random errors

Rc fit 0.2–3.6 µ (LHC target: ~20 µ)

slide-17
SLIDE 17

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 17

HQ Highlights – Quench Performance

Latest results from CERN test of HQ01e at 1.9K: H. Bajas, 4LA-02 (Thursday AM)

  • Achieved 184 T/m at 1.9K (85% of SSL) – well above performance target

However, high rate of coil failures (excessive strain and insulation weakness)

  • Flux jump effects appear less severe at 1.9K (5-10 times smaller amplitude)
  • Quench protection studies: energy extraction delay, then removal of IL heaters
slide-18
SLIDE 18

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 18

  • Large number of insulation failures in coils, coil to parts and coil to heaters
  • Catastrophic failure in HQ01b test due to inter-layer short through end shoe

Remediation steps:

  • Redesigned end parts to improve fit, eliminate high pressure areas
  • Application of insulating coatings to coil parts:
  • Improved winding procedures and QA
  • Redesigned quench heaters to minimize crossings above metallic parts
  • Increased insulation between coil layers and between coil and heaters
  • Enhanced electrical QA during coil and magnet fabrication (impulse testing)

R&D issues – Electrical Integrity

  • D. Cheng et al., 4MA-08

Thursday AM

slide-19
SLIDE 19

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 19

R&D issues – Strain during Coil Reaction

  • Results from first HQ models indicated conductor damage in several coils
  • Traced to excessive strain during the coil reaction phase:

No/insufficient gaps in pole segments to limit longitudinal strain Design/tooling did not include space for azimuthal cable expansion

  • G. Chlachidze et al.,

4LA-03 (Thursday AM)

  • HQ02: restored pole gaps and reduced cable size with smaller strand diameter
  • First coil successfully tested in mirror structure:
  • All process improvements incorporated in HQ03 and the Long HQ Coils

Coil spring-back from tooling

“Inverted” ramp-rate dependence in HQ01a-c

slide-20
SLIDE 20

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 20

In previous phases of the program, conductor has been adequate to meet the key R&D goals of the model magnets:

  • RRP 54/61 for SQ, LR, and 1st generation TQ/LQ/HQ/HQM models
  • Enabled the 2009 milestone of >200 T/m in TQ and LQ
  • RRP 108/127 for TQS03, LQS03, HQ/HQM, and LHQ

Very good results in TQS03, but lower performance in HQ/HQM and LQ Limitations observed in current density, stability (RRR), piece length

  • Conductor improvements are required for a successful construction project
  • Several developments are underway, but time window is limited
  • Increase and control Jc, RRR, piece length in RRP 108/127
  • Develop/demonstrate possible alternatives (PIT, higher stack RRP)
  • Scale-up to larger billets for faster production an lower cost

R&D Issues – Conductor and Cable

  • A. Ghosh, paper 2SLE-06 (this session)
  • A. Godeke et al., 4JA-07 (Thursday AM)

See presentations by:

slide-21
SLIDE 21

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 21

IR Quadrupole Design Specification

  • An aperture increase to 150 mm is expected to result in best overall performance
  • Requires another significant step in energy & force levels with respect to 120 mm

Higher Field Larger Aperture

(same/lower gradient)

Thicker absorbers More Operating Margin

(at same gradient / aperture)

Longer Lifetime Lower radiation and heat loads Better Field Quality Stronger focusing Higher Gradient

(same/lower aperture)

Shorter magnets Higher T margin Better IR layout Stable operation Easier cooling More Design Margin

(same gradient / aperture)

Lower risk Faster development Less cost & time

for small production

  • Max. luminosity
slide-22
SLIDE 22

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 22

Next Phase: IR Quadrupole Prototype

Preliminary layout of HL-LHC final focus using 150 mm bore 140 T/m quadrupoles: Prototype design status:

  • Increased cable size to facilitate coil stress management and quench protection

Cable R&D underway targeting 18.5 mm width, 1.50 mm mid-thickness, 0.65 deg. keystone angle (D. Dietderich) Strand diameter from 0.778 mm (HQ) to 0.85 mm to limit aspect ratio

  • Electrical integrity: increase of cable insulation thickness from 0.1 to 0.15 mm
  • Preliminary cross-sections were developed for evaluation
  • Latest developments presented in: E. Todesco et al., 4LA-05 (Thursday AM)

6.77 m 2 x 3.99 m 6.77 m 2 x 3.99 m

  • R. De Maria et al,

HiLumi meeting, 7/26/12

slide-23
SLIDE 23

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 23

Design and Construction Planning

  • Full partnership between USLARP and CERN for R&D and production
  • The HL-LHC structure provides the needed collaboration framework for

machine and magnet design optimization: Organized around “work packages” - magnet WP is closely interacting with accelerator physics, powering, energy deposition, cryogenics, vacuum WPs Overall coordination by WP1 (management) through collaboration board, steering committee, parameters and layout committee

  • In the US, LARP is being reorganized to focus on selection, prototyping and

construction of key deliverables Goal: fully address remaining R&D issues and obtain convincing performance demonstration before start of construction project Closer integration of LARP and General Accelerator Development effort (laboratory base programs) is also expected during the next phase

slide-24
SLIDE 24

ASC 2012 Nb3Sn IR Quadrupoles for HL-LHC – G. Sabbi 24

Summary

  • A large knowledge base is available after 7 years of fully integrated

effort involving three US Labs and CERN Steady progress in understanding and addressing R&D issues that were perceived as potential show stoppers: conductor performance, mechanical support, degradation due to stress and cycling, length scale-up, coil/structure alignment, field quality, quench protection

  • Remaining challenges include: control of dynamic effects, electrical

integrity, process documentation and QA, incorporation of rad-hard epoxies, development and selection of production-class conductors

  • Next few years will be critical and much work is still left to do

Integrating LARP effort with CERN, US core programs, EuCARD

  • HL-LHC IR Quads are a key step for future high-field applications

Acknowledgement:
