Name convention for FTs, proximity racks and APAs ProtoDUNE-SP ITI Meeting March 16 th , 2017 Roberto Acciarri Proposal Each APA and feed-through will have a XX YY-ZZ label, where XX specify the kind of element (APA, CE for CE feed-through,

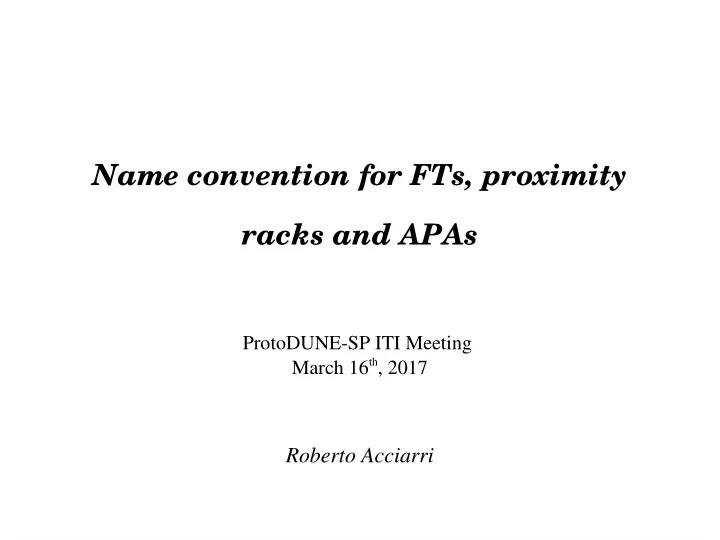

SLIDE 1

Name convention for FTs, proximity racks and APAs

Roberto Acciarri

ProtoDUNE-SP ITI Meeting March 16th, 2017

SLIDE 2

16/03/2017

R. Acciarri - ITI meeting

Proposal

➢Each APA and feed-through will have a XX YY-ZZ label, where XX specify the kind of element (APA, CE for CE feed-through, TGrad for the feed-through of the temperature gradient monitor, etc), YY the position in the East-West direction (which is the beam direction) and ZZ the position in the North-South direction: ✔ Upstream (US), Midstream (MS), and Downstream (DS) will be used everywhere to specify the YY component of the label ✔ Beam Right (BR), and Beam Left (BL) will be used to specify the ZZ component of the label for APAs (as already established) ✔ DAQ Side (DaS), and Rack Side (RaS) wil be used to specify the ZZ component of the label for the feed-throughs ➢Racks in detector ground will be named according to whether they are in the Front (closest to the cryostat) or Back (farthest from the cryostat) row and with a numbering scheme going from upstream towards downstream

SLIDE 3

16/03/2017

R. Acciarri - ITI meeting

General Name Layout

DAQ Side (DaS) Rack Side (RaS) Upstream (US) Midstream (MS) Downstream (DS)

SLIDE 4

16/03/2017

R. Acciarri - ITI meeting

FTs and racks names

CE DS-RaS PD DS-RaS CE MS-RaS PD MS-RaS CE US-RaS PD US-RaS CE DS-DaS PD DS-DaS CE MS-DaS PD MS-DaS CE US-DaS PD US-DaS TGrad US-DaS TCryo MS-DaS TGrad DS-RaS TCryo DS-RaS PurMon HV FT

CE: Cold Electronics PD: Photon Detection System TGrad: Temperature probes for vertical gradient measurement TCryo: other temperature probes PurMon: Purity Monitor US: Upstream MS: Midstream DS: Downstream DaS: DAQ Side RaS: Rack Side Front: line of rack closest to the

cryostat. Numbering starts

upstream Rear: line of rack furthest from the cryostat. Numbering starts upstream

... ...

Front US 1 Front US 2 Front US 11 Front US 10 Rear US 1 Rear US 2 Rear US 10 Rear US 9

SLIDE 5

16/03/2017

R. Acciarri - ITI meeting

APA names

APA US-BL APA DS-BL APA MS-BL APA US-BR APA DS-BR APA MS-BR

... ...

Front US 1 Front US 2 Front US 11 Front US 10 Rear US 1 Rear US 2 Rear US 10 Rear US 9

... ...

Front US 1 Front US 2 Front US 11 Front US 10 Rear US 1 Rear US 2 Rear US 10 Rear US 9

APA: Anode Plane Assembly US: Upstream MS: Midstream DS: Downstream BL: Beam Left BR: Beam Right Front: line of rack closest to the

cryostat. Numbering starts

upstream Rear: line or rack furthest from the cryostat. Numbering starts upstream

SLIDE 6

16/03/2017

R. Acciarri - ITI meeting

Reason(ing)

➢FT and racks names will be mainly used during the installation phase, and to label and install cables – all occasions where people will be in EHN1 if not on the cryostat

roof. It is then useful to name them according to visible and clear reference points in

the building ➢APA names will instead be used – other than during the installation and cabling phase – also in slow control and online monitor plots, as well as during data

analysis. It will be important to relate the single APA to characteristics observed in

beam data, and such name convention will likely be used by remote people too, so it does make sense to choose a name which quickly identifies the APA position wrt the beam ➢The change of name convention moving from an APA to its FT should create no problem either during installation (being each FT right above its APA) or later, provided that good documentation will be realized
