Muon Collider Lattice Design Y. Alexahin (FNAL APC) MAP 2014 Winter Meeting, SLAC December 3-7, 2014 2 Design Goals High Luminosity (Higgs Factory L ~ 10 32 cm -2 s -1 , 3TeV MC L > 4 10 34 cm -2 s -1 ) round beams (to


slide-1
SLIDE 1

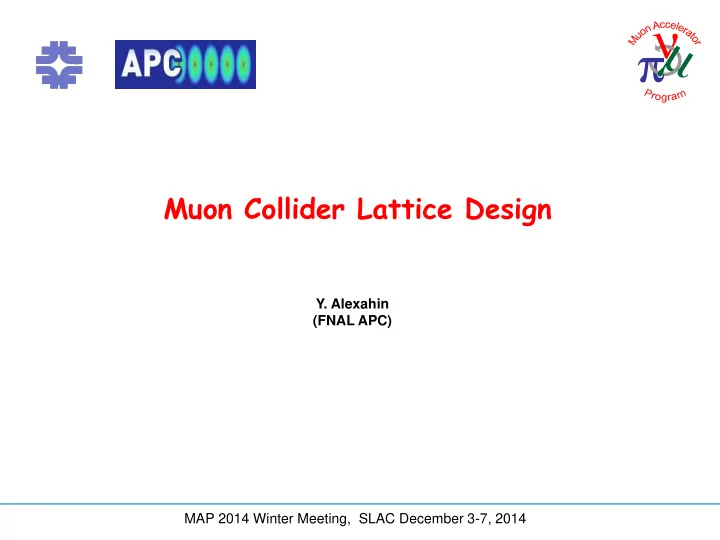

Muon Collider Lattice Design

MAP 2014 Winter Meeting, SLAC December 3-7, 2014

  • Y. Alexahin

(FNAL APC)

slide-2
SLIDE 2

Design Goals

2

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

 High Luminosity (Higgs Factory L ~ 1032cm-2s-1, 3TeV MC L > 41034cm-2s-1)  round beams (to minimize beam-beam effect)  small * (Higgs Factory * ~ 23 cm, 3TeV MC * ~ 35 mm)  small circumference  small bunch length s  * (high-energy MC)  momentum compaction factor ~ 10-5  Acceptable detector backgrounds  tight apertures in W absorbers (resistive wall instability?)  dipole component in FF quads  halo extraction (bent crystals?)  Manageable heat loads in magnets  enough space for W absorbers, shorter distance between masks  * variation in wide range (w/o breaking dispersion closure)  Small collision energy spread E /E  410-5 (for Higgs Factory)  instabilities? longitudinal beam-beam effect?  Safe levels of -induced radiation (for E  3 TeV)  no long straights (except for IRs)  combined-function magnets to spread ’s

slide-3
SLIDE 3

Basic Concepts

3

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

In the course of different versions of the Muon Collider (Higgs Factory, 1.5TeV, 3TeV) new solutions were found, two of them (IR chromaticity correction scheme and arccell design) can find application in machines other than MC:  Quadruplet Final Focus

 better detector protection from secondaries than with a triplet FF

 3-sextupole chromaticity correction scheme

 1st sextupole from IP corrects vertical chromaticity while 2nd and 3rd sextupoles form -I separated pair for horizontal correction

 New Flexible Momentum Compaction arccell design

 (large) negative momentum compaction factor, independent control of tunes, chromaticities, momentum compaction factor and its derivative with momentum

 *-tuning section with a chicane

 allows for * variation in a wide range and has bending field everywhere to spread decay ’s

All these solutions were incorporated in the latest 3TeV collider design

slide-4
SLIDE 4

x (inwards) By dipole component x (inwards) By dipole component

defocusing quad + dipole

 Dipole component in a defocusing quad is more efficient for cleaning purposes – it is beneficial to have the 2nd from IP quad defocusing  The last quad of the FF “telescope” also must be defocusing to limit the dispersion “invariant” generated by the subsequent dipole (not shown) – both requirement are met with either doublet or quadrupole FF:

focusing quad + dipole

Why Quadruplet Final Focus?

4

2 2 2

) (     

x x x x x x x x

D D D J     

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

slide-5
SLIDE 5

Quadruplet Final Focus

5

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

5 10 15 20 25 30 35 2 4 6 8

Q3 Q4 Q5 Q2 Q1 s(m) a(cm) 5x 5y Q4 Q6 Q4 Q5 Q5

Q1 Q2 Q3 Q4 Q5 Q6 aperture (mm) 90 110 130 150 150 150 G (T/m) 267 218

  • 154
  • 133

129

  • 128

B0 (T) 2 2 2 Bpole tip (T) 12.0 12.0 12.0 12.0 9.7 11.6 length (m) 1.6 1.85 1.8 1.96 2.3 2.85 Parameters of the Final Focus quadrupoles 5 sigma beam sizes and magnet inner radii

Quad inner radii satisfy requirement R > 5 max + 2 cm which guarantees that the beam will be in a good field region and provides enough space for absorber. The maximum pole tip field was increased up to 12 T. If this is not feasible, the apertures can be reduced: we do not need 5 for the beam scraped at 3. Maximum magnet aperture is noticeably reduced – 150mm vs 180mm – compared to the previous design based on a triplet FF and 10T pole tip field . A drawback of the quadruplet FF: high x in IR dipoles

slide-6
SLIDE 6

Chromaticity Correction

6

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

Issues with the 4-sextupole scheme:

 –I blocks themselves produce significant contribution to chromaticity  There is a strong uncompensated nonlinearity in centrifugal force  adverse effect on DA  Many elements at high-beta locations  high sensitivity to errors  Large positive contribution to the momentum compaction factor  a strain on the arc lattice which must compensate it

Very popular (but not yet realized) is the scheme with two –I blocks (J.Irwin et al., 1991). It can be called “4-sextupole scheme”. The latest example: 3TeV MC design developed at SLAC (M.-H. Wei et al.)

slide-7
SLIDE 7

Chromaticity Correction

7

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

Optical (top) and chromatic (bottom) functions at IR and chromaticity correction section

1 2 3 4 1 2 3 100 200 300 400 2000 2000 4000 6000 8000

) (

,

m DD W

x y x

x

y

 ) (m s

y

W

  • I

) ( ) (

,

m D m

x y x

 15 

x

D ) (m s 10 

x

DD

x

W

To address the above-mentioned issues a “3-sextupole scheme” was developed at FNAL. It uses just one sextupole (at each side of IP) for vertical chromaticity correction relying

  • n small x for aberration suppression.
slide-8
SLIDE 8

Arc Cell with Combined Function Magnets

8

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

Nested coil design

Motivation:  Spread decay ’s  Sweep away decay electrons before they depart from median plane – allows for azimuthally tapered absorber

SC QF4 QD3 QF2 SF QD1 SD

Magnet L(m) G(T/m) B(T) 4x(cm) 4y(cm) QD1 3.34

  • 31

9 1.41 0.23 QF2 4 85 8 1.80 0.07 QD3 5

  • 35

9 1.43 0.14 QF4 4 85 8 2.80 0.08

slide-9
SLIDE 9

Matching Section Design Goals

9

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014  Design IR-to-Arc matching / RF section which:

a) allows for * variation in wide range (3mm – 3cm) b) has enough space with low ’s and Dx for RF c) has no straights w/o bending field to spread ’s – all quads are combined- function magnets d) has a place with high x and low Dx for halo extraction (we can put special insertions in the arcs but this will increase C – higher costs, lower Lumi) Conditions a) and c) are difficult to reconcile: – if x changes at a bend then Dx will change all over the ring. – if we try to adjust the bending angles we will change the orbit. Possible solution: a chicane with variable B-field – no net bending angle, negligible variation in circumference (hopefully)

slide-10
SLIDE 10

Matching Section

10

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

3 5 4 4 5 5 2 4 6 8 1 3 5 4 4 5 5 2 4 6 8 1 1 2 3 5 4 4 5 5 2 2 4 6 8

Bchic=6.92T Bchic=3.33T arc Bchic=2.23T IR & CCS

chicane

) ( ) (

,

m D m

x y x

 10 

x

D

y

x

 ) (m s

x

 10 

x

D

y

 ) (m s

x

 10 

x

D

y

 ) (m s

*=3cm *=5mm *=3mm B-field in chicane is rather low, still it will require mechanical movement of the magnets when changing * Optics functions at large * look ugly (resulting in larger beam size) – further work is necessary!

slide-11
SLIDE 11

Momentum acceptance

11

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

0.006 0.004 0.002 0.000 0.002 0.004 0.006 18.55 18.60 18.65 18.70 18.75 18.80 18.85 18.90

p Q Qy Qx

0.006 0.004 0.002 0.002 0.004 0.006 0.1 0.2 0.3 0.4 0.5 0.6

y*

p

*(cm) x*

0.006 0.004 0.002 0.002 0.004 0.006 0.00008 0.00006 0.00004 0.00002

p c

Tunes, beta-functions at IP and the momentum compaction factor c vs relative momentum deviation p for *=5mm. Due to the possibility to control dc/dp the momentum compaction factor c can be made very small w/o compromising the momentum acceptance. It is not clear, however, how robust it is w.r.t. errors.

slide-12
SLIDE 12

Dynamic Aperture

12

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014 1024 turns on-momentum dynamic aperture at * =5 mm. Left: MAD8 LIE4, right: MADX PTC w/o fringe field (top) and with uncorrected fringe field (bottom). For nominal parameters * =3m. Previous experience showed that the fringe field effect can be almost completely corrected with dedicated multipole correctors.

200 400 600 800 1000 1200 200 400 600 800 1000 1200

 Ay

2(m)

 Ax

2(m)

slide-13
SLIDE 13

Lattice Parameters

13

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

Optics functions from IP to the end of the first arc cell (6 such cells / arc) for *=5mm

3TeV MC lattice parameters

Beam energy, TeV 1.5 Circumference, km 4.34 Number of IPs 2 *, cm 0.5 (0.3-5.0) Momentum compaction factor, 10-5

  • 0.88

Stable momentum range 0.7% Betatron tunes 18.60/18.54 Dynamic aperture for N=25m 6 RF voltage at 1.3 GHz, MV 85 Synchrotron tune 0.0012

slide-14
SLIDE 14

Summary

14

Muon Collider Design – Y.Alexahin, MAP14/Winter, SLAC 12/04/2014

 The design meets all goals promising luminosity 4.5e34 at *=5mm.  It can be improved – *-tuning section requires rather high B at *>1cm  No fringe-field compensation attempted yet – is not expected to be a problem  No halo extraction section – the hope is that with pre-collimated beam bent crystals will be enough  No study of effect of random errors and misalignments, especially on momentum compaction factor – actually a question of critical importance
